19 Component Feeding Component Changeover Table Technical Data Length Length with handles fold ed up 715 mm 881 mm Width 570 mm Height of bo ttom edge of table bed 680 mm for 830 mm PCB transport height 750 mm for 900 mm…
18

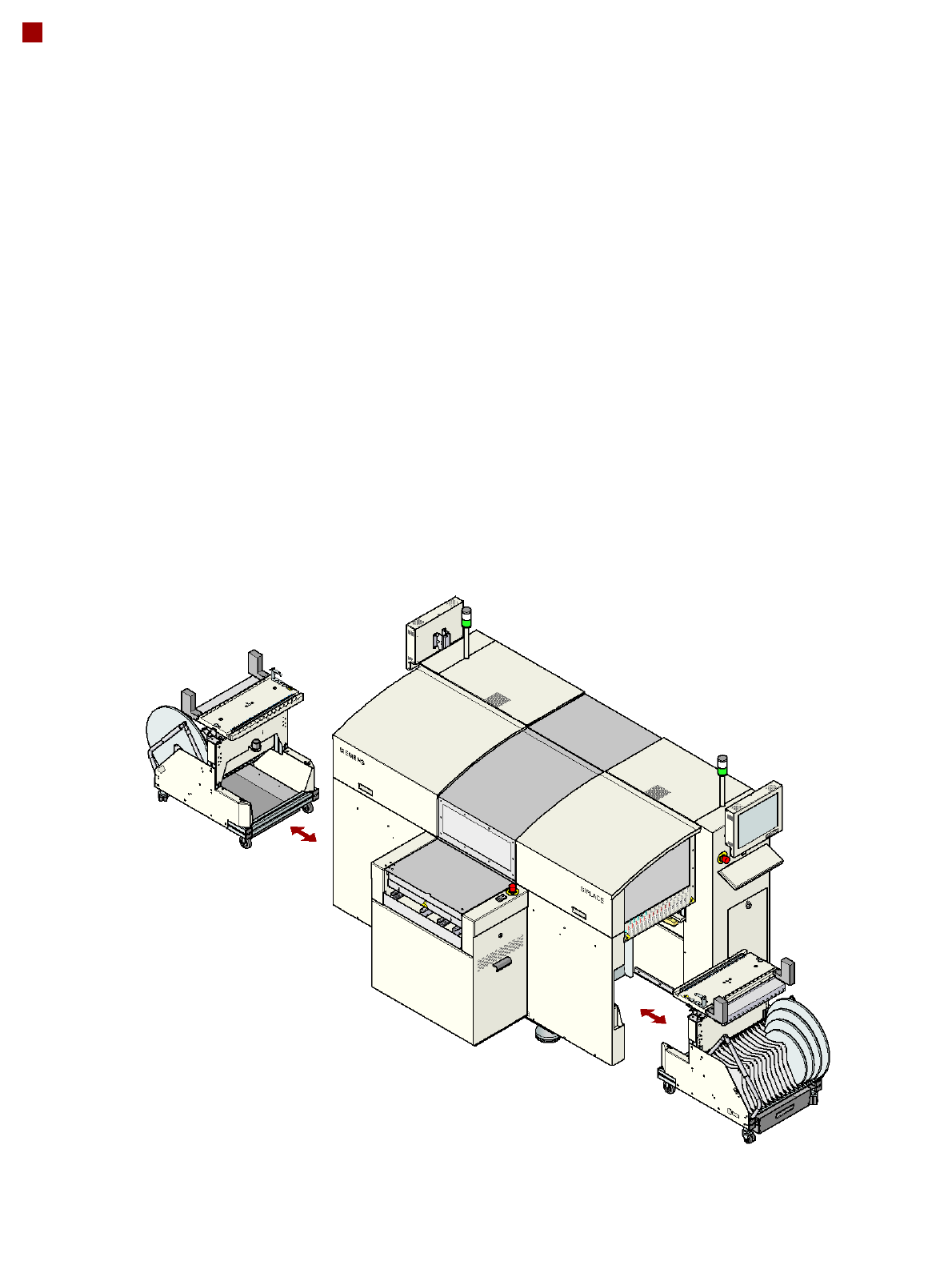

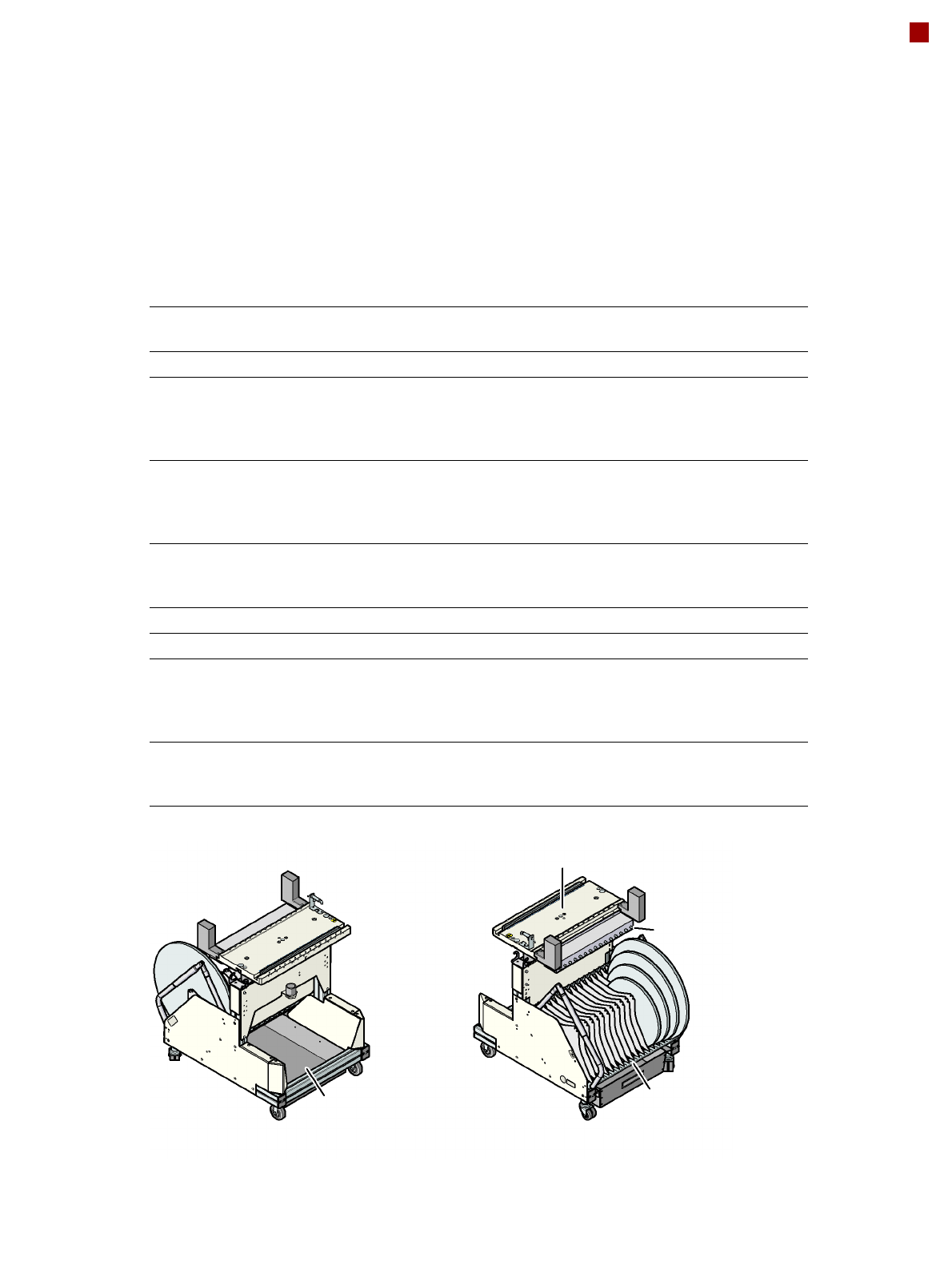

Component Feeding
Component Changeover Table
SIPLACE component
changeover tables are stand-
alone modules that are easy
to maneuver and can be
docked into the machine.
This ensures that the table is
accurately positioned in the
placement machine. Reels
are kept in the tape container
on the component change-
over table. A cutting device
on the machine automatically
cuts the used tape. The com-
ponent changeover tables
can be set up directly on the
machine or in an external
set-up area with feeder mod-
ules. The benefits of offline
set-up are that the set-ups
can be prepared without
stopping the line. This allows
the set-up to be changed
very quickly using the
changeover table principle.
The component feeders are
at rest during the placement
process, which means that
components can be refilled
and tapes may be spliced
without stopping the
machine. If an optional com-
ponent barcode reader and
the Setup Center option are
installed, it is possible to read
and check the barcodes on
the tape reels. This makes
sure that the component is
allocated to the right track,
and the PCB placement can
be traced using traceability
software.
Dummy feeder modules are
used at unassigned locations
to protect the operators.
19
Component Feeding
Component Changeover Table
Technical Data
Length
Length with handles folded up
715 mm
881 mm
Width 570 mm
Height of bottom edge of table
bed
680 mm for 830 mm PCB transport height
750 mm for 900 mm PCB transport height
780 mm for 930 mm PCB transport height
800 mm for 950 mm PCB transport height
Weight
without feeder modules
with feeder modules at all
locations
77.5 kg
132.0 kg
Reel diameter
standard
maximum
up to 432 mm (17")
483 mm (19")
Locations for feeder modules max. 15 (3 x 8 mm S)
Changeover time < 1 minute
Component feeding 2 CO changeover tables with tape reel holders and integral
waste containers
15 locations, each 30 mm wide, for each component
changeover table
Feeder module types Tapes, bulk cases, stick magazines, dip module, OEM
feeder modules (surf tape, component disposal module,
label feeder modules, inline programming feeder modules)
Component feeder table
Waste container
for remaining empty tape
Tape container
Communication-
unit
20

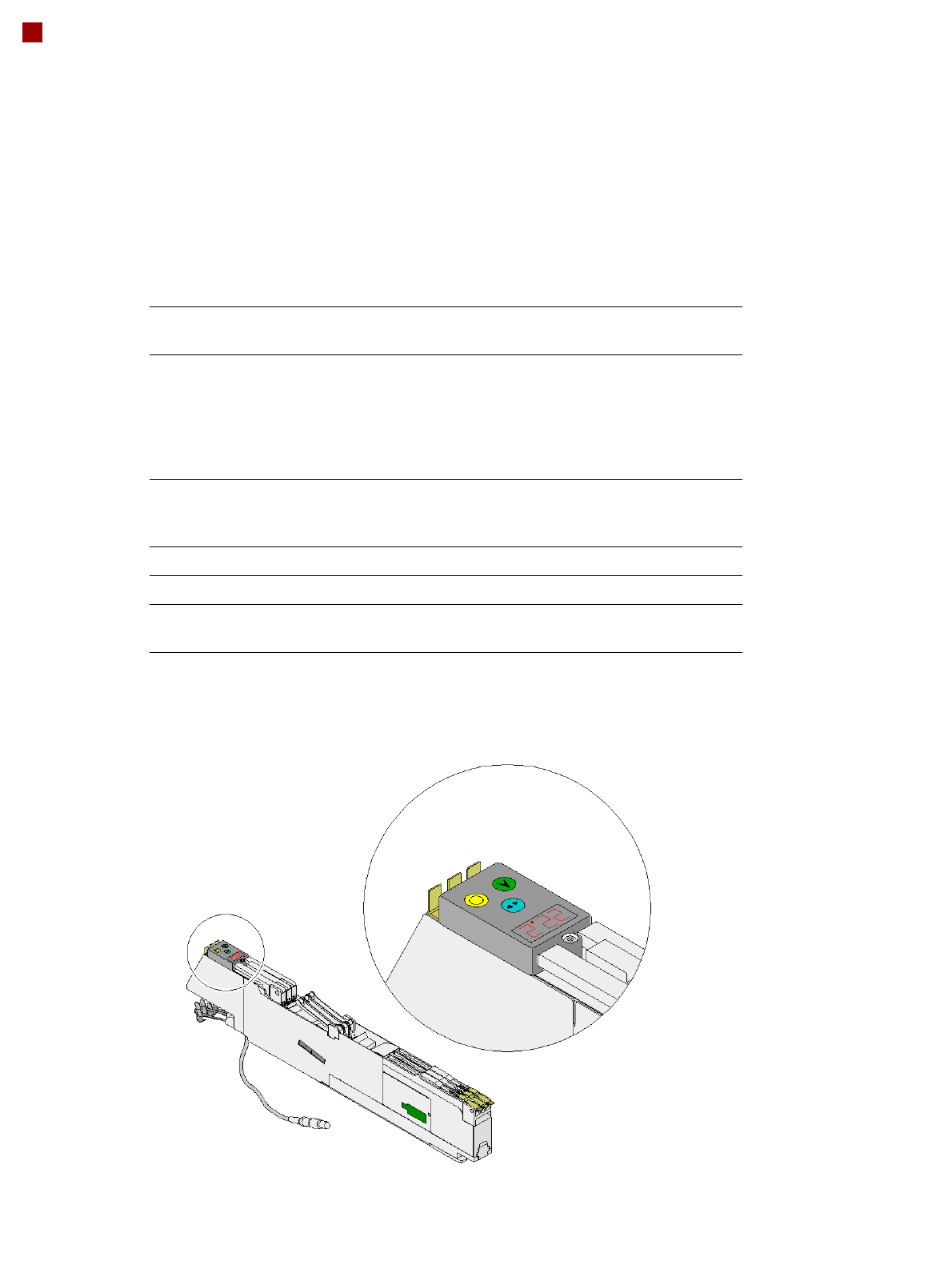

Component Feeding
S Tape Feeder Modules
Packaging Feeder module Width Loca-
tions
Transport
distance
Max.
CO height
Paper and
plastic tapes
2 x 8 mm S
a
3 x 8 mm S
a
3 x 8 mm S 01005
b
3 x 8 mm S 0201
c
3 x 8 mm SL
d
1 x 12/16 mm S
a) Fiducial for feeder module position recognition
b) for 01005, 0201 and 0402 in paper tapes
c) For 0201 and 0402 in paper tapes
d) SL = Shutterless, from 0201 in paper or blister tapes
30.6 mm
30.6 mm
30.6 mm
30.6 mm
30.6 mm
30.3 mm
1
1
1
1
1
1
2/4 mm
2/4/8 mm
2/4 mm
2/4 mm
2/4/8 mm
4/24 mm
e
e) Variable in 4 mm increments
2.5 mm
f
2.5 mm
0.7 mm
0.7 mm
2.5 mm
14 mm
f
f) PSA Kit available as an option
Blister tapes 1 x 24/32 mm S
1 x 44 mm S
1 x 56 mm S
42.4 mm
54.6 mm
66.6 mm
1.5
2
2.5
4/40 mm
e
4/52 mm
e
4/68 mm
e
14 mm
14 mm
14 mm
Tape reels 178 - 483 mm diameter (7" - 19")
Cycle S feeder modules up to 20 mm transport distance < 150 ms
Changeover
time
15 s
