Machine Performance

Incredibly fast new prod-

uct introduction (NPI) with

external set-up preparation

and vision teaching

The SIPLACE D2 really

comes into its own in flexible

production environments.

For example, NPI can be

implemented as fast as pos-

sible with the SIPLACE Vir-

tual Product Build. This NPI

solution allows you to pro-

gram offline, set up and

check offline and to make

adjustments offline with the

SIPLACE Pro software.

This increases machine utili-

zation and reduces waste.

And with respect to the cur-

rent production run, the

SIPLACE vision teaching

station also makes it

extremely simple and fast to

generate component shape

descriptions, even for com-

plex components. The set-up

process starts once you have

optimized the product and

defined all the components in

the programming system.

This is also done externally

and then checked by means

of the barcode and data

transfer. This makes the

product change child's play:

the program and all the data

are sent to the line and the

new production run can start.

It just can't get any faster!

Lowest dpm with set-up

verification, sophisticated

sensors and AOI

The highest machine quality

allows the SIPLACE D2 to

produce the highest product

quality. This is guaranteed by

a number of additional

features.

Sensors check the presence

and position of the compo-

nents before and after every

pick-up and placement oper-

ation at the placement head.

The digital SIPLACE Vision

System detects the com-

ponents faster and more

reliably than the old analog

technology. Finally, with

SIPLACE OS, the SIPLACE

team is offering an AOI

(Automatic Optical Inspec-

tion) device that checks the

products and signals errors

to the placement machine.

This network of tests consid-

erably lowers dpm rates and

increases the first pass yield.

Types of placement

head

12-nozzle Collect&Place head (C&P12)

6-nozzle Collect&Place head (C&P6)

PLEASE NOTE IPC value [comp./h]

According to the vendor-neutral conditions of the IPC 9850 standard pub-

lished by the Association of Connecting Electronics Industries.

SIPLACE Benchmark value [comp./h]

The SIPLACE benchmark value is measured during the machine acceptance

tests. It corresponds to the conditions set out in the SIPLACE scope of

service and supply.

Theoretical maximum output value [comp./h]

The theoretical maximum output value is calculated from the most favorable

conditions for each machine type and setting, and corresponds to the theor-

etical conditions normally used in the industry.

Number of gantries 2

IPC value Benchmark value Theoretical value

Placement head

configuration and

placement head rate

C&P12 /

C&P12

C&P12 / C&P6

C&P6 / C&P6

27,200

20,900

16,500

31,000

23,000

19,500

40,500

32,000

23,000

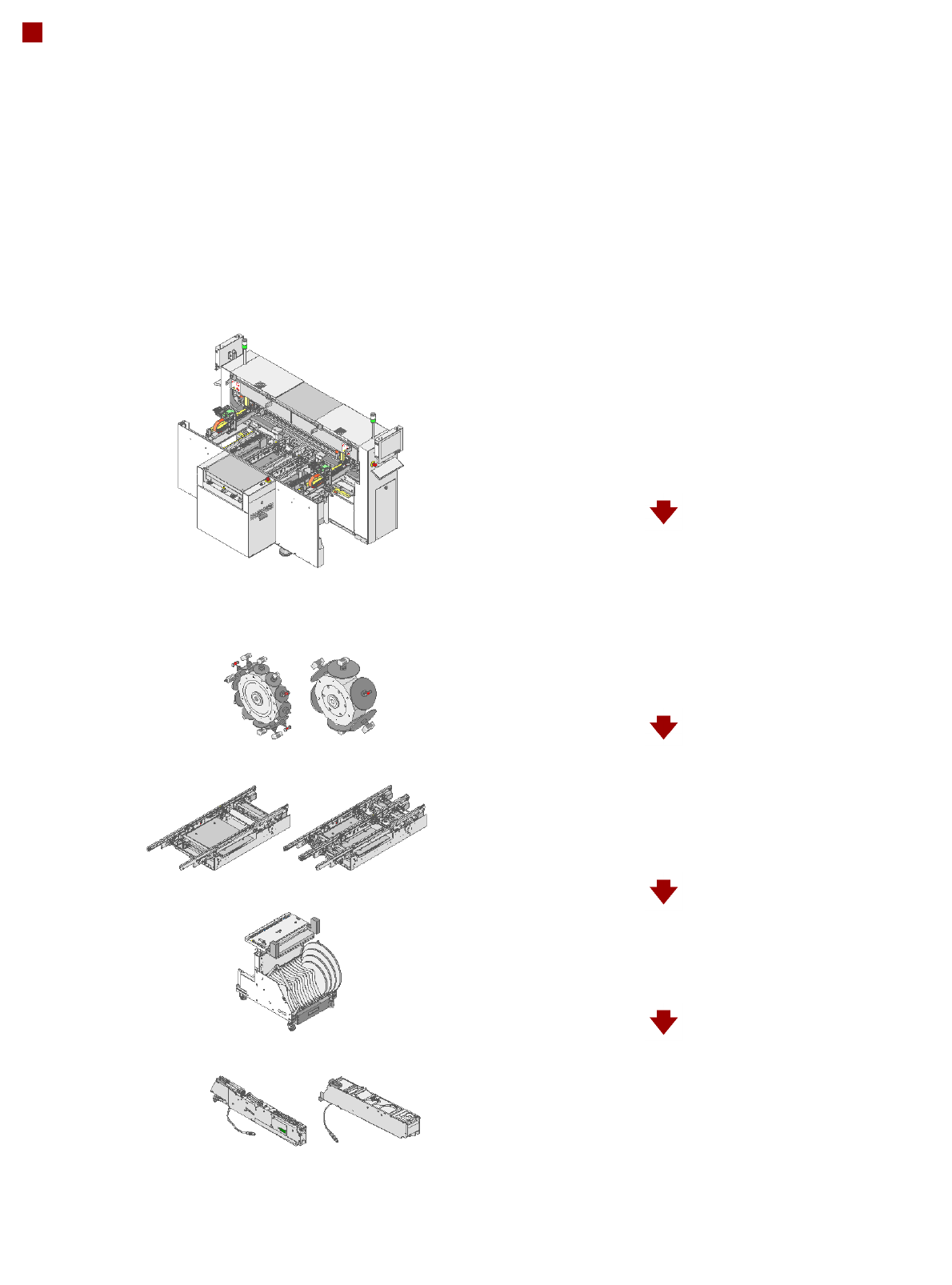

Modular Machine Concept

Step 1: Placement system with 2 gantries

Step 2: Selection of the placement heads

12-nozzle C&P head

6-nozzle C&P head

Step 3: Selection of the conveyor

Single conveyor

Flexible dual conveyor

Step 4: Selection of the

component changeover table

Step 5: Selection of the feeder modules

S tape feeder modules

Modular Machine Concept

Sample Configuration

BZ Buffer zone

C&P Collect&Place head

COT Component changeover table

G1 Gantry 1

G2 Gantry 2

NCH

C&P

Nozzle changer for the C&P

head

OP Operator panel

PA Placement area

COT

NCH C&P

COT

C&P

OP OP

NCH C&P

C&P G2 G1
