1 6 Nozzle Changer (Nor) Nozzle Changer KGB-1002 8 10 13 12 15 13 9 14 7 1 1 16 1 2 3 4 19 5 6 6 17 18 20 20 22 21 10 23 23 24 24 25 26 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KV8-M…
3
5

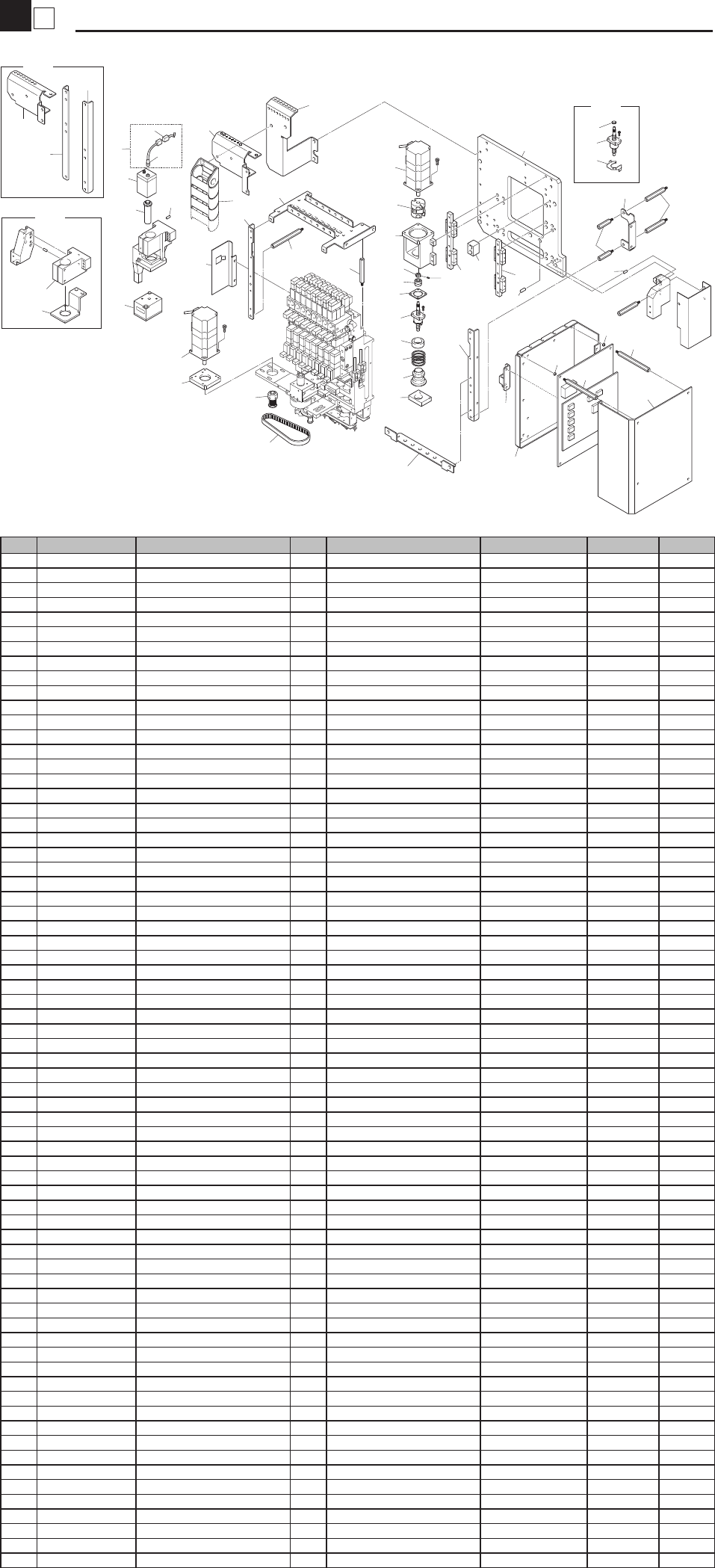

Head Combination
Head
KGB-1107
36
OLD
6
21
48
40
41
34
34
2
13
12
42
8
9
3
18
33
33
32
1
45
44
43
16
17
15
4
7
31
28
39
38
35
35
14
7
49
20
10
37
30
30
24
47
29
22
26
27
23
19
5
38
25
50
OLD
OLD
11
4
46
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGB-M7102-00X PLATE HEAD 1
2 KV8-M7118-00X SPG. MAIN 1
3 KV8-M7125-00X FLANGE MOTOR 1
4 KV8-M7128-00X BALL SCREW Z 1
4-1 KV8-M7128-A0X BALL SCREW Z ASSY. 1 With / No.46 (2004/1/5) M3Y0102 NG
5 KV8-M7129-01X HOLDER 1,BEARING 1
5-1 KGT-M7129-00X HOLDER 1,BEARING 1 7000ADF (2003/7/9) M370042 OK
6 KV8-M7130-00X PLATE BEARING 1
7 KV8-M7136-00X GUIDE, Z AXIS 1
8 KGB-M7137-00X BELT R, MOTOR 1
9 KGB-M7139-00X PULLEY, MOTOR 1
10 KV8-M7145-00X DAMPER, Z SCREW 1
11 KV8-M71V6-00X WASHER 1
11-1 Delete (2004/9/20) MA90072
12 KV8-M71Y7-00X HOLDER, BLOCK Z 1
13 KV8-M71Y8-00X BRACKET, SPRING 1
14 KJ2-M7151-01X DUMPER, Z GUIDE 1
15 KG2-M7141-00X BEARING 1 7000ADF
15-1 90990-26J002 BEARING 1 (2007/12/6) MDX0068 OK
16 KU4-M7120-00X COUPLING 1
17 KG2-M9173-00X LOCK NUT 1
18 90K55-4W073R AC SERVO MOTOR 1
19 90K55-4W074Z AC SERVO MOTOR 1
20 99480-04012 PIN PARALLEL 8 4X12
21 KGA-M7210-01X CCD CAMERA 1
22 KV7-M7211-00X LENS 095 1
23 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1
24 KGA-M66F4-00X C.CABLE ASSY 1 1.7M
25 KGA-M66F2-00X C.CABLE ASSY 1 6M
26 KV8-M7133-00X HOLDER,CAMERA 1
27 KV8-M7135-00X STAY,FID.LIGHT 1
27-1 Delete (2002/7/11) M270025
28 KV8-M71W1-00X PLATE,I/O BOARD 1
28-1 KV8-M71W1-10X PLATE,I/O BOARD 1 (2005/7/27) MB70136 OK
29 KV8-M71W2-01X STAY 1, CABLE 1
30 KGB-M71W3-00X STAY 2, CABLE 1
30-1 KGB-M71W3-10X STAY 2, CABLE 1 NG
31 KV8-M71W5-00X STAY 2, I/O BOARD 1
32 KGB-M71W7-00X BRACKET TOP 1
33 KGB-M71W8-00X BRACKET R 1
33-1 KHM-M71W8-10X BRACKET R 1 NG
34 KV8-M71W9-00X BRACKET L 1
34-1 KHM-M71W9-10X BRACKET L 1 NG
35 KV8-M71WC-00X BOLT,SPACER 4 M3-50MM
35-1 90990-05J012 SPACER BOLT 4 (2007/11/12) MD00058 OK
36 KV8-M71WF-00X BOLT,SPACER 2 M4-75MM
36-1 90990-05J013 SPACER BOLT 2 (2007/11/12) MD00058 OK
37 KV8-M71WG-00X BOLT,SPACER 2 M4-70MM
37-1 90990-05J014 SPACER BOLT 2 (2007/11/12) MD00058 OK
38 90562-03J100 SPACER 4 M3X10
39 KGB-M71WJ-00X COVER, I/O BOARD 1
40 KV8-M71WK-00X GUIDE CABLE 1
41 KGB-M71WL-00X COVER, HARNESS 1
42 KV8-M71WA-00X BRACKET, HNS 2
43 KGB-M71WR-00X BRACKET, I/O PLATE 1
44 KGB-M71WS-00X BOLT,SPACER 2 M4-30MM
44-1 90990-05J008 SPACER BOLT 2 (2007/11/12) MD00058 OK
45 KGB-M71WT-00X BOLT,SPACER 2 M4-43MM
45-1 90990-05J009 SPACER BOLT 2 (2007/11/12) MD00058 OK
46 KV8-M71YC-00X HOLDER,Z SPRING 1
46-1 KV8-N71YC-01X HOLDER,Z SPRING 1 (2002/6/27) M260080 OK
46-2 Delete (2004/1/5) M3Y0102
47 99480-04010 PIN PARALLEL 8 4X10
48 KGA-M66F6-00X C,CABLE ASSY 1 7,7
49 92A08-04305 SET SCREW 1 4X5
50 99480-04012 PIN,PARALLEL 6
50-1 99480-04012 PIN,PARALLEL 8 (2001/2/1) M110143 OK
50-2 99480-04012 PIN,PARALLEL 6 (2001/7/11) M170068 OK
50-3 99480-04012 PIN,PARALLEL 4 (2004/1/23) M410108 OK
1
6
Nozzle Changer (Nor)
Nozzle Changer
KGB-1002
8
10
13
12
15
13
9
14
7
11
16
1
2
3
4
19
5
6
6
17
18
20
20
22
21
10
23
23
24
24
25
26
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M9601-00X HOLDER, ANC. 1
2 KV8-M9602-00X PLATE, CLAMP 1
3 KM1-M9603-01X PLATE, JOINT CYL. 1
4 KV8-M9604-00X JOINT CYL. 1
5 KM1-M9605-02X CYLINDER CLAMP 1
5-1 KM1-M9605-03X CYLINDER,CLAMP 1 (2001/7/3) M160180 OK
6 KV8-M9606-00X GUIDE PLATE CLMP 2
7 KM1-M9607-01X PLATE HOLDER 1
7-1 KM1-M9607-02X PLATE HOLDER 1 (2008/10/30) ME00092 NG
8 KM1-M9608-01X PLATE GUIDE 1
8-1 KM1-M9608-02X PLATE GUIDE 1 (2008/10/30) ME00092 NG
9 KM1-M9609-01X PLATE BASE 1
9-1 KM1-M9609-02X PLATE BASE 1 (2008/10/30) ME00092 NG
10 KM1-M9610-00X GUIDE 2
11 KM1-M9611-02X CYLINDER U/D 1
11-1 KM1-M9611-03X CYLINDER,U/D 1 (2001/7/3) M160180 OK
12 KM1-M9612-00X JOINT CYL.U/D 1
13 KM1-M9613-01X PLATE GUIDE STOP 2
14 KV8-M9614-00X BASE, ANC 1
15 KM1-M9615-00X ROD ADJUST 1
16 KH5-M655A-A1X SENSOR 1-1 18
17 KM0-M9608-00X NEEDLE PIN 28
17-1 90990-19J004 NEEDLE PIN 28 (2001/12/25) M1Y0079 OK
18 KV8-M9621-00X BASE, NOZZLE D 4
19 KH5-M655A-02X FIBER 1 Spare Parts
20 $SC4-M5A SPEED CONTROLLER 4
21 K40-M7133-00X DAMPER 3 2
22 KG2-M8582-40X VALVE 1
23 91312-03008 BOLT HEX, SOCKET HEAD 6 M3X8
23-1 91312-03010 BOLT HEX, SOCKET HEAD 6 M3X10 (2008/10/30) ME00092 NG
24 91312-03005 BOLT HEX, SOCKET HEAD 2 M3X5
24-1 91312-03008 BOLT HEX, SOCKET HEAD 2 M3X8 (2008/10/30) ME00092 NG
25 91312-05014 BOLT HEX, SOCKET HEAD 4 M5X14
25-1 91312-05016 BOLT HEX, SOCKET HEAD 4 M5X16 (2008/10/30) ME00092 NG
26 91312-04012 BOLT HEX, SOCKET HEAD 2 M4X12
26-1 91312-04014 BOLT HEX, SOCKET HEAD 2 M4X14 (2008/10/30) ME00092 NG
2
6
Nozzle Changer (FNC)
Nozzle Changer
KGB-0712
10
8
13
12
15
13
9
14
7
11
16
1
2
3
4
19
5
6
6
17
18
20
20
22
21
10
23
23
24
24
25
26
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M9601-00X HOLDER, ANC. 1
2 KV8-M9602-00X PLATE, CLAMP 1
3 KM1-M9603-01X PLATE, JOINT CYL. 1
4 KV8-M9604-00X JOINT CYL. 1
5 KM1-M9605-02X CYLINDER CLAMP 1
5-1 KM1-M9605-03X CYLINDER,CLAMP 1 (2001/7/3) M160180 OK
6 KV8-M9606-00X GUIDE PLATE CLMP 2
7 KM1-M9607-01X PLATE HOLDER 1
7-1 KM1-M9607-02X PLATE HOLDER 1 (2008/10/30) ME00092 NG
8 KM1-M9608-01X PLATE GUIDE 1
8-1 KM1-M9608-02X PLATE GUIDE 1 (2008/10/30) ME00092 NG
9 KM1-M9609-01X PLATE BASE 1
9-1 KM1-M9609-02X PLATE BASE 1 (2008/10/30) ME00092 NG
10 KM1-M9610-00X GUIDE 2
11 KM1-M9611-02X CYLINDER U/D 1
11-1 KM1-M9611-03X CYLINDER,U/D 1 (2001/7/3) M160180 OK
12 KM1-M9612-00X JOINT CYL.U/D 1
13 KM1-M9613-01X PLATE GUIDE STOP 2
14 KV8-M9614-00X BASE, ANC 1
15 KM1-M9615-00X ROD ADJUST 1
16 KH5-M655A-A1X SENSOR 1-1 18
17 KM0-M9608-00X NEEDLE PIN 28
17-1 90990-19J004 NEEDLE PIN 28 (2001/12/25) M1Y0079 OK
18 KV8-M9621-00X BASE, NOZZLE D 4
19 KH5-M655A-02X FIBER 1 Spare Parts
20 SC4-M5A SPEED CONTROLLER 4
21 K40-M7133-00X DAMPER 3 2
22 KG2-M8582-40X VALVE 1
23 91312-03008 BOLT HEX, SOCKET HEAD 6 M3X8
23-1 91312-03010 BOLT HEX, SOCKET HEAD 6 M3X10 (2008/10/30) ME00092 NG
24 91312-03005 BOLT HEX, SOCKET HEAD 2 M3X5
24-1 91312-03008 BOLT HEX, SOCKET HEAD 2 M3X8 (2008/10/30) ME00092 NG
25 91312-05014 BOLT HEX, SOCKET HEAD 4 M5X14
25-1 91312-05016 BOLT HEX, SOCKET HEAD 4 M5X16 (2008/10/30) ME00092 NG
26 91312-04012 BOLT HEX, SOCKET HEAD 2 M4X12
26-1 91312-04014 BOLT HEX, SOCKET HEAD 2 M4X14 (2008/10/30) ME00092 NG
