3 7 Nozzle Selection (9X Series) Nozzle KGB-0712 7 9 6 5 8 10 T ype92A T ype72A T ype76A/86A/96A T ype74A/84A/94A 1 2 3 T ype91F T ype92F T ype91A T ype73F/93F 4 No. Part No. Part Name Q'ty Remarks Date of change Re…
2
7
Nozzle Selection (FNC)
Nozzle
KGB-101208
1
4
2
5
6
8
Type71F Type72F
11
Type79F
9
10
Type73F
10
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F
1-1 KV8-M71N1-A1X NOZZLE 71F ASSY. 1 (2004/8/2) MA70130 OK
2 KV8-M71U5-00X SCREW 2
2-1 90990-08J012 SCREW,PAN HEAD 2 (2007/11/9) MD00082 OK
3
4 KV8-M71U7-00X SPRING 1
5 KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F
5-1 KV8-M71N2-A1X NOZZLE 72F ASSY. 1 (2004/8/2) MA70130 OK
6 KV8-M71U5-00X SCREW 2
6-1 90990-08J012 SCREW,PAN HEAD 2 (2007/11/9) MD00082 OK
7
8 KV8-M71U7-00X SPRING 1
9 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
10 KV8-M71U5-00X SCREW 2
10-1 90990-08J012 SCREW,PAN HEAD 2 (2007/11/9) MD00082 OK
11 KV8-M87WK-A0X CIRCLE NOZZLE 7F 1
11-1 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F (2004/8/2) MA70130 OK
3
7

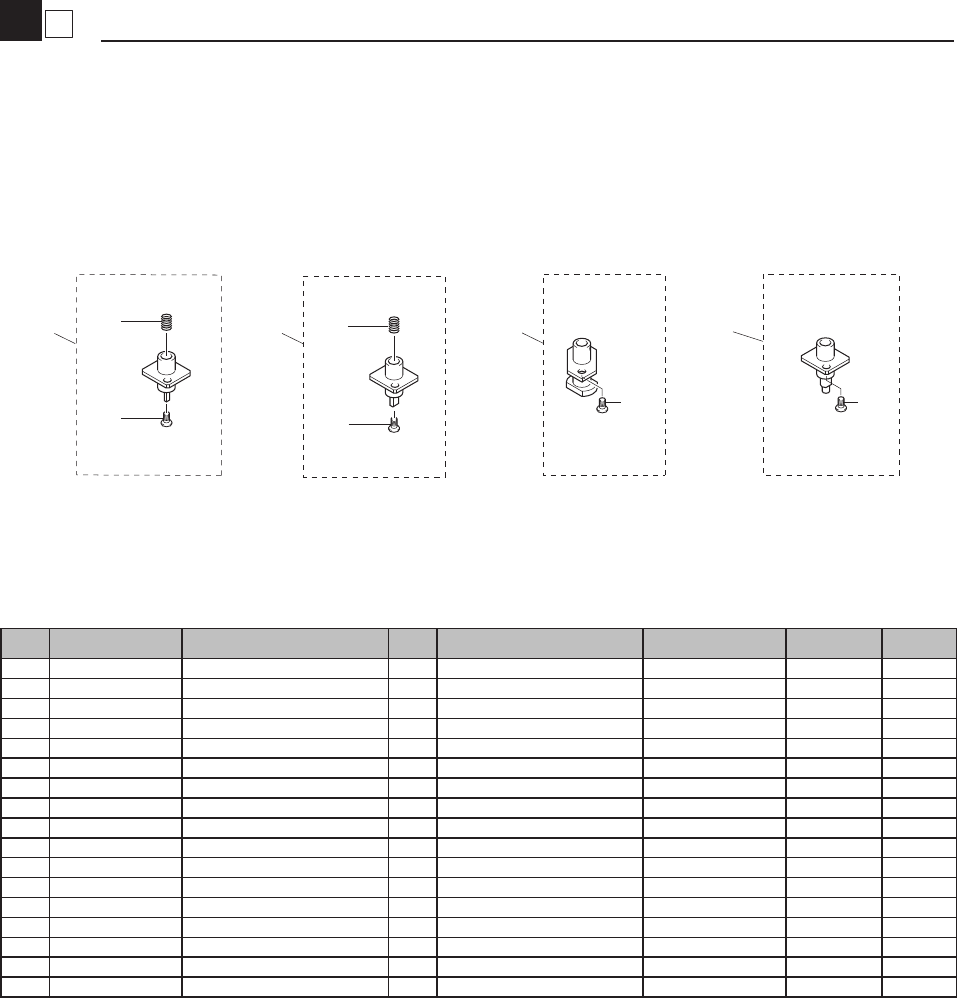

Nozzle Selection (9X Series)
Nozzle
KGB-0712
7
9
6
5
8
10
Type92A Type72A Type76A/86A/96AType74A/84A/94A
1
2
3
Type91F Type92F
Type91A
Type73F/93F
4
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M771F-A0X NOZZLE 91F ASSY. 1
2 KV8-M772F-A0X NOZZLE 92F ASSY. 1
3 KV8-M71N3-A0X NOZZLE 73F/93F ASSY. 1
4 KV8-M771A-A0X NOZZLE 91A ASSY. 1
5 KV8-M772A-A0X NOZZLE 92A ASSY. 1
6 KV8-M7730-00X NOZZLE 73A/83A/93A ASSY. 1
7 KV8-M7740-A0X NOZZLE 74A/84A/94A ASSY. 1
8 KV8-M7741-00X NOZZLE 74A/84A/94A 1
9 90990-17J013 O-RING 5
10 KV8-M7760-00X NOZZLE 76A/86A/96A ASSY. 1

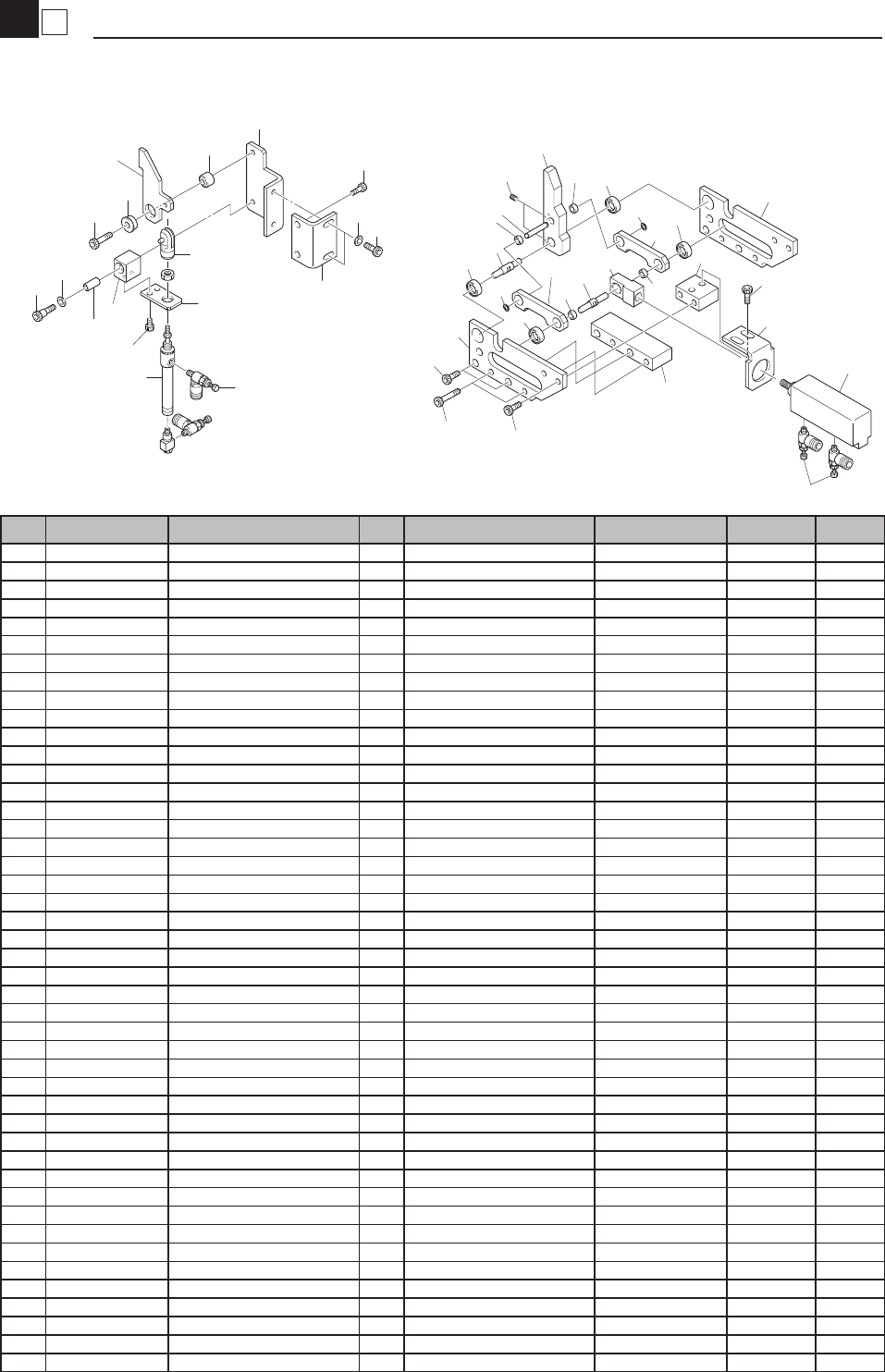

1
8
Push-in
Conveyor
KGB-081015
1
2
9
12
4
5
13
13
16
16
15
6
7
3
10
11
Push in L&R Push in ATS
8
14
17
18
18
19
19
20
21
31
32
31
31
22
23
29
30
24
25
33
34
34
28
28
28
28
26
27
27
27
27
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M9221-00X PLATE PUSH IN 1
2 KV7-M9222-00X BRACKET,PUSH IN 1 t=3.2
2-1 KV7-M9222-01X BRACKET,PUSH IN 1 t=2.0 2006/4/14 MC10050 NG
3 KV7-M9223-00X HOLDER CYL. 1
4 KV7-M9224-00X
COLLAR
1 L=6.5
4-1 KV7-M9224-01X COLLAR 1 L=7.5 2006/5/11 MC20101 Set
5 KV7-M9225-00X BRACKET,HOLDER 1 t=3.2
5-1 KV7-M9225-01X BRACKET,HOLDER 1 t=2.0 2006/4/14 MC10050 NG
6 KV7-M9226-00X COLLAR,HOLDER CYL. 1
6-1 90990-41J061
COLLAR 1
(2008/4/17) ME20197
OK
7 KV7-M9227-00X BLOCK,COLLAR 1
7-1 KV7-M9227-01X BLOCK,COLLAR 1 2006/5/11 MC20101 Set
8 90933-03J694 BRG 1 F694ZZ
9 KG7-M9166-00X CYLINDER 1
10 KJ9-M177F-10X Y-KNUCKLE 1
10-1 KJ9-M177F-11X Y-KNUCKLE 1 (2005/11/3) MB00121 OK
11 $SC4-M5A SPEED CONTROLLER 2
12 91317-04006 BOLT HEX. SOCKET HEAD 2
13 91317-04008 BOLT HEX. SOCKET HEAD 2
14 91317-04014 BOLT HEX. SOCKET HEAD 1
15 91317-04016 BOLT HEX. SOCKET HEAD 1
16 92907-04200 WASHER PLAIN 2
16-1 92907-04600 WASHER,PLAIN (S) 3 (2004/7/28) MA70122 OK
17 KV8-M9221-00X PLATE,PUSH IN 1
18 KV8-M9222-00X PLATE,BRACKET 2
19 KV8-M9223-00X PLATE,LINK 2
20 KV8-M9224-00X JOINT,CYLINDER 1
21 KV8-M9225-00X SPACER 1 1
22 KV8-M9226-00X SPACER 2 1
23 KV8-M9227-00X BRACKET,CYLINDER 1
24 KV8-M9228-00X PIN 1 1
25 KV8-M9229-00X PIN 2 1
26 KV8-M922A-00X PIN 3 1
27 KV8-M922B-00X BEARING(WF684ZZ) 4
27-1 90933-03J684 BEARING 4 (2001/7/6) M170026 OK
28 KV8-M922D-00X DRY,MET(80B-0403) 4
29 KV8-M922E-00X CYLINDER NDA10-30 1
30 $SC4-M5A SPEED CONTROLLER 2
31 91317-03008 BOLT HEX.SOCKET HEAD 10
32 91317-03025 BOLT HEX.SOCKET HEAD 2
33 92A08-03004 SET SCREW M3X4 2
33-1 92A08-03304 SET SCREW 2 (2001/9/21) M190079 OK
34 99009-03600 CIRCLIP : 2
34-1 99002-03600 CIRCLIP (E) 2 (2006/2/17) MBY0200 OK
34-2
90440-01J030 CIRCLIP(E) 2 (2008/6/16) ME60086 OK
