1 8 Push-in Conveyor KGB-081015 1 2 9 12 4 5 13 13 16 16 15 6 7 3 10 1 1 Push in L&R Push in A TS 8 14 17 18 18 19 19 20 21 31 32 31 31 22 23 29 30 24 25 33 34 34 28 28 28 28 26 27 27 27 27 No. Part No. Part Name Q&a…
3
7
Nozzle Selection (9X Series)
Nozzle
KGB-0712
7
9
6
5
8
10
Type92A Type72A Type76A/86A/96AType74A/84A/94A
1
2
3
Type91F Type92F
Type91A
Type73F/93F
4
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M771F-A0X NOZZLE 91F ASSY. 1
2 KV8-M772F-A0X NOZZLE 92F ASSY. 1
3 KV8-M71N3-A0X NOZZLE 73F/93F ASSY. 1
4 KV8-M771A-A0X NOZZLE 91A ASSY. 1
5 KV8-M772A-A0X NOZZLE 92A ASSY. 1
6 KV8-M7730-00X NOZZLE 73A/83A/93A ASSY. 1
7 KV8-M7740-A0X NOZZLE 74A/84A/94A ASSY. 1
8 KV8-M7741-00X NOZZLE 74A/84A/94A 1
9 90990-17J013 O-RING 5
10 KV8-M7760-00X NOZZLE 76A/86A/96A ASSY. 1
1
8
Push-in
Conveyor
KGB-081015
1
2
9
12
4
5
13
13
16
16
15
6
7
3
10
11
Push in L&R Push in ATS
8
14
17
18
18
19
19
20
21
31
32
31
31
22
23
29
30
24
25
33
34
34
28
28
28
28
26
27
27
27
27
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M9221-00X PLATE PUSH IN 1
2 KV7-M9222-00X BRACKET,PUSH IN 1 t=3.2
2-1 KV7-M9222-01X BRACKET,PUSH IN 1 t=2.0 2006/4/14 MC10050 NG
3 KV7-M9223-00X HOLDER CYL. 1
4 KV7-M9224-00X
COLLAR
1 L=6.5
4-1 KV7-M9224-01X COLLAR 1 L=7.5 2006/5/11 MC20101 Set
5 KV7-M9225-00X BRACKET,HOLDER 1 t=3.2
5-1 KV7-M9225-01X BRACKET,HOLDER 1 t=2.0 2006/4/14 MC10050 NG
6 KV7-M9226-00X COLLAR,HOLDER CYL. 1
6-1 90990-41J061
COLLAR 1
(2008/4/17) ME20197
OK
7 KV7-M9227-00X BLOCK,COLLAR 1
7-1 KV7-M9227-01X BLOCK,COLLAR 1 2006/5/11 MC20101 Set
8 90933-03J694 BRG 1 F694ZZ
9 KG7-M9166-00X CYLINDER 1
10 KJ9-M177F-10X Y-KNUCKLE 1
10-1 KJ9-M177F-11X Y-KNUCKLE 1 (2005/11/3) MB00121 OK
11 $SC4-M5A SPEED CONTROLLER 2
12 91317-04006 BOLT HEX. SOCKET HEAD 2
13 91317-04008 BOLT HEX. SOCKET HEAD 2
14 91317-04014 BOLT HEX. SOCKET HEAD 1
15 91317-04016 BOLT HEX. SOCKET HEAD 1
16 92907-04200 WASHER PLAIN 2
16-1 92907-04600 WASHER,PLAIN (S) 3 (2004/7/28) MA70122 OK
17 KV8-M9221-00X PLATE,PUSH IN 1
18 KV8-M9222-00X PLATE,BRACKET 2
19 KV8-M9223-00X PLATE,LINK 2
20 KV8-M9224-00X JOINT,CYLINDER 1
21 KV8-M9225-00X SPACER 1 1
22 KV8-M9226-00X SPACER 2 1
23 KV8-M9227-00X BRACKET,CYLINDER 1
24 KV8-M9228-00X PIN 1 1
25 KV8-M9229-00X PIN 2 1
26 KV8-M922A-00X PIN 3 1
27 KV8-M922B-00X BEARING(WF684ZZ) 4
27-1 90933-03J684 BEARING 4 (2001/7/6) M170026 OK
28 KV8-M922D-00X DRY,MET(80B-0403) 4
29 KV8-M922E-00X CYLINDER NDA10-30 1
30 $SC4-M5A SPEED CONTROLLER 2
31 91317-03008 BOLT HEX.SOCKET HEAD 10
32 91317-03025 BOLT HEX.SOCKET HEAD 2
33 92A08-03004 SET SCREW M3X4 2
33-1 92A08-03304 SET SCREW 2 (2001/9/21) M190079 OK
34 99009-03600 CIRCLIP : 2
34-1 99002-03600 CIRCLIP (E) 2 (2006/2/17) MBY0200 OK
34-2
90440-01J030 CIRCLIP(E) 2 (2008/6/16) ME60086 OK
2
8

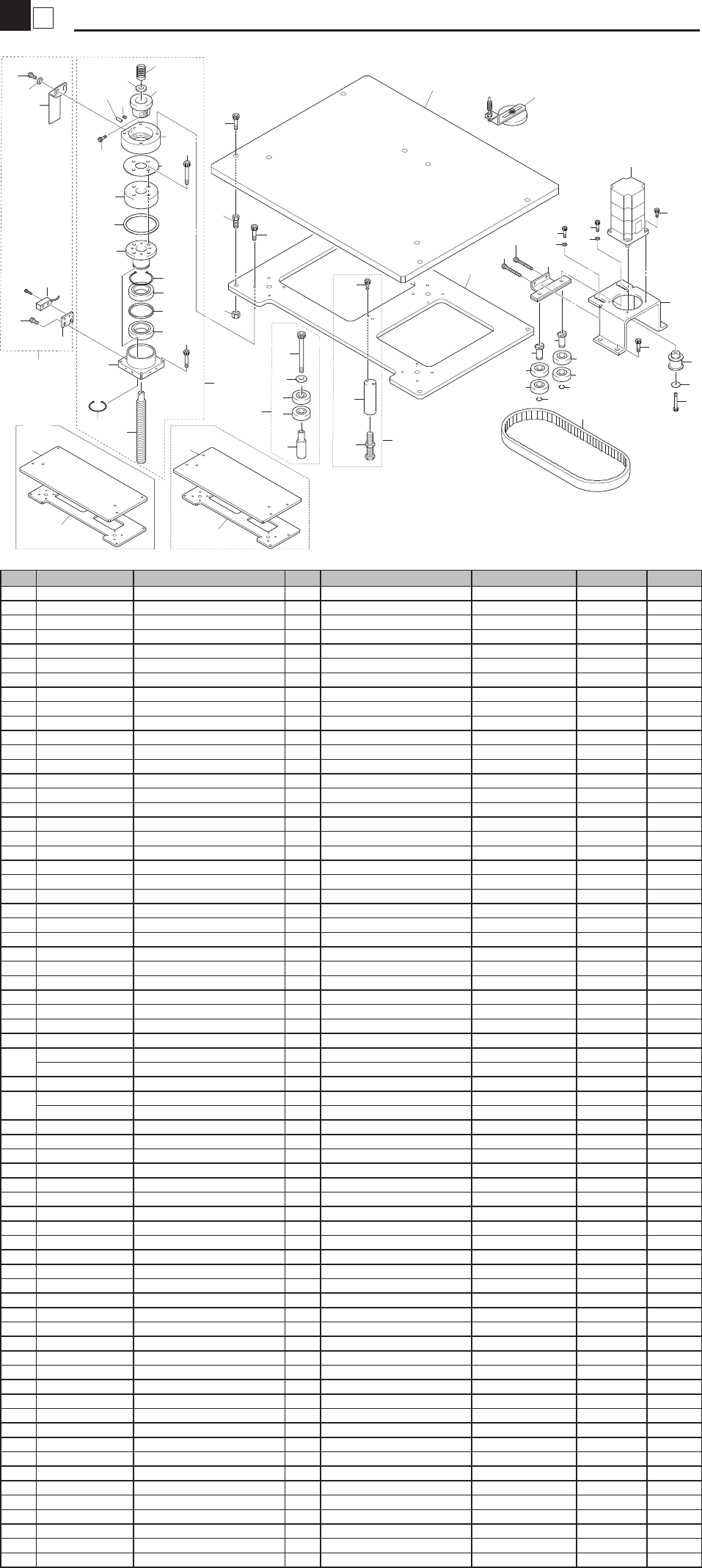

Push-up
Conveyor
KGB-1109
6
29,49,50
2
35
30,52
31
35
4
37
33
1
5
34
36
45
46
36
40
43
7
7
9
38
42
38
42
3
3
7
7
8
8
7
7
16
21
22
14
21
23
13
33
15
55
17
41
20
12
11
32
26
39
27
28
39
19
33
18
10
33
25
24
47
48
OLD
51
51
54
54
56
57
58
(44)
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9201-00X BRACKET, MOTOR 1
2 KV7-M9202-00X STAY, ADJUST 1
3 KV7-M9203-00X SHAFT 1 2
4 KV7-M9205-01X PULLEY 1 1 P22-3GT
5 KV7-M9206-00X WASHER 1
5-1 90990-28J076 WASHER 1 (2007/12/18) MDX0125 OK
6 90K55-523D5U AC SERVO MOTOR 1
7 90933-01J200 BEARING 6 6200ZZ
8 99009-10400 CIRCLIP 2
9 KV7-M9204-00X SHAFT 2 1
10 KV7-M9207-00X FLANGE 1 1
11 KV7-M9208-00X FLANGE 2 1
12 KV7-M9209-01X PULLEY 2 1
13 KV7-M9211-00X HOUSING 1
14 KV7-M9212-00X COLLAR 2 1
14-1 90990-41J060 COLLAR 1 (2008/4/17) ME20197 OK
15 KV7-M9213-00X NUT 1
16 KV7-M9214-00X SCREW 1
17 KV7-M9215-00X JOINT 1
18 KV7-M9217-00X FLANGE 1
19 KV7-M9218-00X SPRING 1
20 KV7-M921C-00X ROLLER 1
21 90933-01J905 BEARING 3 2 6905ZZ
22 99009-42500 CIRCLIP 1
23 99009-25400 CIRCLIP 1
24 KV7-M9219-00X STOPPER 1
25 KV7-M921B-00X BOLT,STOPPER 1
25-1 90990-33J011 BOLT,STOPPER 1 (2008/6/18) ME20019 OK
26 KV7-M920D-00X DOG 1
27 KV7-M920E-00X BRACKET 1
28 KV7-M653A-00X SENSOR,1(L=600) 1
28-1 KGA-M921G-00X SENSOR,ORG 1 (2002/2/28) M220126 OK
29
KGA-M920A-01X PLATE 440 1 W440
KGA-M920A-32X PLATE 250 1
30 KGA-M920C-00X STAY 1 W440,W382
31
KV7-M921A-01X BELT 1 W440,W382,W335
KV7-M921A-31X BELT 1 W250
32 91317-04008 BOLT HEX.SOCKET HEAD 2
33 91317-04010 BOLT HEX.SOCKET HEAD 10
34 91317-04012 BOLT HEX.SOCKET HEAD 1
35 91317-04020 BOLT HEX.SOCKET HEAD 2
35-1 91317-04022 BOLT HEX.SOCKET HEAD 2 (2002/2/1) M220002 OK
36 91317-05012 BOLT HEX.SOCKET HEAD 8
37 91317-05014 BOLT HEX.SOCKET HEAD 4
38 91317-05016 BOLT HEX.SOCKET HEAD 2
39 91317-05020 BOLT HEX.SOCKET HEAD 8
40 91317-06060 BOLT HEX.SOCKET HEAD 1
41 92A08-03006 SET SCREW M3X6 1
41-1 92A08-03306 SCREW,SET 1 (2001/9/21) M190079 OK
42 92907-04200 WASHER PLAIN 2
43 92907-06200 WASHER PLAIN 1
(44) 92990-04200 WASHER PLAIN 1
45 KGA-M921T-00X BOLT 4
46 95604-10100 NUT U 4
46-1 95602-10100 NUT U 4 (2006/1/10) MBY0154 OK
47 92907-10600 WASHER PLAIN 1 M10 M3X0039
48 KV7-M921D-10X PUSH UP PIN UNIT 9
49 KGA-M920A-11X PLATE 382 1 W382
50 KGA-M920A-21X PLATE 335 1 W335
51 KGA-M920A-31X PLATE 250 1 W250
51-1 KGA-M920A-32X PLATE 250 1 W250 (2001/12/17) M1Y0057 SET
52 KGA-M920C-20X STAY 1 W335
54 KGA-M920C-30X STAY 1 W250
54-1 KGA-M920C-31X STAY 1 W250 (2001/12/17) M1Y0057 SET
55 KV7-M9211-A0X SCREW UNIT 3
56 KV7-M9219-A0X STOPPER ASSY 1
57 KV7-M9204-A0X IDLER ASSY 1
58 KV7-M920D-A0X SENSOR UNIT ASSY 1
