KGB_YV100Xg_PL - 第27页
4 8 Stopper Conveyor KGB-081015 2 10 3 6 1 1 1 1 1 2 2 4 8 8 9 9 9 14 15 21 19 25 23 23 26 27 12 5 7 3 3 16 28 17 20 13 23 29 30 18 22 21 36 36 34 6 6 6 6 Sub Stopper , Mo ving Sub Stopper , Fixed Main Stopper EXIT Stopp…
3
8
Locate-pin
Conveyor
KGB-081015
18
19
6
20
2
1
10
13
13
13
13
10
10
22
16
12
16
15
15
15
8
9
18
19
17
21
7
3
14
12
11
14
12
11
5
16
12
16
15
8
9
7
3
5
10
22

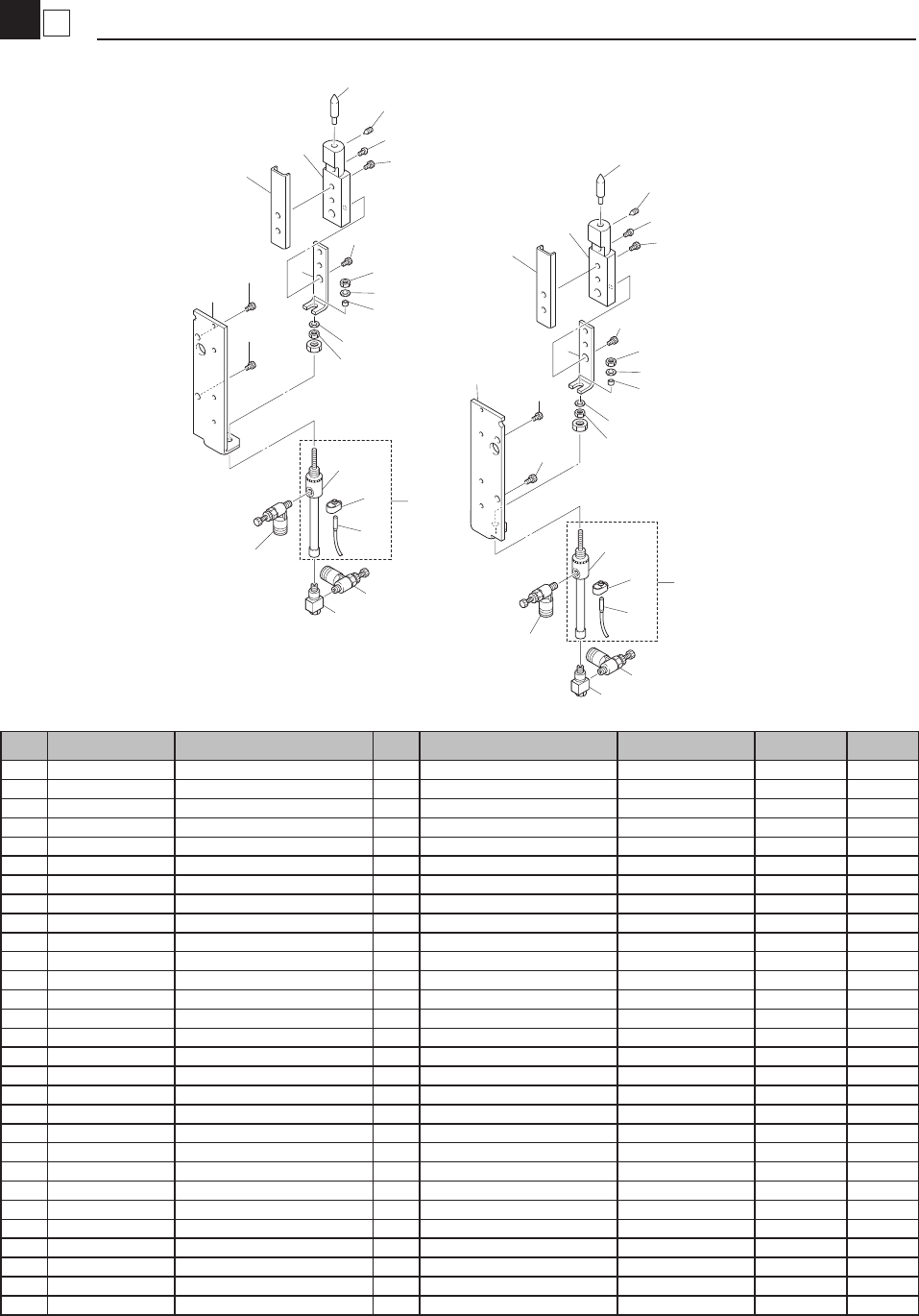

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9171-01X PLATE 1-1. LOCATION 1
2 KV7-M9171-11X PLATE 1-2. LOCATION 1
3 KGA-M9172-00X HOLDER LOCATE PIN 2
4 KGA-M9174-00X PIN 1, LOCATION 1
4-1 1 Delete (2003/2/11) M320041 OK
5 KGA-M9174-10X PIN 2, LOCATION 1
5-1 KGA-M9174-10X PIN 2, LOCATION 2 (2003/2/11) M320041 OK
6 KGA-M9179-A0X CYLINDER ASSY 2 MAIN STOPPER SIDE
7 KV7-M9177-01X GUIDE 2 BSR 1575SL
8 KGA-M9175-00X BRACKET, JOINT 2
9 KV7-M9176-00X COLLAR,JOINT 2
9-1 90990-41J058 COLLAR 2 (2008/4/17) ME20197 OK
10 $SC4-M5A SPEED CONTROLLER 4
11 98507-03004 SCREW PAN HEAD 4 M3X4
12 91317-03005 BOLT HEX. SOCKET HEAD 8
13 91317-04006 BOLT HEX. SOCKET HEAD 4
14 92A08-03004 SET SCREW M3X4 2
14-1 92A08-03304 SET SCREW 2 Hollow Head (2001/9/21) M190079 OK
14-2 90990-02J003 SET SCREW 2 Flat Head (2002/5/29) M250059 NG
15 95304-03600 NUT,HEXAGON 4
15-1 95302-03600 NUT HEXAGON 4 (2006/1/16) MBY0167 OK
16 92902-03200 WASHER. PLAIN 4
17 KGA-M9179-B0X CYLINDER ASSY 1 SUB STOPPER SIDE (2002/2/28) M220126
18 KV7-M9165-01X CYLINDER:PDAS6X40 1
18-1 KV7-M9165-02X CYLINDER 1 (2005/11/3) MB00121 OK
19 KV7-M9179-00X SENSOR BAND, CYL. 1
20 KGA-M911B-00X SENSOR LOCATE 1 1
21 KGA-M911C-00X SENSOR LOCATE 2 1
22 $UEF JOINT 2
In both ow direction.the component is the same.
4
8
Stopper
Conveyor
KGB-081015
2
10
3
6
1
11
11
2
2
4
8
8
9
9
9
14
15
21
19
25
23
23
26
27
12
5
7
3
3
16
28
17
20
13
23
29
30
18
22
21
36
36
34
6
6
6
6
Sub Stopper, Moving
Sub Stopper, Fixed
Main Stopper
EXIT Stopper
7
7
4
35
8
32
4
8
8
5
12
31
31
33
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M9281-00X PLATE, SUB STOPPER 1
2 KV7-M9282-00X STOPPER, SUB 3
3 KV7-M9283-00X CYL. 3 YMDA16X35
4 KV7-M9284-02X BRKT., SENSOR 3
5 KGA-M928A-00X SENSOR , UP 1 L=1150 2002/2/28 H6499
6 $SL4-M5 JOINT 6
7 91314-03005 BOLT HEX.SOCKET HEAD 9
7-1 91312-03005 BOLT HEX.SOCKET HEAD 9 (2006/1/16) MBY0158 OK
8 91317-03015 BOLT HEX. SOCKET HEAD 9
9 91317-04008 BOLT HEX. SOCKET HEAD 4
10 91317-04016 BOLT HEX. SOCKET HEAD 2
11 KV7-M9281-10X PLATE-2, SUB STOPPER 2
12 KGA-M928B-00X SENSOR , LOW 1 L=1150 2002/2/28 H6499
13 KV7-M9169-00X BRKT., CYL.2 1
14 KV7-M9161-00X PLATE, STOPPER 1
15 KV7-M9162-01X BRKT., STOPPER 1
16 KV7-M9163-00X STOPPER 1
17 KV7-M9164-00X BRKT., CYLINDER 1
18 KV7-M9165-00X CYLINDER PDAS6X40 1 PDAS 6X40
18-2 KV7-M9165-01X CYLINDER:PDAS6X40 1 PDAS 6X40 (2002/1/14) M210045 OK
18-1 KV7-M9165-02X CYLINDER 1 PDAS 6X40 (2005/11/3) MB00121 OK
19 KV7-M9166-00X GUIDE 1 LWL9 R80B
20 KU0-M9179-00X RING 1
21 $SC4-M5A SPEED CONTROLLER 2
22 $UEF JOINT 1
23 91317-03005 BOLT HEX. SOCKET HEAD 8
24
25 91317-03008 BOLT HEX. SOCKET HEAD 4
26 91317-04006 BOLT HEX. SOCKET HEAD 2
27 91317-04020 BOLT HEX. SOCKET HEAD 2
28 91317-05010 BOLT HEX. SOCKET HEAD 1
29 92907-03200 WASHER PLAIN 2
30 95304-03600 NUT,HEXAGON 2
30-1 95302-03600 NUT HEXAGON 2 (2006/1/16) MBY0167 OK
31 KV7-M9284-01X NUT PLATE SENSOR 2
32 KGA-M927A-00X SENSOR , UP 1 2002/2/28 H6499
33 KGA-M927B-00X SENSOR , LOW 1 2002/2/28 H6499
34 KV7-M9285-00X SPACER 2 2002/2/28 H6499
34-1
90990-41J104 COLLAR 2 (2008/4/11) ME30019 OK
35 91317-03012 BOLT HEX.SOCKET HEAD 4
36 91317-04040 BOLT HEX.SOCKET HEAD 2
5
8
Clamp Board
Conveyor
KGB-081015
5
8
8
15
2
21
21
20
3
1
1
16
11
17
10
12
22
9
14
11
13
17
17
18
6
7
5
18
19
4
7
4
23
24
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9261-01X PLATE 1, LINK 4
2 KV7-M9262-01X PLATE BOARD CLAMP 2
3 KV7-M9263-01X PLATE 2,LINK 2
4 KV7-M9264-01X LINK 4
4-1 KV7-M9264-02X LINK 4 (2005/10/17) MB00045 OK
5 KV7-M9265-01X SPACER, COLLAR 4
6 KV7-M9266-01X GUIDE 6
7 KV7-M9267-01X COLLAR 2 4
7-1 90990-41J064 COLLAR 4 (2008/4/17) ME20197 OK
8 KV7-M9268-00X PIN 4
8-1 KV7-M9268-01X PIN 4 (2007/6/18) MD60100 OK
8-2 90990-18J017 PIN,PARALLEL 4 (2007/11/30) MD00140 OK
9 KV7-M9269-01X CYLINDER 2
9-1 KV7-M9269-02X CYLINDER 2 (2001/6/22) M160146 OK
10 KV7-M926A-01X JOINT, CYL. 2
11
KV7-M926B-01X COLLAR JOINT 4
11-1 90990-41J065 COLLAR 4 (2008/4/17) ME20197 OK
12 KV7-M926C-01X STOPPER, CYLNDER 2
13 KV7-M926D-01X JOINT, CYL.BRKT. 2
14 KV7-M926E-01X BRKT., CYL. 2
15 98904-03004 SCREW BINDING HEAD 8
15-1 98902-03004 SCREW BINDING HEAD 8 (2006/1/9) MBY0166 OK
16 KV7-M926G-00X BOLT,BUTTON HEAD 2
16-1 92017-04010 BOLT, BUTTON HEAD 2 (2001/12/11) M1Y0031 OK
16-2 92012-04010 BOLT BUTTON HEAD 2 (2007/4/9) MD40011 OK
17 91317-04014 BOLT HEX.SOCKET HEAD 10
17-1 91312-04014 BOLT HEX.SOCKET HEAD 10 (2007/4/9) MD40011 OK
18 92907-03200 WASHER PLAIN 4
18-1 92902-03200 WASHER PLAIN 4 (2007/4/9) MD40011 OK
19 92907-04600 WASHER,PLAIN (S) 4
19-1 92902-04600 WASHER PLAIN 4 (2007/4/9) MD40011 OK
20 KV7-M926H-00X PLATE 1 2
21 KV7-M926K-00X BOLT,1 24
21-1 90169-02JB04 SCREW, BINDING HEAD 24 (2007/11/9) MD00082 OK
22 KG2-M8582-40X VALVE 1
23 $UEF4BU JOINT 4
24 $SSU4 SPEED CONTROLLER 4
