KGB_YV100Xg_PL - 第30页

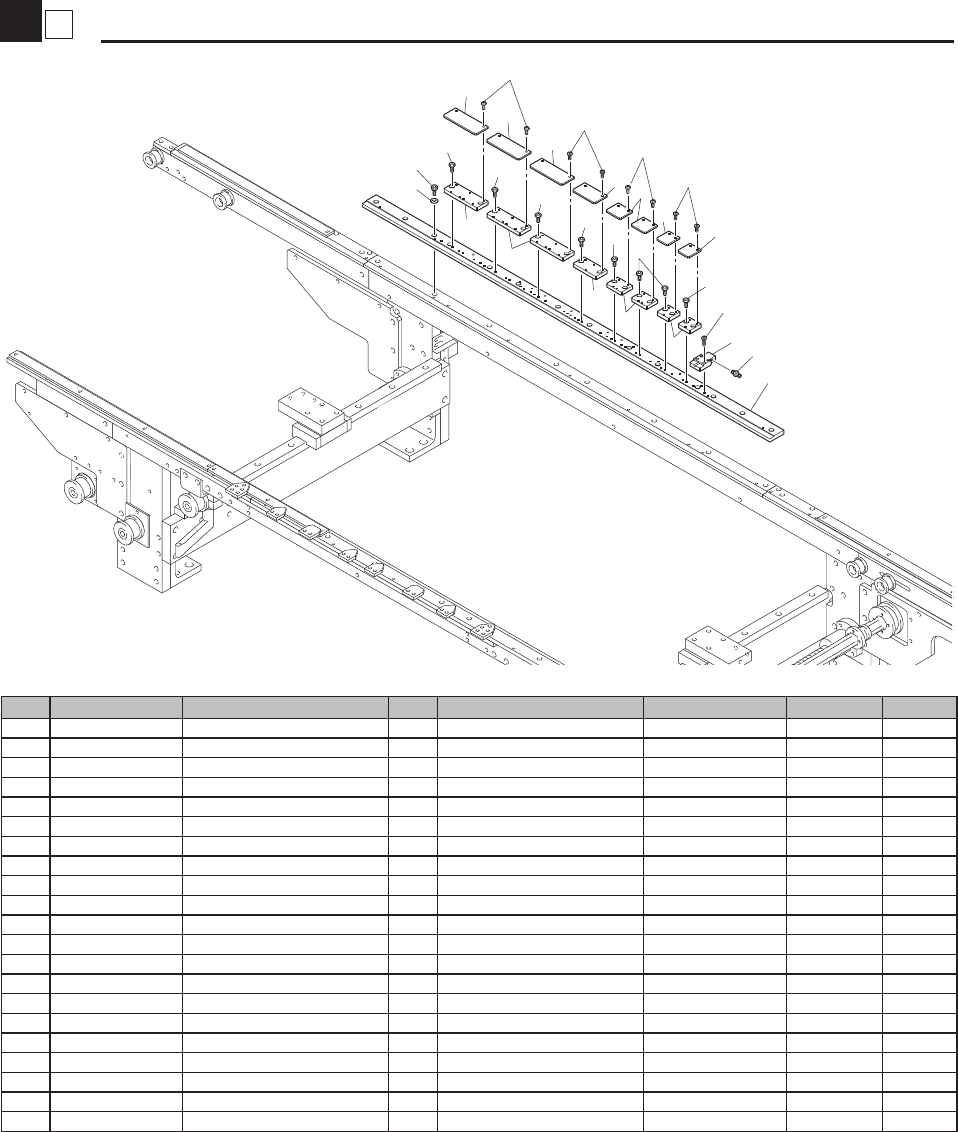

7 8 Edge clamp Conveyor KGB-1 109 16 16 7 7 9 9 18 20 18 20 20 20 5 4 5 13 22 13 22 12 18 19 1 1 21 1 1 21 1 1 3 3 8 6 14 15 15 8 10 10 2 1 1 12 23 2 19 18 17 23 25 27 24 26 28 No. Part No. Part Name Q'ty Remarks Da…
6
8
Edge clamp
Conveyor
KGB-1212
1
11
6
15
12
13
14
10
9
8
7
14
14
10
16
14
10
7
16
4
3
2
16
16
16
16
16
5
5
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M9231-00X PLATE1,GUIDE 1
2 KGA-M9233-00X GUIDE 1 2 3-M3
2-1 KGC-M9233-00X GUIDE 1 2 2-M3 (2001/4/12) M140021 NG
3 KGA-M9234-00X GUIDE 2 2 4-M3
3-1 KGA-M9234-01X GUIDE 2 2 2-M3 (2001/4/12) M140021 NG
4 KGA-M9235-00X GUIDE 3 1 4-M3
4-1 KGC-M9235-00X GUIDE 3 1 2-M3 (2001/4/12) M140021 NG
5 KGA-M9236-00X GUIDE 4 3 7-M3
5-1 KGA-M9236-01X GUIDE 4 3 2-M3 (2001/4/12) M140021 NG
6 KGA-M9244-01X CYLINDER 9 t=7mm
6-1 KGC-M9244-00X CYLINDER 9 t=8mm (2001/4/12) M140021 NG
7 KGC-M9239-00X PLATE, EDGE 1 2
8 KGA-M9245-00X PLATE, EDGE 2 2
9 KGC-M9241-00X PLATE, EDGE 3 1
10 KGA-M9246-00X PLATE, EDGE 4 3
11 $BF4BU-M3 JOINT 18
12 91317-03008 BOLT HEX.SOCKET HEAD 14
13 92907-03600 WASHER,PLAIN 14
14 98980-03006 SCREW, BIND, HEAD 16
15 98980-03012 SCREW, BIND, HEAD 18
16 92017-03008 BOLT, BUTTON HEAD 16

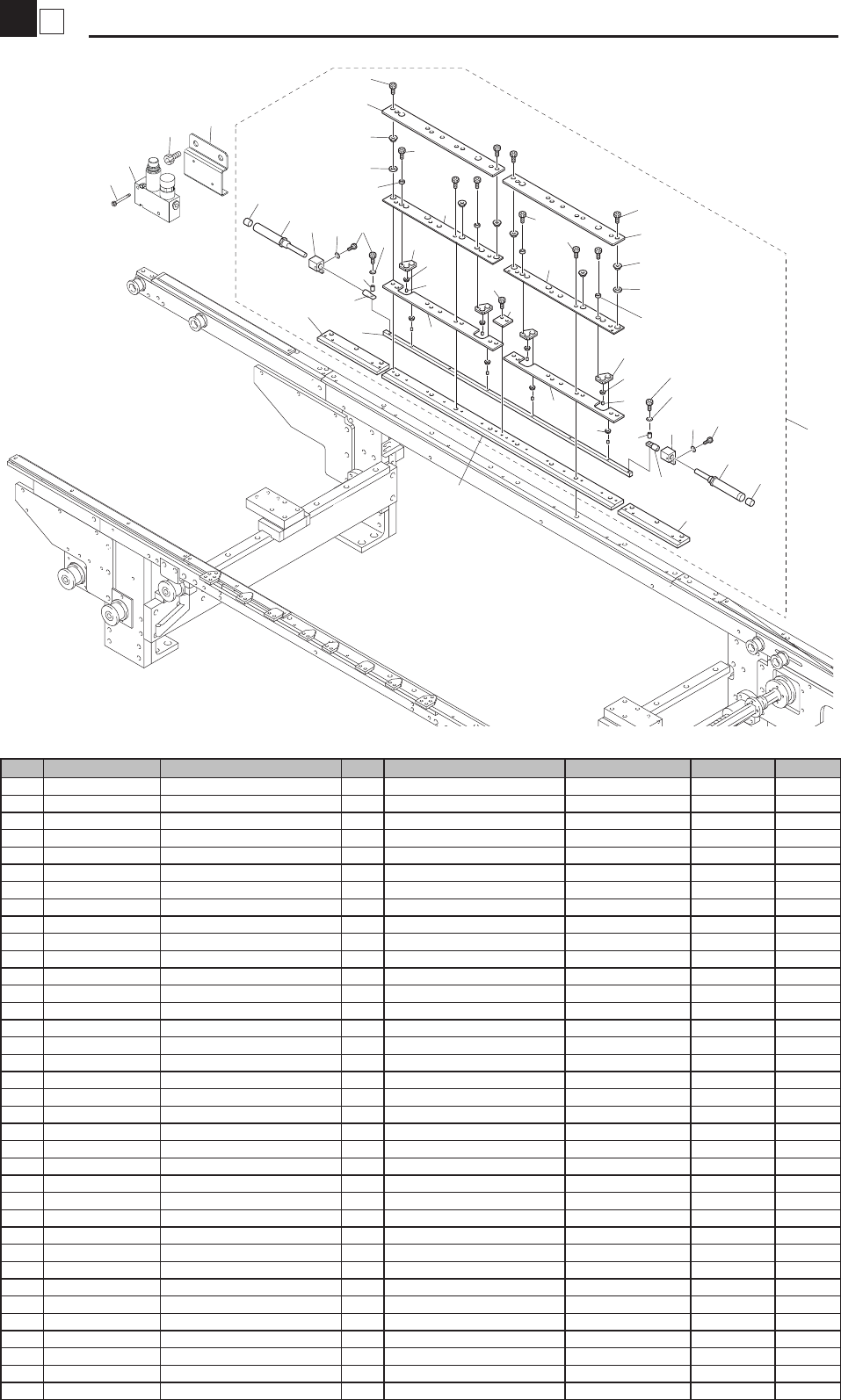

7
8
Edge clamp
Conveyor
KGB-1109
16
16
7
7
9
9
18
20
18
20
20
20
5
4
5
13
22
13
22
12
18
19
11
21
11
21
11
3
3
8
6
14
15
15
8
10
10
2
1
1
12
23
2
19
18
17
23
25
27
24
26
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M9231-S0X PLATE,EDGE CLAMP SET 2
2 KGA-M9132-00X PLATE 3,GUIDE 2
2-1 KGA-M9232-S0X PLATE 3,GUIDE SET 2 (2001/7/30) M170153 NG
3 KGA-M9233-S0X GUIDE 2 SET 2
4 KV7-M9234-00X SPACER,GUIDE 1
5 KV7-M9235-00X PLATE,LINK 4
6 KGA-M9236-10X SHAFT,LINK 1
7 KV7-M9237-00X CYLINDER PBSA 2 10X5
8 KV7-M9238-00X JONIT,CYL. 2
9 KV7-M9239-00X BRKT.,CYL. 2
9-1 KV7-M9239-01X BRKT.,CYL. 2 (2005/10/17) MB00045 OK
10 KV7-M923A-00X COLLAR,JOINT 2
10-1 90990-41J062 COLLAR 2 (2008/4/17) ME20197 OK
11 90933-02J084 BEARING 8 MR84ZZ
12 90933-03J683 BEARING 4 F683ZZS
13 KV7-M923D-01X COLLAR,CLAMP PLATE 6
13-1 KV7-M923D-02X COLLAR,CLUMP PLATE 6 (2002/4/12) M240056 OK
13-2 KV7-M923D-03X COLLAR,CLAMP PLATE 6 (2006/6/8) MC60029 OK
13-3 90990-41J063 COLLAR 6 (2008/4/17) ME20197 OK
14 KGA-M9130-10X GUIDE 2-1 1
15 KV7-M9130-10X GUIDE2-2 2
16 $TSH4-M5M JOINT 2
17 91317-03006 BOLT HEX.SOCKET HEAD 18
18 91317-03008 BOLT HEX.SOCKET HEAD 6
19 91317-03010 BOLT HEX.SOCKET HEAD 6
20 92907-03200 WASHER,PLAIN 6
21
KV7-M923E-00X PIN,LINK 8
21-1 90990-43J012 PIN 8 (2008/6/3) ME30136 OK
22 KU1-M9237-30X SPACER 6
22-1 90990-41J095 COLLAR 6 (2008/4/11) ME30019 OK
23 91317-03005 BOLT HEX.SOCKET HEAD 6
24 KM5-M8504-00X REGULATOR : RVUM4-4 1 (2003/3/28) M330112
25 KV7-M923F-00X BRACKET 1 (2003/3/28) M330112
26 91317-03020 BOLT HEX.SOCKET HEAD 2 (2003/3/28) M330112
27 91317-06010 BOLT HEX.SOCKET HEAD 2 (2003/3/28) M330112
28 KGA-M9230-10X EDGE CLAMP ASSY 1 With frame

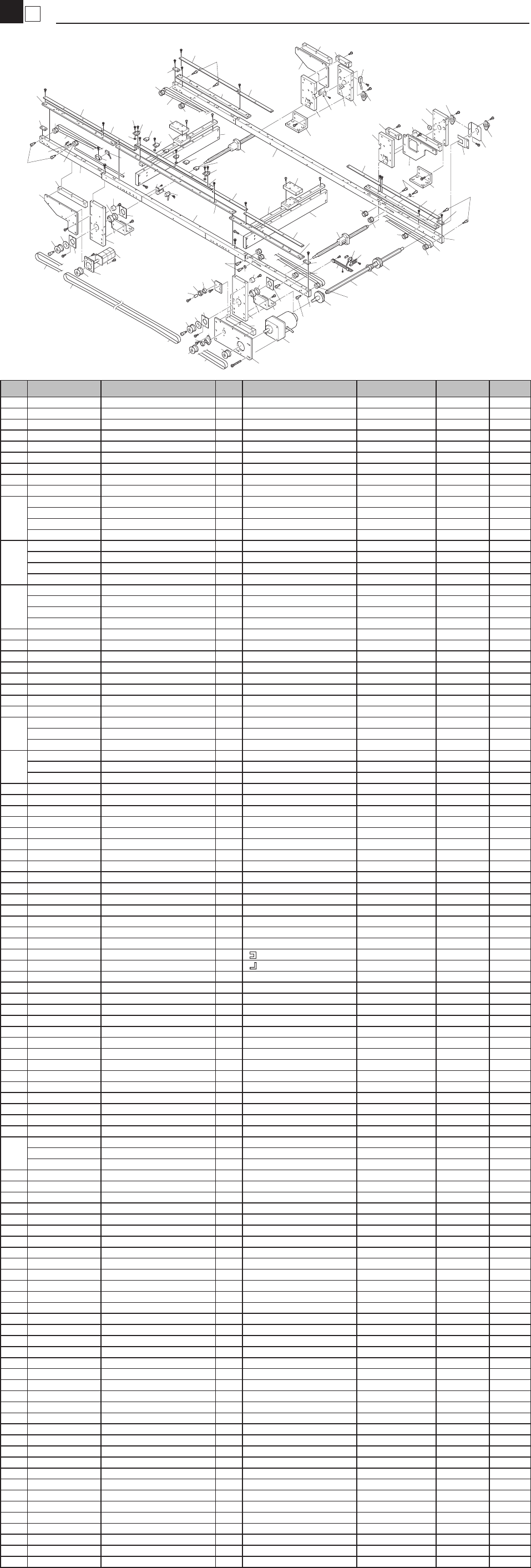

8
8
Main Conveyor
Conveyor
KGB-1109
7
64
64
3
39
33
9
12
8
39
5
1
1
25
28
25
24
30
69
42
23
62
41
49
61
70
20
28
25
35
29
42
34
22
32
14
16
42
15
72
72
72
72
72
27
26
24
31
65
60
72
34
28
28
25
11
48
47
43
44
40
63
46
45
58
39
13
50
57
56
71
55
72
13
15
45
4
1
2
32
1
2
6
63
13
51
15
15
54
52
46
58
53
14
16
11
24
30
22
69
42
42
42
34
19
36
37
36
37
38
38
19
17
17
10
10
24
29
69
42
23
21
34
39
33
3
9
18
18
66
59
69
67
68
73
73
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9101-02X STAY, FOOT 4
2 KV7-M9102-00X PLATE 1 2
3 KV7-M9103-00X PLATE 2 2
4 KV7-M9106-00X BRKT.1, EXT. FRAME 1
5 KV7-M9107-00X BRKT.2, EXT. FRAME 1
6 KV7-M9108-00X BRKT.3, EXT. FRAME 1
7 KV7-M9109-00X BRKT.4, EXT. FRAME 1
8 KV7-M9105-00X BRKT., SPLINE 1
9 KV7-M9104-00X PLATE 3 2
10
KGA-M9116-00X LM RAIL&BLOCK 15,460 2 W440
KGA-M9116-20X LM RAIL&BLOCK 15,400 2 W382
KGA-M9116-00X LM RAIL&BLOCK 15,460 2 W335
KGA-M9116-10X LM RAIL&BLOCK 15,280 2 W250
11
KV7-M9115-02X PLATE,LINEAR(445) 2
KV7-M9115-22X PLATE,LINEAR(385) 2
KV7-M9115-02X PLATE,LINEAR(445) 2
KV7-M9115-10X PLATE,LINEAR(250) 2
11-1
KV7-M9115-03X PLATE,LINEAR(445) 2 (2003/3/14) M330041 Set
KV7-M9115-23X PLATE,LINEAR(385) 2 (2003/3/14) M330041 Set
KV7-M9115-03X PLATE,LINEAR(445) 2 (2003/3/14) M330041 Set
KV7-M9115-11X PLATE,LINEAR(250) 2 (2003/3/14) M330041 Set
12 KV7-M9111-01X BRKT., COLLAR 1
13 KG7-M9110-01X COLLAR,W 3
13-1 90990-41J006 COLLAR 3 (2008/4/15) ME20075 OK
14 KV7-M9110-00X COLLAR 2,W 2
14-1 90990-41J056 COLLAR 2 (2008/4/17) ME20197 OK
15 KV7-M9118-00X PLATE, BRG. 4
15-1 KHW-M9193-00X PLATE, BRG. 4 (2008/12/16) MEY0065 OK
16 90933-01J200 BRG. 2 6200ZZ
17
KV7-M9132-00X BALL SCREW W(445) 2
KV7-M9132-10X BALL SCREW W(250) 2
KV7-M9132-20X BALL SCREW W(385) 2
17-1
KV7-M9A00-00X BALL SCREW W(445) 2 (2007/10/31) MD00118 OK
KV7-M9A00-10X BALL SCREW W(250) 2 (2007/10/31) MD00118 OK
KV7-M9A00-20X BALL SCREW W(385) 2 (2007/10/31) MD00118 OK
18 KV7-M9113-00X STAY, FRAME 2
19 KV7-M9114-00X BRKT., GUIDE 2
19-1 KV7-M9114-01X BRKT.,GUIDE 2 (2003/3/14) M330041 Set
20 KV7-M9121-00X FRAME, CONV. FIXED 1
21 KV7-M9122-00X FRAME, CONV. MOVING 1
22 KV7-M9127-00X FRAME 1, EXT. 2
22-1 KV7-M9127-01X FRAME 1,EXT. 2 (2004/5/11) MA50020 OK
23 KV7-M9128-00X FRAME 2, EXT. 2
23-1 KV7-M9128-01X FRAME 2, EXT. 2 (2004/5/11) MA50020 OK
24 KV7-M9123-00X GUIDE 1 4
25 KV7-M9126-00X GUIDE 1-1 4
26 KV7-M9124-00X PLATE 1, GUIDE 1
27 KV7-M9125-00X PLATE 2, GUIDE 1
28 KV7-M9126-10X GUIDE 1-2 4
29 KM7-M9113-01X GUIDE 1, END 2
29-1 KGA-M9113-00X GUIDE 1,END 2 (2001/8/24) M180096 NG
30 KM7-M9114-01X GUIDE 2, END 2 Type
30-1 KGA-M9114-00X GUIDE 2, END 2 Type (2001/8/24) M180096 NG
31 KG7-M912A-00X BRACKET SENSOR 1
32 KV7-M9151-00X DAMPER 1, W 2
33 KV7-M9152-00X DAMPER 2, W 2
34 KV7-M9129-00X BELT 1, CONVEYOR 2
35 KV7-M9144-00X BRKT.3, SENSOR 1
36 KG7-M9133-00X PLATE, LOCATE PIN 2
37 KG7-M9135-00X PLATE, EDGE 2 4
38 KG7-M9136-00X PLATE, EDGE 3 2
39 KH2-M9121-00X BEARING 4
40 KV7-M4886-00X MOTOR ASSY. 1 CONV.MO
41 KM0-M655F-10X SENSOR, 1-3 1 L=1150
41-1 KGA-M911D-00X SENSOR SET POS 1 SQ034 (2002/2/28) M220126 OK
42 KV7-M9140-A0X PULLEY,CONV. ASSY 12
42-1 KV7-M9140-A0X PULLEY,CONV. ASSY 8 (2004/8/17) MA80028 OK
43
KV7-M9143-00X SPLINE 1(445) 1
KV7-M9143-10X SPLINE 1(250) 1
KV7-M9143-20X SPLINE 1(385) 1
44 KV7-M9142-00X PILLEY 1. MOTOR 1
45 KH2-M9105-10X PULLEY MOTOR :3GTP30 2
45-1 KH2-M9105-11X PULLEY,MOTOR:P30-3GT 2 (2001/6/5) M160031 OK
46 KV7-M9146-00X BELT 2 300-3GT-9
47 KG2-M9105-00X PULLEY 1 SPLINE 1
48 KG2-M9108-11X COLLAR, CONVEYOR 1
49 KGA-M91B2-00X BRKT., SENSOR 1
50 KG7-M9111-01X PULLEY 1 1
51 KG7-M9112-01X PULLEY 2 1
52 KG7-M9113-01X PULLEY 3 1
53 90K55-4W476W AC SERVO MOTOR 1
54 KV7-M9147-00X BRKT., MOTOR W 1
55 KV7-M9148-00X BRKT., TENSION 2
56 90933-02J608 BEARING 4
56-1 90933-02J608 BEARING 2 (2002/3/25) M230126 OK
57 KV7-M9149-00X COLLER,BRG 2
57-1 90990-41J057 COLLAR 2 (2008/4/17) ME20197 OK
58 KG7-M9115-00X BELT W AXIS 1
59 KV7-M9150-00X DOG 1, ORIGIN 1
60 KV7-M9155-00X BRKT., SENSOR SHAFT 2
61 KV7-M9156-01X SENSOR SHAFT 1
62 KV7-M9157-01X BRKT.4,SENSOR 1 Hole to Hole 25mm
62-1 KV7-M9157-02X BRKT.4,SENSOR 1 Hole to Hole 25.4mm (2006/3/17) MC30083 NG
63 KV7-M910A-00X STAY1, EXT. FRAME. 2
64 KV7-M910B-00X STAY2, EXT. FRAME. 2
65 KU0-M655F-20X SENSOR, 1-3 2 L=1400
65-1 KGA-M911A-00X SENSOR ENT 1 SQ031 (2002/2/28) M220126 OK
66 KGA-M911F-00X SENSOR ORG 1
67 98907-03005 SCREW BINDING HEAD 20 M3X5
68 95304-03700 NUT HEXAGON 20
68-1 95302-03700 NUT HEXAGON 20 (2006/1/16) MBY0167 OK
69 KGS-M9140-A0X PULLEY, CONV. ASSY. 4 (2004/8/17) MA80028
70 KGA-M911E-00X SENSOR, OUT 1
71 90933-03J608 BEARING 2
72 91317-05020 BOLT HEX.SOCKET HEAD 12 M5X5
73 92907-05600 WASHER PLAIN 2
