KGB_YV100Xg_PL - 第35页
2 3 5 7 8 13 14 9 12 18 16 16 9 10 9 1 1 1 6 4 15 17 OLD 1 10 Main Box Controller KGB-1 109 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KGA-M41 10-00X BOX ASSY . C/R 1 2 KGA-M4510-00X M…
1
9

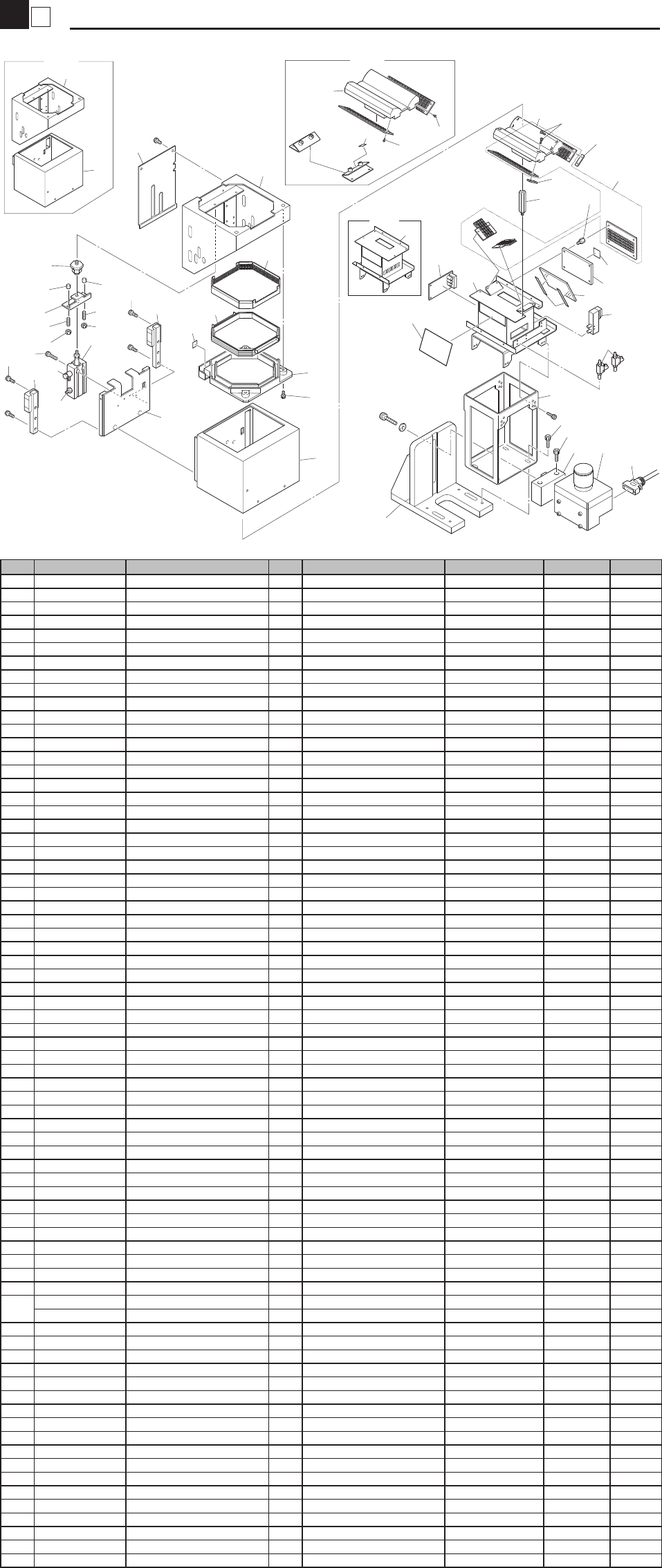

Multi Camera & Light (These parts can't be sold)
Camera
KGB-1012
5
3
7
7
34
33
31
19
27
3235
43
36
26
1
18
2
8
8
4
25
17
30
28
37
20
9
10
16
16
15
11
41
42
41
42
38
12
39
40
13
12
13
14
6
6
29
8
5
47
48
48
46
48
3
48
OLD
OLD
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M7510-00X HARF MIRROR 1
2 KV7-M7534-00X ADHESIVE TAPE 2
3 KV7-M7512-00X DIFFUSER 2 1
3-1 KV7-M7512-01X DIFFUSER 2 1 (2007/5/14) MD40062 Set
4 KV7-M7513-00X DIFFUSER 3 1
5 KGA-M7515-00X CASE 1 1
5-1 KGA-M7515-01X CASE 1 1 (2001/2/9) M120057 OK
5-2 KGA-M7515-02X CASE 1 1 (2001/3/26) M130155 OK
5-3 KGA-M7515-03X CASE 1 1 2006/3/29 MBY0092 NG
6 KGA-M7516-00X CASE 2 1
6-1 KGA-M7516-01X CASE 2 1 2006/3/29 MBY0092 NG
7 KV7-M7517-00X CASE 3 1
7-1 KV7-M7517-01X CASE 3 1 2002/3/4 M1X0136 NG
8 KV8-M7519-00X REFLECTOR 2 1
8-1 Delete (2004/3/1) M420139
9 KV7-M7520-00X CASE 4 1
10 KV8-M7521-01X JOINT 1
11 KV7-M7522-00X CYLINDER ASSY. 1
12 KV8-M7524-00X SLIDE 2
13 KV8-M7536-00X BOLT HEX.SOCK.H.M3L4 8
13-1 91317-03004 BOLT,HEX.SOCKET HEAD 8 (2007/10/29) MD00030 OK
14 KGA-M7525-00X BASE,GUIDE 1
14-1 KGA-M7525-01X BASE,GUIDE 1 (2005/12/21) MBY0092 OK
15 KV7-M7527-00X STOPER 2 1
16 KV8-M7528-02X STOPER 3 2
17 91C00-03215 SPACER : M3X15L 4
17-1 90563-03J150 SPACER BOLT 4 (2002/3/28) M230151 OK
18 KV7-M7538-00X VALVE 1
19 KV8-M7539-04X STAND, LIGHT 1
20 KV7-M7550-00X M.LIGHT SIDE ASSY. 1
20-1 KV7-M7550-01X M.LIGHT SIDE ASSY. 1 2004/1/23 M350137 NG
21 KV7-M7554-00X M.LIGHT MAIN ASSY. 1
21-1 KV7-M7554-01X M.LIGHT MAIN BOARD A 1 (2005/3/1) MB20108 OK
21-2 Delete (2007/6/5) MD50050
22 KV7-M7554-10X M.LIGHT MAIN BOARD A 1
22-1 Delete (2007/6/5) MD50050
23 KV7-M7554-20X M.LIGHT MAIN ASSY. 2
23-1 Delete (2007/6/5) MD50050
24 KV7-M7558-00X M.LIGHT COAX. ASSY 1
24-1 KV7-M7558-01X M.LIGHT COAX. ASSY 1 2004/1/23 M350137 NG
24-2 Delete (2007/6/5) MD50050
25 91C00-03205 SPACER : M3X5L 4
25-1 90563-03J050 SPACER BOLT 4 (2001/9/1) M180147 OK
26 KV8-M7301-01X STAND,CAMERA 1 1
26-1 KV8-M7301-02X STAND,CAMERA 1 1 (2001/4/20) M140127 OK
27 KGA-M66F0-00X C.CABLE ASSY 1
27-1 KGA-M66F0-01X C.CABLE ASSY 1 (2003/5/30) M350125 OK
28 KV7-M7511-00X DIFFUSER 1 1
29 KGA-M7514-00X DIFFUSER 4 1
30 KV7-M7518-00X STAY1 2
30-1 Delete (2001/12/5) M1X0136
31 $TSC0-L SPEED CONTROLLER 2
31-1 $TSC0-L-18W SPEED CONTROLLER 2 (2002/6/21) M260056 OK
32
KV1-M73A0-34X MULTI CAM.SUB ASSY 1 35M
KV1-M73A0-44X MULTI CAM.SUB ASSY 1 50M
33 KV7-M7542-00X AR SHEET 1
34 KV1-M6474-00X LED DRIVER BO.ASSY 1
34-1 KV1-M6474-01X KV1 LED DRIVER ASSY 1 (2002/11/21) M2X0060 OK
34-2 KV1-M6474-02X LED DRIVER BRD,ASSY 1 (2005/7/6) MB70024 OK
34-3 KV1-M6474-03X LED DRIVER BRD,ASSY 1 (2006/2/20) MC20004 OK
34-4 KV1-M6474-04X LED DRIVER BRD,ASSY 1 Use this latest part (2008/5/29) ME50098 OK
35 KV1-M7303-00X HOLDER, CAMERA 1 1
36 91317-05045 BOLT HEX.SOCKET HEAD 2
37 91317-03005 BOLT HEX.SOCKET HEAD 4
38 91317-03012 BOLT HEX.SOCKET HEAD 2
39 UEF4BU JOINT 1
40 BF4BU JOINT 1
41 92A08-05316 SCREW,SET 2
42 95307-05700 NUT HEXAGON 2
45 91317-04005 BOLT HEX.SOCKET HEAD 8
46 KV7-M755S-00X M.LIGHT BOARD SET 1 (2007/6/5) MD50050
47 90166-02J210 SCREW 8 (2007/5/14) MD40062 Set
48 KW7-M7529-00X PLATE,NUT 4 (2007/6/1) MD60001
2
3
5
7
8
13
14
9
12
18
16
16
9
10
9
11
1
6
4
15
17
OLD
1
10
Main Box
Controller
KGB-1109
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M4110-00X BOX ASSY. C/R 1
2 KGA-M4510-00X MOTHER BOARD ASSY. 1
3 KM5-M5840-03X SERVO BOARD ASSY 2
3-1 KM5-M5840-04X SERVO BOARD ASSY 2 2002/5/9 M100113 OK
3-2 KM5-M5840-05X SERVO BOARD ASSY 1 H010235 (2007/1/12) MCY0115 Set
4
KW3-M4209-00X SYSTEM UNIT ASSY. 1 S.T.D (2003/9/24) M390061
KW3-M4209-10X SYSTEM UNIT ASSY. 1 IT OPTION without CLI FEEDER (2003/9/24) M390061
KW3-M4209-21X SYSTEM UNIT ASSY. 1 IT OPTION with CLI FEEDER (2004/2/10) M420003
4-1
KW3-M4209-A0X SPARE SYSTEM UNIT 1 IT OPTION without CLI FEEDER (2007/3/28) H010416 NG
KW3-M4209-B0X SPARE SYSTEM UNIT 1 IT OPTION with CLI FEEDER (2007/3/28) H010416 NG
4-2
KW3-M4209-C0X SPARE SYSTEM UNIT 1 IT OPTION without CLI FEEDER (2010/12/15) MGY0026 OK
KW3-M4209-D0X SPARE SYSTEM UNIT 1 IT OPTION with CLI FEEDER (2010/12/15) MGY0026 OK
5 KJ0-M5810-K4X DRIVER BOARD ASSY. 1 (1B)
5-1 KJ0-M5810-K5X DRIVER BOARD ASSY. 1 H010235 (2007/1/12) MCY0115 Set
5-2 KJ0-M5810-K7X DRIVER BOARD ASSY. 1 (2008/9/18) ME90031 OK
6 KM5-M5882-11X D.POWER ASSY. 1
7 KJ0-M4134-10X PANEL NO SERVO 2
8 KJ0-M4132-10X PANEL. NO DRIVER 2
9 KGA-M4185-10X FAN MOTOR ASSY 3
10 KGA-M5303-00X SW POWER DC5 1
10-1 KGS-M5303-00X SW POWER DC5 1 2007/7/25 MCY0159 NG
11 KW7-M5303-10X SW POWER DC12 1
11-1 KGS-M5303-10X SW POWER DC12 1 2007/7/25 MCY0159 NG
12 KGA-M53E2-00X TRANS 1 ASSY KGA 1
13 KV1-M441H-14X VISION UNIT ASSY 1
13-1 KV1-M441H-17X VISION UNIT ASSY 1 *OK : after VGOS V1.15 R1.000 (2004/9/10)
MA90036,H8430
*NG
13-2 KV1-M441H-18X VISION UNIT ASSY. 1 (2009/3/9)
MF30012
OK
14 KW3-M4220-10X APPL BOARD ASSY 1
14-1 KW3-M4220-11X APPL BOARD ASSY 1 *OK : after VGOS V1.21 R1.000 (2008/4/11) ME30249 *NG
15 KGA-M4136-10X PANEL, NO VISION 1
16 KW3-M4255-00X FLASH DISK 1
16-1 KGN-M4255-00X FLASH DISK 1 With ADAPTER (2003/6/27) M230020 OK
16-2 KGN-M4255-20X FLASH DISK 1 Without ADAPTER (2003/11/13) M3X0032 NG
17 KW3-M4256-00X CD-ROM DRIVE 1
18 KW3-M4230-00X FLASH BOARD ASSY 1 With ADAPTER
18-1 KGN-M4230-00X FLASH BOARD ASSY 1 Without ADAPTER (2003/11/13) M3X0032 NG
2
10
Main Box (with Option)
Controller
KGB-1109
1
2
1
3
YTF
WATS
1
4
ATS-M
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM5-M5840-03X SERVO BOARD ASSY. 1
1-1 KM5-M5840-04X SERVO BOARD ASSY. 1 (2001/11/5) M100113 OK
1-2 KM5-M5840-05X SERVO BOARD ASSY. 1 (2007/1/12) MCY0115 SET
2 KJ0-M5810-H4X DRIVER BOARD ASSY. 1 for YTF only (2)
2-1 KJ0-M5810-H5X DRIVER BOARD ASSY. 1 (2007/1/12) MCY0115 SET
2-2 KJ0-M5810-H7X DRIVER BOARD ASSY. 1 (2008/11/26) ME00136 OK
3 KJ0-M5810-G4X DRIVER BOARD ASSY. 1 for WATS only (2)
3-1 KJ0-M5810-G5X DRIVER BOARD ASSY. 1 (2007/1/12) MCY0115 SET
3-2 KJ0-M5810-G7X DRIVER BOARD ASSY. 1 (2008/11/26) ME00136 OK
4 KJ0-M5810-F4X DRIVER BOARD ASSY. 1 for ATS-M only (2)
4-1 KJ0-M5810-F5X DRIVER BOARD ASSY. 1 (2007/1/12) MCY0115 SET
4-2 KJ0-M5810-F7X DRIVER BOARD ASSY. 1 (2008/11/26) ME00136 OK
