2 3 Feeder Holder H Feeder KGB-1 109 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KM9-M3401-H0X PLA TE H,FEEDER 1 1-1 KM9-M3401-H1X PLA TE H,FEEDER 1 (2005/2/14) MB20042 NG 2 KM9-M3402-H…
1
3

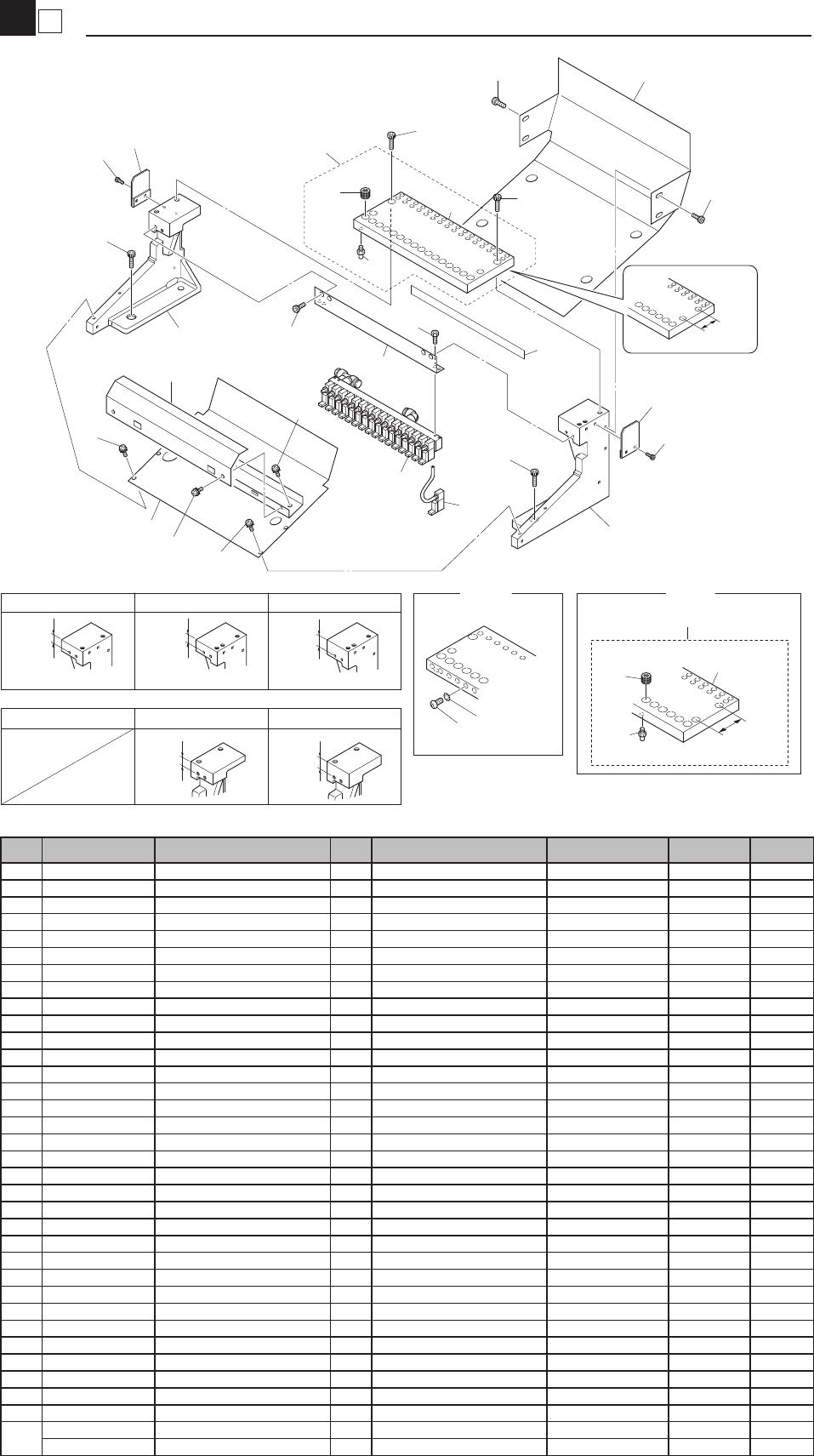

Feeder Holder E
Feeder
KGB-1109
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M3401-E2X
PLATE E,FEEDER
1
1-1 KM0-M3401-E3X PLATE E,FEEDER 1 (2005/2/14) MB20042 NG
2 KM0-M3402-F0X GUIDE F-1,TAPE 1
3 KM0-M3403-E0X GUIDE E-2,TAPE 1
4 KM0-M3404-E1X GUIDE E-3,TAPE 1
5 KM0-M3405-01X STAND,1 1 Fig.D
5-1 KM0-M3405-02X STAND,1 1 Fig.E (2004/4/20) M440062 OK
5-2 KM0-M3405-03X STAND,1 1 Fig.F (2004/11/1) MA00129 NG
6 KM0-M3406-01X STAND,2 1 Fig.G
6-1 KM0-M3406-02X STAND,2 1 Fig.H (2004/11/1) MA00129 NG
7 KM0-M3408-E0X BRACKET E, VALVE 1
8 KM0-M3409-E0X COVER E, VALVE 1
9
KM8-M3410-E1X VALVE ASSY.L
1
9-1
KGA-M3410-10X
VALVE ASSY.50-L 1
(2003/2/5)
M320011
OK
10 KM0-M3417-00X
GUIDE, 4 2
11 KG2-M3407-A0X AIR JOINT 50
15 91317-06020 BOLT HEX.SOCKET HEAD 11
16 91317-04008 BOLT HEX.SOCKET HEAD 4
17 90990-12J005 SCREW BINDING HEAD 10
19 90990-07J002 BOLT HEXAGON 2
20 91317-03006 BOLT HEX.SOCKET HEAD 6
21 91317-08020 BOLT HEX.SOCKET HEAD 4
22 KM0-M3419-E0X GUIDE E-5, TAPE 1
23 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS
24 $BF4BU JOINT 50
25 98907-03004 SCREW BINDING HEAD 50
25-1 Delete (2005/2/14) MB20042
26 KM0-M3416-00X GASKET 50
26-1 Delete (2005/2/14) MB20042
27 KM8-M34A0-00X FEEDER PLATE ASSY. 1
27-1 KM8-M34A0-01X FEEDER PLATE ASSY.50 1 (2004/4/20) M440062 OK
28
KU5-M3430-01X LABEL,FEEDER
1
(1-60)
KU5-M3430-20X LABEL,FEEDER
1
(101-160)
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
38mm
15
50mm
10
16
1
3
16
4
16
15
19
7
2
17
24
9
23
17
10
22
17
16
5
11
6
17
17
8
16
27
25
26
OLD
24
11
27
1
OLD
21
21
20
28
2
3
Feeder Holder H
Feeder
KGB-1109
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM9-M3401-H0X PLATE H,FEEDER 1
1-1 KM9-M3401-H1X PLATE H,FEEDER 1 (2005/2/14) MB20042 NG
2 KM9-M3402-H0X GUIDE H-1.TAPE 1
3 KM9-M3403-H0X GUIDE H-2.TAPE 1
4 KM0-M3405-01X STAND,1 1 Fig D
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) M440062 OK
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) MA00129 NG
5 KM0-M3406-01X STAND,2 1 Fig G
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) MA00129 NG
6 KM9-M3408-H0X BRACKET H.VALVE 1
7 KM9-M3409-H0X COVER H.VALVE 1
8
KGA-M3410-20X VALVE ASSY.20-R 1 Right Type
KGA-M3410-40X VALVE ASSY,20-L 1 Lfet Type
10 $BF4BU JOINT 20
14 91317-06020 BOLT.HEX SOCKET 4
15 91317-04010 BOLT HEX.SOCKET HEAD 12
16 90990-12J005 SCREW BINDING HEAD 8
17 KG2-M3407-A0X AIR JOINT 20
18 KM0-M3416-00X GASKET 20
18-1 Delete (2005/2/14) MB20042
19 98907-03004 SCREW BINDING HEAD 20
19-1 Delete (2005/2/14) MB20042
20 91317-08020 BOLT.HEX SOCKET HEAD 4
21 91317-03006 BOLT.HEX SOCKET HEAD 4
22 KM0-M3417-00X GUIDE 4 2
23 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS
24 KM9-M34A0-00X FEEDER PLATE ASSY. 1
24-1 KM9-M34A0-01X FEEDER PLATE ASSY.20 1 (2004/4/20) M440062 NG
25
KU5-M3430-01X LABEL,FEEDER
1
(1-60)
KU5-M3430-20X LABEL,FEEDER
1
(101-160)
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
22
15
3
15
21
15
20
20
23
6
2
8
15
22
16
15
4
5
16
16
16
7
15
1
14
14
10
17
24
19
18
OLD
10
17
24
1
OLD
25
3
3
Feeder Holder B
Feeder
KGB-1109
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KG2-M3401-B2X PLATE B,FEEDER 1
1-1 KG2-M3401-B3X PLATE B,FEEDER 1 (2005/2/14) MB20042 NG
2 KM0-M3402-B0X GUIDE B-1.TAPE 1
3 KG2-M3403-B1X GUIDE B-2.TAPE 1
4 KM0-M3405-01X STAND,1 1 Fig D
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) M440062 OK
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) MA00129 NG
5 KM0-M3406-01X STAND,2 1 Fig G
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) MA00129 NG
6 KM0-M3408-B0X BRACKET B.VALVE 1
7 KL0-M3409-B1X COVER B.VALVE 1
8 KGA-M3410-20X VALVE ASSY. R 1
8-1 KGA-M3410-30X VALVE ASSY. 16-R 1
(2003/2/5) M320011 OK
10 $BF4BU JOINT 16
14 91317-06020 BOLT.HEX SOCKET 4
15 91317-04010 BOLT.HEX SOCKET 12
16 90990-12J005 SCREW BINDING HEAD 8
17 KG2-M3407-A0X AIR JOINT 16
18 KM0-M3416-00X GASKET 16
18-1 Delete (2005/2/14) MB20042
19 98907-03004 SCREW BINDING HEAD 16
19-1 Delete (2005/2/14) MB20042
20 91317-08020 BOLT.HEX SOCKET HEAD 4
21 91317-03006 BOLT.HEX SOCKET HEAD 4
22 KM0-M3417-00X GUIDE4 2
24
KGA-M37P0-00X VALVE KIT 1 SPARE PARTS
25 KM8-M34B0-00X FEEDER PLATE ASSY. 1
25-1 KM8-M34B0-01X FEEDER PLATE ASSY.16 1 (2004/4/20) M440062 NG
26
KU5-M3430-01X LABEL,FEEDER
1
(1-60)
KU5-M3430-20X LABEL,FEEDER
1
(101-160)
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
22
15
3
15
21
20
20
6
2
15
22
16
15
24
4
5
16
16
16
7
15
1
14
14
10
25
17
8
19
18
OLD
10
17
25
1
OLD
26
