2 Instructions for changing the catch on the
component feeder table HS-50
(item number: 00366694-01)
2.1 Required tools
Set of Allen wrenches 2
Flat-bladed screwdriver, size 4 2
Crosshead screwdriver, size 1 2
2.2 Changing the catch on the component feeder table
2
Replacement may only be done by a qualified member of staff! 2
2
2
2
The catch for the component feeder table can be mounted in two ways (left and right). When
selecting the holes for the screws pay special attention to whether it is mounted left or right. 2
2
2
: Switch off the placement machine at the main switch.
: Open the protective hood.
2
: Remove the two screws that fix the guard to the cover.
Instructions for changing catch on component feeder table HS-50
11/2001 Issue
14
: Remove the guard.
: Remove the four screws that hold the switch cover plate in place and then remove it.
: Fix the new switch cover plate in place using the four screws.
: Screw the spacer screw into the guard.
Instructions for changing catch on component feeder table HS-50
11/2001 Issue
15

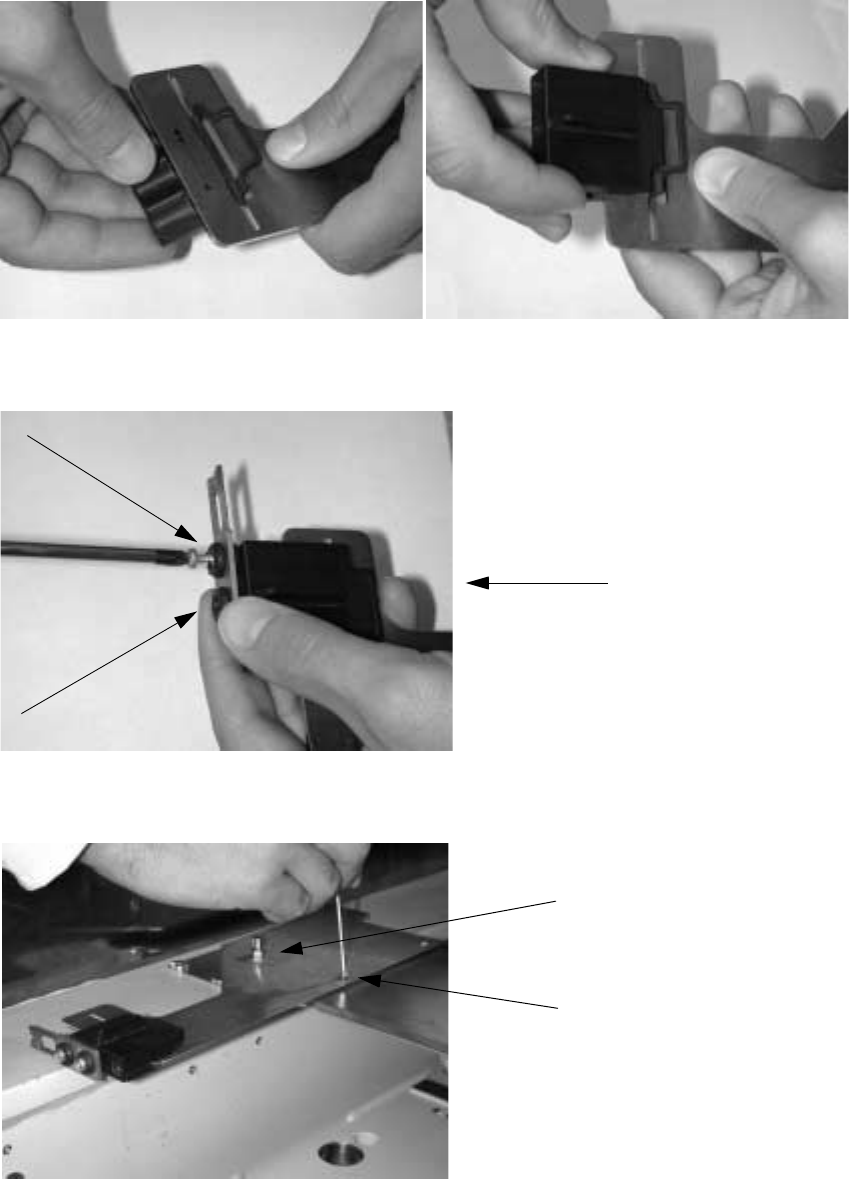

: Mount the latch bolt on the guard (see the photographs)
: Atttach the actuator using the two PT cheese-head screws.
: Now fix the guard back onto the cover plate.
Note:
Left-mounted
variant
