Instructions for changing catch on co mponent feeder table HS-50 11/2001 Issue 19 : Push the switch o f the comp onent fe eder table catch into place. : M o u n t t h es i d ew a l lo n t ot h em a c h i n ea n ds c r e …
Instructions for changing catch on component feeder table HS-50
11/2001 Issue
18

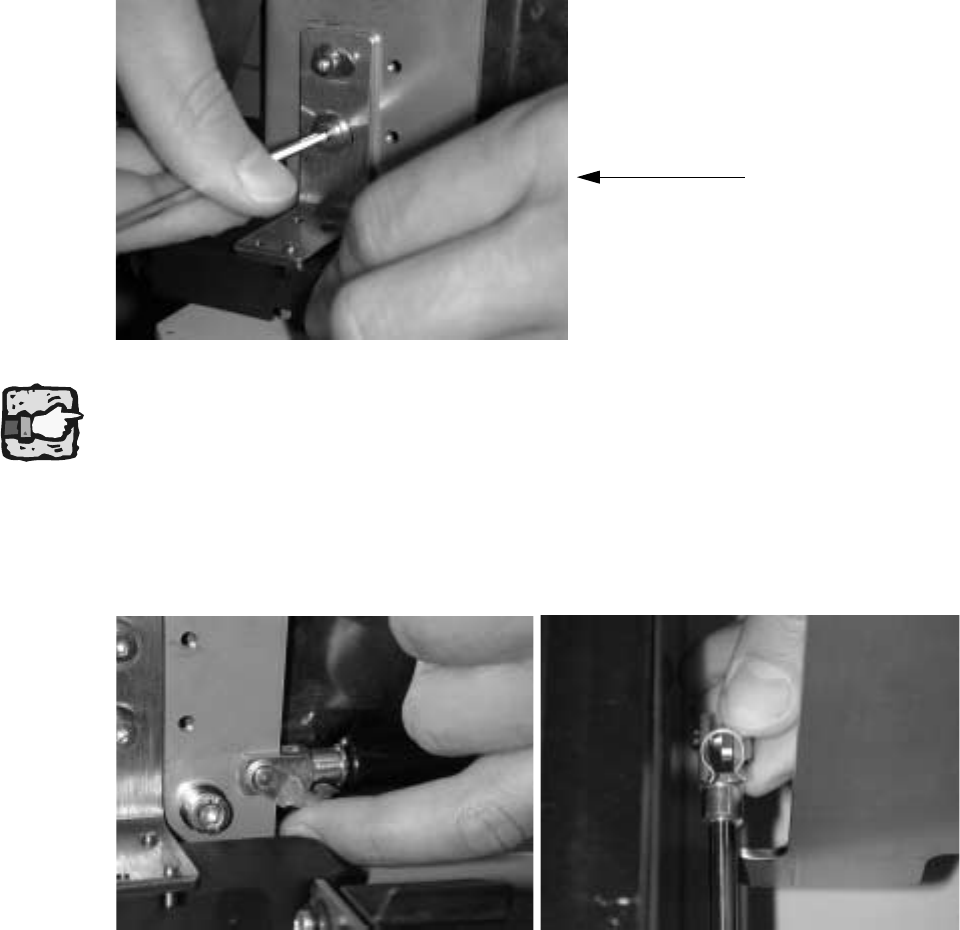

: Attach the mounting bracket with the Schmersal switch with two screws and washers.
2
Remember to ensure that the first two screws are screwed into the oval holes before you fix the
plate in place and tighten the screws. 2
2
2
: Mount the gas springs by fitting them into the appropriate mounting at each end and fix using
the securing clips.
: Close the catch of the component feeder table
Note:
Left-mounted variant
Instructions for changing catch on component feeder table HS-50
11/2001 Issue
19

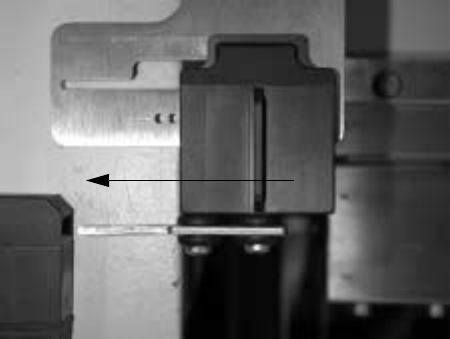

: Push the switch of the component feeder table catch into place.
: Mountthesidewallontothemachineandscrewitintoplace.
: Close the protective hood.
2
2
2
Instructions for changing catch on component feeder table HS-50
11/2001 Issue
20
