MODEL TCM-X200 0103-001 126 XY ࠹ࡉ࡞ㇱ XY T ABLE SECTION Fig. JD-1 X Y ࠪࡘ࠻ XY Chute 18 34 23 25 26 33 16 13 15 20 15 17 24 12 22 24 22 13 17 12 13 17 7 5 6 12 24 22 18 2 8 9 11 27 1 25 26 10 15 16 23 25 26 13 17 12 13 17 …
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
125
JC-5
401 630 059 5888 PIN,GUIDE 1 696JC-110-401
402 630 064 6153 SHAFT 4 696JC-110-402
403 630 064 6160 SHAFT 1 696JC-110-403
404 630 064 5590 HOLDER 1 696JC-110-404
405 630 066 1163 SHAFT 1 696JC-110-405
406 630 064 6061 COLLAR 1 696JC-110-406
408 630 001 1388 BEARING,RADIAL 12 696JC-110-408
409 630 059 6823 CLUTCH/BRAKE 1 696JC-110-409
410 411 000 9809 RING E 3 5 696JC-110-410
411 630 001 0213 WASHER 1 696JC-110-411
412 630 092 9799 ASSY,MOTOR,STEPPING 1 MPM19(BPC),103H7121-0440
696JC-110-412
413 630 064 6436 PULLEY,TIMING 1 696JC-110-413
414 630 059 6755 PULLEY,TIMING 1 696JC-110-414
415 630 064 6795 BELT,TIMING 1 696JC-110-415
417 630 000 7633 BOLT,HEX-SCT 2 696JC-110-417
418 630 000 7640 BOLT,HEX-SCT 4 696JC-110-418
419 630 000 7664 BOLT,HEX-SCT 2 696JC-110-419
420 630 000 8883 SET SCREW 4 696JC-110-420
421 411 141 2905 WASHER SPR 4 8 696JC-110-421
422 411 141 4008 WASHER V 4X9X0.8 12 696JC-110-422
424 630 008 1053 SET SCREW 2 696JC-110-424
425 630 061 1434 SHEET 2 696JC-110-425
MODEL TCM-X200
0103-001
126
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

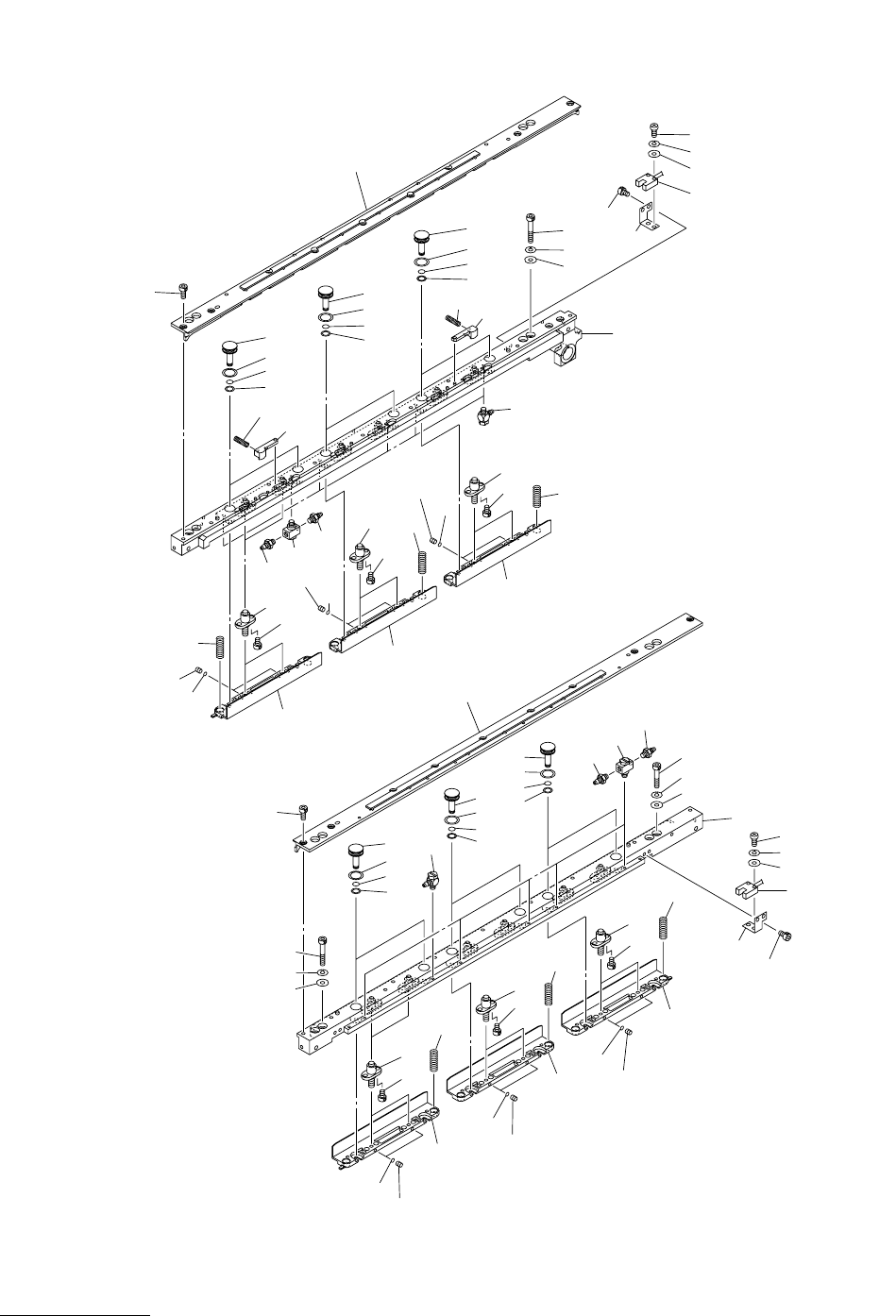

Fig. JD-1 XY ࠪࡘ࠻ XY Chute
18
34
23
25
26
33
16
13
15
20
15
17
24
12
22
24
22
13
17
12
13
17
7
5
6
12
24
22
18
2
8
9
11
27
1
25
26
10
15
16
23
25
26
13
17
12
13
17
6
7
5
12
13
17
12
29
30
31
14
28
17
22
24
22
24
22
24
20
15
8
9
11
10
8
9
11
10
37
8
9
11
10
8
9
11
10
8
9
11
10
35
37
36
29
30
31
14
17
32
Fig.JD-1
TCM-X200
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
127
JD-1
1 630 093 5721 CHUTE 1 696JD-110-001
2 630 093 0849 CHUTE 1 696JD-110-002
5 630 093 7046 PLATE 2 696JD-110-005
6 630 093 7053 PLATE 2 696JD-110-006
7 630 093 7060 PLATE 2 696JD-110-007
8 630 078 8143 SHAFT 12 696JD-110-008
9 630 070 1838 SEAL 12 696JD-110-009
10 630 070 1845 SEAL 12 696JD-110-010
11 630 003 3212 SEAL 12 696JD-110-011
12 630 002 3459 SPRING,COMP 12 696JD-110-012
13 630 076 7759 GUIDE,LINEAR 12 696JD-110-013
14 630 109 6223 ASSY,SENSOR,PHOTO 2 BPH47,BPH49 696JD-110-014
15 630 048 4656 PIPE FITTINGS 12 696JD-110-015
16 630 046 5556 PIPE FITTINGS 6 696JD-110-016
17 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 28 696JD-110-017
18 630 076 8824 BOLT,HEX-SCT(BUTTON HEAD) 18 696JD-110-018
20 630 076 9029 PIPE FITTINGS 6 696JD-110-020
22 630 061 1434 SHEET 12 696JD-110-022
23 630 000 7794 BOLT,HEX-SCT 6 696JD-110-023
24 630 008 1053 SET SCREW 12 696JD-110-024
25 411 141 6705 WASHER SPR 5 8 696JD-110-025
26 411 141 4107 WASHER V 5X10X1 8 696JD-110-026
27 630 000 7787 BOLT,HEX-SCT 2 696JD-110-027
28 630 093 5738 BRACKET 1 696JD-110-028
29 411 140 6300 SCR PAN 2X8 4 696JD-110-029
30 411 141 2509 WASHER SPR 2 4 696JD-110-030
31 411 141 3605 WASHER V 2X5X0.3 4 696JD-110-031
32 630 093 5783 BRACKET 1 696JD-110-032
33 630 093 5769 CHUTE 1 696JD-110-033
34 630 093 1211 CHUTE 1 696JD-110-034
35 630 076 5670 BLOCK 4 696JD-110-035
36 630 076 6172 BLOCK 4 696JD-110-036
37 630 001 9780 SPRING,COMP 8 696JD-110-037
