P-0206-001 - 第166页
MODEL TCM-X200 0203-002 164 ࡋ࠶࠼㚟േ࡙࠾࠶࠻ HEAD DRIVING UNIT Fig. KB-1 ⵝ⌕ਅㇱ Placement Leveller 25 27 24 26 18 29 39 34 20 21 38 34 35 36 37 42 43 35 47 40 41 19 See Fig.B-1 Key No.1 Fig.KB-1 4797L TCM-X200-002 TCM-X100AL TCM…
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
163
K-7
601 630 099 6586 BRACKET 1 696K--110-601
602 630 093 6438 ASSY,SWITCH,MICRO 1 SQ1 696K--110-602
603 630 000 0375 ACCESSORY,SW 1 696K--110-603
604 411 141 4107 WASHER V 5X10X1 2 696K--110-604
605 411 141 6705 WASHER SPR 5 2 696K--110-605
606 630 000 7756 BOLT,HEX-SCT 2 696K--110-606
607 411 119 2104 WASHER V 4X9X0.8 2 696K--110-607
608 411 008 1706 WASHER SPR 4 1 696K--110-608
609 630 000 8609 BOLT,HEX 1 696K--110-609
610 630 000 8616 BOLT,HEX 1 696K--110-610
611 630 001 0213 WASHER 1 696K--110-611
612 411 008 1706 WASHER SPR 4 1 696K--110-612
613 411 054 8506 NUT HEX 4 1 696K--110-613
615 630 096 6534 HANDLE 1 696K--110-615
616 630 096 7173 SHAFT 1 696K--110-616
617 630 087 0398 SPRING PIN 1 696K--110-617
MODEL TCM-X200
0203-002
164

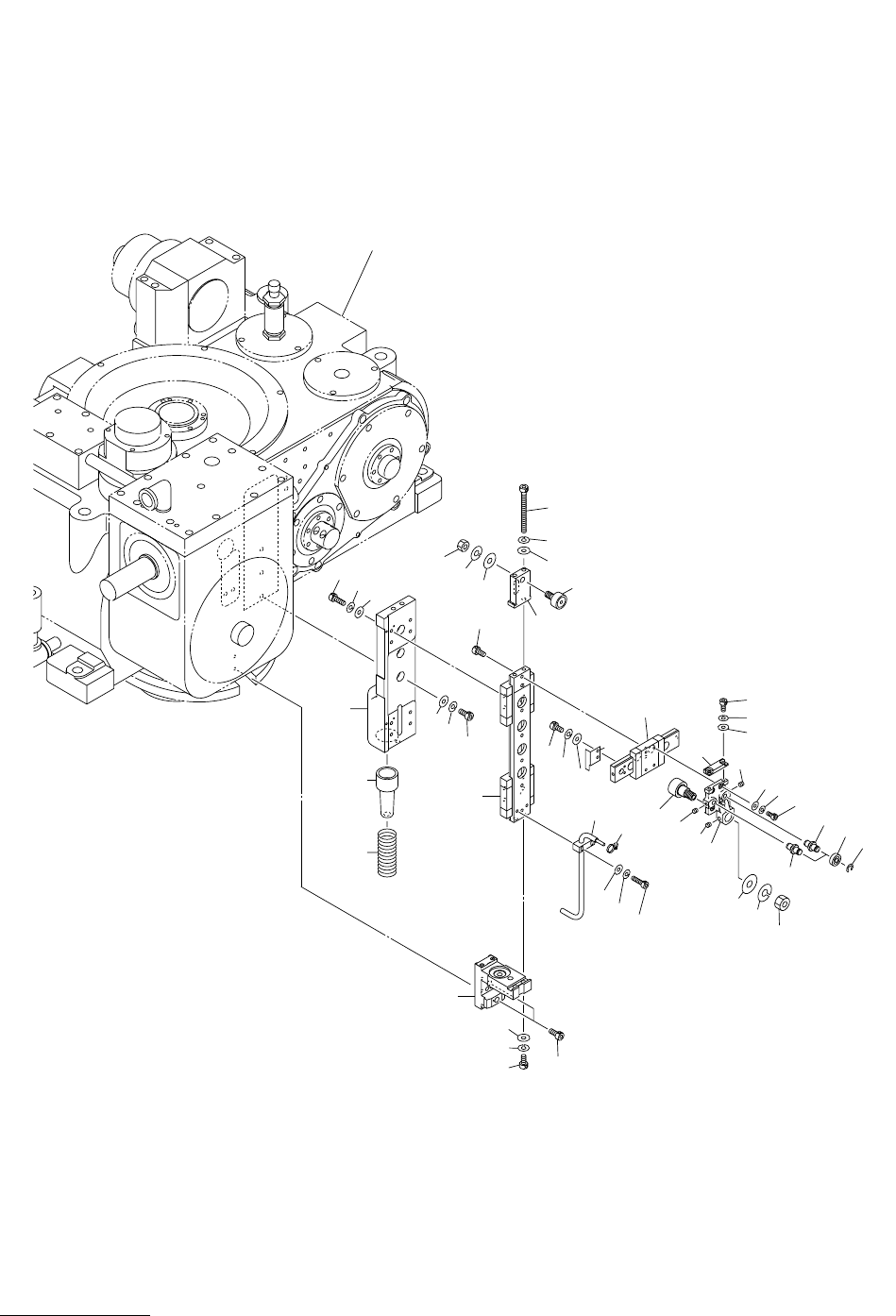

ࡋ࠶࠼㚟േ࡙࠾࠶࠻ HEAD DRIVING UNIT
Fig. KB-1 ⵝ⌕ਅㇱ Placement Leveller
25
27
24
26
18
29
39
34
20
21
38
34
35
36
37
42
43
35
47
40
41
19
See Fig.B-1
Key No.1
Fig.KB-1
4797L
TCM-X200-002
TCM-X100AL
TCM-X300
4797A-002
22
21
20
2
14
9
13
8
3
46
45
44
23
4
8
12
11
10
48
49
50
5
6
7
15
16
33
31
32
28
17
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
165
KB-1
2 630 093 0467 GUIDE,LINEAR 1 696KB-110-002
3 630 093 1457 PLATE,LOCATE 1 696KB-110-003
4 630 038 5663 PIN,LOCATE 1 696KB-110-004
5 630 038 5687 PIN,LOCATE 1 696KB-110-005
6 630 001 1241 BEARING,RADIAL 2 696KB-110-006
7 411 001 0003 RING E 4 2 696KB-110-007
8 630 000 8920 SET SCREW 2 696KB-110-008
9 630 084 5792 CAM FOLLOWER 1 696KB-110-009
10 411 141 4008 WASHER V 4X9X0.8 2 696KB-110-010
11 411 141 2905 WASHER SPR 4 2 696KB-110-011
12 630 000 7619 BOLT,HEX-SCT 2 696KB-110-012
13 630 000 8944 SET SCREW 1 696KB-110-013
14 411 141 4701 WASHER V 10X21X2 1 696KB-110-014
15 411 141 3209 WASHER SPR 10 1 696KB-110-015
16 411 141 1106 NUT HEX 10 1 696KB-110-016
17 630 093 0221 GUIDE,LINEAR 1 696KB-110-017
18 630 000 7626 BOLT,HEX-SCT 2 696KB-110-018
19 630 092 9935 PLATE 1 696KB-110-019
20 411 141 4008 WASHER V 4X9X0.8 10 696KB-110-020
21 411 141 2905 WASHER SPR 4 10 696KB-110-021
22 630 000 7640 BOLT,HEX-SCT 8 696KB-110-022
23 630 092 9959 PLATE 1 696KB-110-023
24 630 092 9867 BLOCK 1 696KB-110-024
25 630 093 3192 BOLT,HEX-SCT 2 696KB-110-025
26 411 141 4107 WASHER V 5X10X1 2 696KB-110-026
27 411 141 6705 WASHER SPR 5 2 696KB-110-027
28 630 048 7787 BOLT 2 696KB-110-028
29 630 007 2501 CAM FOLLOWER 1 696KB-110-029
31 630 098 5405 COLLAR 1 696KB-110-031
32 630 093 5332 SPRING,COMP 1 696KB-110-032
33 630 099 1055 GUIDE,LINEAR 1 696KB-110-033
34 411 141 4305 WASHER V 6X12.5X1.6 5 696KB-110-034
35 411 141 3001 WASHER SPR 6 5 696KB-110-035
36 630 000 7909 BOLT,HEX-SCT 2 696KB-110-036
37 630 093 2690 PIPE 1 696KB-110-037
38 630 000 7664 BOLT,HEX-SCT 2 696KB-110-038
39 411 141 0901 NUT HEX 8 1 696KB-110-039
40 411 141 3100 WASHER SPR 8 1 696KB-110-040
41 411 141 4503 WASHER V 8X17X1.6 1 696KB-110-041
42 630 029 6389 PIPE FITTINGS 1 696KB-110-042
43 630 086 4120 PLATE 1 696KB-110-043
44 411 141 3902 WASHER V 3X7X0.5 2 696KB-110-044
45 411 141 2806 WASHER SPR 3 2 696KB-110-045
46 630 000 7503 BOLT,HEX-SCT 2 696KB-110-046
47 630 000 7886 BOLT,HEX-SCT 3 696KB-110-047
48 411 141 3902 WASHER V 3X7X0.5 4 696KB-110-048
49 411 141 2806 WASHER SPR 3 4 696KB-110-049
50 630 000 7510 BOLT,HEX-SCT 4 696KB-110-050
