MODEL TCM-X200 021 1-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 197 LB-2 10 6 630 1 16 9606 PI PE FITTINGS 2 6 9 6 L B - 110 - 1 0 6 10 7 630 1 18 4074 TUB E 1 696 LB-1 1 0-107 10 9 630 009 3544 PI PE FI TTI N…
MODEL TCM-X200
0211-002
196

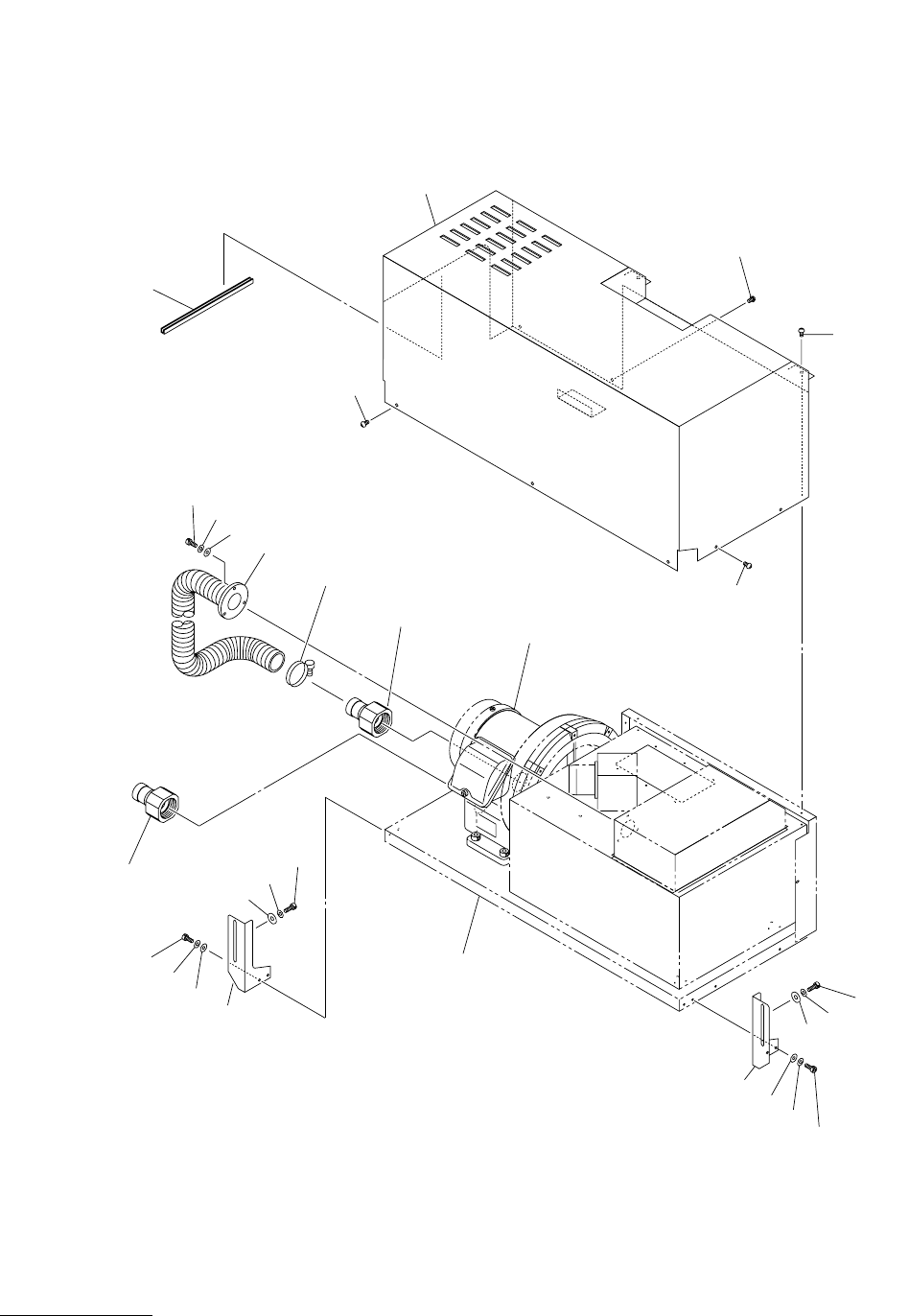

࠳ࠬ࠻ࡏ࠶ࠢࠬㇱ DUST BOX SECTION
Fig. LB-2 ࠳ࠬ࠻ࡏ࠶ࠢࠬࠞࡃ Dust Box Cover
131
131
131
132
131
112
111
110
107
109
106
128
See Fig.LB-1
Key No.1
See Fig.LB-1
Key No.42
127
126
122
128
127
126
121
123
124
125
123
124
125
130
Fig.LB-2
4797L-002
TCM-X300-002
TCM-X100-002
TCM-X200-002
4797A-002
106
MODEL TCM-X200
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
197
LB-2
106 630 116 9606 PIPE FITTINGS 2 696LB-110-106
107 630 118 4074 TUBE 1 696LB-110-107
109 630 009 3544 PIPE FITTINGS(BAND) 1 696LB-110-109
110 411 141 4107 WASHER V 5X10X1 3 696LB-110-110
111 411 141 6705 WASHER SPR 5 3 696LB-110-111
112 630 000 7763 BOLT,HEX-SCT 3 696LB-110-112
121 630 110 5260 BRACKET 1 696LB-110-121
122 630 110 5277 BRACKET 1 696LB-110-122
123 411 141 4107 WASHER V 5X10X1 4 696LB-110-123
124 411 141 6705 WASHER SPR 5 4 696LB-110-124
125 630 000 7763 BOLT,HEX-SCT 4 696LB-110-125
126 630 001 0220 WASHER 4 696LB-110-126
127 411 141 6705 WASHER SPR 5 4 696LB-110-127
128 630 000 7770 BOLT,HEX-SCT 4 696LB-110-128
130 630 110 5291 COVER 1 696LB-110-130
131 411 140 8007 SCR TRS 5X6 8 696LB-110-131
132 630 087 1203 ACCESSORY,WIRING 1 696LB-110-132
MODEL TCM-X200
0211-003
198

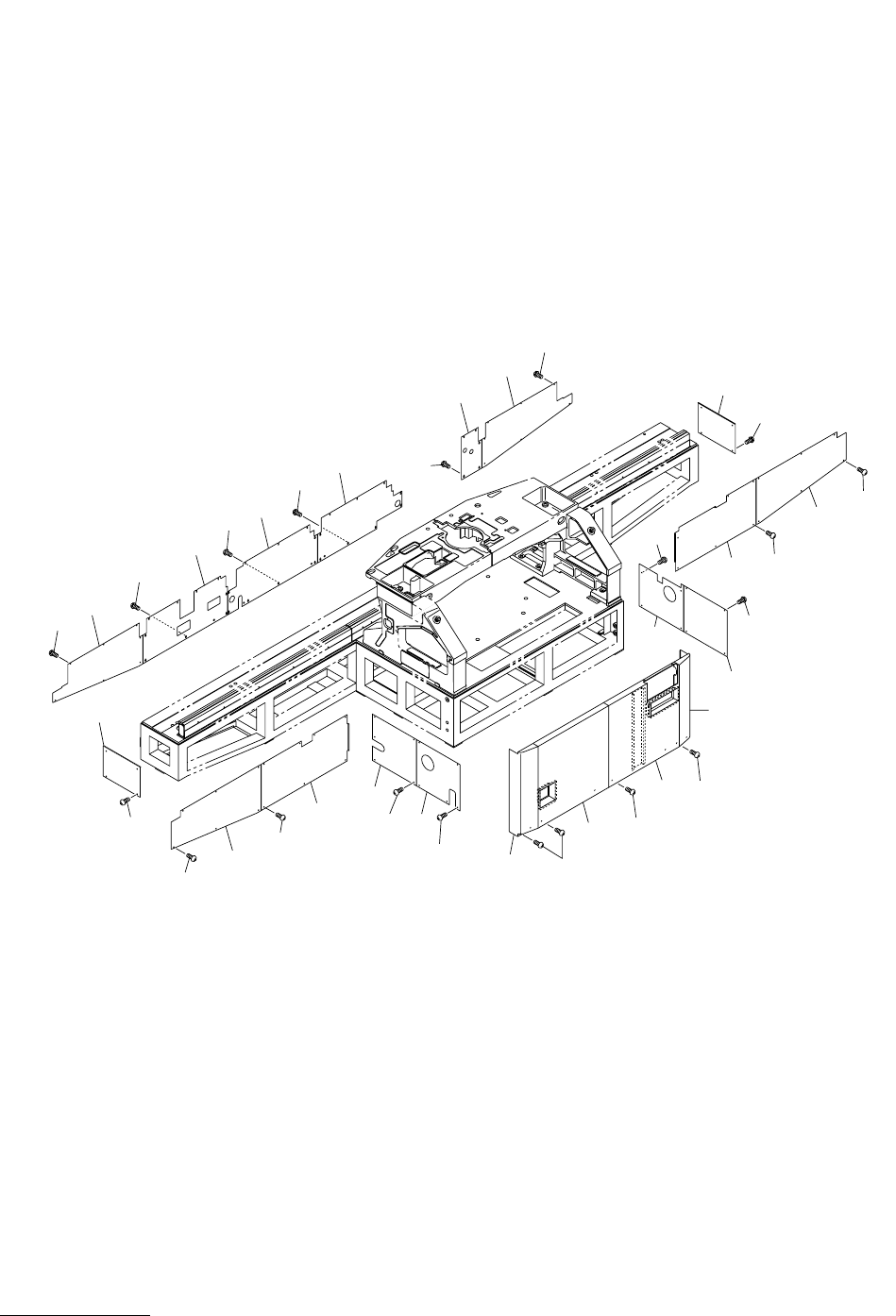

ࠞࡃㇱ COVER SECTION
Fig. MA-1 ᧄࠞࡃ Body Cover
Fig.MA-1
TCM-X200-003
4797A-003
23
11
11
11
11
11
22
11
21
20
19
18
24
11
11
10
11
11
30
11
11
11
31
32
33
7
11
11
9
11
24
25
11
11
26
15
11
17
16
