MODEL TCM-X200 021 1-003 20 ࡈࠖ࠳ࠠࡖ࠶ࠫㇱ FEEDER CARRIAGE SECTION Fig. C-1 ࡈࠖ࠳ゲ㚟േㇱ Feeder Axis Driver Fig.C-1 TCM-X200-003 4797A-003 2 8 7 7 5 3 1 3 5 5 20 8 7 25 24 23 17 8 7 16 8 7 22 8 7 18 20 23 24 25 19 21 See Fig.L-1…
MODEL TCM-X200
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
19
BB-3
201 630 085 1434 ASSY,HOLDER 12 696BB-110-201
201 -01 630 082 8863 MOTOR,STEPPING 1 MPM1-12,M9529Z01A
201 -02 630 090 0057 CAM 1
201 -03 630 083 1726 BOLT,HEX-SCT 2
201 -05 630 082 8894 BUSH,BALL 5
201 -06 630 048 0849 SEAL 10
201 -07 630 083 1696 HOLDER 1
201 -08 630 097 4805 BOLT,HEX-SCT 3
201 -09 630 083 4369 COLLAR 5
201 -10 630 098 6624 DISK 1
201 -11 630 057 0076 PIPE FITTINGS 1
201 -12 630 091 2654 PLATE 1
201 -13 630 083 3300 HOLDER 1
201 -14 630 091 2661 BOLT,HEX-SCT 1
201 -16 630 082 1390 BEARING,RADIAL 1
201 -20 630 085 8389 MECH PARTS(MAGNET) 1
201 -21 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 1
201 -22 630 082 9808 SET SCREW 2
201 -23 630 116 2737 CAP 2
202 630 089 7494 NAME PLATE,PARTS 1 696BB-110-202
203 630 089 7500 NAME PLATE,PARTS 1 696BB-110-203
MODEL TCM-X200
0211-003
20

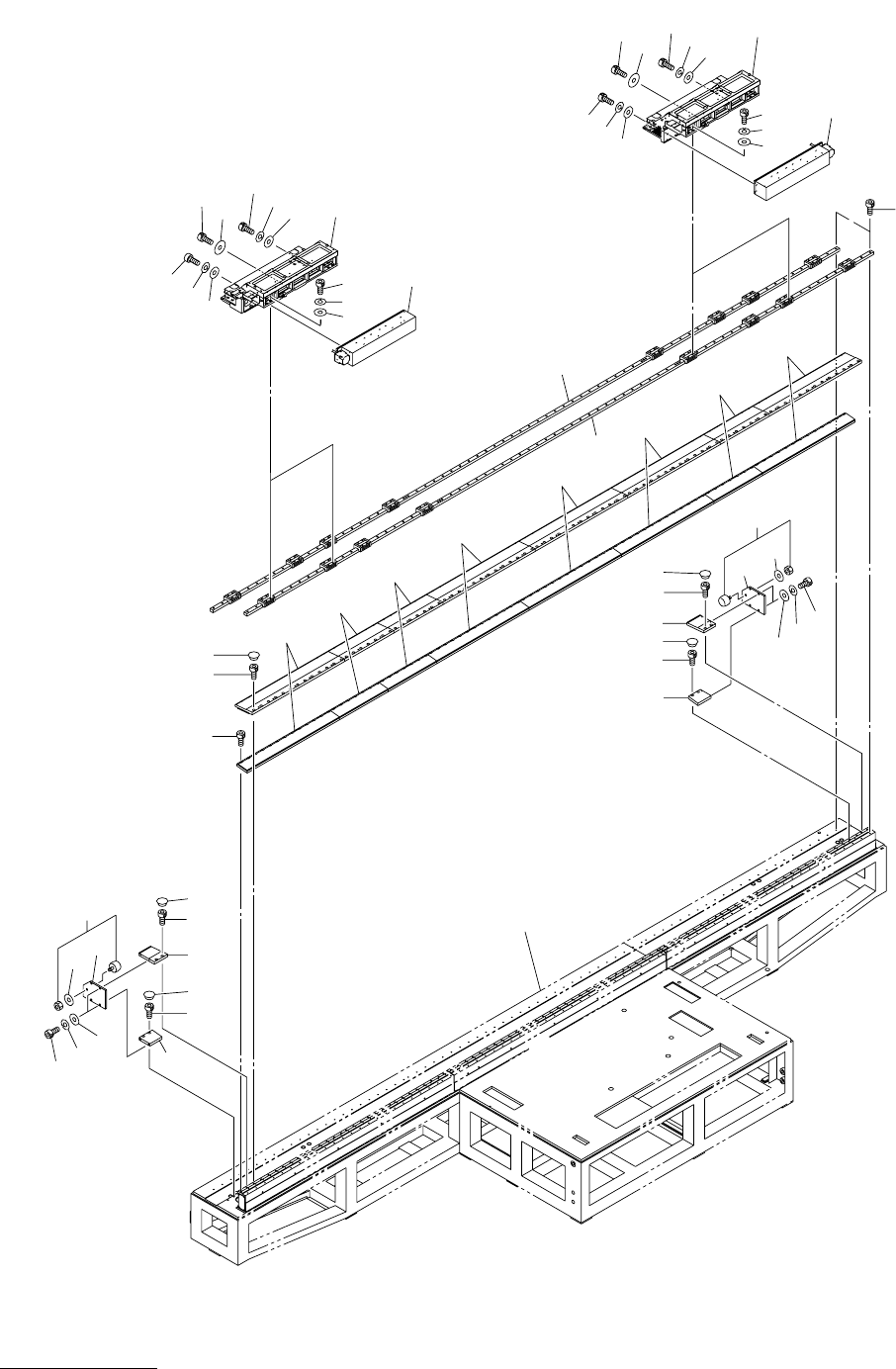

ࡈࠖ࠳ࠠࡖ࠶ࠫㇱ FEEDER CARRIAGE SECTION
Fig. C-1 ࡈࠖ࠳ゲ㚟േㇱ Feeder Axis Driver
Fig.C-1
TCM-X200-003
4797A-003
2
8
7
7
5
3
1
3
5
5
20
8
7
25
24
23
17
8
7
16
8
7
22
8
7
18
20
23
24
25
19
21
See Fig.L-1
Key No.9
18
19
5
1
3
5
30
29
28
27
26
9
10
33
32
31
15
14
13
33
32
31
11
15
14
13
12
27
26
30
29
28
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
21
C-1
1 630 117 6345 GUIDE,LINEAR 2 696C--110-001
2 630 000 7893 BOLT,HEX-SCT 148 696C--110-002
3 630 115 4213 MOTOR,AC-SERVO 3 696C--110-003
5 630 115 4220 MOTOR,AC-SERVO 5 696C--110-005
7 411 179 5107 BOLT HEX-SCT 10X20 180 696C--110-007
8 630 085 9058 MECH PARTS (CAP) 94 696C--110-008
9 630 115 8877 BASE 2 696C--110-009
10 630 117 2408 MOTOR,AC-SERVO 2 MSVM2(F1),MSVM3(F2),#B0340101
696C--110-010
11 630 115 8228 BASE 2 696C--110-011
12 630 117 2392 MOTOR,AC-SERVO 2 MSVM4(F3),MSVM5(F4),#B0340095
696C--110-012
13 411 141 4503 WASHER V 8X17X1.6 64 696C--110-013
14 411 141 3100 WASHER SPR 8 64 696C--110-014
15 630 000 8029 BOLT,HEX-SCT 64 696C--110-015
16 630 093 7121 PLATE 1 696C--110-016
17 630 108 1953 PLATE 1 696C--110-017
18 630 093 7145 PLATE 2 696C--110-018
19 630 034 8743 SHOCK ABSORBER 2 696C--110-019
20 411 141 4800 WASHER V 12X24X2.5 2 696C--110-020
21 630 093 7152 PLATE 1 696C--110-021
22 630 108 1960 PLATE 1 696C--110-022
23 411 141 6309 WASHER F 10X18X2 8 696C--110-023
24 411 141 3209 WASHER SPR 10 8 696C--110-024
25 630 000 8135 BOLT,HEX-SCT 8 696C--110-025
26 630 107 7093 WASHER 4 696C--110-026
27 630 116 4410 BOLT,HEX-SCT 4 696C--110-027
28 411 141 6309 WASHER F 10X18X2 24 696C--110-028
29 411 141 3209 WASHER SPR 10 24 696C--110-029
30 630 012 1704 BOLT,HEX-SCT 24 696C--110-030
31 411 141 6002 WASHER F 6X11.5X1.6 48 696C--110-031
32 411 141 3001 WASHER SPR 6 48 696C--110-032
33 630 000 7923 BOLT,HEX-SCT 48 696C--110-033
