P-0206-001 - 第285页
MODEL TCM-X200 0103-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 283 RM-6 50 2 630 035 2658 BRA CK ET 1 696RM-1 10-502 50 3 41 1 088 1702 WAS HE R V 5X 10 X1 2 696RM-1 10-503 50 4 41 1 008 2109 WA SH ER SPR 5 2 …
MODEL TCM-X200
0203-002
282
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

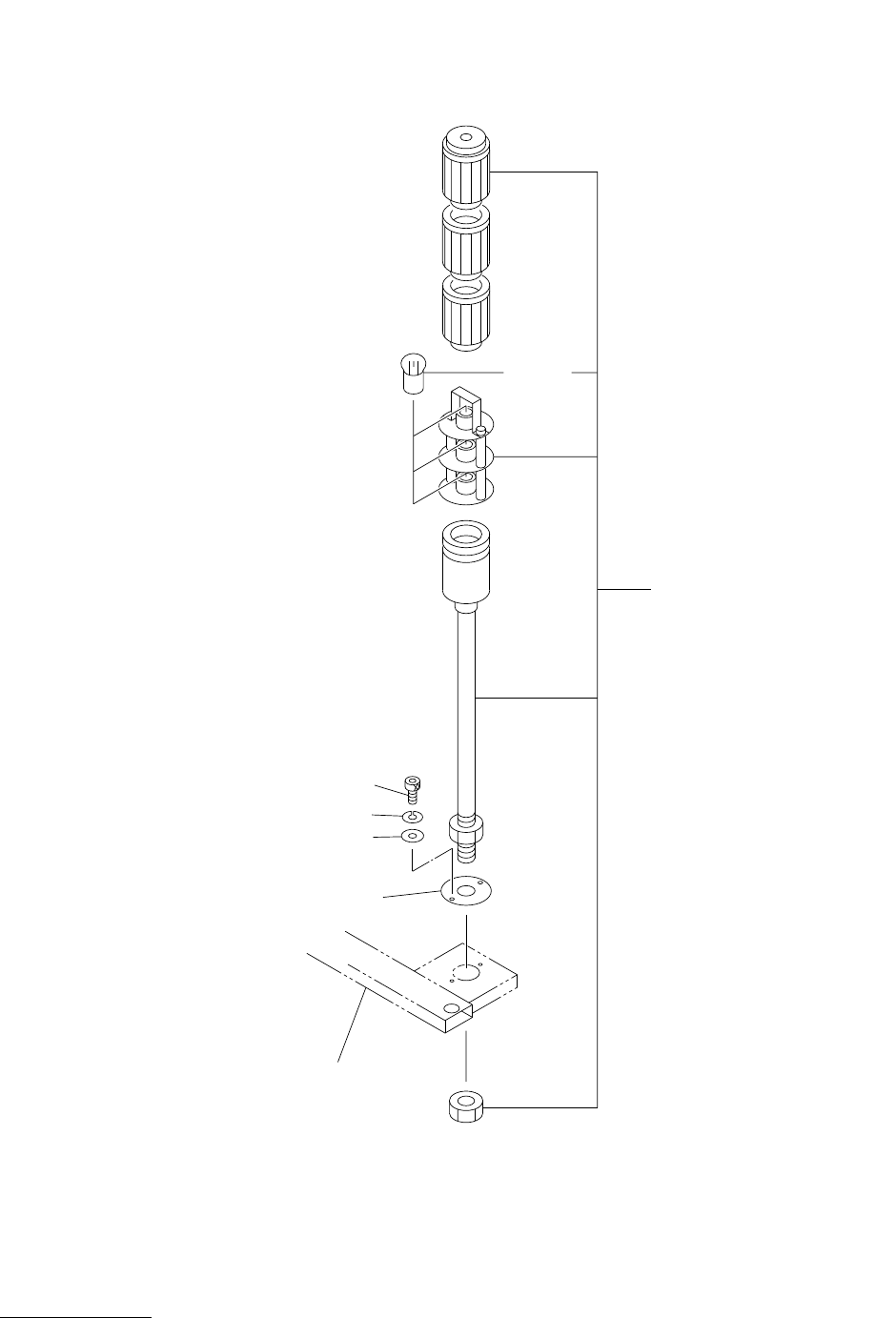

Fig. RM-6 ࠲ࡢἮ Light Tower
Fig.RM-6
TCM-X200
551
551-10
505
504
503
502
See Fig.MA-2
Key No.109
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
283
RM-6
502 630 035 2658 BRACKET 1 696RM-110-502
503 411 088 1702 WASHER V 5X10X1 2 696RM-110-503
504 411 008 2109 WASHER SPR 5 2 696RM-110-504
505 411 140 5105 BOLT HEX 5X14 2 696RM-110-505
551 630 093 6360 ASSY,PILOT LAMP 1 696RM-110-551
551 -10 630 000 1983 LAMP 3 H1,H2,H3
MODEL TCM-X200
0203-001
284
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2
Fig. RM-7 ࿁↢ᛶ᛫ Regenerative Resistance
Fig.RM-7
TCM-X200
4797L
TCM-X300
4797A
See Fig.RM-1
Key No.64
See Fig.RM-1
Key No.99
697
651
698
699
652
