P-0206-001 - 第293页
MODEL TCM-X200 021 1-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 291 SB-2 15 1 630 109 3604 ASSY ,CORD (X200SB300-7) 1 -BPH21 696SB-1 10-151 15 2 630 109 361 1 ASSY ,CORD (X200SB300-8) 1 -BPH26 696SB-1 10-152 1…
MODEL TCM-X200
0211-002
290
ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-2
F1,2ޔF3,4 ၮ᧼ޔXY ၮ᧼
F1,2,F3,4 P.C.B., XY P.C.B.
Fig.SB-2
155
158
161
155
158
168
171
164
166
165
167
169
170
175
177
176
178
180
181
154
151
155
156
157
158
159
160
179
172
179
182
188
190
183
189
191
173
161
152
162
155
158
161
153
See Fig.RL-5
Key No.455
F1,2 PCB
See Fig.RM-4
Key No.353
153
TCM-X200-003
4797A-003
193
187
194
190
188
184
182
186
187
185
187
187
184
190
192
188
185
182
153
See Fig.RL-5
Key No.455
F3,4 PCB
XY PCB
TCM-X100-002
MODEL TCM-X200
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
291
SB-2
151 630 109 3604 ASSY,CORD (X200SB300-7) 1 -BPH21 696SB-110-151
152 630 109 3611 ASSY,CORD (X200SB300-8) 1 -BPH26 696SB-110-152
153 630 092 3650 ASSY,CORD(X200SB301) 1 XCN05,09,25(F1,2)- 696SB-110-153
154 630 092 3599 ASSY,CORD(X200SB300-1) 1 -BPH20 696SB-110-154
155 630 092 3667 ASSY,CORD(X200SB302-1) 1 XCN06,10,26(F1,2)- 696SB-110-155
156 630 092 3605 ASSY,CORD(X200SB300-2) 1 -BPH22 696SB-110-156
157 630 092 3612 ASSY,CORD(X200SB300-3) 1 -BPH23 696SB-110-157
158 630 092 3674 ASSY,CORD(X200SB302-2) 1 XCN07,11,27(F1,2)- 696SB-110-158
159 630 092 3629 ASSY,CORD(X200SB300-4) 1 -BPH24 696SB-110-159
160 630 092 3636 ASSY,CORD(X200SB300-5) 1 -BPH25 696SB-110-160
161 630 092 3681 ASSY,CORD(X200SB303) 1 XCN08,12,28(F1,2)- 696SB-110-161
162 630 092 3643 ASSY,CORD(X200SB300-6) 1 -BPH27 696SB-110-162
164 630 109 3628 ASSY,CORD (3.5M) 1 -SPB31(LED31) 696SB-110-164
165 630 109 3635 ASSY,CORD (2.5M) 1 -SPB32(LED32) 696SB-110-165
166 630 109 3628 ASSY,CORD (3.5M) 1 -SQ04(YSOL05) 696SB-110-166
167 630 109 3635 ASSY,CORD (2.5M) 1 -SQ05(YSOL06) 696SB-110-167
169 630 109 3635 ASSY,CORD (2.5M) 1 -SPB33(LED33) 696SB-110-169
170 630 109 3635 ASSY,CORD (2.5M) 1 -SQ12(YSOL10) 696SB-110-170
171 630 092 3919 ASSY,CORD(X200SB313) 1 XCN34(F1,2)- 696SB-110-171
172 630 092 3926 ASSY,CORD(X200SB314) 1 XCN05,06(F3,4)- 696SB-110-172
173 630 109 4342 ASSY,CORD (2.0M) 1 XCN07(F3,4)- 696SB-110-173
175 630 109 4335 ASSY,CORD (2.0M) 1 -SPB35(LED35) 696SB-110-175
176 630 109 3628 ASSY,CORD (3.5M) 1 -SPB36(LED36) 696SB-110-176
177 630 109 4335 ASSY,CORD (2.0M) 1 -SQ06(YSOL07) 696SB-110-177
178 630 109 3628 ASSY,CORD (3.5M) 1 -SQ06(YSOL08) 696SB-110-178
179 630 092 3902 ASSY,CORD(X200SB312) 1 XCN12,13,14(F3,4)- 696SB-110-179
180 630 109 4335 ASSY,CORD (2.0M) 1 -SPB34(LED34) 696SB-110-180
181 630 109 4335 ASSY,CORD (2.0M) 1 -SQ13(YSOL11) 696SB-110-181
182 630 092 3476 ASSY,CORD(X200SB200) 1 XCN05,06,31(XY)- 696SB-110-182
183 630 092 3582 ASSY,CORD(X200SB211) 1 (XNC101-J)- 696SB-110-183
184 630 092 3483 ASSY,CORD(200SB201) 1 XCN09,10,17,18(XY)- 696SB-110-184
185 630 092 3490 ASSY,CORD(X200SB202) 1 XCN25,32(XY)- 696SB-110-185
186 630 092 3506 ASSY,CORD(X200SB203) 1 XCN27(XY)- 696SB-110-186
187 630 092 3513 ASSY,CORD(X200SB204) 1 XCN19,20,23,21,22,24,53,52,26(XY)-
696SB-110-187
188 630 092 3520 ASSY,CORD(X200SB205) 1 XCN11,33(XY)- 696SB-110-188
189 630 091 3637 ASSY,CORD (X200F11) 1 (XNC71-F)- 696SB-110-189
190 630 092 3537 ASSY,CORD(X200SB206) 1 XCN12,13,14(XY)- 696SB-110-190
191 630 091 3620 ASSY,CORD (X200F10) 1 (XNC72-F)- 696SB-110-191
192 630 092 3544 ASSY,CORD(X200SB207) 1 XCN34(XY)- 696SB-110-192
193 630 092 3551 ASSY,CORD(X200SB208) 1 XCN41,40,39,38(XY)- 696SB-110-193
194 630 092 3568 ASSY,CORD(X200SB209) 1 XCN50,49,48(XY)- 696SB-110-194
MODEL TCM-X200
0211-002
292

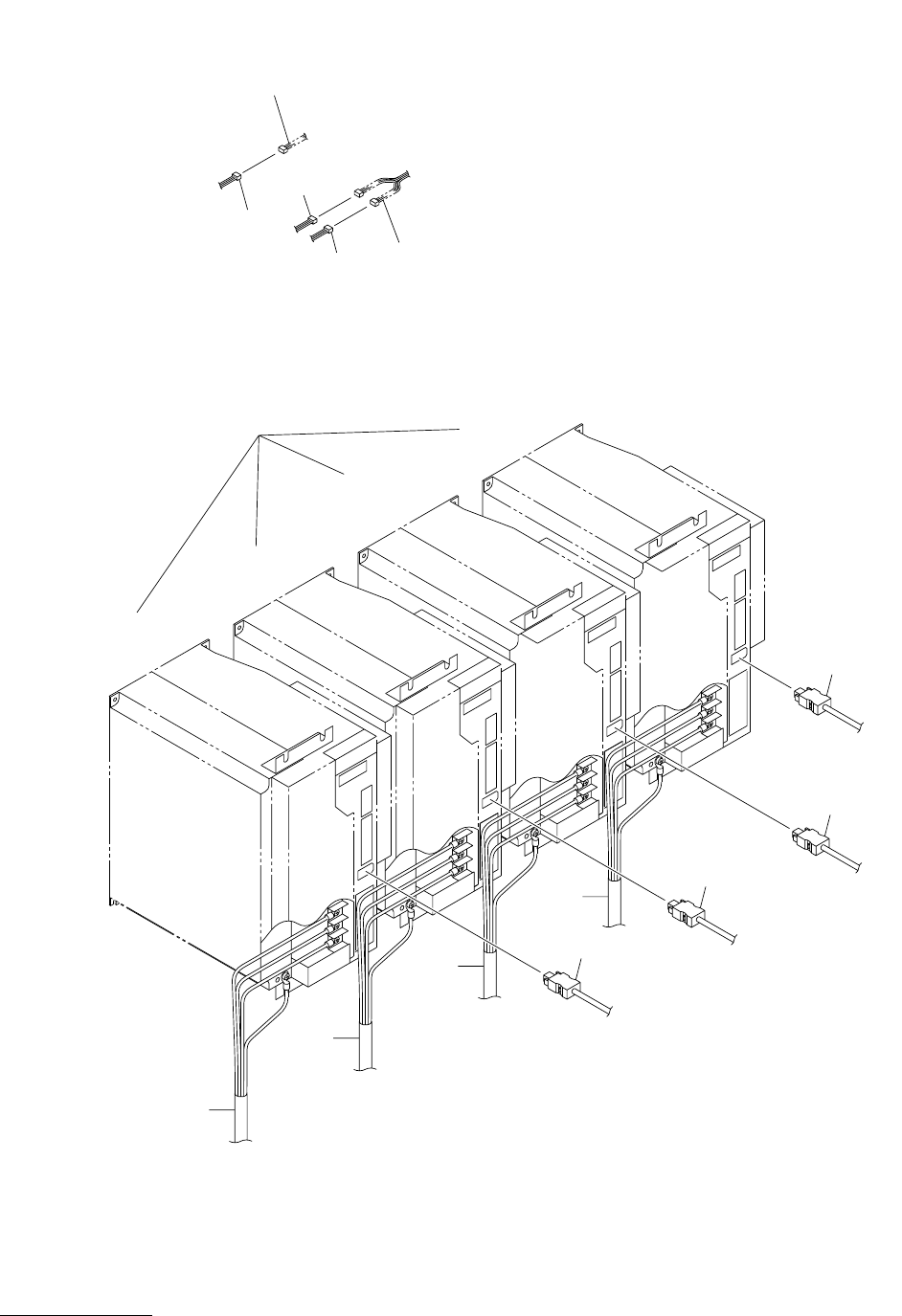

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-4 F ゲ࠼ࠗࡃ F Axis Drivers
Fig.SB-4
360
359
361
354
358
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
See Fig.SB-2
Key No.173
See Fig.SB-2
Key No.172
4797A-002
TCM-X200-003
TCM-X100-002
353
357
352
356
351
355
