P-0206-001 - 第310页
MODEL TCM-X200 021 1-003 308 ᮡḰઃዻຠ ST ANDARD ACCESSORIES Fig. ZS-1 ᴦౕ߅ࠃ߮ࠬࡍࠕࡄ࠷ Jig and Spare Parts Fig.ZS-1 TCM-X200-003 4797A-003 1 7 30 33 34 60 27 26 18 17 16 12 11 10 20 19 15 13 9 9 14 21 51 52 53 35 54 56 57 8 22 2…
MODEL TCM-X200
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
307
ZQ-1
1 630 110 4041 ASSY,FRAME(MASTER JIG) 1 696ZQ-110-001
MODEL TCM-X200
0211-003
308
ᮡḰઃዻຠ STANDARD ACCESSORIES

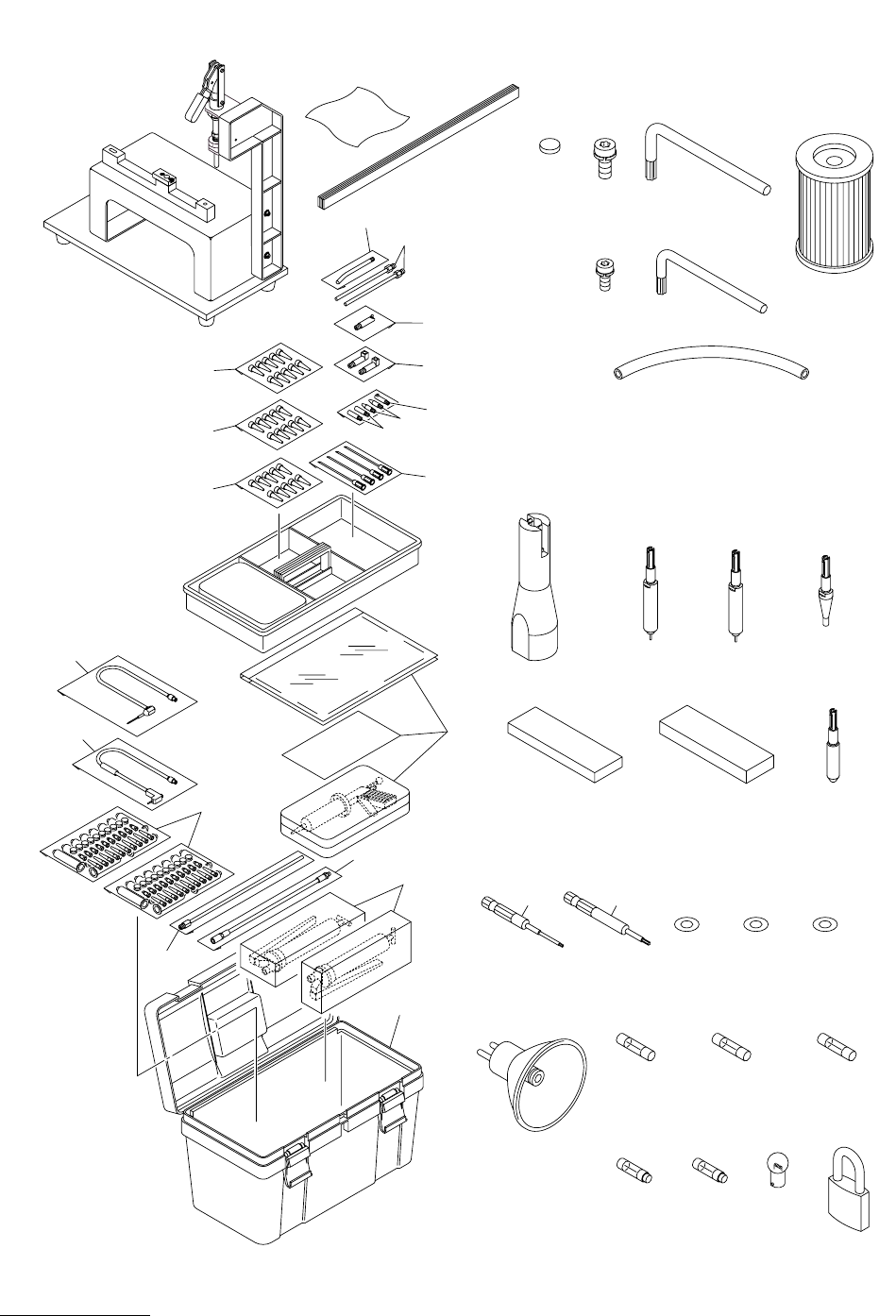

Fig. ZS-1 ᴦౕ߅ࠃ߮ࠬࡍࠕࡄ࠷ Jig and Spare Parts
Fig.ZS-1
TCM-X200-003
4797A-003
1
7
30
33
34
60
27
26
18
17
16
12
11
10
20
19
15
13
9
9
14
21
51
52
53
35
54 56
57
8
22 23 24
25
28
2
3
4
56
31
32
29
4443
58 59
36 37
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
309
ZS-1
1 630 048 7787 BOLT 4 696ZS-110-001
2 630 057 4609 TOOL,HAND 1 696ZS-110-002
3 630 048 7831 AIR CLEAN EQPT 240 696ZS-110-003
4 630 098 5740 TUBE 12 696ZS-110-004
5 630 089 7432 BOLT 50 696ZS-110-005
6 630 063 9759 TOOL,HAND 1 696ZS-110-006
7 630 039 7882 TOOL,MEASURE(GAGE JIG) 1 696ZS-110-007
8 630 039 7895 TOOL,MEASURE(GAGE JIG) 1 696ZS-110-008
9 630 062 2584 TOOL,HAND (DISPENSE GUN) 1 DG10 KIT 696ZS-110-009
10 630 062 2591 NOZZLE 10 No.14 696ZS-110-010
11 630 062 2607 NOZZLE 10 No.18 696ZS-110-011
12 630 062 2614 NOZZLE 10 No.20 696ZS-110-012
13 630 062 2621 NOZZLE 4 No.19 696ZS-110-013
14 630 062 2577 TOOL,HAND (HAND GREESEGUN 2 696ZS-110-014
15 630 061 7504 TOOL,HAND (MICRO HOSE) 1 KH-120 696ZS-110-015
16 630 061 7467 NOZZLE 2 SPK-3C 696ZS-110-016
17 630 061 7474 NOZZLE 2 N Type 696ZS-110-017
18 630 061 7481 NOZZLE 1 P Type 696ZS-110-018
19 630 061 7443 NOZZLE 2 L Type 696ZS-110-019
20 630 061 7450 NOZZLE 1 U Type 696ZS-110-020
21 630 063 4396 TOOL,HAND 1 H Type 696ZS-110-021
22 630 057 4494 NOZZLE(1) 1 696ZS-110-022
23 630 057 4500 NOZZLE(2) 2 696ZS-110-023
24 630 057 4517 NOZZLE(3) 1 696ZS-110-024
25 630 064 6627 TOOL,HAND 1 696ZS-110-025
26 630 061 1977 NOZZLE 2 S Type 696ZS-110-026
27 630 061 2028 NOZZLE 1 V Type 696ZS-110-027
28 630 085 8846 NOZZLE 1 696ZS-110-028
29 630 105 4445 ASSY,NOZZLE 1 HL2 Type 696ZS-110-029
30 630 098 5573 OIL PARTS 1 696ZS-110-030
31 630 110 5307 ASSY,NOZZLE 1 696ZS-110-031
32 630 104 9823 PIPE 1 696ZS-110-032
33 630 106 5700 MECH PARTS(PAPER) 50 696ZS-110-033
34 630 109 4243 MECH PARTS 5 696ZS-110-034
35 630 111 2695 RING(0.05T) 2 T0.05 696ZS-110-035
36 630 106 7476 RING(0.02T) 6 T0.02 696ZS-110-036
37 630 112 1468 RING(0.01T) 2 T0.01 696ZS-110-037
43 630 116 3659 TOOL,HAND(TOOL,HAND) 1 696ZS-110-043
44 630 116 3673 TOOL,HAND 1 696ZS-110-044
51 630 036 8642 LAMP 3 LM-100 696ZS-110-051
52 630 000 1983 LAMP 2 696ZS-110-052
53 423 022 8005 FUSE 250V 1A 2 696ZS-110-053
54 423 022 8104 FUSE 250V 2A 2 696ZS-110-054
56 423 025 2109 FUSE 250V 6.3A 2 696ZS-110-056
57 630 061 9737 MECH PARTS (PADLOCK) 1 696ZS-110-057
58 424 005 9408 FUSE 600V 20A 1 696ZS-110-058
59 424 005 9309 FUSE 600V 12A 1 696ZS-110-059
60 630 115 8594 ASSY,FRAME(FEEDER,SETJIG) 1 696ZS-110-060
