P-0206-001 - 第38页
MODEL TCM-X200 0203-002 36 ⓨᓮㇱ PNEUMA TIC SECTION Fig. D-2 ࠛࠕࡐ࠻㈩▤ Air Port Piping Fig.D-2 111 112 113 106 103 104 105 103-11 103-20 103-07 103-02 103-05 107 108 117 109 107 108 109 114 103-12 103-08 103-06 103-13 103-…
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
35
D-1
1 630 089 0419 PLATE 1 696D--110-001
2 630 003 6787 MECH PARTS(RUBBER DAMPER) 4 696D--110-002
3 411 141 4305 WASHER V 6X12.5X1.6 8 696D--110-003
4 411 141 3001 WASHER SPR 6 8 696D--110-004
5 630 000 7862 BOLT,HEX-SCT 8 696D--110-005
6 630 001 0220 WASHER 4 696D--110-006
7 411 141 6705 WASHER SPR 5 4 696D--110-007
8 630 000 7770 BOLT,HEX-SCT 4 696D--110-008
9 630 055 2195 VACUUM PUMP 1 M1,#3-040437-1 696D--110-009
9 -10 630 031 8593 AIR LINE EQPT(FILTER) 1 #3-037940
9 -11 630 012 1230 AIR LINE EQPT(FLT ELEM) 1 #XB401379743 4-410A302-4
9 -20 630 055 2171 VACUUM PARTS 1 #4-400A302-1
10 630 055 3062 PIPE FITTINGS 1 696D--110-010
11 630 086 8821 BRACKET 1 696D--110-011
12 411 141 4107 WASHER V 5X10X1 2 696D--110-012
13 411 141 6705 WASHER SPR 5 2 696D--110-013
14 630 000 7749 BOLT,HEX-SCT 2 696D--110-014
15 630 003 7074 PIPE FITTINGS 1 696D--110-015
16 411 141 4503 WASHER V 8X17X1.6 4 696D--110-016
17 411 141 3100 WASHER SPR 8 4 696D--110-017
18 411 141 0901 NUT HEX 8 4 696D--110-018
19 630 034 9290 PIPE FITTINGS 1 696D--110-019
20 630 003 7845 PIPE FITTINGS 2 696D--110-020
21 630 003 8187 PIPE FITTINGS 6 696D--110-021
22 630 003 8088 PIPE FITTINGS 2 696D--110-022
23 630 003 8279 PIPE FITTINGS 1 696D--110-023
24 630 009 3520 PIPE FITTINGS 1 696D--110-024
25 630 003 7067 PIPE FITTINGS 1 696D--110-025
26 630 003 8033 PIPE FITTINGS 1 696D--110-026
27 630 003 7036 PIPE FITTINGS 1 696D--110-027
28 630 003 7791 PIPE FITTINGS 1 696D--110-028
29 630 004 1026 PIPE FITTINGS 1 696D--110-029
32 630 003 7890 PIPE FITTINGS 1 696D--110-032
33 630 096 8187 TUBE 1 696D--110-033
34 630 096 8194 TUBE 1 696D--110-034
MODEL TCM-X200
0203-002
36
ⓨᓮㇱ PNEUMATIC SECTION

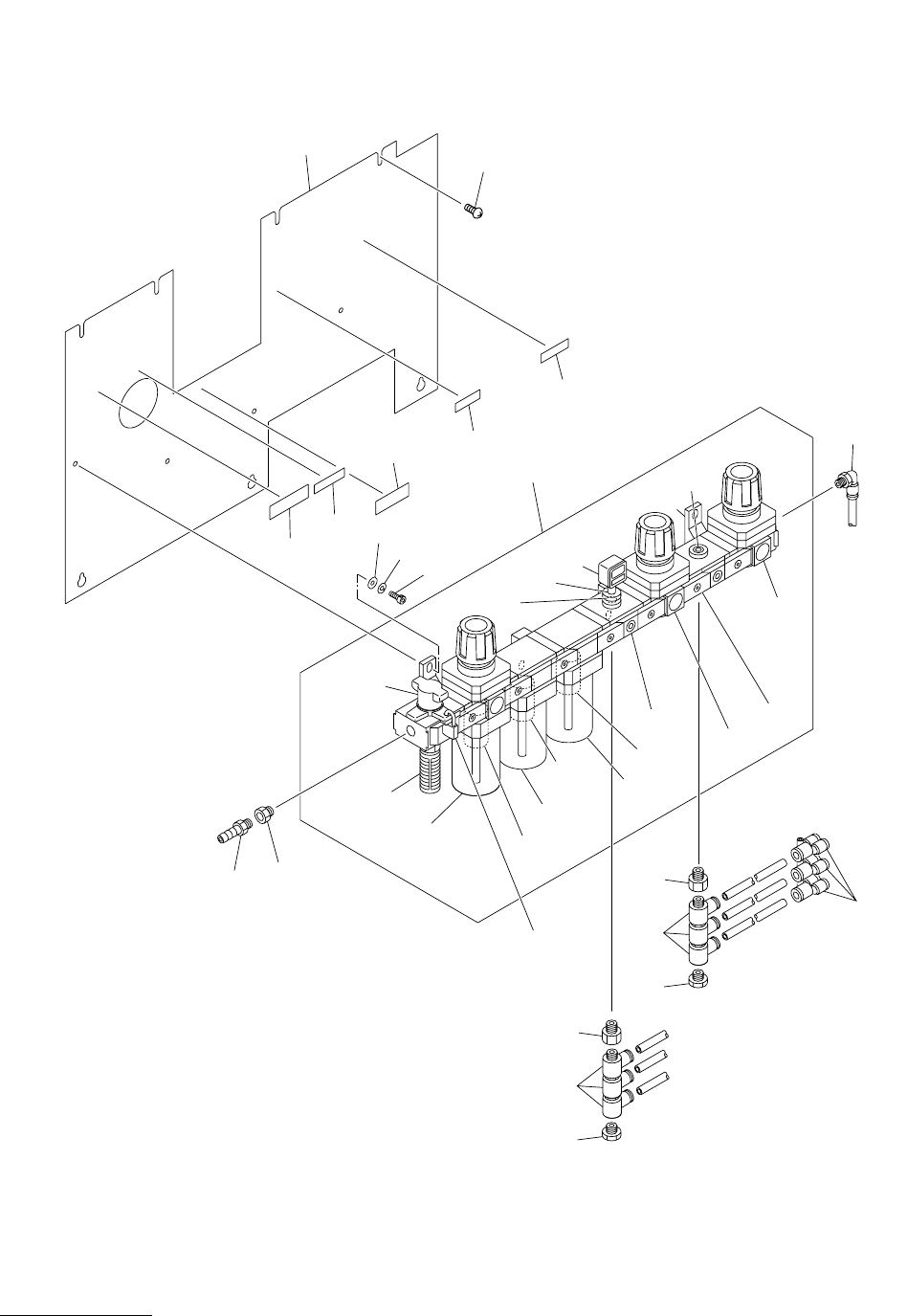

Fig. D-2 ࠛࠕࡐ࠻㈩▤ Air Port Piping
Fig.D-2
111
112
113
106
103
104
105
103-11
103-20
103-07
103-02
103-05
107
108
117
109
107
108
109
114
103-12
103-08
103-06
103-13
103-10
103-14
103-09
103-31
103-41
103-30
103-21
103-40
115
116
122
122
122
121
122
TCM-X200-002
TCM-X100
4797A-002
4797L
TCM-X300
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
37
D-2
103 630 095 4937 AIR LINE EQPT 1 696D--110-103
103 -02 630 105 7460 AIR LINE EQPT 1
103 -05 630 105 7590 VALVE 1
103 -06 630 105 7606 SWITCH,PRESSURE 1 SP1
103 -07 630 105 7538 PIPE FITTINGS 2
103 -08 630 105 7491 AIR LINE EQPT 4
103 -09 630 105 7507 AIR LINE EQPT 3
103 -10 630 105 7514 AIR LINE EQPT 1
103 -11 630 105 7521 AIR LINE EQPT 1
103 -12 630 105 7545 PIPE FITTINGS 1
103 -13 630 105 7552 PIPE FITTINGS 1
103 -14 630 105 7569 PIPE FITTINGS 5
103 -20 630 105 7446 AIR LINE EQPT 1
103 -21 630 105 7453 AIR LINE EQPT 1
103 -30 630 105 7576 AIR CLEAN EQPT 1
103 -31 630 105 7477 AIR LINE EQPT 1
103 -40 630 105 7583 AIR CLEAN EQPT 1
103 -41 630 105 7484 AIR LINE EQPT 1
104 630 003 8033 PIPE FITTINGS 1 696D--110-104
105 630 008 0285 PIPE FITTINGS 1 696D--110-105
106 630 003 7388 PIPE FITTINGS 1 696D--110-106
107 630 003 8231 PIPE FITTINGS 2 696D--110-107
108 630 003 8224 PIPE FITTINGS 6 696D--110-108
109 630 003 8248 PIPE FITTINGS 2 696D--110-109
111 411 141 4305 WASHER V 6X12.5X1.6 4 696D--110-111
112 411 141 3001 WASHER SPR 6 4 696D--110-112
113 630 000 7893 BOLT,HEX-SCT 4 696D--110-113
114 630 053 4917 MECH PARTS (PADLOCK) 1 696D--110-114
115 630 097 2986 COVER 1 696D--110-115
116 411 113 9109 SCR TRS 5X10 7 696D--110-116
117 630 089 9559 PIPE FITTINGS 3 696D--110-117
121 630 096 8200 NAME PLATE,PARTS 1 696D--110-121
122 630 101 4586 NAME PLATE,PARTS 1 696D--110-122
