MODEL TCM-X200 021 1-003 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 47 E-6 50 1 630 102 8156 B RA CK ET 1 696E--1 10-501 50 2 630 000 7879 B OL T ,HEX-SCT 4 6 96 E--1 10-502 50 3 41 1 141 3001 WAS HE R S PR 6 4 69…
MODEL TCM-X200
0211-003
46
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION

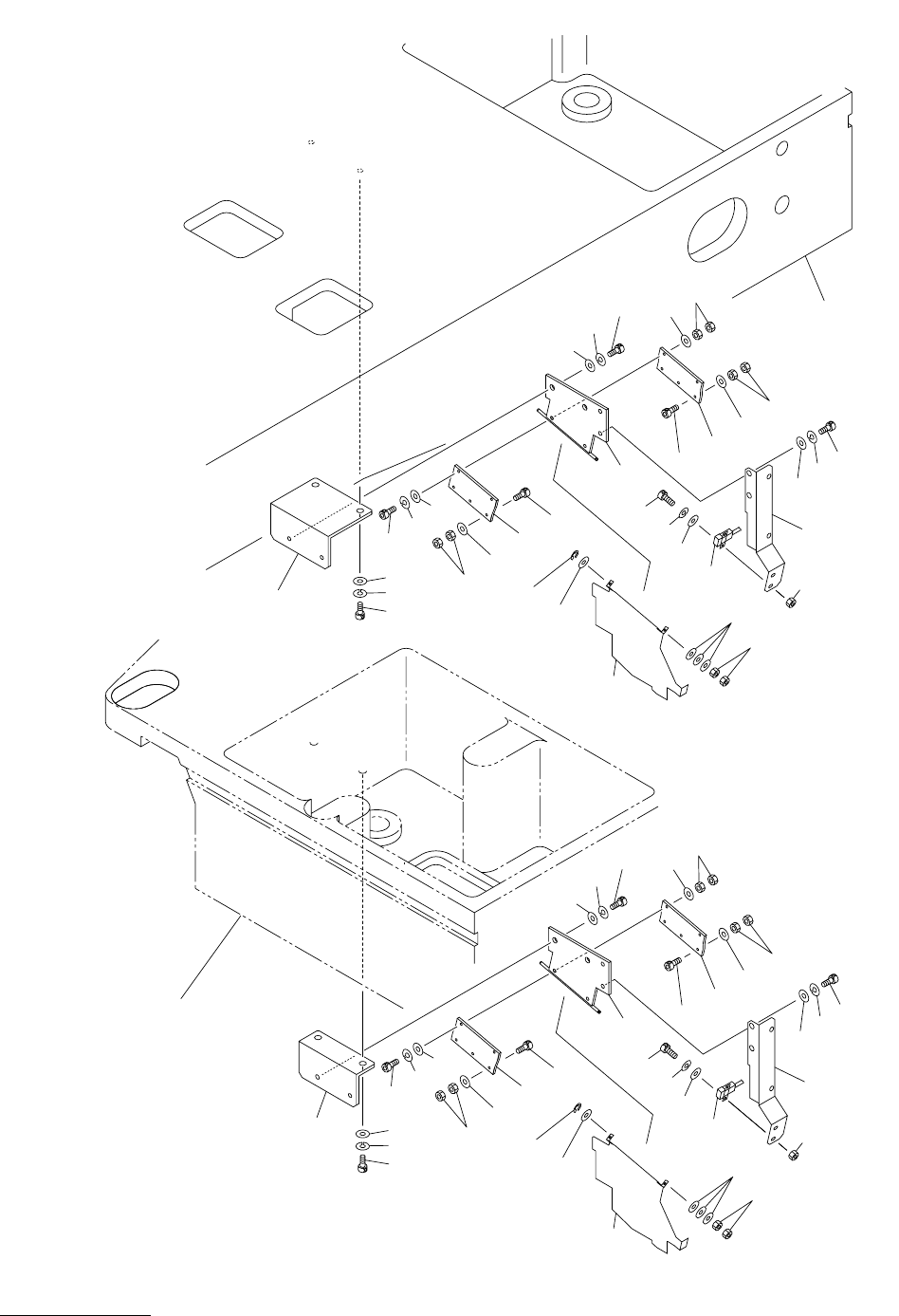

Fig. E-6 ࡈࠖ࠳ⵝ⌕ࡒࠬᬌㇱ Feeder Miss-setting Detector
526
Fig.E-6
4797A-003
4797L-002
TCM-X300-002
TCM-X100-002
TCM-X200-003
501
517
508
507
506
508
509
509
509
508
509
515
510
510
508
515
516
516
509
508
508
519
505
513
512
511
513
512
511
508
507
518
503
502
504
See Fig.L-1
Key No.12
517
508
507
506
508
509
509
509
508
509
515
510
510
508
515
509
508
508
519
514
505
513
512
511
513
512
511
508
507
518
503
502
504
See Fig.L-1
Key No.12
514
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
47
E-6
501 630 102 8156 BRACKET 1 696E--110-501
502 630 000 7879 BOLT,HEX-SCT 4 696E--110-502
503 411 141 3001 WASHER SPR 6 4 696E--110-503
504 411 141 4305 WASHER V 6X12.5X1.6 4 696E--110-504
505 630 103 2504 PLATE 2 696E--110-505
506 630 000 7558 BOLT,HEX-SCT 4 696E--110-506
507 411 141 2806 WASHER SPR 3 8 696E--110-507
508 411 141 3902 WASHER V 3X7X0.5 32 696E--110-508
509 411 141 0109 NUT HEX 3 40 696E--110-509
510 630 103 0289 PLATE 4 696E--110-510
511 630 000 7749 BOLT,HEX-SCT 8 696E--110-511
512 411 141 6705 WASHER SPR 5 8 696E--110-512
513 411 141 4107 WASHER V 5X10X1 8 696E--110-513
514 630 116 1372 PLATE 2 696E--110-514
515 630 000 7510 BOLT,HEX-SCT 12 696E--110-515
516 630 103 2498 BRACKET 2 696E--110-516
517 630 092 9324 ASSY,SENSOR,PROXIMITY 2 BPX30,BPX31 696E--110-517
518 630 000 7527 BOLT,HEX-SCT 4 696E--110-518
519 411 000 9304 RING E 2 2 696E--110-519
526 630 103 4041 BRACKET 1 696E--110-526
MODEL TCM-X200
0203-002
48
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. E-7
ㇱຠឃㇱޔࡁ࠭࡞⪭ਅᬌㇱ
Component Discharger,
Nozzle Drop Detector
Key No.201
See Fig.EB-3
See Fig.EC-1
Key No.1
607
624
617
625
626
627
612
608
609
610
613
608
609
610
610
609
620
616
622
611
605
Fig.E-7
4797L
TCM-X300
TCM-X200-002
4797A-002
