P-0206-001 - 第61页
MODEL TCM-X200 0203-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 59 EB-8 75 1 630 100 9230 L IG HT IN G UN IT 3 E L1,EL2,EL3,#MHF-P100LRD-SO-2 696EB-1 10-751 75 1 -10 630 036 8642 L A M P 1 LM- 10 0 75 2 630 100…
MODEL TCM-X200
0203-002
58
⼂࡙࠾࠶࠻ㇱ RECOGNITION UNIT SECTION
Fig. EB-8 ㇱຠ⼂ᾖ࡙࠾࠶࠻ Recognition Lighting Unit
763
762
761
766
762
763
772
771
770
772
773
772
771
774
766
762
767
753
778
769
752
764
765
768
751-10
751
768
755
768
760
758
759
776
754
Fig.EB-8
4797L
TCM-X300
TCM-X200-002
4797A-002
.
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
59
EB-8
751 630 100 9230 LIGHTING UNIT 3 EL1,EL2,EL3,#MHF-P100LRD-SO-2
696EB-110-751
751 -10 630 036 8642 LAMP 1 LM-100
752 630 100 9247 ACCESSORY,I/O 1 #MCR-A4-467-2 696EB-110-752
753 630 000 4243 SOCKET 4 696EB-110-753
754 630 097 6113 BOX 1 696EB-110-754
755 630 091 4320 COVER 1 696EB-110-755
758 630 091 4306 PLATE 1 696EB-110-758
759 630 091 4313 COVER 1 696EB-110-759
760 630 091 4337 BOX 1 696EB-110-760
761 630 000 7763 BOLT,HEX-SCT 4 696EB-110-761
762 411 141 6705 WASHER SPR 5 10 696EB-110-762
763 630 001 0220 WASHER 8 696EB-110-763
764 630 000 7503 BOLT,HEX-SCT 6 696EB-110-764
765 630 011 5420 MECH PARTS(RUBBER LEGS) 6 696EB-110-765
766 630 000 7756 BOLT,HEX-SCT 6 696EB-110-766
767 411 141 4107 WASHER V 5X10X1 2 696EB-110-767
768 411 140 8007 SCR TRS 5X6 8 696EB-110-768
769 630 006 0225 ACCESSORY,P.C.B 4 696EB-110-769
770 411 113 0700 SCR PAN 3X16 4 696EB-110-770
771 411 086 4408 WASHER SPR 3 12 696EB-110-771
772 411 119 1909 WASHER V 3X7X0.5 20 696EB-110-772
773 411 040 6202 SCR PAN 3X10 8 696EB-110-773
774 411 054 6809 NUT HEX 3 8 696EB-110-774
776 630 097 6120 PLATE 1 696EB-110-776
778 630 000 7633 BOLT,HEX-SCT 2 696EB-110-778
MODEL TCM-X200
0211-003
60
ࠞ࠶࠲ㇱ CUTTER SECTION

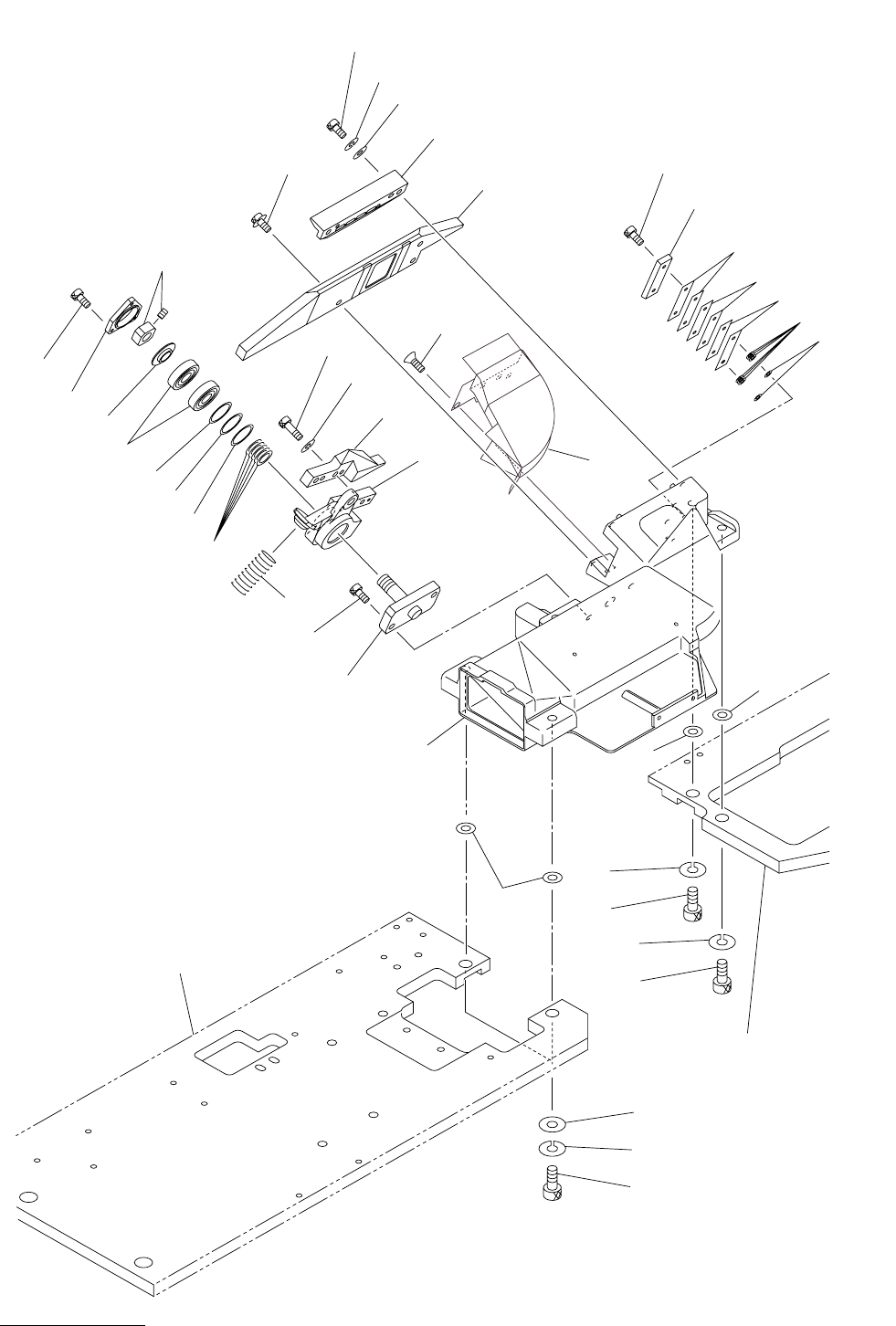

Fig. EC-1 ࠞ࠶࠲ࡌࠬ Cutter Base
