– 1 1 – SL T ape F eede r SL - 48 085D , 48 086 D , 480 8 7 D , 4808 8D No. Part No. Part Name Qty . Detail Y amaha Hitachi SL-48085D SL-48086D SL-48087D SL-48088D 403 KYE-MCB13-00 09880A1C ASSY_SUPPRESSOR(R) 1 403 KYE-M…

100%1 / 22
– 10 –
W

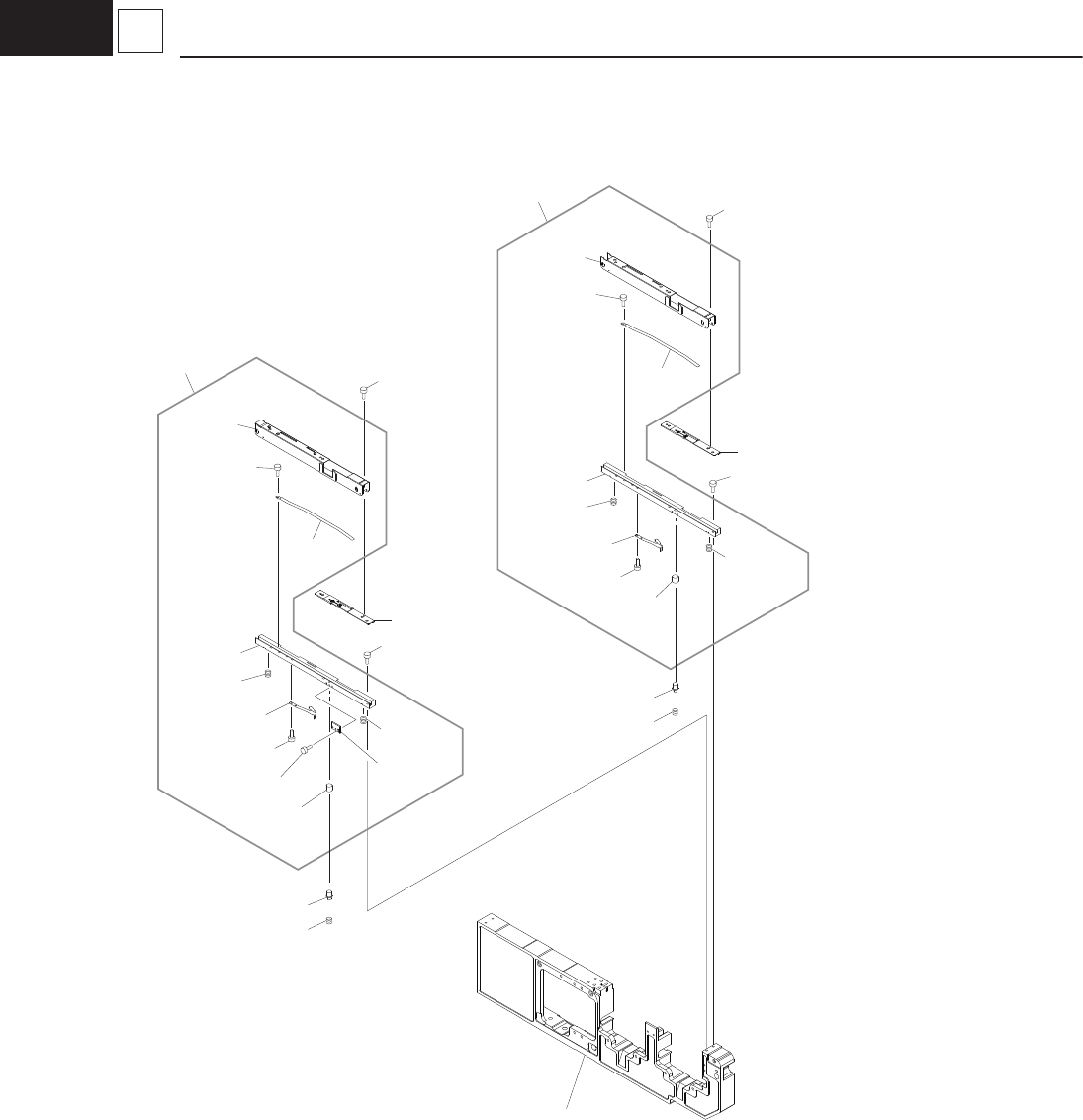

5 Suppressor Section
1710-002
434
404
404-01
404-02
404-04
449
404-08
404-07
443
404-05
404-03
403
403-01
403-02
403-06
403-07
403-04
449
403-09
403-08
403-10
434
443
403-05
403-03
406
405
406
405
403-06
See Fig. W-2
Key No.101
403-05A
404-05A
– 11 –
SL Tape Feeder SL-48085D, 48086D, 48087D, 48088D
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
SL-48085D SL-48086D SL-48087D SL-48088D
403 KYE-MCB13-00 09880A1C
ASSY_SUPPRESSOR(R)
1
403 KYE-MCC05-00 09880A11
ASSY_SUPPRESSOR(R)
1 1
403 KYE-MCE06-00 09880A0R
ASSY_SUPPRESSOR(R)
1
403-01 KYE-MCB0E-00 0988A712 CHUTE1 1
403-01 KYE-MCC03-00 0988A826 CHUTE1 1 1 1
403-02 KYE-MCB31-00 0988A15F LEVER1 1 1 1 1
403-03 KYE-MCB2L-00 09880A02 ASSY_MP 1 1 1
403-03 KYE-MCE08-00 09880A0G ASSY_MP(LL) 1
403-04 KYE-MCB1M-00 0988A16F ASSY_COVER(R) 1 1 1
403-04 KYE-MCE09-00 0988A19Z ASSY_COVER(R) 1
403-05 KYE-MCB38-00 0988A172 SPRING_COMP 1 1 1 1
403-05A KYE-MCB41-00 0988A80Q SPRING_COMP 1
403-05A KYE-MCC08-00 0988A80S SPRING_COMP 1 1 1
403-06 KYE-MCB3K-00 0988A1A4 COLLAR 1 1 1 1
403-07 KYE-MCB2D-00 0988030V ASSY_REC PLATE 1 1 1 1
403-08 90115-02J004 221A0121 BOLT,HEX-SCT 3 3 3 3 M2L4
403-09 KYD-MC22G-00 221D0196 MACHINE_SCREW 1 1 1 1 PAN M2L1.5
403-10 90990-08J035 221DB001 MACHINE SCREW 1 1 1 1 PAN M2L4
404 KYE-MCB12-00 09880A1B
ASSY_SUPPRESS0R(L)
1
404 KYE-MCC04-00 09880A10
ASSY_SUPPRESS0R(L)
1 1
404 KYE-MCE0A-00 09880A0Q
ASSY_SUPPRESSOR(L)
1
404-01 KYE-MCB0E-00 0988A712 CHUTE1 1
404-01 KYE-MCC03-00 0988A826 CHUTE1 1 1 1
404-02 KYE-MCB31-00 0988A15F LEVER1 1 1 1 1
404-03 KYE-MCB2L-00 09880A02 ASSY_MP 1 1 1
404-03 KYE-MCE08-00 09880A0G ASSY_MP(LL) 1
404-04 KYE-MCB1L-00 0988A16E ASSY_COVER(L) 1 1 1
404-04 KYE-MCE0D-00 0988A19Y ASSY_COVER(L) 1
404-05 KYE-MCB38-00 0988A172 SPRING_COMP 1 1 1 1
404-05A KYE-MCB41-00 0988A80Q SPRING_COMP 1
404-05A KYE-MCC08-00 0988A80S SPRING_COMP 1 1 1
404-06 KYE-MCB3K-00 0988A1A4 COLLAR 1 1 1 1
404-07 90115-02J004 221A0121 BOLT,HEX-SCT 3 3 3 3 M2L4
404-08 KYD-MC22G-00 221D0196 MACHINE_SCREW 1 1 1 1 PAN M2L1.5
405 KYE-MCB3H-00 0988A1A1 SPRING_COMP 2 2 2
405 KYE-MCE0E-00 0988A1A8 SPRING_COMP 2
406 KYE-MCB3J-00 0988A1A3 PIN_GUIDE 2 2 2 2
434 KYE-MCB0L-00 0988A81B CUTTER_BASE(S) 2
434 KYE-MCC02-00 0988A81C
CUTTER_BASE(M) 2
434 KYE-MCD02-00 0988A82M CUTTER_BASE(L) 2
434 KYE-MCE0F-00 0988A81E CUTTER_BASE(LL) 2
443 90112-02J004 221AA121 ROHS_HEX-SCT 2 2 2 2 M2L4
449 90990-08J036 221DB032 MACHINE SCREW 4 4 4 4 PAN M1.7L1.5
1710-002
– 12 –
W

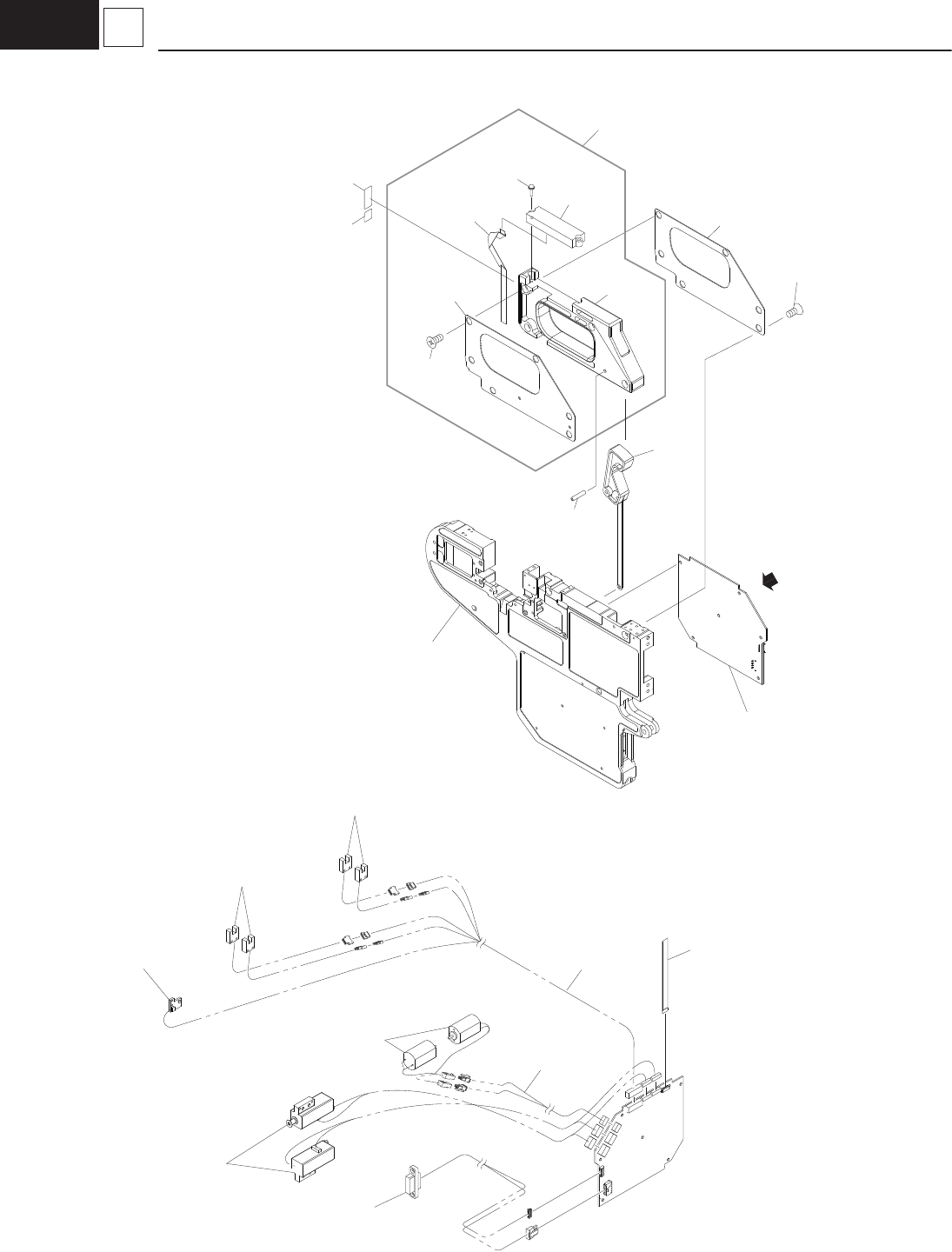

6 Electrical Section
