– 7 – SL T ape F eede r SL - 48 085D , 48 086 D , 480 8 7 D , 4808 8D No. Part No. Part Name Qty . Detail Y amaha Hitachi SL-48085D SL-48086D SL-48087D SL-48088D 201 KYE-MCB06-00 0988030R ASSY_FRAME2 1 1 1 1 202 KYE-MCB3…
– 7 –

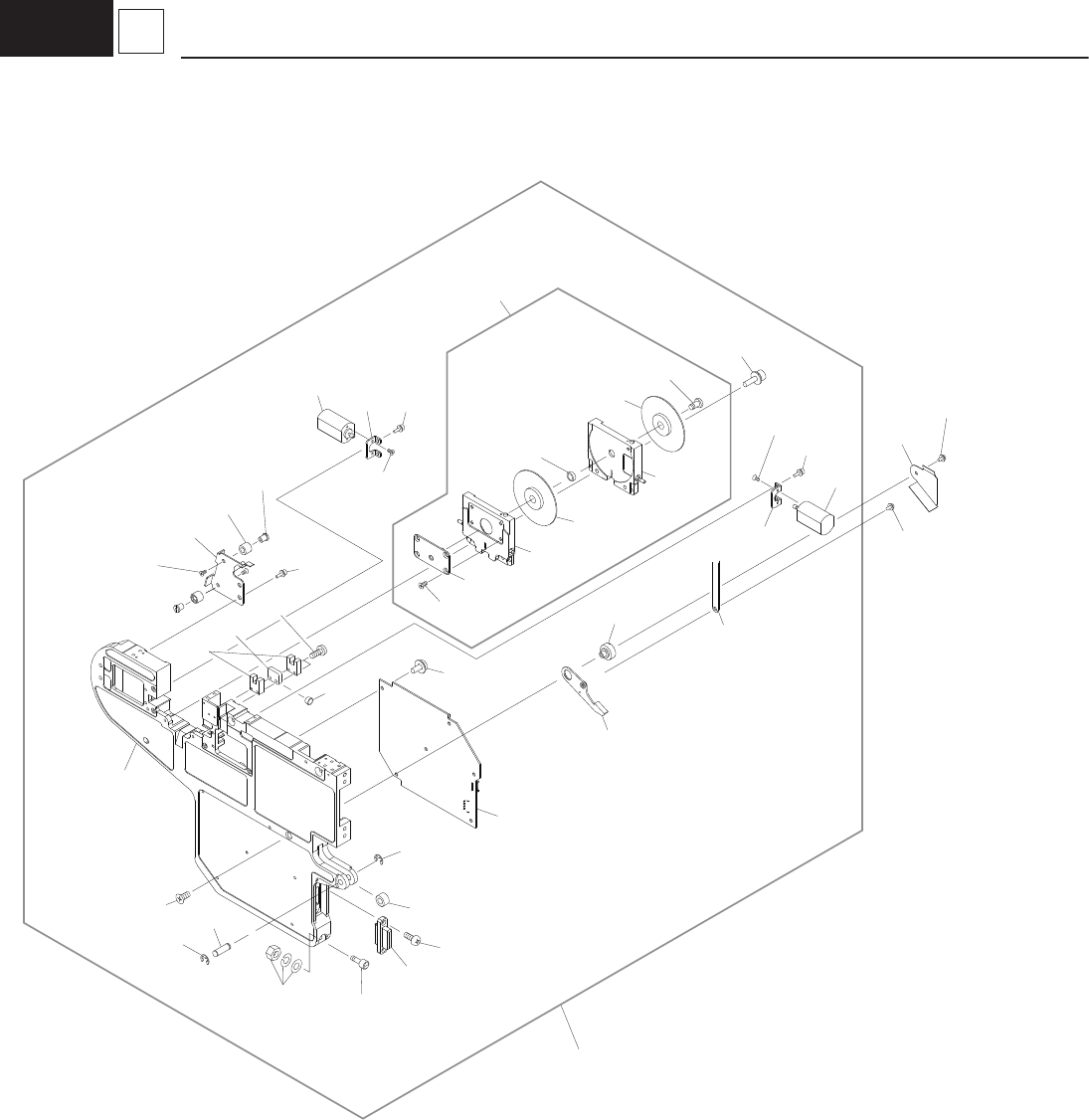

SL Tape Feeder SL-48085D, 48086D, 48087D, 48088D
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
SL-48085D SL-48086D SL-48087D SL-48088D
201
KYE-MCB06-00
0988030R ASSY_FRAME2 1 1 1 1
202 KYE-MCB32-00 0988A15G DC_MOTER 2 2 2 2
203 KYE-MCB33-00 0988A15H BRACKET 2 2 2 2
204 KYD-MC13Y-00 23G10088 SENSOR_PHOTO 2 2 2 2
205 KYD-MC12Y-00 1016B206 SPACER 1 1 1 1
206 KYE-MCB3F-00 0988A19W SEAL 1 1 1 1
207 KYE-MCB11-00 09880A0E ASSY_SPROCKET3 1 1 1 1
207-01 KYE-MCB0Y-00 09880A0C ASSY_BASE(L3) 1 1 1 1
207-02 KYE-MCB10-00 09880A0D ASSY_BASE(R3) 1 1 1 1
207-03 KYE-MCB0U-00 09880313 ASSY_SPROCKET3 2 2 2 2
207-04 KYE-MCB14-00 0988A13Y ASSY_PLATE 1 1 1 1
207-05 KYE-MCB2U-00 0988A05U PIN_LOCATE 1 1 1 1
207-06 98702-03006 221DA106 MACHINE_SCREW 4 4 4 4 FLT M3L6
207-07 KYE-MCB4B-00 0988A05X COLLAR 1 1 1 1 T2.65
207-08 KYE-MCB4C-00 0988A05Y COLLAR 1 1 1 1 T2.70
207-09 KYE-MCB4D-00 0988A05Z COLLAR 1 1 1 1 T2.75
208 KYE-MCB3W-00 0988A73R PIN_LOCATE 2 2 2 2
209 KYE-MCB3V-00 0988A73Q ROLLER 1 1 1 1
210 KYE-MCB22-00 0988A801 ROLLER_PLATE 1 1 1 1
211 KYE-MCB44-00 0988A81J UNIT_DRIVER 1 1 1 1
212 KYD-MC12D-00 0988A170 PIN_LOCATE 1 1 1 1
213 KYD-MC143-00 4W202800 CORD 1 1 1 1
214 KYB-M9413-00 213C0206 ROLLER 1 1 1 1
215 KYB-M122F-00 216F0879 PIN_GUIDE 1 1 1 1
216 KYB-M121E-00 016S1022 ASSY_LEVER 1 1 1 1
217 KYB-M122D-00 216D0448 PIN_HINGE 1 1 1 1
218 90167-02J204 221DA101 SCREW,FLAT HEAD 4 4 4 4 FLT M2L4
219 91312-03008 221AA006
BOLT,HEX.SOCKET
HEAD
4 4 4 4 M3L8
220 90990-11J008 221DA048
SCREW,PAN HEAD
WW
2 2 2 2
PAN M2L18
SW+FW
221 90167-02JA06 221DA103 MACHINE SCREW 2 2 2 2 FLT M2.5L6
222 90990-01J145 221AA106 BOLT,HEX.S/H WW 2 2
2 2 M4L10 SW+FW
223 90990-01J142 221AA107 BOLT_HEX-SCT 2 2 2 2 M3L14 SW+FW
225 90990-11J009 221DA051 MACHINE SCREW 6 6 6 6
PAN M3L6
SW+FW
226 95302-04600 221FA007 NUT,HEXAGON 1 1 1 1 M4
227 92902-04100 221HA004 WASHER 1 1 1 1
228 92902-04200 221HA104 WASHER 1 1 1 1
229 90166-02JA08 221DA007 SCREW,PAN HEAD 2 2 2 2 PAN M2.5L8
230 90440-01J040 221KB001 CIRCLIP 2 2 2 2
231 98702-04006 221DA113 SCREW,FLAT HEAD 1 1 1 1 FLT M4L6
244 KYB-M121M-00 211A8626 COVER 1 1 1 1
246 90990-11J009 221D0051 MACHINE SCREW 2 2 2 2
PAN M3L6
SW+FW
1710-002
– 8 –
W

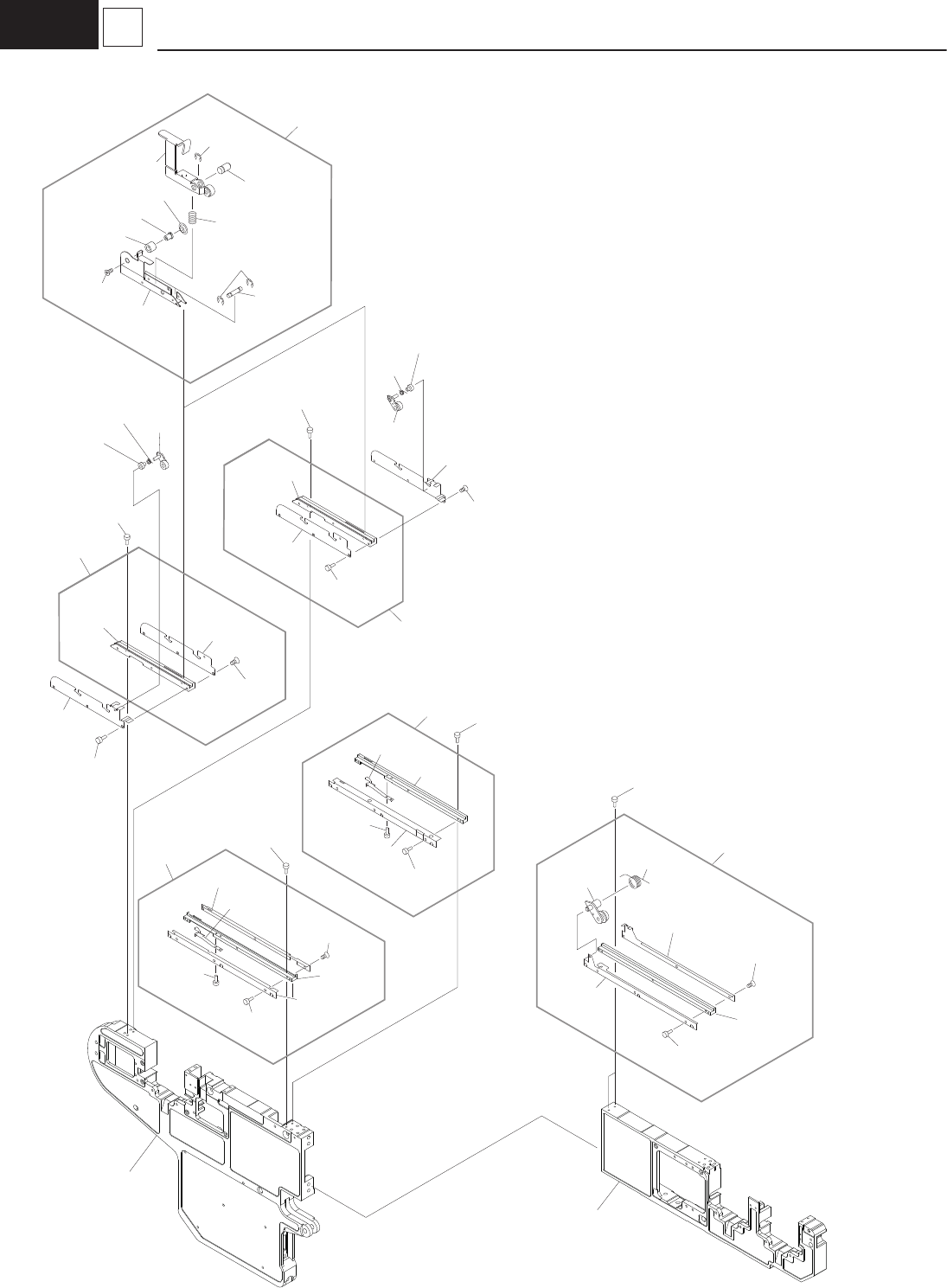

4 Chute Section
1710-002
307
307-01
307-06
307-02
307-03
308-01
309-01
310-01
319-01
319-07
319-06
343
343
343
343
343
307-04
307-05
307-07
311
308
309
310
308-02
308-04
308-03
308-05
308-07
308-06
309-02
309-04
309-03
309-05
314
310-02
344
310-03
315-01
316
319-08
319-02
319-05
315
319
315-02
318
315-03
344
319-11
319-09
319-10
See Fig. W-2
Key No.101
See Fig. W-3
Key No.201
319-04
319-03
317
313
312
313
