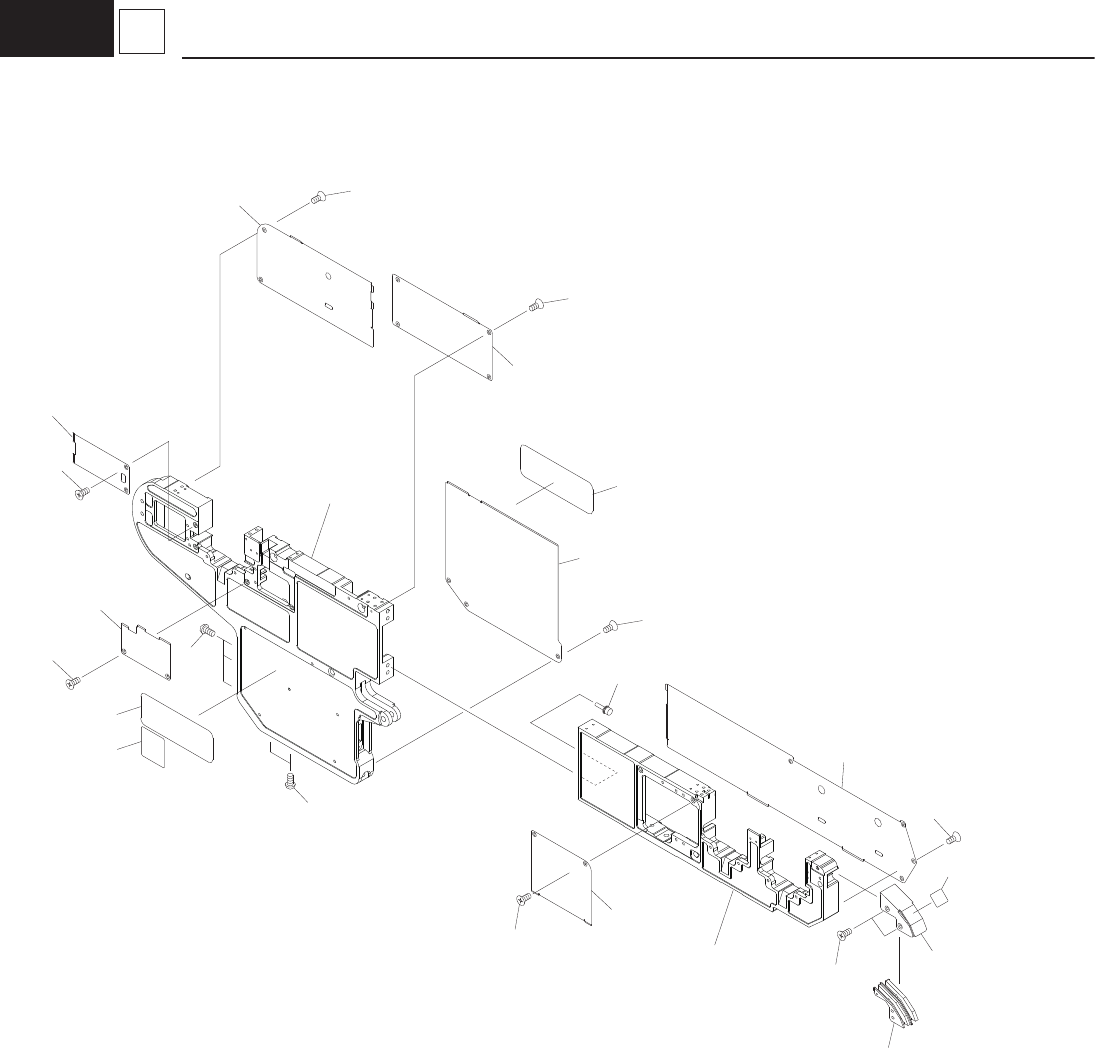

– 2 – W W SL T ape Feeder SL-48085D, 48086D, 48087D, 48088D 1 Cover Section 1710-002 47 38 38 41 37 29 28 47 30 47 47 27 35 31 36 47 48 48 32 47 See Fig. W-2 Key No.101 See Fig. W-3 Key No.201 47 47 42 33

100%1 / 22
– 1 –
8mm Tape Feeder
CONTENTS
W SL Tape Feeder SL-48085D, 48086D,
48087D, 48088D 2
1 Cover Section 2
2 Tape Driving Section 4
3 Roading Section 6
4 Chute Section 8
5 Suppressor Section 10
6 Electrical Section 12
– 2 –
W
W SL Tape Feeder SL-48085D, 48086D, 48087D, 48088D
1 Cover Section
1710-002
47
38
38
41
37
29
28
47
30
47
47
27
35
31
36
47
48
48
32
47
See Fig. W-2
Key No.101
See Fig. W-3
Key No.201
47
47
42
33
– 3 –
SL Tape Feeder SL-48085D, 48086D, 48087D, 48088D
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
SL-48085D SL-48086D SL-48087D SL-48088D
27
KYE-MCB0A-00
0988A145 COVER(LA) 1 1 1 1
28
KYE-MCB15-00
0988A146 COVER(LB) 1 1 1 1
29
KYE-MCB16-00
0988A147 COVER(LC) 1 1 1 1
30
KYE-MCB17-00
0988A148 COVER(LD) 1 1 1 1
31
KYE-MCB18-00
0988A149 COVER(RA) 1 1 1 1
32
KYE-MCB19-00
0988A14A COVER(RB) 1 1 1 1
33
KYE-MCB25-00
0988030G ASSY_COVER(RC) 1 1 1 1
35
KYE-MCB0G-00
0988A72E GUIDE 1 1 1 1
36
KYE-MCB21-00
0988A72C GUIDE 1 1 1 1
37
KYB-M3804-00
0804000Q NAME_PLATE 1 1 1 1
38
KYB-MCH0M-00
0926B008 PLATE_NOTICE 2 2 2 2
41
KYE-MCB08-00
09880A1A LABEL 1 1 1 1
42
90990-01J148
221AA104 BOLT,HEX.S/H WW 2 2 2 2 M4L8 SW+FW
47
90167-02JA06
221DA103 MACHINE SCREW 23 23 23 23 FLT M2.5L6
48
90990-66J011
221DA217 SCREW,TRUSS HEAD 5 5 5 5 TRS M4L4
1710-002
