2 English Installation and Getting StartedwithCACCIA
2.10 Overview of the Jumper Settings for Individual Subsystems Issue 07/2004
40
2.10 Overview of the Jumper Settings for Individual
Subsystems
2.10.1 SIPLACE HF3: Gantry
2.10.1.1 DIP Switches on the Head Interface
Legend
(1) P0 - Gantry address switch 1
(2) P1 - Gantry address switch 2
(3) CAN R - CAN terminator (at Twin option always OFF)
(4) Boot - CAN Processor 16 Bit not mounted
(5) Reset - CAN Processor 16 Bit not mounted
(6) C0 - CAN Address switch
(7) C1 - CAN Address switch
(8) WPE - Write protect enable at the moment OFF
DIP Switch
ON
78123456
ON
78123456
ON
78123456
ON
78123456
Gantry 1
Gantry 2
not used
Gantry 3 Gantry 4
C&P Head
C&P Head
Twin Head
Installation and Getting Started with CACCIA 2 English
Issue 07/2004 2.10 Overview of the Jumper Settings for Individual Subsystems
41

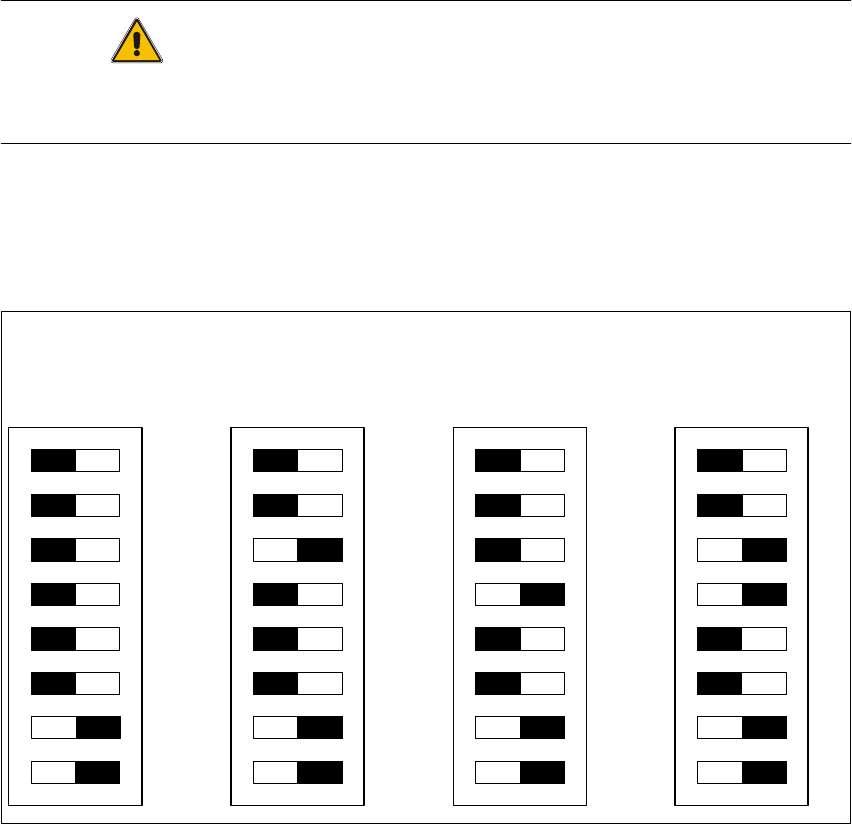

CAUTION
With head modularity has to be paid attention that terminating CAN resistor is set correctly. That
means, at the C & P heads switch ON and at the Twin head switch OFF.
2.10.1.2 DIP Switches on the Vision Board
Legend
(1) Boot - CAN Processor 16 Bit at Sub board
(2) Reset - CAN Processor 16 Bit at Sub board
(3) P0 - Gantry address switch 1
(4) P1 - Gantry address switch 2
(5) WPE - Write protect enable at the moment OFF
(6) CANR-CANterminator
(7) Test 1 - CAN 1MBit/s ON
(8) Test 0 - CAN group ON
DIP Switch
ON
78123456
ON
78123456
ON
78123456
ON
78123456
Gantry 1
Gantry 2
not used
Gantry 3 Gantry 4
2 English Installation and Getting StartedwithCACCIA
2.10 Overview of the Jumper Settings for Individual Subsystems Issue 07/2004
42
2.10.2 SIPLACEHF3:DescriptionoftheSwitchesandPCBBoardsontheC&PHead
2.10.2.1 Head Interface
The same head interface board will be use on gantry 1 and gantry 2 for the Twin head and C&P
head.

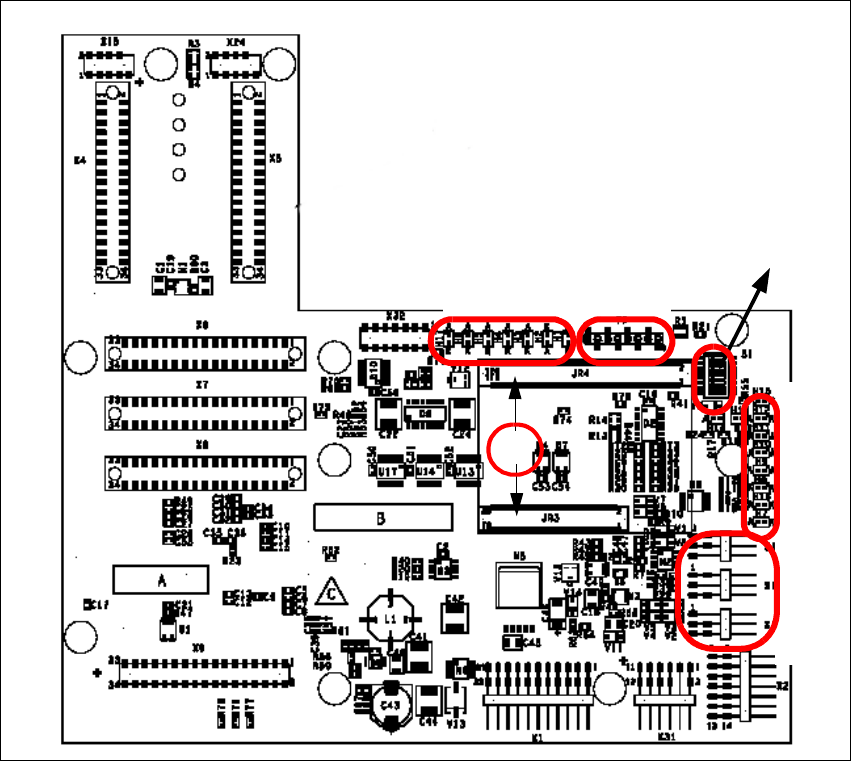

Fig. 2 - 33 Head interface
Legend
(1) X11 Connector Temperature sensor X-Axis
(2) X17 Connector BERO Travel range X-Axis
(3) X16 Connector BERO Travel range X-Axis
(4) X15 Connector for incremental encoder X-Axis
(5) X24 Test connector digital track signals X-Axis
(6) Connector for "One wire" Processor board
LED 1-7 TP 1-8
LED 1-10
DIP Switch
1
2
3
4
5
6
