2 English Installat ion and Getting Started with CACCIA 2.10 Overview of the J umper Settings for Individual Subsyst ems Issue 07/2004 50 2.10.3 SIPLACE HF3: Switches and PCB Boa rds on the T win Head: 2.10.3.1 Head Inte…
Installation and Getting Started with CACCIA 2 English
Issue 07/2004 2.10 Overview of the Jumper Settings for Individual Subsystems
49
Switch Position on the Head Board
2
Fig. 2 - 40 Table: DIP Switches
The wiring of the switch depends on the placement machine involved:
Jumper 1: ON → CAN matching resistor on the placement head is set
(S-20, F4, F5), S-23, S-25 HM,F5HM.
OFF → CAN_matching resistor is not wired on the head (HS/HF default)
Jumper 2: ON → Setting during the download
OFF → Default status
Jumper 3: ON → Test mode
OFF → Default status
Jumper 4: ON → Test mode (setting of CAN ID)
OFF → Default status
Jumper 5: ON → Default status
OFF → Switch off CAN Objects component-, LP vision and IC head on the
modular Head FW (only for SIPLACE HF)
Jumper 6: ON → Default status
Jumper7,8:CAN_ID:
Standard OFF OFF OFF OFF ON ON CAN_Addresse
Switch
position
1
CAN_R120
2
EPROM_WE
3
Test _Mode
4
CAN_ERR_
SWITCH
5
Jumper 5
6
Jumper 6
7
CAN_ID1
8
CAN_ID0
ON X
see
above
see above
OFF X X X X X
see
above
see above
2 English Installation and Getting StartedwithCACCIA
2.10 Overview of the Jumper Settings for Individual Subsystems Issue 07/2004
50
2.10.3 SIPLACE HF3: Switches and PCB Boards on the Twin Head:
2.10.3.1 Head Interface
The same head interface board is used on gantry 1/2 for the Twin head and C&P head.

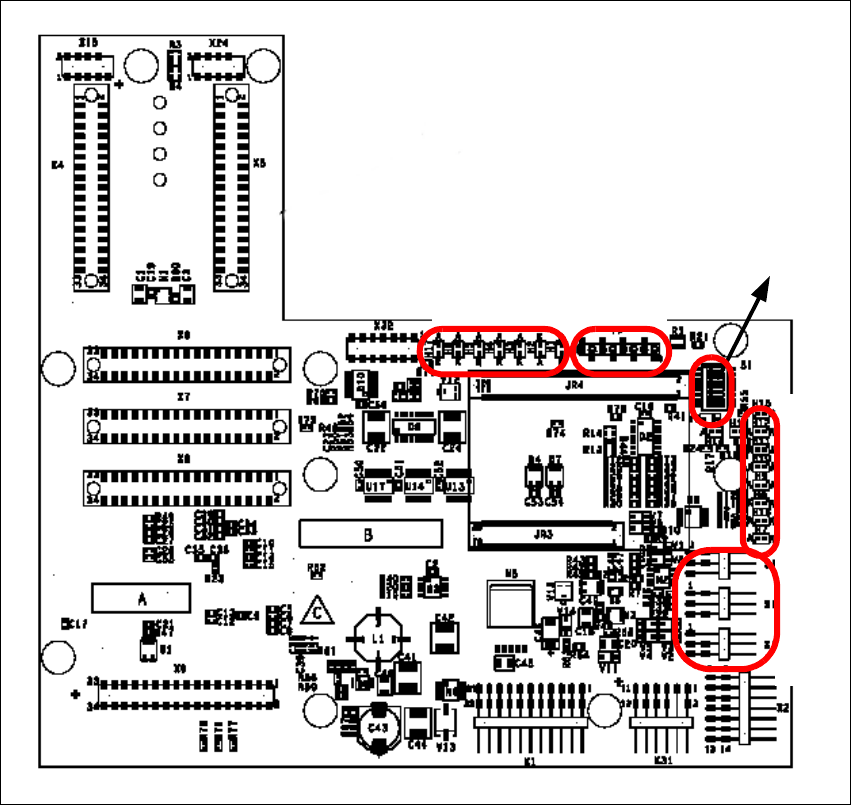

Fig. 2 - 41 Head Interface
Legend
(1) X11 Connector Temperature sensor X-Axis
(2) X17 Connector BERO travel range X-Axis
(3) X16 Connector BERO travel range X-Axis
(4) X15 Connector for incremental encoder X-Axis
(5) X24 Test connector digital track signals X-Axis
LED 1-7 TP 1-8
LED 1-10
DIP Switch
1
2
3
4
5
Installation and Getting Started with CACCIA 2 English
Issue 07/2004 2.10 Overview of the Jumper Settings for Individual Subsystems
51
Description LED‘S and DIP switch head interface:
LED 1-7 (functional check)
– SPI - Serial parallel interface (A/D or D/A converter in future)
– D-ON - Digital ON 5V DC/DC Converter
– H-OK - Head adapter board connected
– C-In - CAN Internal not used
– MRST - Main Reset
– F-UC- not used
– MP - Main Power fail, indicates 5 V power supply being missing at the machine
(e.g. CAN Bus)
LED 1-10 (LED´s for voltages)
– Vcc - Power supply +5 V head interface
– N15V - Minus 15 Volt (from the Axis unit → Error → LED red)
– P3,3V - not used
– P15V - Plus 15 Volt (from the Axis unit → Error → LED red)
– P24V - 24 Volt power supply (e.g.stepper motor)
– AV ER - not used
– ENAN-notused
– P5V - 5 Volt Power supply track signals X-Axis → ON Power fail
– VccF - 5 Volt for digital
– TMP - Temperature monitoring X-Axis
