EMERGENCY MACHINE OFF (EMO) MODULE M39 EMERGENCY MACHINE OFF ENCLOSURE Chapter Issue 2, Nov 14 Technical Reference Manual 5.5 Emergency Machine Off The emergency machine of f circ uit comprises the following: • The E S t…

EMERGENCY MACHINE OFF (EMO) MODULE

M39 EMERGENCY MACHINE OFF ENCLOSURE

5.4 Technical Reference Manual Chapter Issue 2, Nov 14

M39 EMERGENCY MACHINE OFF ENCLOSURE

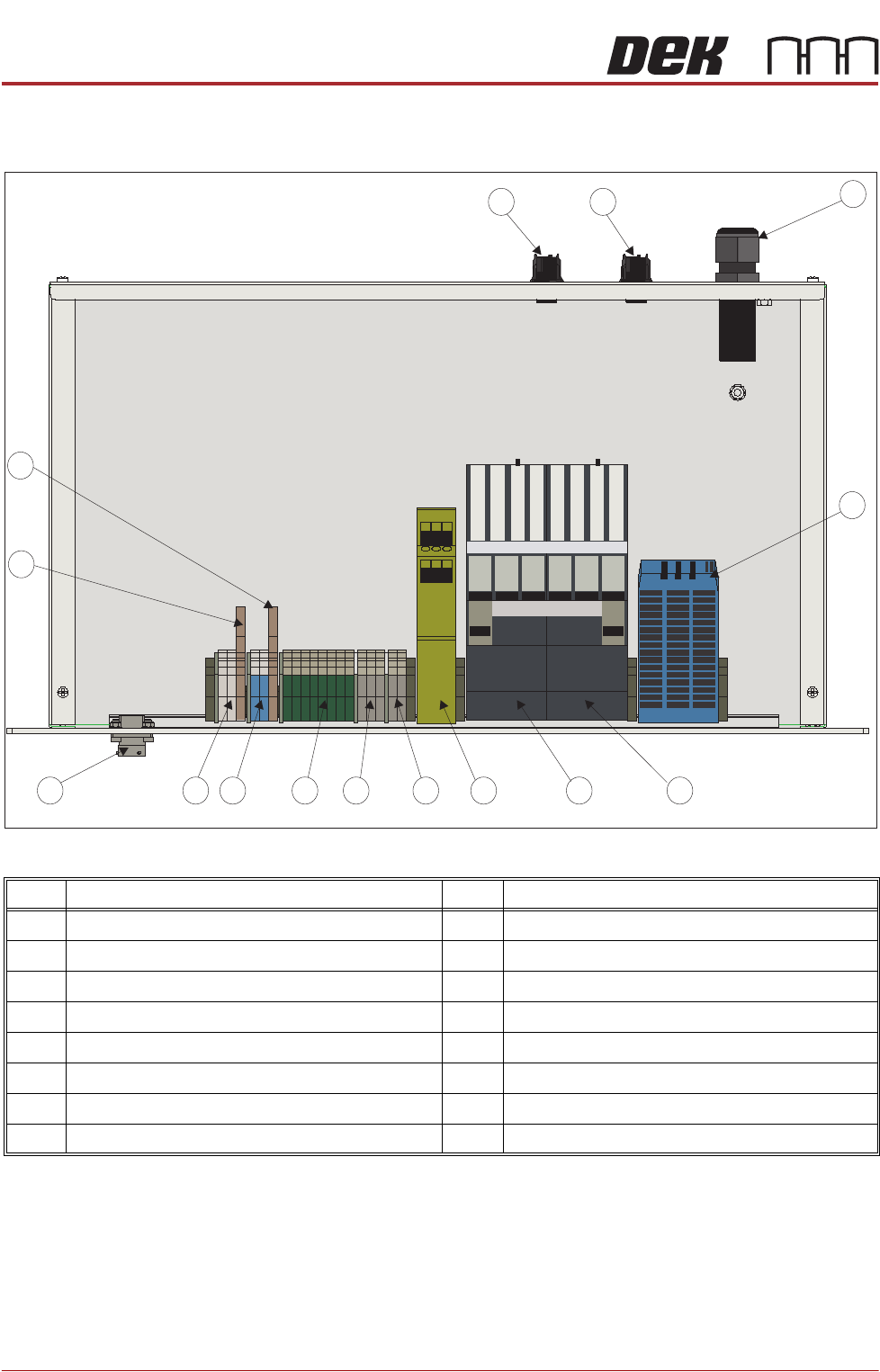

Figure 5-1 M39 Emergency Machine Off Enclosure - Plan View

Item Description Item Description

1 Mains Power Input & Output Glands 9 Terminal Block TB2

2 EMO Safe Power Supply Unit PSU 1 10 Terminal Block TB1

3 Contactor CON1 11 Socket M39SK05

4 Contactor CON2 12 Terminal Block TB6

5 E-Stop Relay RL1 13 Terminal Block TB7

6 Terminal Block TB5 14 Sockets M39SK2 & 4

7 Terminal Block TB4 15 Sockets M39SK1 & 3

8 Terminal Block TB3

3456789

1011

EMERGENCY MACHINE OFF (EMO) MODULE

M39 EMERGENCY MACHINE OFF ENCLOSURE

Chapter Issue 2, Nov 14 Technical Reference Manual 5.5

Emergency

Machine Off

The emergency machine off circuit comprises the following:

• The E Stop Relay

•Start Switch

• Front EMO Switch

• Rear EMO Switch

• Pneumatic Dump Valve

• EMO Safe PSU

• Contactors CON1 and CON2

Powering Up When the mains isolator is switched on mains input voltage is supplied to the

M39 enclosure. The input voltage is distributed within the enclosure via Terminal

Blocks TB1, TB2 and TB3. Initially the input voltage is applied to the open

contacts of Contactors CON1 and CON2. The input voltage is also distributed

via fused Terminal Blocks TB6 and TB7 to the EMO Safe PSU. The PSU

produces a +24V dc which is distributed via Terminal Block TB4.

When the Start Button is pressed, the supply to the E-Stop relay is complete

and the relay energises. The relay contacts close supplying 24V dc via Terminal

Block TB5 to the solenoids of CON1 and CON2. The contactors are energised

and the closed contacts complete the circuit to the M37 enclosure allowing the

machine is power up.

An additional set of contactor contacts supply 24V dc to the pneumatic dump

valve allowing the factory pneumatic supply to be applied to the machine.

EMO Operation If either of EMO push button switches are operated the E-Stop relay is de-

energised causing the 24V dc supply to the solenoids of CON1 and CON2 to

be broken. Contacts of CON1 and CON2 are opened, breaking the mains input

voltage to the M37 enclosure, immediately removing electrical power from the

machine. Also the 24V dc supply to the pneumatic dump valve is removed de-

energising the valve. The factory pneumatic supply is removed from the

machine and the any residual machine pneumatic pressure is vented safely to

atmosphere.

EMERGENCY MACHINE OFF (EMO) MODULE

M39 EMERGENCY MACHINE OFF ENCLOSURE

5.6 Technical Reference Manual Chapter Issue 2, Nov 14

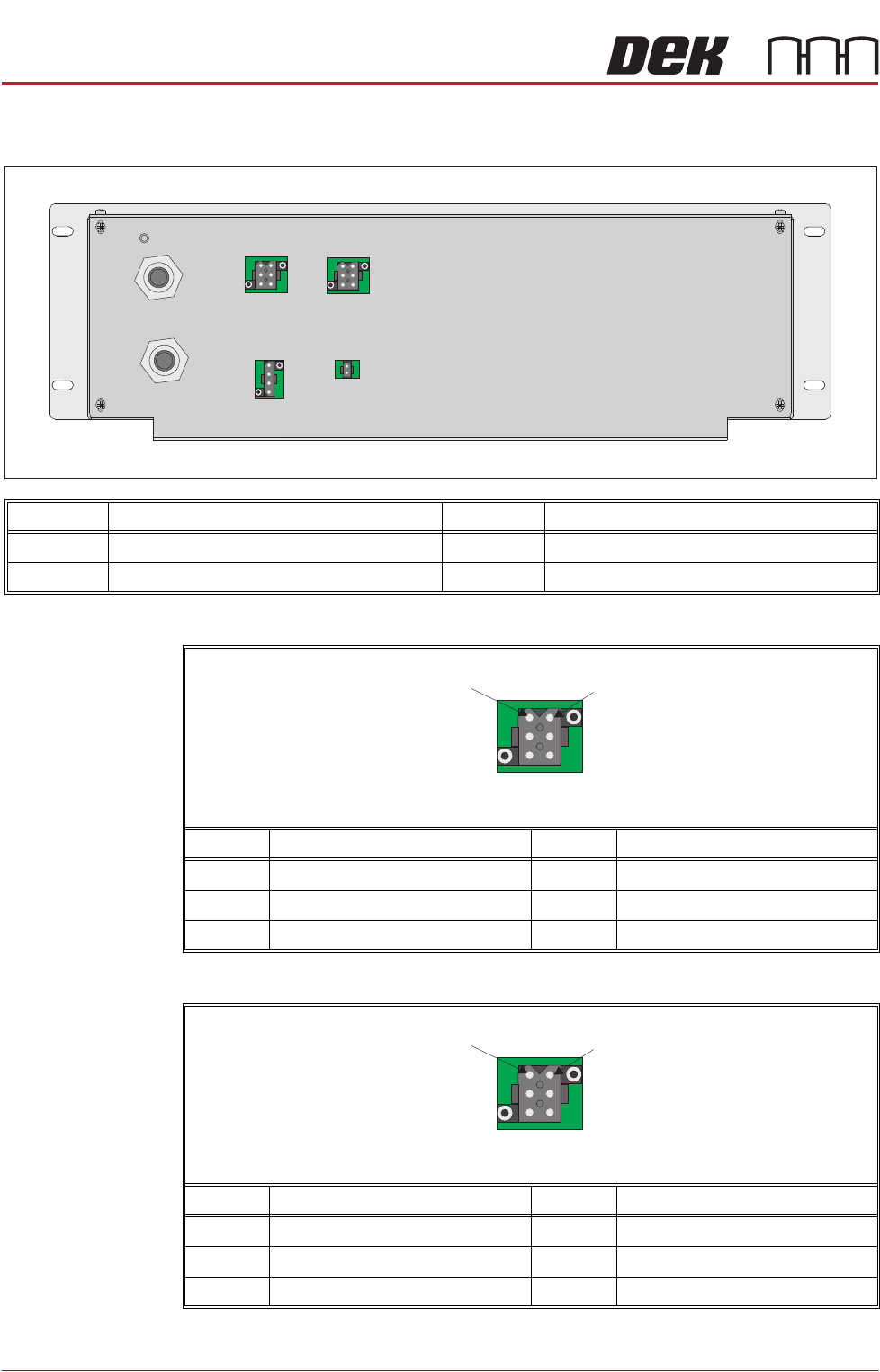

M39 Rear Panel

M39SK1

M39SK2

Connector Description Connector Description

M39SK1 Front EMO Push Button M39SK3 Start Push Button

M39SK2 Rear EMO Push Button M39SK4 Pneumatic Dump Valve

View on Rear Panel

M39SK1

M39SK4

M39SK2

M39SK3

Mains In

Mains Out

Pin No. Signal Pin No. Signal

1 Link to Terminal S21 - E-Stop Relay 4 N/C

2 Link to Terminal S21 - E-Stop Relay 5 Link to M39SK2 Pin 1

3 Link to M39SK2 Pin 2 6 N/C

6 Way Trident

Pin No. Signal Pin No. Signal

1 Link to M39SK1 Pin 5 4 N/C

2 Link to M39SK1 Pin 3 5 Link to Terminal S22 - E-Stop Relay

3 Link to Terminal S12 - E-Stop Relay 6 N/C

6 Way Trident
