POWER SUPPLY AND DISTRIBUTION M37 POWER SUPPLY ENCLOSURE Chapter Issue 3, Nov 14 Technical Reference Manual 6.9 3. On the taskbar , select St art, Programs, DEK Power Monitor . The follow- ing window is displayed: 4. Cli…
POWER SUPPLY AND DISTRIBUTION
M37 POWER SUPPLY ENCLOSURE
6.8 Technical Reference Manual Chapter Issue 3, Nov 14

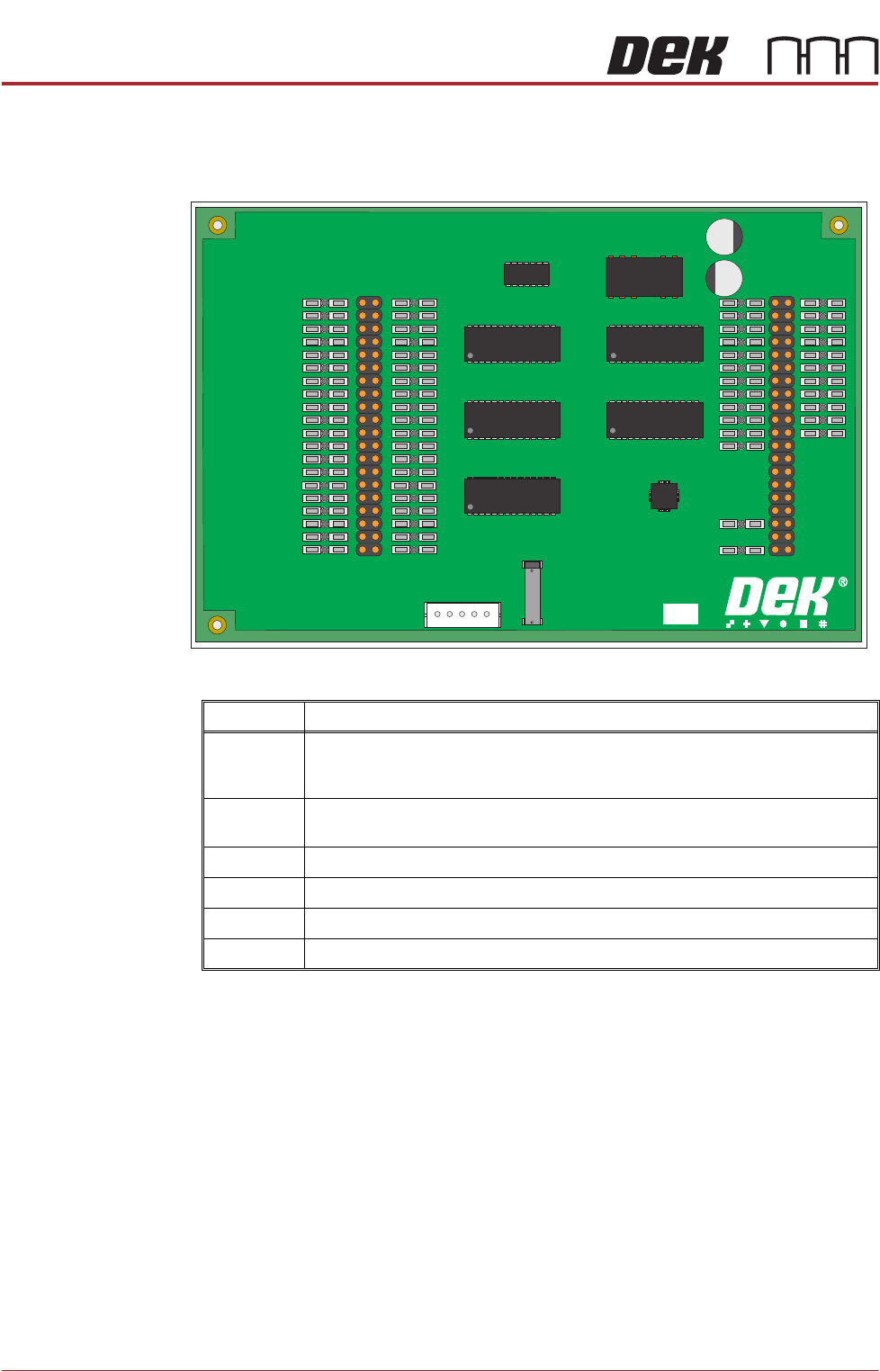

PSU Monitor Board The board monitors the voltages at circuit breakers CB1 - CB31 on the power
distribution PCB and sends a data stream via the USB port M37SK30 to the
machine PC.
The voltages monitored and where used are as follows:
A separate application is used to display the voltage readings on the machine
monitor, to access this window carry out the following:
1. Switch ON and initialise the machine.
2. On the keyboard, press the Windows key to access the taskbar.
PSU MONITOR BOARD
181507 ISSUE
Voltage Where Used
+24V US NextMove Interface, Camera Lighting, Stepper Logic, Machine Fans, I/O Node
Power, Grid-Lok Tooling, High Throughput Conveyor (HTC), Euroflex and Servo
Motor Logic.
+24V SW NextMove Interface, Belt Motors, I/O Node Power, Grid-Lok Tooling and High
Throughput Conveyor (HTC).
+5.5V NextMove ES, USB Hub
+12V I/O Node Power, Grid-Lok Tooling and High Throughput Conveyor (HTC).
-12V NextMove ES
+42V/+48V Servo Motor Supply
POWER SUPPLY AND DISTRIBUTION
M37 POWER SUPPLY ENCLOSURE
Chapter Issue 3, Nov 14 Technical Reference Manual 6.9

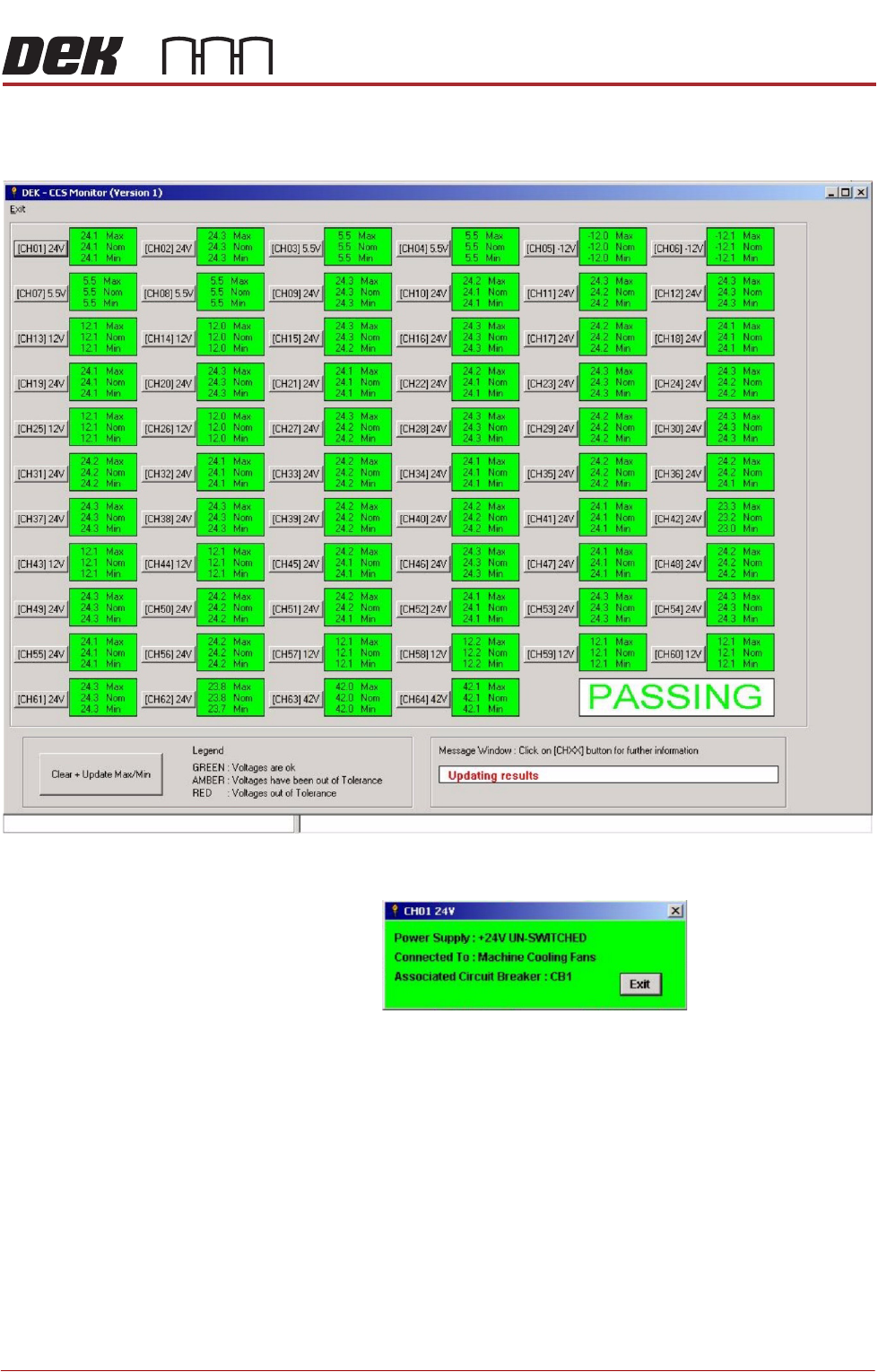

3. On the taskbar, select Start, Programs, DEK Power Monitor. The follow-
ing window is displayed:
4. Clicking on the channel ID button, ie (CH01) 24V, opens a further informa-
tion window, an example of which is shown below.
POWER SUPPLY AND DISTRIBUTION
M37 POWER SUPPLY ENCLOSURE
6.10 Technical Reference Manual Chapter Issue 3, Nov 14

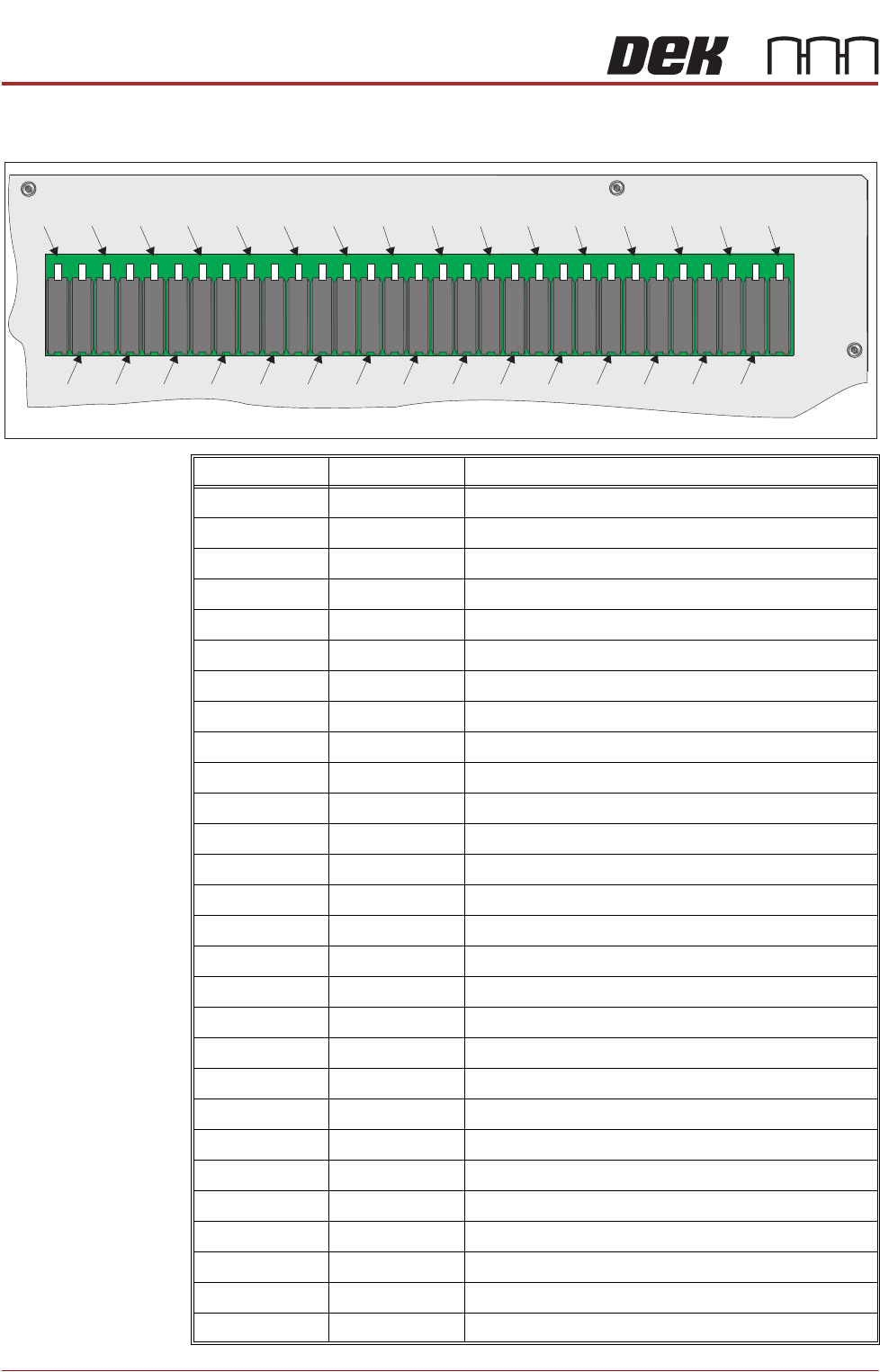

Circuit Breakers
CCT Breaker Current Rating CCT Breaker Function
CB1 3.15A +24V US Fans, E Stop Relay, 2 Handed Safety Relay
CB2 3.15A +5.5V USB Hub (Spare)
CB3 1.5A -12V NextMove ES
CB4 3.15A +5.5V NextMove ES
CB5 1.5A +24V US NextMove I/F, Camera Lighting
CB6 1.5A +24V SW NextMove I/F, System Lamp
CB7 1.5A +12V
CB8 3.15A +24V SW Belt Motors
CB9 3.15A +24V US EuroFlex, Stepper Logic, Fans
CB10 6.3A +24V SW Steppers
CB11 3.15A +24V US Main Machine I/O Node (Node 2)
CB12 3.15A +24V SW Main Machine I/O Node (Node 2)
CB13 1.5A +12V I/O Nodes (Nodes 2-5)
CB14 3.15A +24V US Print Carriage I/O Node (Node 3)
CB15 3.15A +24V SW Print Carriage I/O Node (Node 3)
CB16 3.15A +24V US Screen Cleaner I/O Node (Node 4)
CB17 3.15A +24V SW Screen Cleaner I/O Node (Node 4)
CB18 3.15A +24V US
CB19 5A +24V SW
CB20 3.15A +24V US Paste Dispenser I/O Node
CB21 3.15A +24V SW Paste Dispenser I/O Node
CB22 1.5A +12V Paste Dispenser I/O Node
CB23 3.15A +24V US HTC Enclosure
CB24 3.15A +24V SW HTC Enclosure
CB25 3.15A +24V US Grid-Lok
CB26 3.15A +24V SW Grid-Lok
CB27 3.15A +24V US Internal Lighting
CB28 3.15A +24V SW Spare I/O Node
CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8 CB9 CB10 CB11 CB12 CB13 CB14 CB15 CB16 CB17 CB18 C 19B CB20 CB21 CB22 CB23 CB24 CB25 CB26 CB27 CB28 CB29 CB30 CB31
Part View of Rear Panel
CB1 CB3 CB5 CB7 CB9 CB11 CB13 CB15 CB17
CB19 CB21 CB23 CB25 CB27 CB29 CB31
CB2
CB4 CB6 CB8 CB10 CB12 CB14 CB16 CB18 CB20 CB22 CB24 CB26 CB28 CB30
