POWER SUPPLY AND DISTRIBUTION M37 POWER SUPPLY ENCLOSURE 6.16 Technical Reference Manual Chapter Issue 3, Nov 14 M37SK24 M37SK25 M37PL26 Pin No. Signal Pin No. Signa l 1 E xternal E S top Link to Pin 5 4 N/C 2 E xternal …

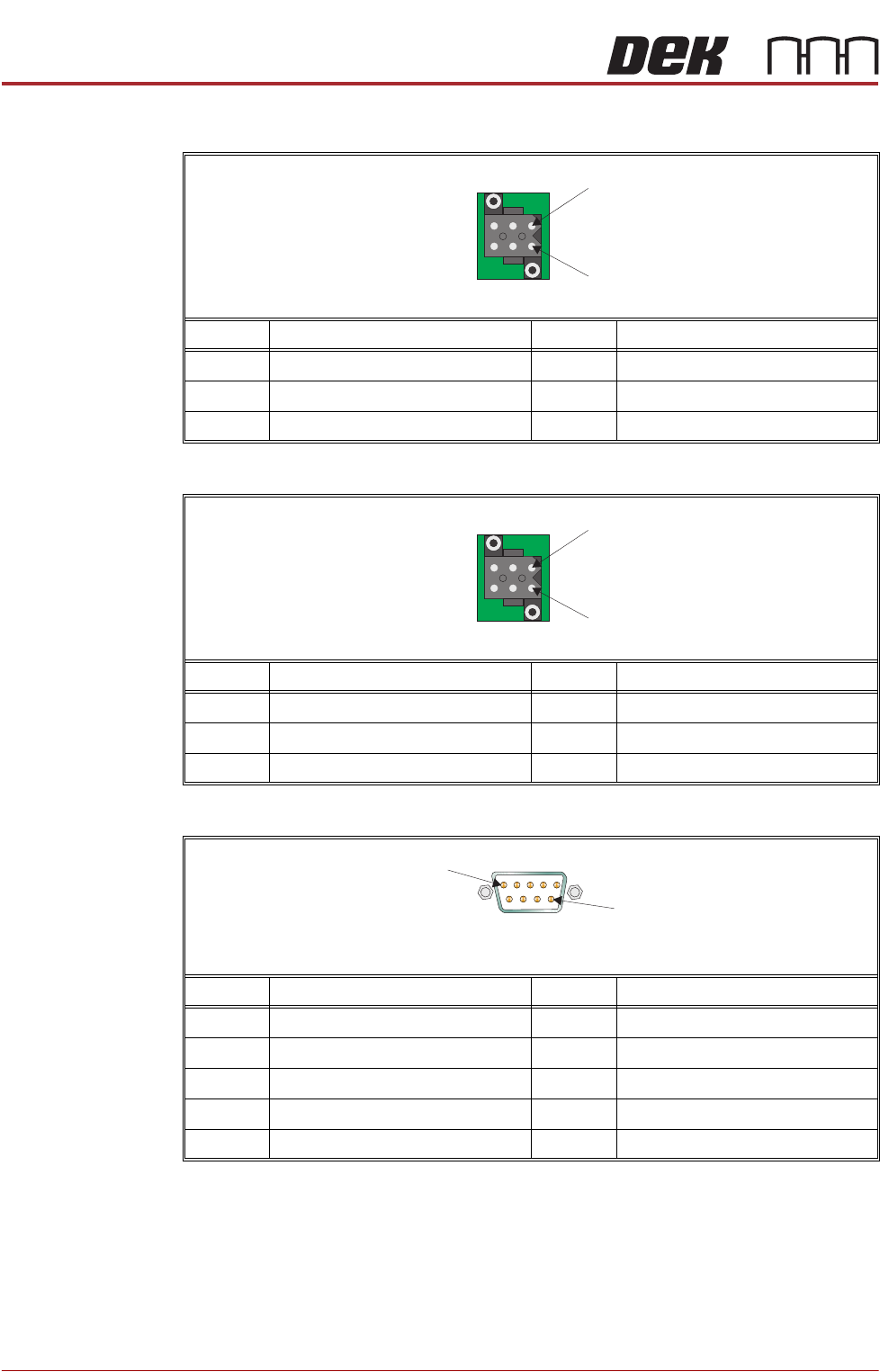

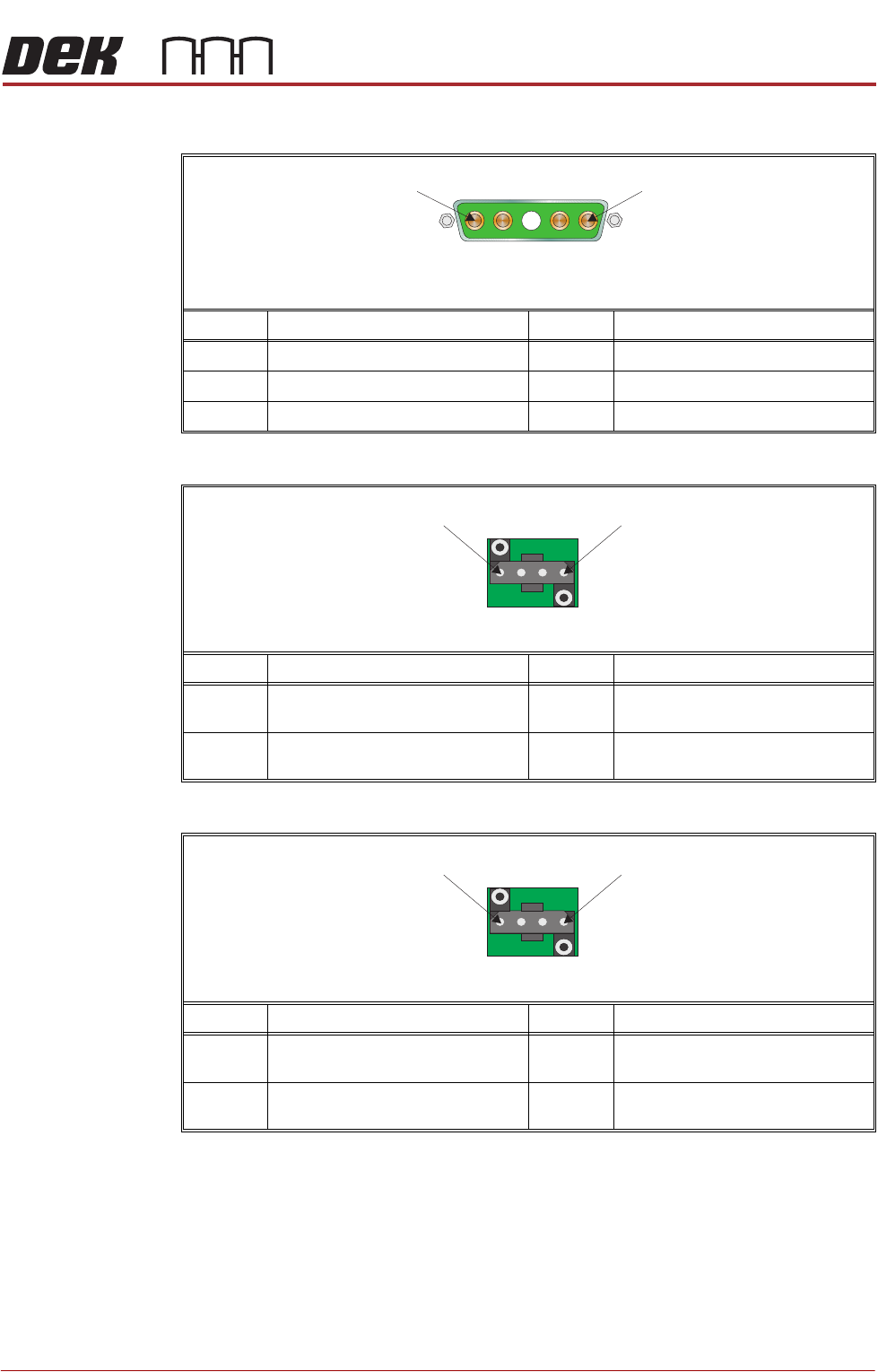

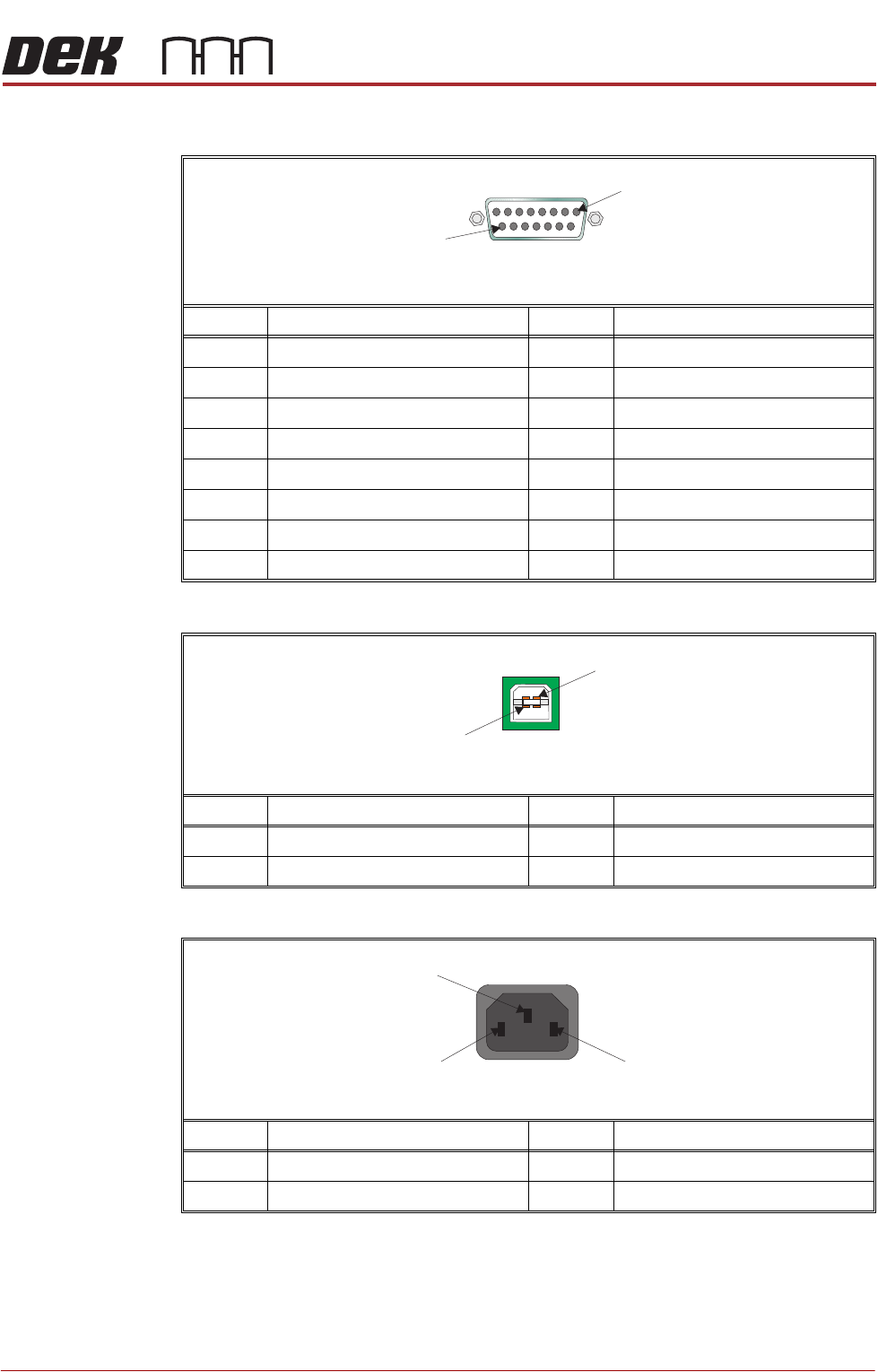

POWER SUPPLY AND DISTRIBUTION
M37 POWER SUPPLY ENCLOSURE
Chapter Issue 3, Nov 14 Technical Reference Manual 6.15
M37SK16 - M37SK21
M37SK22
M37SK23
Pin No. Signal Pin No. Signal
1 Servo dc Supply 4 24V US (Motor Logic)
20V Return 50V Return
3N/C
1
5
5 Way Power D Type
Socket
Pin No. Signal Pin No. Signal
1 E Stop Loop Supply to Front Cover
Interlock
3 0V from Front Cover Interlock
2 E Stop Loop Supply from Front
Cover Interlock
4 0V to Front Cover Interlock
14
4 Way Trident
Pin No. Signal Pin No. Signal
1 E Stop Loop Supply to Interlock
Blanking Plug
3N/C
2 E Stop Loop Supply from Interlock
Blanking Plug
4N/C
14
4 Way Trident
POWER SUPPLY AND DISTRIBUTION
M37 POWER SUPPLY ENCLOSURE
6.16 Technical Reference Manual Chapter Issue 3, Nov 14
M37SK24
M37SK25
M37PL26
Pin No. Signal Pin No. Signal
1 External E Stop Link to Pin 5 4 N/C
2 External E Stop Link to Pin 3 5 External E Stop Link from Pin 1
3 External E Stop Link from Pin 2 6 N/C
1
4
6 Way Trident
Pin No. Signal Pin No. Signal
1 E Stop Loop to Pin 5 4 N/C
2 E Stop Loop to Pin 3 5 E Stop Loop from Pin 1
3 E Stop Loop from Pin 2 6 N/C
1
4
6 Way Trident
Pin No. Signal Pin No. Signal
1 N/C 6 Cover Interlock
2 Jog Left 7 E Stop Loop Supply
3 Jog Right 8 0V
4N/C 9N/C
5 Power On Monitor
1
9
9 Way D Type
Plug
POWER SUPPLY AND DISTRIBUTION
M37 POWER SUPPLY ENCLOSURE
Chapter Issue 3, Nov 14 Technical Reference Manual 6.17
M37SK27
M37SK30
M37SK31 - M37SK35
Pin No. Signal Pin No. Signal
1 System Button 9 Right Jog Button
2 System Button 10 Right Jog Button
3 System Lamp 11 Right Jog Button
4 System Lamp 12 Right Jog Button
5 Left Jog Button 13 RSVD (Cat 4)
6 Left Jog Button 14 RSVD (Cat 4)
7 Left Jog Button 15 N/C
8 Left Jog Button
1
15
15 Way D Type
Socket
Pin No. Signal Pin No. Signal
1 USB Supply 3 USB Data +ve
2 USB Data -ve 4 USB Ground
Pin No. Signal Pin No. Signal
1Live 3Earth
2Neutral
1
4
USB Type B
Socket
1
2
AC Mains
Socket
3
