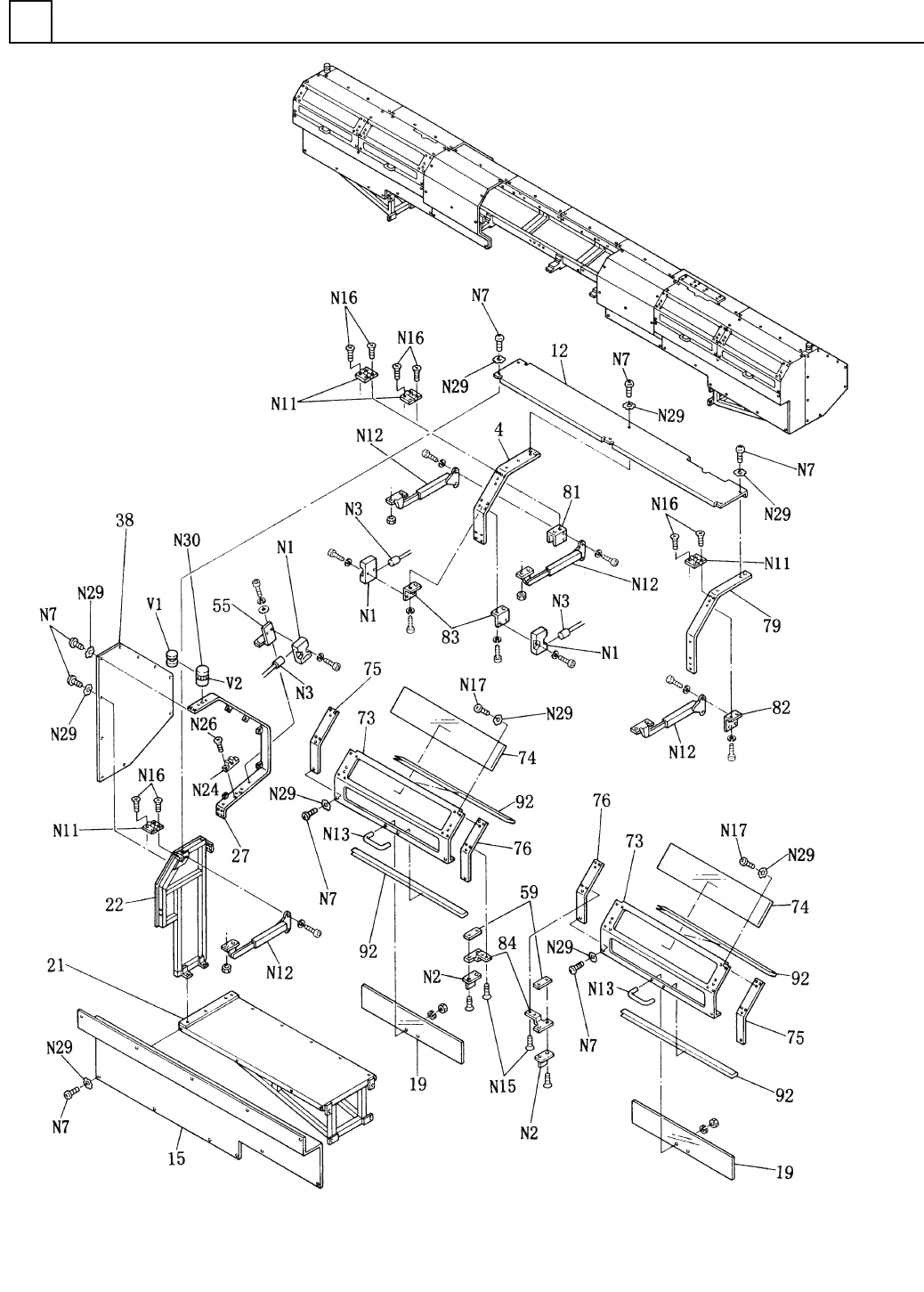

部品供給部(安全ｶﾊﾞｰ部4)
FEEDER CARRIAGE SECT.(SAFETY COVER SECT.-4)
9
F10427-51-000-AM_A-4
M93
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
9
部品供給部(安全ｶﾊﾞｰ部4)
FEEDER CARRIAGE SECT.(SAFETY COVER SECT.-4)
部 品 名 品 番 個数
備 考
4 1 104275100402
FRAME ﾌﾚｰﾑ
12
1
104275101202
COVER ｶﾊﾞｰ
15
1
104275101501
COVER ｶﾊﾞｰ
19 2 104275101902
PLATE ﾌ
ﾟﾚｰﾄ
21 1 104275102102
BRACKET ﾌﾞﾗｹｯﾄ
22
1
104275102203
FRAME ﾌﾚｰﾑ
27
1
104275102705
FRAME ﾌﾚｰﾑ
38 1 104275103801
COVER ｶﾊ
ﾞｰ
55 1 1042751055
BRACKET ﾌﾞﾗｹｯﾄ
59
2
1042751059
NUT ﾅｯﾄ
73 2 104275107303
COVER ｶﾊﾞｰ
74 2 104275107401
PLATE ﾌ
ﾟﾚｰﾄ
75
2
104275107501
FRAME ﾌﾚｰﾑ
76
2
104275107601
FRAME ﾌﾚｰﾑ
79 1 1042751079
RIGHT FRAME ﾌﾚｰﾑ(RIGHT)
81 1 1042751281
BRACKET ﾌ
ﾞﾗｹｯﾄ
82
1
1042751282
BRACKET ﾌﾞﾗｹｯﾄ
83
2
1042751083
BRACKET ﾌﾞﾗｹｯﾄ
84 2 1042751084
BRACKET ﾌﾞﾗｹｯﾄ
92 4 1042751092
COVER ｶﾊ
ﾞｰ
N 1
3
N300AZ15-013
SWITCH ｽｲｯﾁ AZ15ZVR-1747
N 2
2
N300ACTU-015
ACTUATOR ｱｸﾁｭｴｰﾀ ACTUATORB1-1747
N 3 3 N30025011
CONNECTOR ｺﾈｸﾀ 250/11
N 7 46 XST5+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
M5X8,+,STEEL,Z.C.T
N11
4
N980B2020
HINGE ﾁｮｳﾊﾞﾝ B-202-0
N12 4 N980B12232
STAY ｽﾃｰ B-1223-2
N13 2 N980A1042B6
DRAWER PULL ﾄｯﾃ A-1042-B-6
N15
4
XSS5+6FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ M5X6,+,STEEL,Z.C.T
N16
16
XSS3+5FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ M3X5,+,STEEL,Z.C.T
N17 12 XST3+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ M3X8,+,STEEL,Z.C.T
N24 1 N982TL1073
CATCH ｷｬｯﾁ TL-91-1(1073)
N26
2
XSS4+10FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ M4X10,+,STEEL,Z.C.T
N29
30
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ 5,B-TYPE,STEEL,Z.C.T
N30 1 N224LE102NG
SIGNAL LIGHT ｼｸﾞﾅﾙﾗｲﾄ LE-102N-G
V 1 1 N224LE10-310
LED UNIT LED
ｼｮｳﾒｲ
LE-102TYPE LED,GREEN
V 2
1
N224LE10-311
GLOBE ｸﾞﾛｰﾌﾞ LE-102 GLOBE,GREEN
M94
F10427-51-000-AM_A-4
