ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 9 部品供給部( 安全ｶﾊﾞｰ部 8) FEEDER CARR IAGE SECT.(SAF ETY COVER SE CT.-8) 部 品 名 品 番 個数 備 考 29 3 1042751029 BRACKET ﾌ ﾞﾗｹｯﾄ 32 3 1042751032 BRACKET ﾌﾞﾗｹｯﾄ 33 1 1042751033 BR…

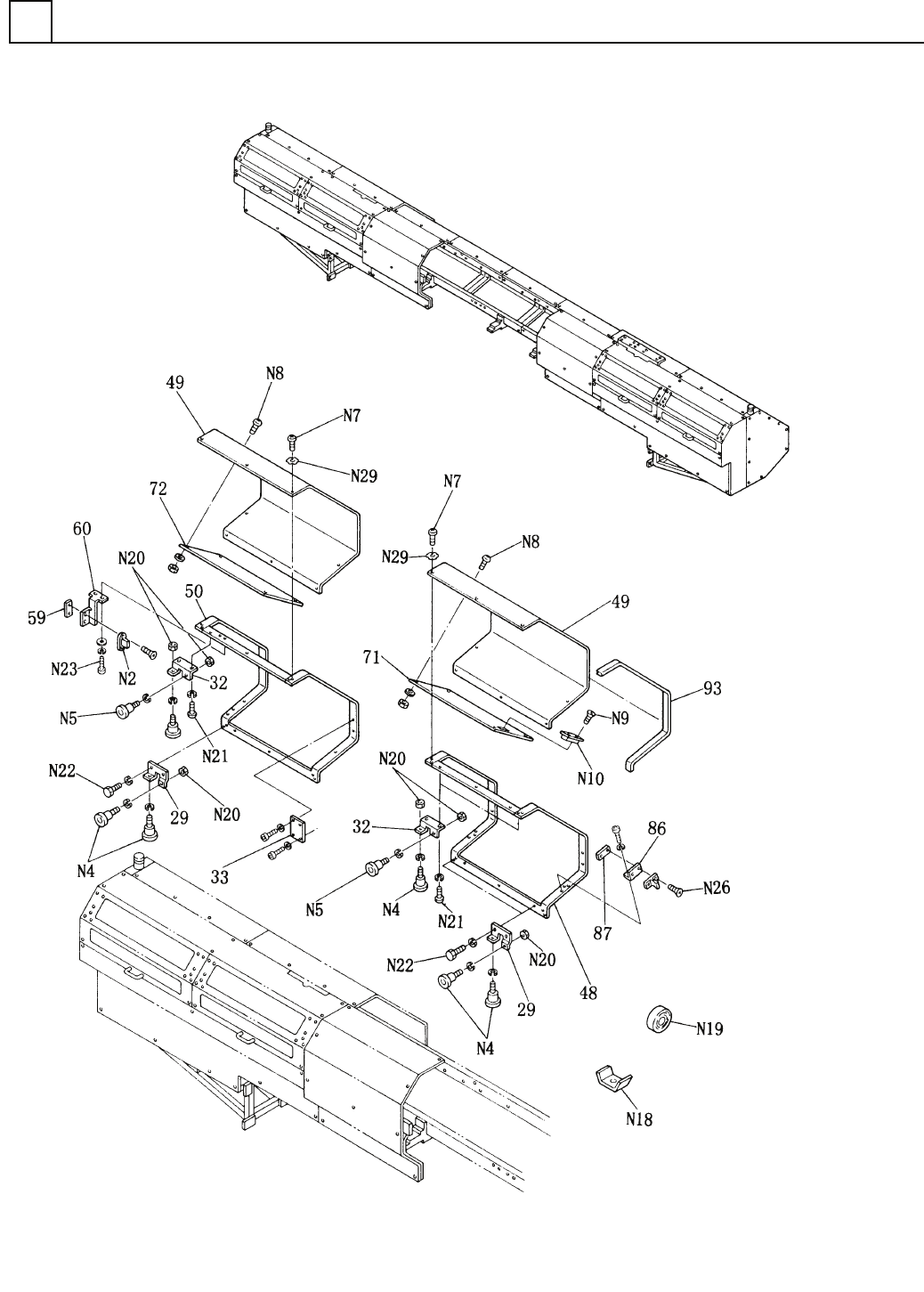

部品供給部(安全ｶﾊﾞｰ部8)
FEEDER CARRIAGE SECT.(SAFETY COVER SECT.-8)
9
F10427-51-000-AM_A-8
M93
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
9
部品供給部(安全ｶﾊﾞｰ部8)
FEEDER CARRIAGE SECT.(SAFETY COVER SECT.-8)
部 品 名 品 番 個数
備 考
29 3 1042751029
BRACKET ﾌ
ﾞﾗｹｯﾄ
32
3
1042751032
BRACKET ﾌﾞﾗｹｯﾄ
33
1
1042751033
BRACKET ﾌﾞﾗｹｯﾄ
48 1 104275104803
FRAME ﾌﾚｰﾑ
49 2 104275104902
COVER(DOOR) ｶﾊﾞｰ
(ﾄﾞｱ)
50
1
104275105003
FRAME ﾌﾚｰﾑ
59
1
1042751059
NUT ﾅｯﾄ
60 1 1042751060
BRACKET ﾌ
ﾞﾗｹｯﾄ
71 1 104275107101
PLATE ﾌﾟﾚｰﾄ
72
1
104275107201
PLATE ﾌﾟﾚｰﾄ
86 1 1042777711
BRACKET ﾌﾞﾗｹｯﾄ
87 1 1042777712
NUT ﾅｯﾄ
93
1
1042751093
COVER ｶﾊﾞｰ
N 2
1
N300ACTU-015
ACTUATOR ｱｸﾁｭｴｰﾀ ACTUATORB1-1747
N 4 9 N648DR22B2
BEARING ﾍﾞｱﾘﾝｸﾞ DR-22-B2
N 5 3 N648DR22B6
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
DR-22-B6
N 7
48
XST5+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ M5X8,+,STEEL,Z.C.T
N 8
14
XST5+10FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ M5X10,+,STEEL,Z.C.T
N 9 4 XSS3+8FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ M3X8,+,STEEL,Z.C.T
N10 1 N980A11592
DRAWER PULL ﾄｯﾃ A-1159-2
N18
30
N348TM3S25
FITTING ﾄﾘﾂｹｶﾅｸﾞ TM3S25
N19
1
N986N051-466
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ #5104A 20mm
N20 12 XNG6FFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M6,3-TYPE,STEEL,Z.C.T
N21 6 XVEN5M10FYZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾀﾝﾎﾞﾙﾄ
M5X10,STEEL,Z.C.T
N22
6
XVG5B10FY4
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ M5X10,STEEL,Z.C.T,4T
N23 4 N986YYYY-469
SCREW ﾈｼﾞ(ｺﾞｸﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ) M5X8
N26 2 XSS4+10FY
FLUSH HEAD SCREW ｻﾗｺﾈｼ
ﾞ
M4X10,+,STEEL,Z.C.T
N29
32
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ 5,B-TYPE,STEEL,Z.C.T
M94
F10427-51-000-AM_A-8
部品供給部 (専用部) <75X2 Kﾀｲﾌﾟ>
FEEDER CARRIAGE SECT. (EXCLUSIVE SECT.)
9
F10427-50-100-AE
