MVIIF Parts list-Mechanical20101207 - 第126页
部品供給部 (専用部) <7 5X2 Kﾀｲﾌﾟ> FEEDER CARR IAGE SECT. (EX CLUSIVE SECT .) 9 F10427-50-100-AE M109
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
9
部品供給部(安全ｶﾊﾞｰ部8)
FEEDER CARRIAGE SECT.(SAFETY COVER SECT.-8)
部 品 名 品 番 個数
備 考
29 3 1042751029
BRACKET ﾌ
ﾞﾗｹｯﾄ
32
3
1042751032
BRACKET ﾌﾞﾗｹｯﾄ
33
1
1042751033
BRACKET ﾌﾞﾗｹｯﾄ
48 1 104275104803
FRAME ﾌﾚｰﾑ
49 2 104275104902
COVER(DOOR) ｶﾊﾞｰ
(ﾄﾞｱ)
50
1
104275105003
FRAME ﾌﾚｰﾑ
59
1
1042751059
NUT ﾅｯﾄ
60 1 1042751060
BRACKET ﾌ
ﾞﾗｹｯﾄ
71 1 104275107101
PLATE ﾌﾟﾚｰﾄ
72
1
104275107201
PLATE ﾌﾟﾚｰﾄ
86 1 1042777711
BRACKET ﾌﾞﾗｹｯﾄ
87 1 1042777712
NUT ﾅｯﾄ
93
1
1042751093
COVER ｶﾊﾞｰ
N 2
1
N300ACTU-015
ACTUATOR ｱｸﾁｭｴｰﾀ ACTUATORB1-1747
N 4 9 N648DR22B2
BEARING ﾍﾞｱﾘﾝｸﾞ DR-22-B2
N 5 3 N648DR22B6
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
DR-22-B6
N 7
48
XST5+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ M5X8,+,STEEL,Z.C.T
N 8
14
XST5+10FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ M5X10,+,STEEL,Z.C.T
N 9 4 XSS3+8FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ M3X8,+,STEEL,Z.C.T
N10 1 N980A11592
DRAWER PULL ﾄｯﾃ A-1159-2
N18
30
N348TM3S25
FITTING ﾄﾘﾂｹｶﾅｸﾞ TM3S25
N19
1
N986N051-466
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ #5104A 20mm
N20 12 XNG6FFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M6,3-TYPE,STEEL,Z.C.T
N21 6 XVEN5M10FYZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾀﾝﾎﾞﾙﾄ
M5X10,STEEL,Z.C.T
N22
6
XVG5B10FY4
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ M5X10,STEEL,Z.C.T,4T
N23 4 N986YYYY-469
SCREW ﾈｼﾞ(ｺﾞｸﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ) M5X8
N26 2 XSS4+10FY
FLUSH HEAD SCREW ｻﾗｺﾈｼ
ﾞ
M4X10,+,STEEL,Z.C.T
N29
32
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ 5,B-TYPE,STEEL,Z.C.T
M94
F10427-51-000-AM_A-8
部品供給部 (専用部) <75X2 Kﾀｲﾌﾟ>
FEEDER CARRIAGE SECT. (EXCLUSIVE SECT.)
9
F10427-50-100-AE
M109
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
9

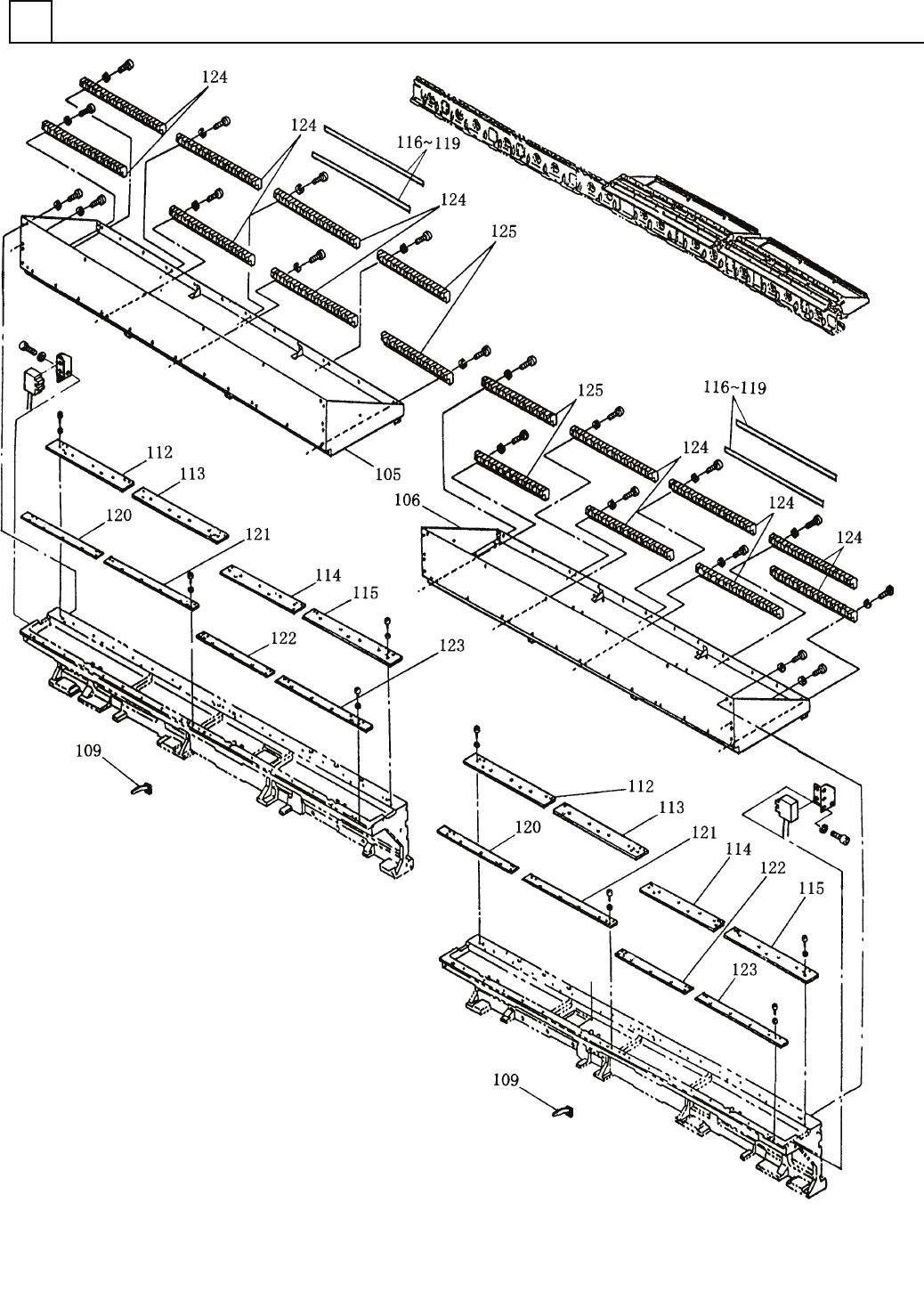

部品供給部 (専用部) <75X2 Kﾀｲﾌﾟ>
FEEDER CARRIAGE SECT. (EXCLUSIVE SECT.)
部 品 名 品 番 個数
備 考
1 1042750100
FEEDER CARRIAGE UNIT ﾌﾞﾋﾝｷｮｳｷｭｳﾕﾆｯﾄ
105
1
102667816105
REEL HOLDER(L) ﾘｰﾙﾎﾙﾀﾞ(L)
106
1
102667816205
REEL HOLDER(R) ﾘｰﾙﾎﾙﾀﾞ(R)
109 2 104275050901
SUPPORTER ｻﾎ
ﾟｰﾀｰ
112 2 102305011201
PLATE ﾌﾟﾚｰﾄ
113
2
1023050113
PLATE ﾌﾟﾚｰﾄ
114
2
102305011401
PLATE ﾌﾟﾚｰﾄ
115 2 102305011502
PLATE ﾌ
ﾟﾚｰﾄ
116 1 1022450056
NUMBER LABEL ﾅﾝﾊﾞ
ｰﾗﾍﾞﾙ
117
1
1022450057
NUMBER LABEL ﾅﾝﾊﾞｰﾗﾍﾞﾙ TYPE 150
118 1 1022450110
NUMBER LABEL ﾅﾝﾊﾞｰﾗﾍﾞﾙ
119 1 1022450111
NUMBER LABEL ﾅﾝﾊ
ﾞｰﾗﾍﾞﾙ
120
2
1026650120
PLATE ﾌﾟﾚｰﾄ
121
2
1026650121
PLATE ﾌﾟﾚｰﾄ
122 2 1026650122
PLATE ﾌﾟﾚｰﾄ
123 2 1026650123
PLATE ﾌ
ﾟﾚｰﾄ
124
12
102587855001
GUIDE ｶﾞｲﾄﾞ P=21.5
125
4
1025878551
GUIDE ｶﾞｲﾄﾞ
M110
F10427-50-100-AE
