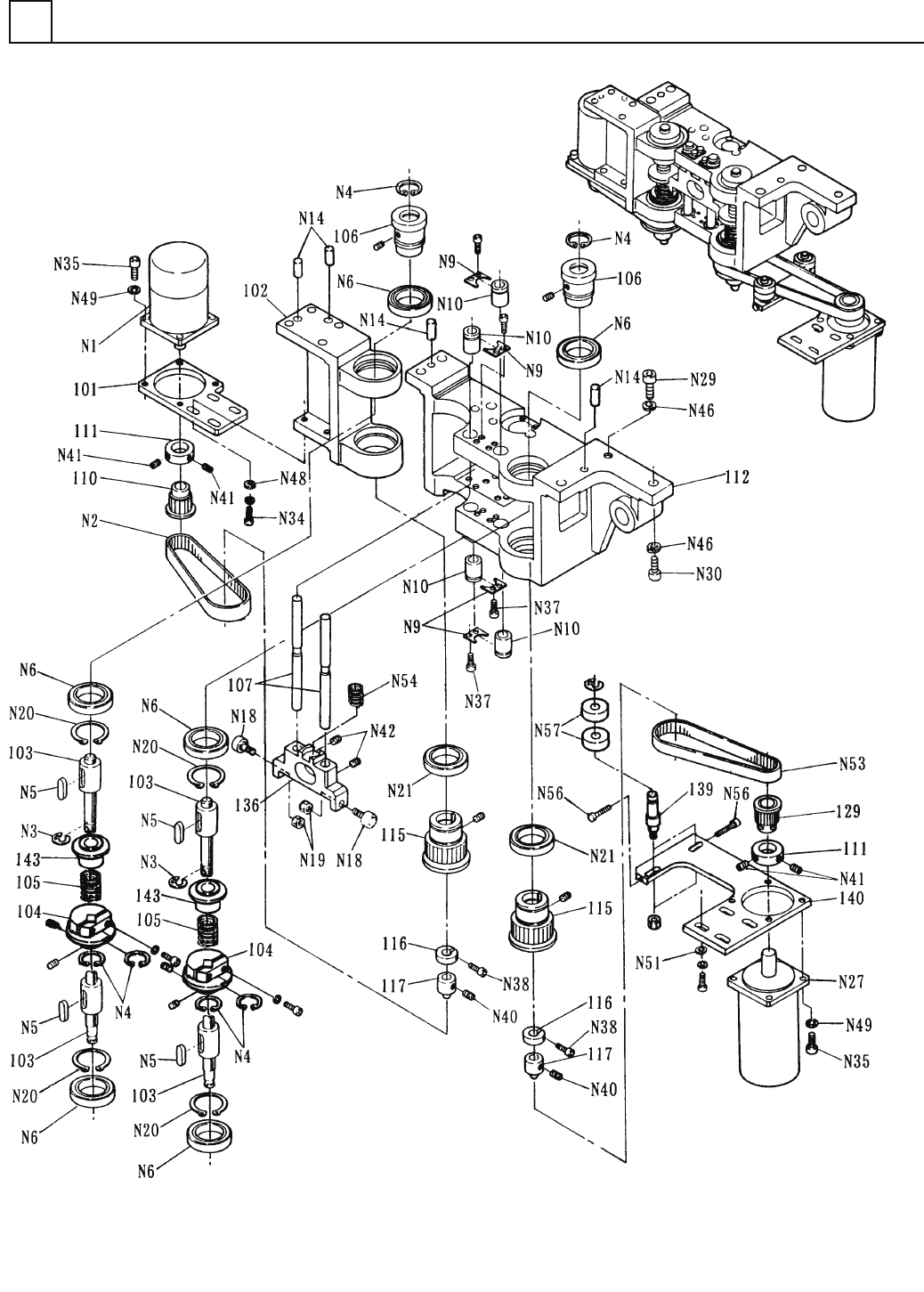

ﾉｽﾞﾙθ回転部(1)
NOZZLE THETA ROTARY SECT.(1)
11
F10427-17-100-AK_A-1
M115
ｲﾗｽﾄ
No.
REF
No.
PART No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
11
ﾉｽﾞﾙθ回転部(1)
NOZZLE THETA ROTARY SECT.(1)
部 品 名 品　 番 個数
備 考
1 1042717100
NOZZLE ROTARY UNIT ﾉｽﾞ
ﾙｶｲﾃﾝﾕﾆｯﾄ
101
1
1042717101
PLATE ﾌﾟﾚｰﾄ
102
1
104271710202
BRACKET ﾌﾞﾗｹｯﾄ
103 2 104271710303
BALL SPLINE ﾎ
ﾞｰﾙｽﾌﾟﾗｲﾝ
104 2 104277748902
COLLAR ｶﾗｰ
105
2
1042777487
SPRING ﾊﾞﾈ
106
2
102811700601
BUSHING ﾌﾞｯｼﾝｸﾞ
107 2 104271710701
SHAFT ﾘﾆｱｼｬﾌﾄ
110 1 1042717110
PULLEY(TIMING) ﾌﾟｰﾘｰ(
ﾀｲﾐﾝｸﾞ)
111
2
1042717111
BOSS ﾎﾞｽ
112 1 104271711206
BRACKET ﾌﾞﾗｹｯﾄ
115 2 104271711501
PULLEY(TIMING) ﾌﾟｰﾘｰ
(ﾀｲﾐﾝｸﾞ)
116
2
1025826224
STOPPER ｽﾄｯﾊﾟｰ
117
2
104271711703
TOOTH ﾂｰｽ
129 1 1042717129
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
136 1 104277935402
SLIDER ｽﾗｲﾀ
ﾞ
139
2
1042717139
PIN ﾋﾟﾝ
140
1
1042717140
PLATE ﾌﾟﾚｰﾄ
143 2 1042777488
GUIDE(SPRING) ｶﾞｲﾄﾞ(ｽﾌﾟﾘﾝｸﾞ)
N 1 1 MSM021A7A
MOTOR ﾓｰﾀ MSM021A7A
N 2
1
N6413513GT15
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ) 351-3GT-15
N 3
4
XUC7FP
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ 7,STEEL,P.C
N 4 6 XUAN1RTW19
RETAINING RING C-TYPE, CORE C ｶ
ﾞﾀｱﾅﾖｳﾄﾒﾜ
IRTW-19
N 5 4 N986KES320
KEY ｷｰ KES3-20
N 6
6
XLBN6806VV
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6806VV
N 9 4 N513LMST8
PLATE ﾌﾟﾚｰﾄ LMST8
N10 4 N513LM8UU
BUSHING ﾌﾞ
ｯｼﾝｸﾞ
LM8UU
N14
4
N986MS625
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ MS6-25
N18
2
N531CFN5RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ CFN5R-A
N19 2 XNGNU5YSZ
LOCK-NUT ﾛｯｸﾅｯﾄ M5,2-TYPE,STAINLESS,STEEL,
N20 4 XUBN1STW30
RETAINING RING C-TYPE,SHAFT C ｶ
ﾞﾀｼﾞｸﾖｳﾄﾒﾜ
ISTW-30
N21
2
XLB6906UU
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6906UU
N27
1
MSM042AJA
MOTOR ﾓｰﾀ MSM042AJA
N29 1 XVE8B35FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M8X35,STEEL,P.C
N30 6 XVE8B25FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M8X25,STEEL,P.C
N34
4
XVE5B16FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M5X16,STEEL,P.C
N35
8
XVE4B16FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M4X16,STEEL,P.C
N37 8 XVE3B6FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X6,STEEL,P.C
N38 2 XVE3B8FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X8,STEEL,P.C
N40
4
XXE4C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M4X6,STEEL,P.C
N41 4 XXE4C8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M4X8,STEEL,P.C
N42 2 XXE5C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M5X6,STEEL,P.C
N46
7
XWA8BFP
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ 8,2-TYPE,STEEL,P.C
N48
4
XWA5BFP
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ 5,2-TYPE,STEEL,P.C
N49 8 XWA4BFP
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ 4,2-TYPE,STEEL,P.C
N51 4 XWG5FP
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5,STEEL,P.C
N53
1
N6414563GT15
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ) 456-3GT-15
N54
1
N986SWU2135
SPRING ﾊﾞﾈ SWU21-35
N56 2 XVEN3B15FPZ
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X15,STEEL,P.C
N57 4 XLC628ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
628ZZ
M116
F10427-17-100-AK_A-1

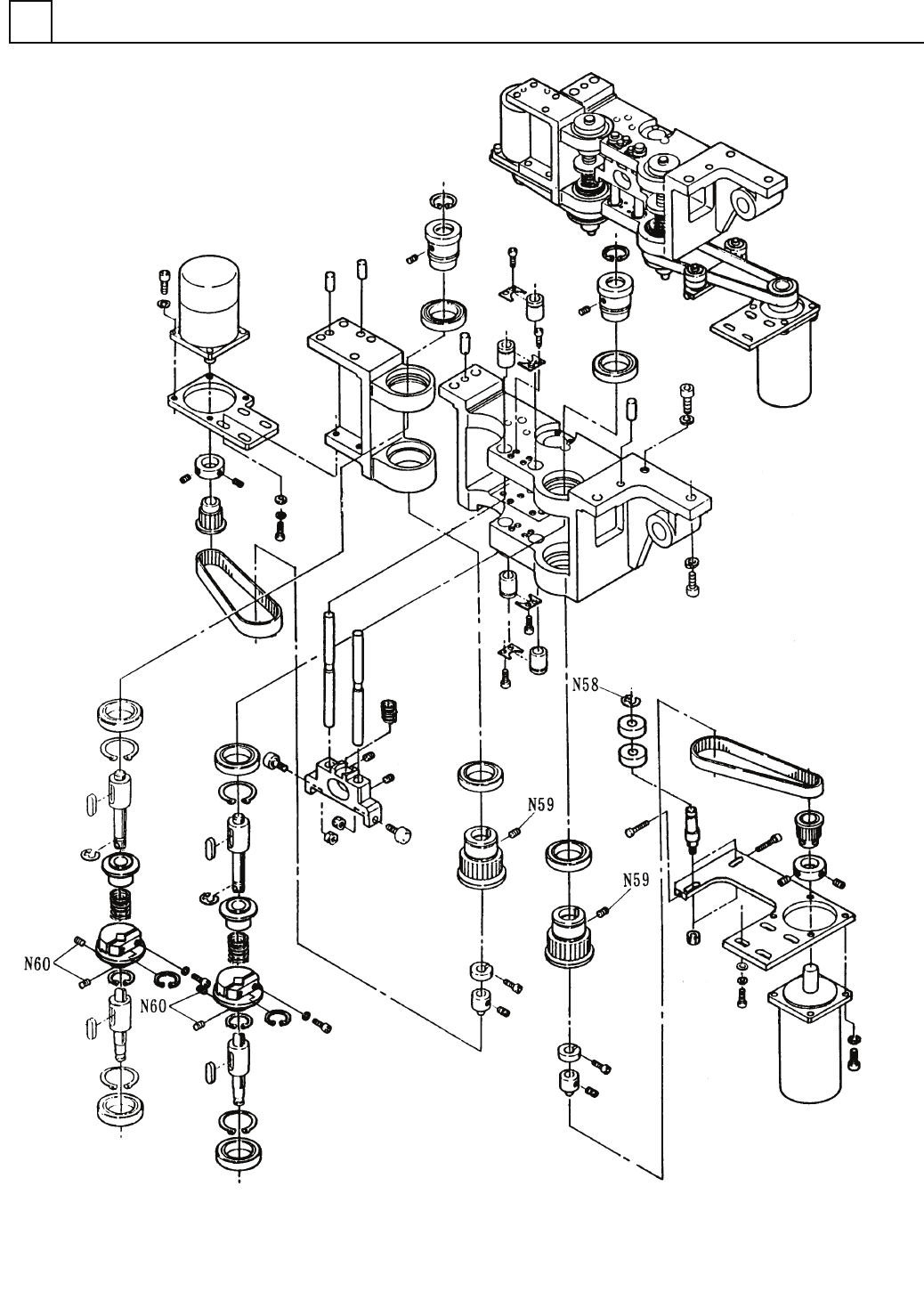

ﾉｽﾞﾙθ回転部(1)
NOZZLE THETA ROTARY SECT.(1)
11
F10427-17-100-AK_A-2
M115
