ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 11 ﾉｽﾞﾙ θ回転部(2) NOZZLE THET A ROTARY SECT. (2) 部 品 名 品 番 個数 備 考 113 1 104271701301 SHAFT ｼｬﾌﾄ 114 3 1022416055 SPACER ｽﾍﾟｰｻ 118 1 1028117018 COLLAR ｶﾗｰ 119 1 1042777…

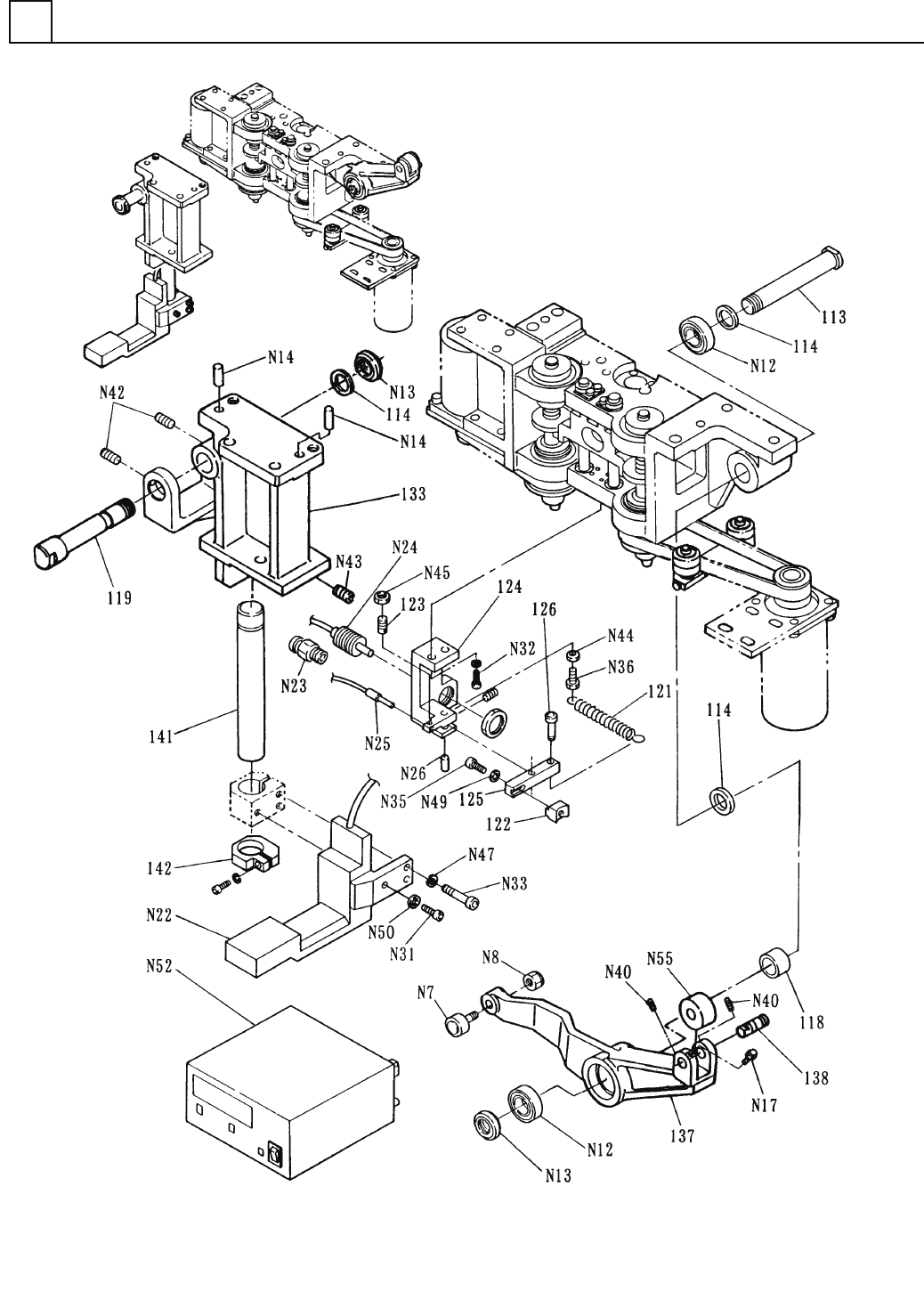

ﾉｽﾞﾙθ回転部(2)
NOZZLE THETA ROTARY SECT.(2)
11
F10427-17-100-AK_A-3
M115
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
11
ﾉｽﾞﾙθ回転部(2)
NOZZLE THETA ROTARY SECT.(2)
部 品 名 品 番 個数
備 考
113 1 104271701301
SHAFT ｼｬﾌﾄ
114
3
1022416055
SPACER ｽﾍﾟｰｻ
118
1
1028117018
COLLAR ｶﾗｰ
119 1 1042777332
SHAFT ｼｬﾌﾄ
121 1 1028117021
SPRING ﾊ
ﾞﾈ
122
1
1028117022
BRAKE SHOE ﾌﾞﾚｰｷｼｭｰ
123
1
102811702301
PIN ﾋﾟﾝ
124 1 104271702404
BRACKET ﾌ
ﾞﾗｹｯﾄ
125 1 102811702501
LEVER ﾚﾊ
ﾞｰ
126
1
1028117026
PIN ﾋﾟﾝ
133 1 1042777331
BRACKET ﾌﾞﾗｹｯﾄ
137 1 104277935505
LEVER(CAM) ﾚﾊ
ﾞｰ(ｶﾑ)
138
1
1042725222
PIN ﾋﾟﾝ
141
1
1042717204
SHAFT ｼｬﾌﾄ
142 1 1042717203
BLOCK ﾌﾞﾛｯｸ
N 7 1 N531CF8UURA
CAM FOLLOWER ｶﾑﾌｫﾛｱ CF8UUR-A
N 8
1
XNGNU8VSZ
LOCK-NUT ﾛｯｸﾅｯﾄ M8,2-TYPE,STAINLESS,STEEL,
N12
2
XLB6003UU
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6003UU
N13 2 XNRNFU03SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU03SC
N14 2 N986MS625
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
MS6-25
N17
1
N560NPT4
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ NPT4
N22
1
N1P945BS
SENSOR ｾﾝｻ P945B-S
N23 1 N431PC6M5M
FITTING ﾂｷ
ﾞﾃ
PC6-M5M
N24 1 N401CJPB-780
CYLINDER ｼﾘﾝﾀ
ﾞ
CJPB15-5H4-XC17
N25
1
N310P916-005
SENSOR ｾﾝｻ P916C-S1720
N26 1 N986MSTH620
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ MSTH6-20
N31 1 XVE6B12FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X12,STEEL,P.C
N32
6
XVE6B20FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M6X20,STEEL,P.C
N33
2
XVE6B35FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M6X35,STEEL,P.C
N35 1 XVE4B16FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M4X16,STEEL,P.C
N36 1 XVE4B12FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X12,STEEL,P.C
N40
2
XXE4C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M4X6,STEEL,P.C
N42
2
XXE5C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M5X6,STEEL,P.C
N43 1 XXE6A10FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M6X10,STEEL,P.C
N44 1 XNG4AFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M4,1-TYPE,STEEL,P.C
N45
1
XNG4CFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M4,3-TYPE,STEEL,P.C
N47
6
XWA6BFP
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ 6,2-TYPE,STEEL,P.C
N49 1 XWA4BFP
SPRING WASHER ﾊ
ﾞﾈｻﾞｶﾞﾈ
4,2-TYPE,STEEL,P.C
N50 4 XWG6FP
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
6,STEEL,P.C
N52
1
N1P945AD
CONTROLLER ｺﾝﾄﾛｰﾗ P945A-D
N55 1 N531NART-016
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ NART10R-040010
M116
F10427-17-100-AK_A-3
ﾉｽﾞﾙθ回転部(専用部)
NOZZLE THETA ROTARY SECT.(EXCLUSIVE)
