ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 19 吸着及びﾏ ｳﾝﾄ駆動部(2 ) SUCTION OR PLACEMENT DRIV ING SECT.(2) 部 品 名 品 番 個数 備 考 3 1 1042727003 BOLT ﾎ ﾞﾙﾄ 5 2 1042777753 COLLAR ｶﾗｰ 9 1 1042875909 PLATE ﾌﾟﾚｰﾄ 10 1 10428…

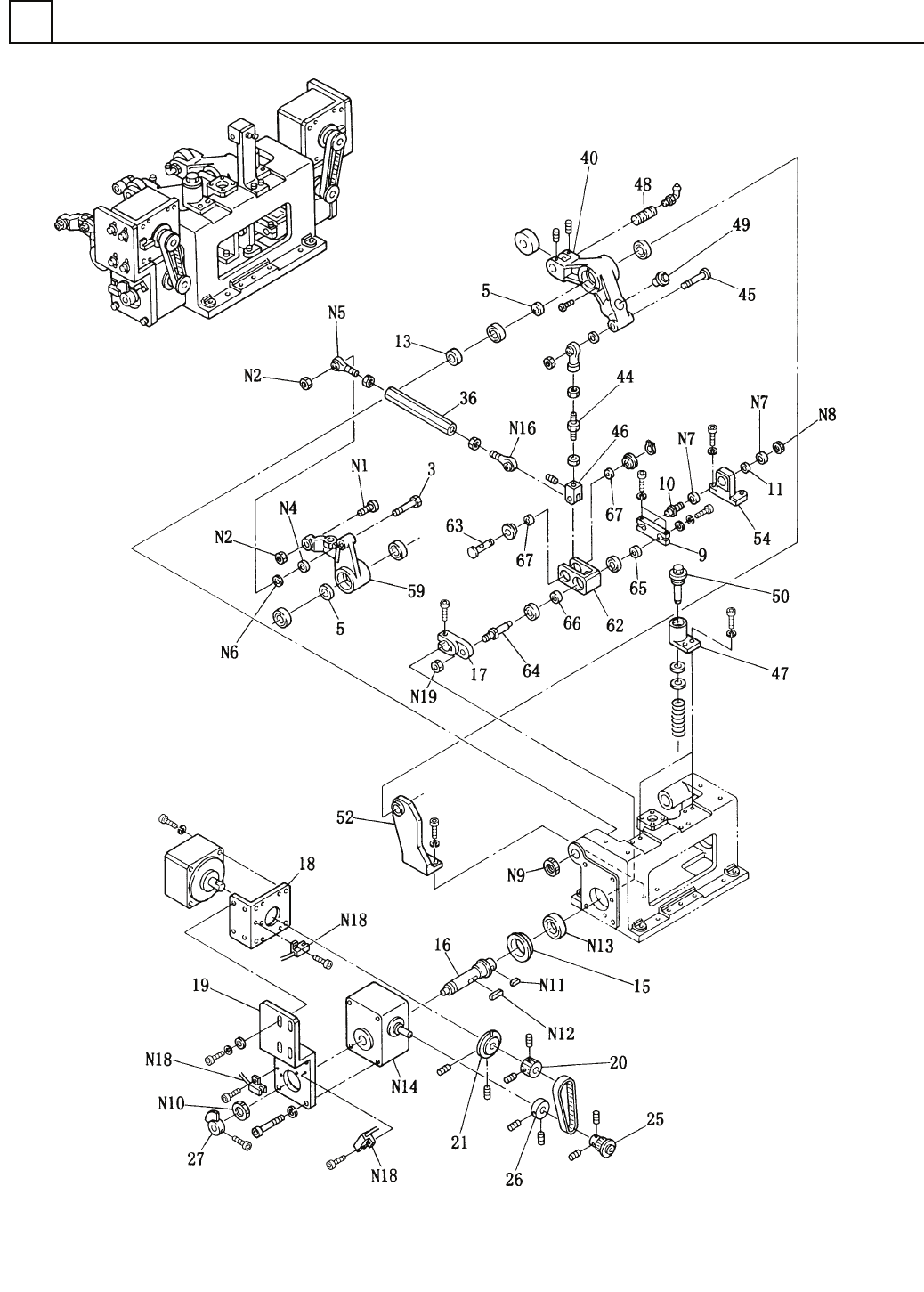

吸着及びﾏｳﾝﾄ駆動部(2)
SUCTION OR PLACEMENT DRIVING SECT.(2)
19
F10427-27-000-AL_A-3
M157
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
19
吸着及びﾏｳﾝﾄ駆動部(2)
SUCTION OR PLACEMENT DRIVING SECT.(2)
部 品 名 品 番 個数
備 考
3 1 1042727003
BOLT ﾎ
ﾞﾙﾄ
5
2
1042777753
COLLAR ｶﾗｰ
9
1
1042875909
PLATE ﾌﾟﾚｰﾄ
10 1 1042875910
PIN ﾋ
ﾟﾝ
11 1 1042875911
COLLAR ｶﾗｰ
13
1
1028127013
COLLAR ｶﾗｰ
15
1
1028127015
RING ﾘﾝｸﾞ
16 1 1028127016
SHAFT ｼｬﾌﾄ
17 1 102812701706
ARM(LEFT) ｱｰﾑ(
ﾚﾌﾄ)
18
1
104272701802
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
19 1 104272701901
BRACKET ﾌﾞﾗｹｯﾄ
20 1 1042727020
PULLEY(TIMING) ﾌﾟｰﾘｰ
(ﾀｲﾐﾝｸﾞ)
21
1
104272702101
FLANGE(GUIDE) ﾌﾗﾝｼﾞ(ｶﾞｲﾄﾞ)
25
1
1028179069
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
26 1 1028179070
BOSS ﾎﾞｽ
27 1 104272702702
SLIT DISK ｽﾘｯﾄﾃ
ﾞｨｽｸ
36
1
104272703601
CONNECTING ROD ｺﾈｸﾃｨﾝｸﾞﾛｯﾄﾞ
40
1
104277934405
LEVER(PLACEMENT CAM) ﾚﾊﾞｰ(ﾏｳﾝﾄｶﾑ)
44 1 104277933902
CONNECTING ROD ｺﾈｸﾃｨﾝｸﾞﾛｯﾄﾞ
45 1 1042779349
BOLT ﾎ
ﾞﾙﾄ
46
1
1042875919
LINK ﾘﾝｸ
47
2
104277934201
HOLDER ﾎﾙﾀﾞ
48 1 104277934303
PIN ﾋ
ﾟﾝ
49 1 1042779365
GUIDE(SPRING) ｶﾞｲﾄ
ﾞ(ｽﾌﾟﾘﾝｸﾞ)
50
2
1042779366
HOLDER ﾎﾙﾀﾞ
52 1 104287590202
BRACKET ﾌﾞﾗｹｯﾄ
54 1 104287590403
HOUSING ﾊｳｼ
ﾞﾝｸﾞ
59
1
1042727059
LEVER(PLACEMENT) ﾚﾊﾞｰ(ﾏｳﾝﾄ)
62
1
104287520501
RING ﾘﾝｸﾞ
63 1 1042875201
PIN ﾋﾟﾝ
64 1 104287520301
PIN ﾋ
ﾟﾝ
65
1
1042875204
COLLAR ｶﾗｰ
66
1
1042875202
COLLAR ｶﾗｰ
67 2 1042875206
COLLAR ｶﾗｰ
N 1 1 N531CF8UUA
CAM FOLLOWER ｶﾑﾌｫﾛｱ CF8UU-A
N 2
2
XNGNU8VSZ
LOCK-NUT ﾛｯｸﾅｯﾄ M8,2-TYPE,STAINLESS,STEEL,
N 4
1
N560SSWA-047
WASHER ｻﾞｶﾞﾈ SSWA13-3.0
N 5 1 N533PBR8-003
ROD END ﾛｯﾄ
ﾞｴﾝﾄﾞ
PBR8EFN-204
N 6 1 N560SSWA-062
WASHER ｻﾞ
ｶﾞﾈ
SSWA13-2.0
N 7
2
XLC6900ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6900ZZ
N 8 1 XNRNFU00SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU00SC
N 9 1 XNRNFU03SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU03SC
N10
1
XNRNFU04SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU04SC
N11
1
N986KES510
KEY ｷｰ KES5-10
N12 1 N986KES520
KEY ｷｰ KES5-20
N13 1 XLBN6005VVCM
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
6005VVCM
N14
1
N620SM13-010
REDUCTION GEAR ｹﾞﾝｿｸｷ(ｳｫｰﾑ) SM13E-T101-RF20
N16
1
N533PBRL-004
ROD END ﾛｯﾄﾞｴﾝﾄﾞ PBRL8EFN-204
N18 3 N310P914A
SENSOR ﾌｫﾄﾏｲｸﾛｾﾝｻ P914A
N19 1 XNRNFU01SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU01SC
M158
F10427-27-000-AL_A-3

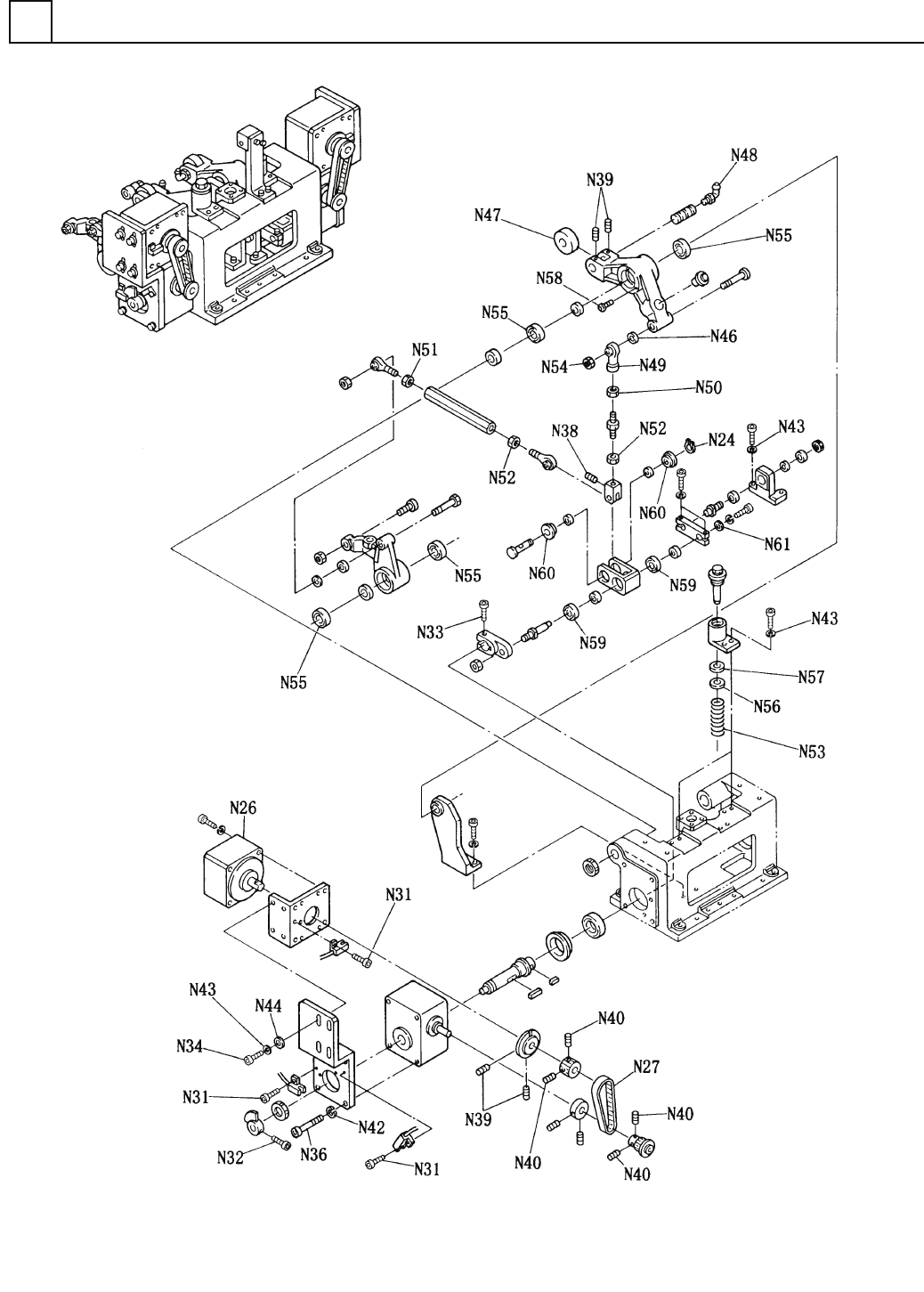

吸着及びﾏｳﾝﾄ駆動部(2)
SUCTION OR PLACEMENT DRIVING SECT.(2)
19
F10427-27-000-AL_A-4
M157
