MVIIF Parts list-Mechanical20101207 - 第76页
ﾒｲﾝ駆動部 (2) MAIN DRIVIN G SECT.(2) 5 F10427-08-500-AH_A -2 M57
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
5
ﾒｲﾝ駆動部(1)
MAIN DRIVING SECT.(1)
部 品 名 品 番 個数
備 考
1 1042708500
MAIN DRIVING UNIT ﾒｲﾝｸﾄ
ﾞｳﾕﾆｯﾄ
504
1
102810800408
COVER ｶﾊﾞｰ
558
1
104270805803
COVER(BELT) ｶﾊﾞｰ(ﾍﾞﾙﾄ)
562 1 1042708062
COUPLING ｶｯﾌ
ﾟﾘﾝｸﾞ
563 1 104270806302
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ
(ﾓｰﾀ)
564
1
1042708064
COVER ｶﾊﾞｰ
575
1
1042708075
COVER ｶﾊﾞｰ
578 1 1042708078
GEAR ｷ
ﾞﾔｰ
N 1 1 MDM402D2C
MOTOR ﾓｰﾀ MDM402D2C
N 4
4
N986LSBG-404
SCREW ﾛｯｶｸﾀｲﾌﾟｼﾁｭｳ LSBG10-110-M6-N5
N36 8 XVE12B35FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M12X35,STEEL,P.C
N42 4 XSS5+12FY
FLUSH HEAD SCREW ｻﾗｺﾈｼ
ﾞ
M5X12,+,STEEL,Z.C.T
N43
6
XST4+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ M4X8,+,STEEL,Z.C.T
N44
2
XXE6C10FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M6X10,STEEL,P.C
N52 1 N1P610CT2
TIMING CONTROLLER W/ENCODER ﾋｶﾘｻｲｸﾙﾀｲﾏ P610-CT-2
N61 4 XST4+8FZ
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
M4X8,+,STEEL,Z.B.P
M58
F10427-08-500-AH_A-1
ﾒｲﾝ駆動部(2)
MAIN DRIVING SECT.(2)
5
F10427-08-500-AH_A-2
M57
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
5

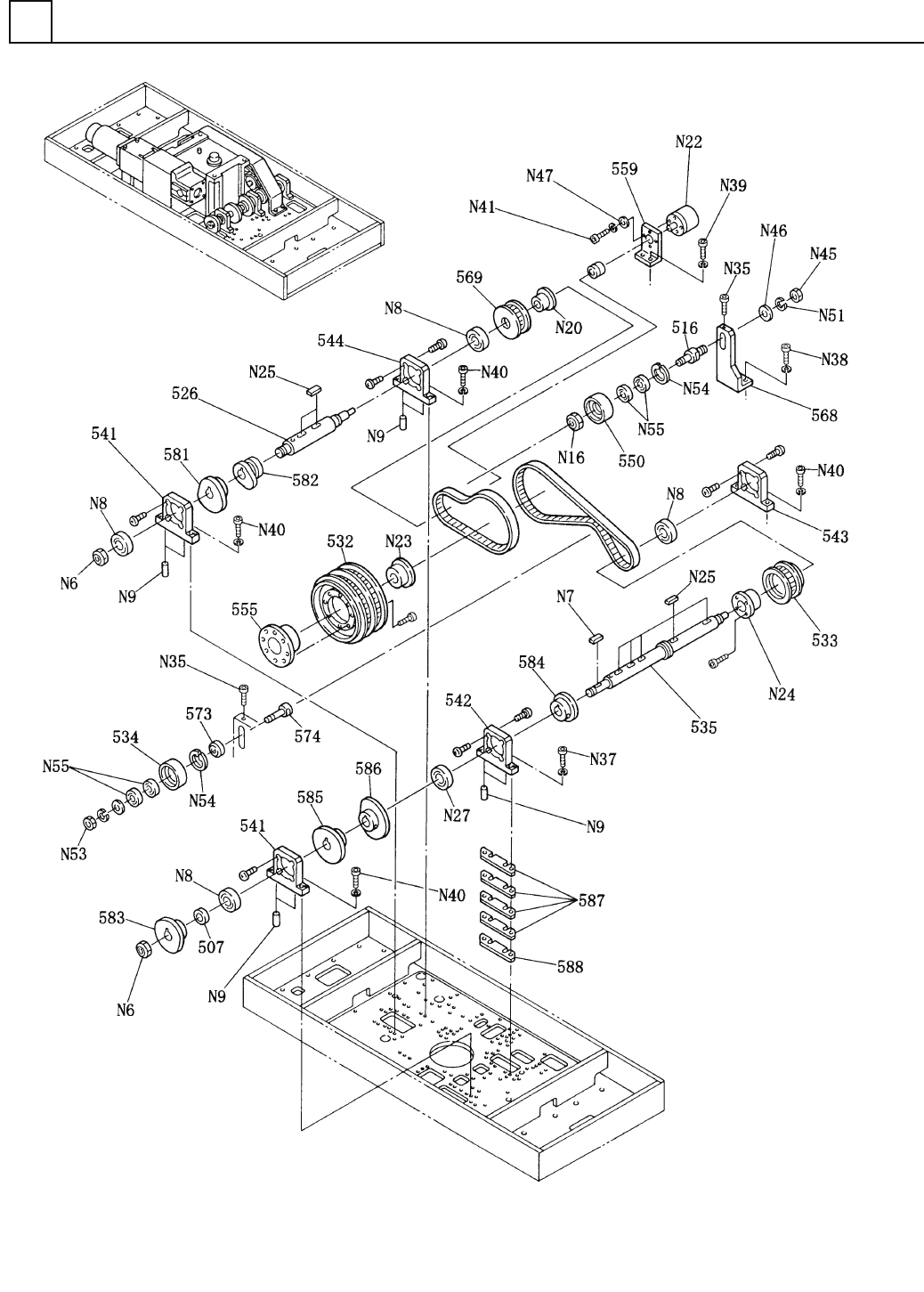

ﾒｲﾝ駆動部(2)
MAIN DRIVING SECT.(2)
部 品 名 品 番 個数
備 考
507 1 1042779335
COLLAR ｶﾗｰ
516
1
1028108016
SHAFT(IDLER) ｼｬﾌﾄ(ｱｲﾄﾞﾗｰ)
526
1
104277937403
SHAFT(CAM) ｼｬﾌﾄ(ｶﾑ)
532 1 1042708532
PULLEY(TIMING) ﾌﾟ
ｰﾘｰ(ﾀｲﾐﾝｸﾞ)
533 1 1042708533
PULLEY(TIMING) ﾌﾟｰﾘｰ(
ﾀｲﾐﾝｸﾞ)
534
1
1042708534
ROLLER(TENSION) ﾛｰﾗ(ﾃﾝｼｮﾝ)
535
1
104277933403
SHAFT(CAM) ｼｬﾌﾄ(ｶﾑ)
541 2 104270854101
HOUSING ﾊｳｼ
ﾞﾝｸﾞ
542 1 104270854201
HOUSING ﾊｳｼ
ﾞﾝｸﾞ
543
1
104270854301
HOUSING ﾊｳｼﾞﾝｸﾞ
544 1 104270854401
HOUSING ﾊｳｼﾞﾝｸﾞ
550 1 1042708550
ROLLER(TENSION) ﾛｰﾗ
(ﾃﾝｼｮﾝ)
555
1
1042708055
BOSS ﾎﾞｽ
559
1
1042708059
BRACKET ﾌﾞﾗｹｯﾄ
568 1 104270806801
BRACKET(TENSION) ﾌﾞﾗｹｯﾄ(ﾃﾝｼｮﾝ)
569 1 1042708069
PULLEY(TIMING) ﾌﾟｰﾘｰ
(ﾀｲﾐﾝｸﾞ)
573
1
1042708073
COLLAR ｶﾗｰ
574
1
1042708074
SHAFT(IDLER) ｼｬﾌﾄ(ｱｲﾄﾞﾗｰ)
581 1 1042708081
CAM ｶﾑ
582 1 104270808201
CAM ｶﾑ
583
1
1042708083
CAM ｶﾑ
584
1
1042708084
CAM ｶﾑ
585 1 104270808501
CAM ｶﾑ
586 1 1042708086
CAM ｶﾑ
(ｼｬｯﾀ)
587
4
1042708087
SPACER ｽﾍﾟｰｻ
588 1 1042708088
SPACER ｽﾍﾟｰｻ
N 6 2 XNRNFU06SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU06SC
N 7
1
N986KESM820
KEY ｷｰ KESM8-20
N 8
4
XLB6206UU
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6206UU
N 9 8 N986MS625
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ MS6-25
N16 1 XNRNFU02SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU02SC
N20
1
N645MA25
COUPLING ｶｯﾌﾟﾘﾝｸﾞ MA-25
N22
1
N656E6FAB3C
ENCODER ｴﾝｺｰﾀﾞ E6F-AB3C
N23 1 N645MA40
COUPLING ｶｯﾌﾟﾘﾝｸﾞ MA-40
N24 1 N645MA35
COUPLING ｶｯﾌﾟ
ﾘﾝｸﾞ
MA-35
N25
7
N986KESM1025
KEY ｷｰ KESM10-25
N27
1
XLB6008UU
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6008UU
N35 2 XVEN6B50FPZ
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X50,STEEL,P.C
N37 2 XVE8B60FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M8X60,STEEL,P.C
N38
2
XVE10B30FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M10X30,STEEL,P.C
N39 2 XVE8B50FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M8X50,STEEL,P.C
N40 16 XVE10B50FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M10X50,STEEL,P.C
N41
4
XVE5B12FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M5X12,STEEL,P.C
N45
1
XNH16DFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M16,1-TYPE,STEEL,P.C
N46 1 XWH16FP
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ 16,STEEL,P.C
N47 4 XWG5FP
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5,STEEL,P.C
N51
1
XWB16BFP
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ 16,2-TYPE,STEEL,P.C
N53
1
XNH14DFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M14,1-TYPE,STEEL,Z.C.T
N54 2 XUAN1RTW35
RETAINING RING C-TYPE, CORE C ｶﾞﾀｱﾅﾖｳﾄﾒﾜ IRTW-35
N55 4 XLB6202UU
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
6202UU
M58
F10427-08-500-AH_A-2
