ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 5 ﾒｲﾝ駆動部 (2) MAIN DRIVIN G SECT.(2) 部 品 名 品 番 個数 備 考 N56 1 N641920S-397 BELT(TIMING) ﾍﾞﾙﾄ (ﾀｲﾐﾝｸﾞ) 920SP8M25 N57 1 N6411264-407 BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸ ﾞ) 1264SP8M30…

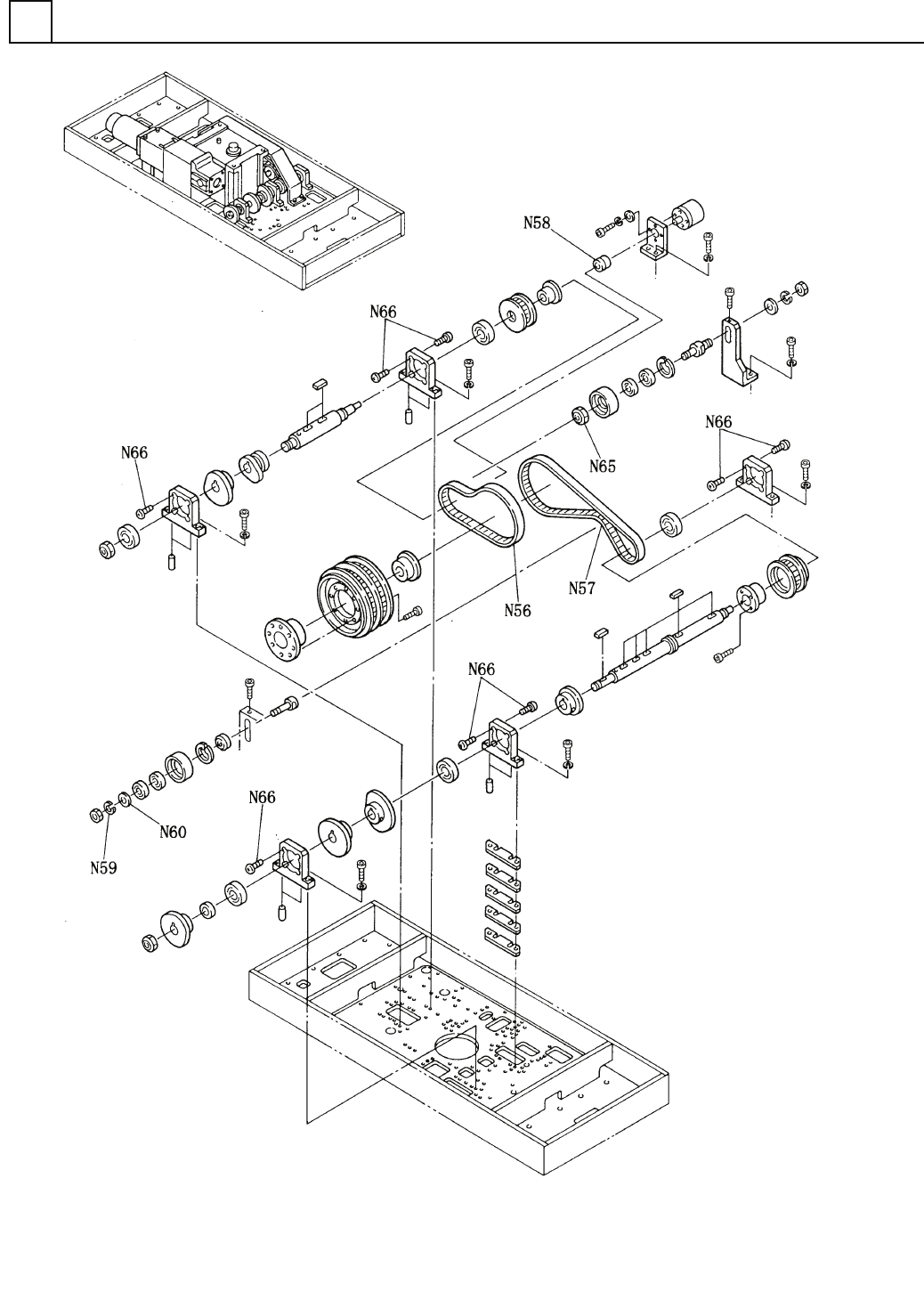

ﾒｲﾝ駆動部(2)
MAIN DRIVING SECT.(2)
5
F10427-08-500-AH_A-3
M57
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
5
ﾒｲﾝ駆動部(2)
MAIN DRIVING SECT.(2)
部 品 名 品 番 個数
備 考
N56 1 N641920S-397
BELT(TIMING) ﾍﾞﾙﾄ
(ﾀｲﾐﾝｸﾞ)
920SP8M25
N57
1
N6411264-407
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ) 1264SP8M30
N58
1
N6443005-053
COUPLING ｶｯﾌﾟﾘﾝｸﾞ 3005M d1=d2=10
N59 1 XWB14BFP
SPRING WASHER ﾊ
ﾞﾈｻﾞｶﾞﾈ
14,2-TYPE,STEEL,P.C
N60 1 XWF14FP
ROUND PLAIN WASHER ｺｶﾞｶﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
14,STEEL,P.C
N65
1
XNG6DFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M6,1-TYPE,STEEL,P.C
N66
32
XVEN5M6FPZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M5X6,STEEL,P.C
M58
F10427-08-500-AH_A-3
ﾒｲﾝ駆動部(ﾏﾆｭｱﾙﾊﾝﾄﾞﾙ部)
MAIN DRIVING SECT.(MUNUAL HANDLE SECT.)
5
F10427-08-700-AC
M63
