ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 7 ﾉｽﾞﾙ部 NOZZLE SECT . 部 品 名 品 番 個数 備 考 N10 12 N520LFB0408 BUSHING ﾌﾞ ｯｼﾝｸﾞ LFB-0408 N14 120 N560LRB60.2 WASHER ｻﾞｶﾞﾈ LRB6-0.2 N15 60 XUBN1STW6 RETAINING RIN G C-TYPE…

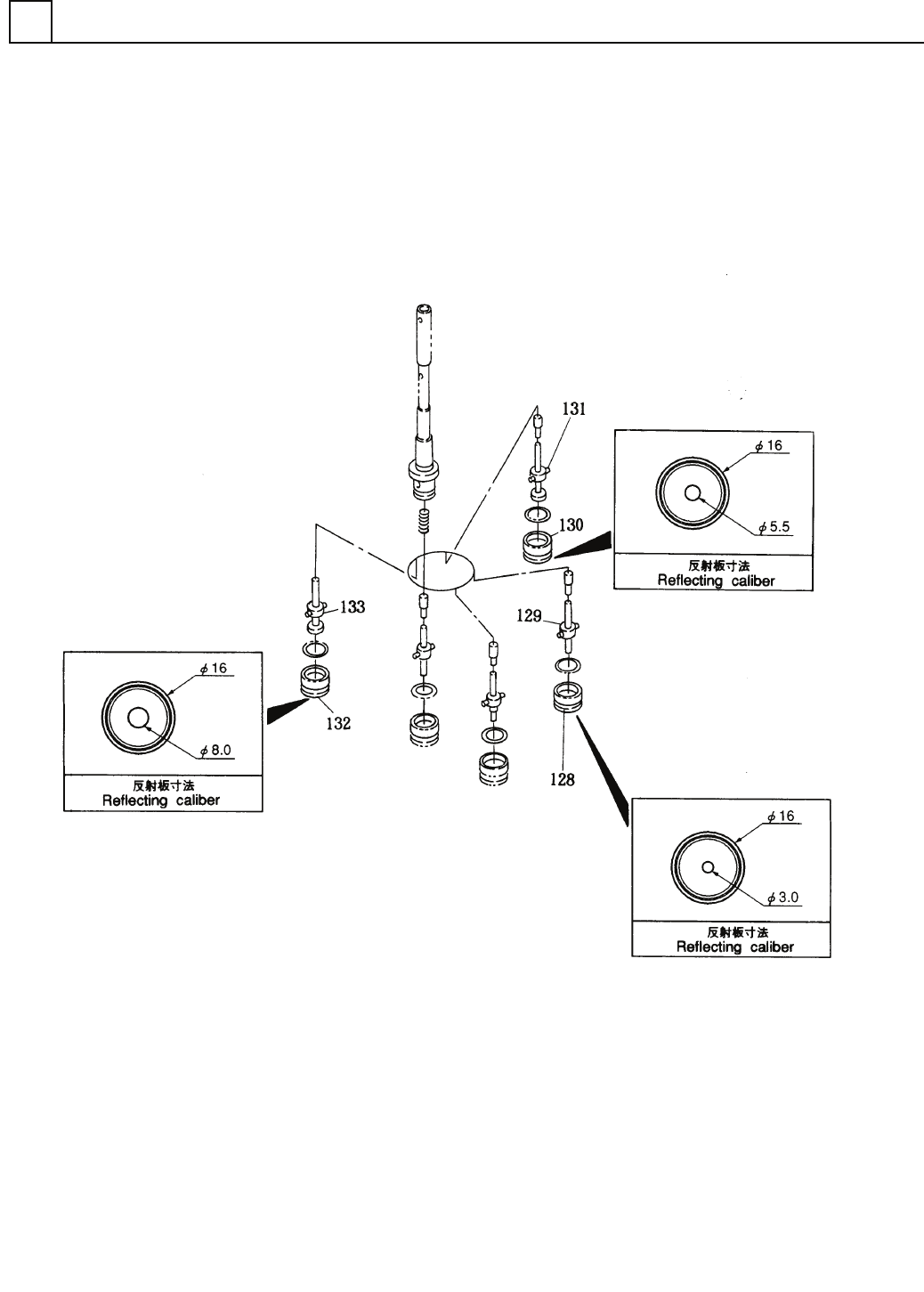

ﾉｽﾞﾙ部
NOZZLE SECT.
7
F10427-10-100-BC-2
M69
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
7
ﾉｽﾞﾙ部
NOZZLE SECT.
部 品 名 品 番 個数
備 考
N10 12 N520LFB0408
BUSHING ﾌﾞ
ｯｼﾝｸﾞ
LFB-0408
N14
120
N560LRB60.2
WASHER ｻﾞｶﾞﾈ LRB6-0.2
N15
60
XUBN1STW6
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ ISTW-6
N16 60 N554C00508A
O-RING O
ﾘﾝｸﾞ
C00508A
N17 60 N560LR100.5
WASHER ｻﾞ
ｶﾞﾈ
LR10-0.5
N18
120
XLANL1260
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ L-1260
N20
12
N431P0C4M5M
FITTING ﾂｷﾞﾃ POC4-M5M
N21 60 XVE3B8FZ
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X8,STEEL,Z.B.P
N23 12 N986YYYY-694
BOLT ﾎﾞﾙﾄ(ﾄﾙｸｽｱﾅﾂｷﾎ
ﾞﾀﾝ)
M5X8
N25
96
XVE3B6FZ
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X6,STEEL,Z.B.P
N26 48 XVEN3M8FZZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M3X8,STEEL,Z.B.P
N27 60 XXE4C6FZ
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M4X6,STEEL,Z.B.P
N28
24
XXE3C4FZ
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M3X4,STEEL,Z.B.P
N29
24
XSB3+5FY
BINDING HEAD SCREW ﾊﾞｲﾝﾄﾞｺﾈｼﾞ M3X5,+,STEEL,Z.C.T
N31 60 XLANL1170
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ L-1170
N32 60 XLANL1280
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
L-1280
N33
24
XUC3FP
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ 3,STEEL,P.C
N34
12
XVEN3M5FZZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M3X5,STEEL,Z.B.P
N35 24 N986MS310
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ MS3-10
N36 12 XPJ15A6FW
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
1.5X6,m6B,STEEL
N37
24
XVE3B5FZ
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X5,STEEL,Z.B.P
N38
48
XVE3B20FZ
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X20,STEEL,Z.B.P
N39 12 N513HRW1-840
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ HRW14LR1UCSMS
V 1 1 N554S16
O-RING O
ﾘﾝｸﾞ
S-16
V 2
1
N421PTFBF
FILTER ﾌｨﾙﾀ PTFB-F
V 3 1 N421PTFB30
FILTER ﾌｨﾙﾀ PTFB-30
V 4 1 N5541AP12
O-RING O
ﾘﾝｸﾞ
1AP12
M70
F10427-10-100-BC-2
ﾉｽﾞﾙ部
NOZZLE SECT.
7
F10427-10-100-BC-3
M69
