16 Description The SIPLACE Bulk C ase feeder with 2 tracks is used to handle components packaged in stand ard bulk containers. I t transports rec- tangular and c ylindrical passive components to the pic k up area of the …
15
Description
The tape reels of the feeder mod-
ules are housed in the tape con-
tainer of the component change-
over table. A cutter automatically
chops up empty tape coming out
of the tape container.
Feeders used on SIPLACE are dis-
tinguished by a short cycle time
and a high-precision pick-up posi-
tion. Even product diversity and
small batch sizes can be handled
easily since the feeder set-up can
be changed quickly.
The increment of the tape cycle is
just as variable as the use of tape
materials. Thanks to the general
purpose tape feeding modules
which are equally suitable for pa-
per and blister tapes, a small range
of module types will be sufficient.
Activated by a signal from the
component table, the modules
control the entire feeder sequence
themselves, including the auto-
matic take-up of the strips.
The S Feeders series feature
shorter cycle times and they can
handle tapes with 2 mm grids
(8 mm S). 8 mm S and
12/16 mm S are equipped with
component cover.
The feeders can be used in other
SIPLACE machines as well.
Component Supply:
Tape Feeder
Technical Data
Packaging Model Feeder
locations
Transport
distance
Max. Height
of component
Paper and
blister tapes
2 x 8 mm S
a
3 x 8 mm S
3 x 8 mm S
b
12/16 mm S
1
1
1
1
2 or 4 mm
2 or 4 mm
2 mm
4 - 12 mm
c
2.5 mm
2.5 mm
0.7 mm
14 mm
Blister tape 24/32 mm S 1.5 4 - 32 mm
c
14 mm
Tape reels Ø 7" to 19" (178 - 475 mm)
Feeder cycle S-feeder to 20 mm transport distance < 150 ms
a) Fiducial for recognition of position of feeders;
b) only for 0201 and 0402;
c) adjustable in increments of 4 mm.

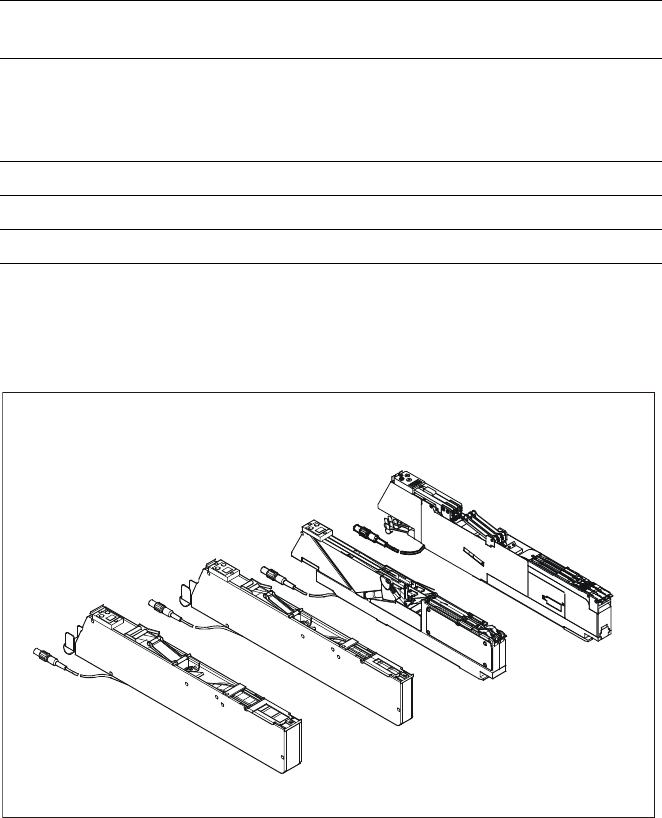

Tape Feeder Modules S
24 / 32 mm S
12 / 16 mm S
3 x 8 mm S
2 x 8 mm S
16
Description
The SIPLACE Bulk Case feeder
with 2 tracks is used to handle
components packaged in standard
bulk containers. It transports rec-
tangular and cylindrical passive
components to the pick up area of
the machine. To replenish the
supply, the Bulk Cases are re-
moved and replaced outside the
machine eliminating stoppages for
replenishment.
Essentially, this feeder module
consists of a base which holds 2
feeder rails. The components are
separated and transported through
the feeder rail via compressed air.
The principle of stationary compo-
nent tables has been tried and
tested specifically with Bulk Case
components. Vibrations, which
developed when other placement
methods are used may cause
wear to the components compro-
mising quality and reliability of the
components.
The stationary component table
also brings decisive advantages for
stick magazines. The general pur-
pose vibratory stick feeder can be
refilled during the placement proc-
ess.
The feeders can be used in other
SIPLACE machines as well.
Component Supply:
Bulk Case Feeder
Stick Magazine Feeder
Technical Data
Bulk Case feeder
a
Type of packaging
Bulk Case
Feeder rails for Chip 0402 component height 0.35 mm
Chip 0402 component height 0.50 mm
Chip 0603 component height 0.45 mm
Chip 0603 component height 0.80 mm
Chip 0805 component height 0.45 mm
Chip 0805 component height 0.60 mm
Chip 0805 component height 0.85 mm
Chip 0805 component height 1.25 mm
Mini-Melf
Feeder location 1 feeder location for 2 different
component types
Stick magazine feeder Type III With control electronics
Number and width of tracks 3 x 9.5 mm
2 x 15 mm
1 x > 15 mm
1 x 30 mm
Feeder location 1
a)
Fiducial to recognize position of feeder.
Bulk Case Feeder and Stick Feeders
Bulk Case Feeder
Stick Feeder
Type III
17
Description
Some local safety requirements
dictate that all feeder locations
must be equipped with feeders.
If the feeder set-up does not fill all
feeder locations, guards may be
used in place of the modules.
SAFETY
WARNING
Component Supply:
Guard for Feeder Locations
The following guard-variants can be used:
1 SIPLACE guard for 1 location
2 SIPLACE guard for 6 - 10 locations
3 SIPLACE guard for 11 - 20 locations
Various Guards for Feeder Locations
3
2
1
