西门子SIPLACE S25 HM-设备性能参数_EN - 第38页
36
35

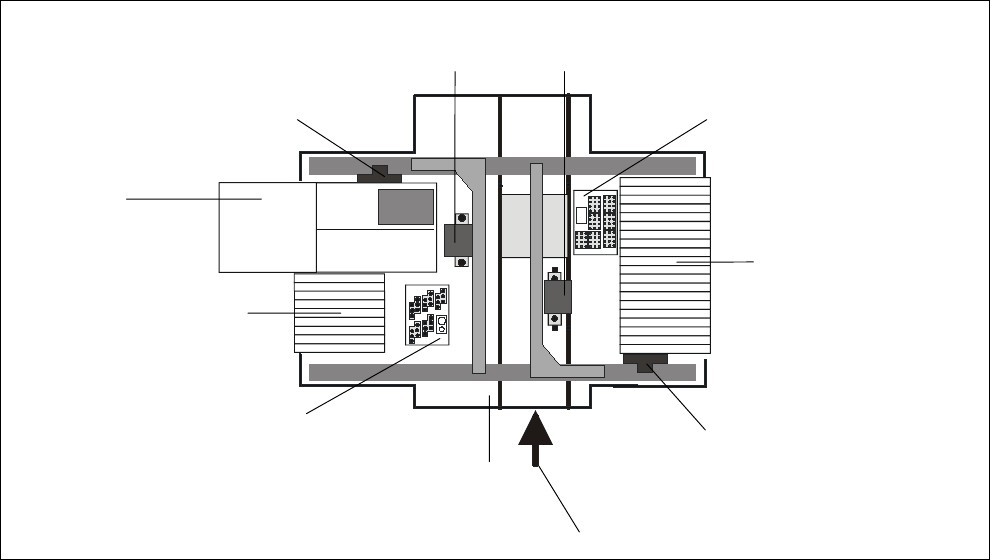

Left Side Right Side
6-Nozzle Collect & Place Head 12-Nozzle Collect & Place Head
Nozzle Changer
Changeover Table with
20 feeder locations for
Tapes, Sticks and Bulk
Reject Bin
Reject Bin
Matrix Tray
Changer
Changeover Table with
9 feeder locations for
Tapes, Sticks and Bulk
Nozzle Changer
3-Section Conveyor with automatic
width adjustment for PCBs from
50 x 50 mm
2
up to 508 x 460 mm
2
( 2" x 2" up to 20" x 18" )
PCB Transport
Direction
Possible Machine Configuration
36
