MODEL MG-G1 15,G1 10 0801-002 マガジン MG-G1 15, G1 10 Magazine MG-G1 15, G1 10 Fig. GA-1 58 57 . 52 . 58 57 . 52 . 60 59 . 53 . 60 59 . 53 . 60 59 . 53 . 60 59 . 53 . 60 59 . 53 . 60 59 . 55 . 60 59 . 54 . 60 59 . 55 . 60 5…
MODEL MG-G115,G110
0801-002
Fig. GA
マガジン
MG-G1
15, G110 Magazine MG-G115, G110
MG-G115
MG-G110

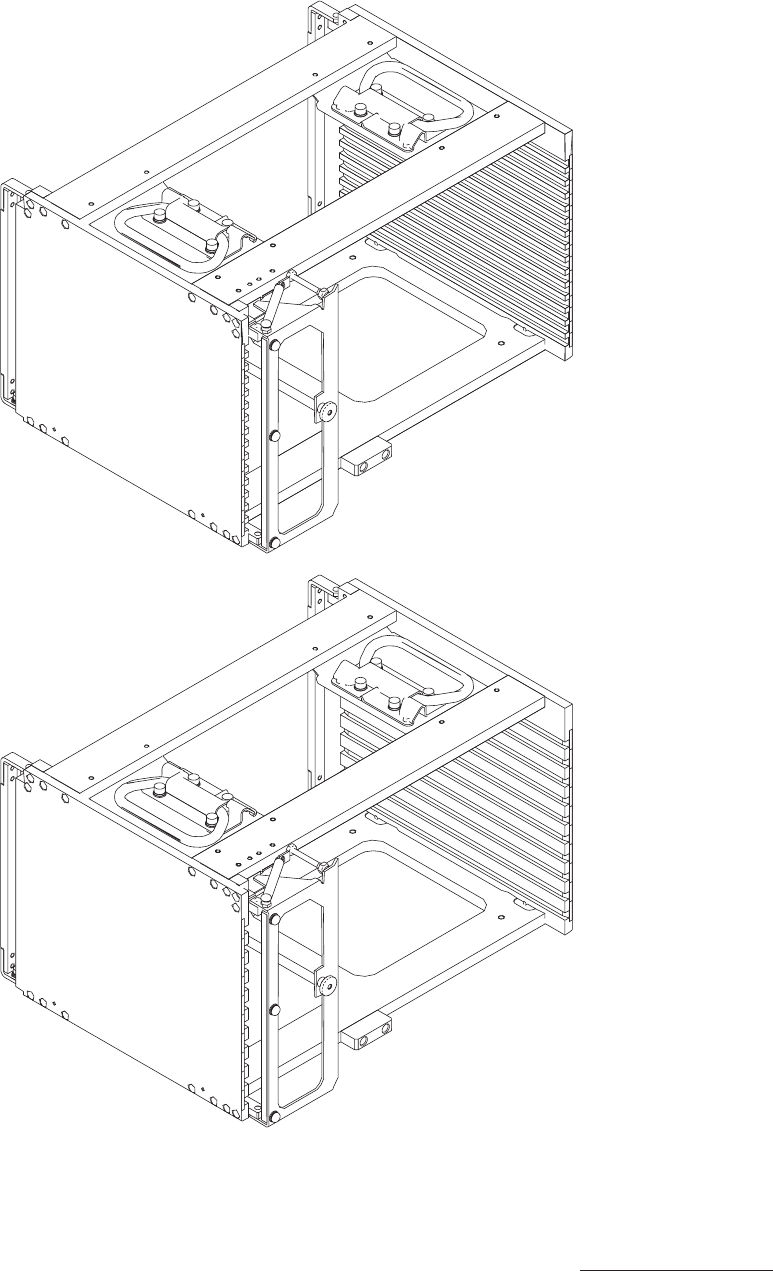

GA illust-1
MODEL MG-G115,G110
0801-002
マガジン
MG-G1
15, G110 Magazine MG-G115, G110
Fig. GA-1
58
57
.
52
.
58
57
.
52
.
60
59
.
53
.
60
59
.
53
.
60
59
.
53
.
60
59
.
53
.
60
59
.
53
.
60
59
.
55
.
60
59
.
54
.
60
59
.
55
.
60
59
.
54
.
31
31
A
B
61
4
3
33
61
7
7
23
A
B
35
22
64
1
1
13
63
34
24
63
14
53
2
53
53
53
36
8
36
62
9
18
60
59
56
32
16
65
20
21
15
34
17
63
24
13
63
1
1
10
5
19
51
25
53
36
53
53
1
53
17
12
GA-1 illust-1
MODEL MG-G115,G110
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
GA-1
Selection of Either 2 Magazines
GA-1 list-1
1 6301292298 PLATE 1 806GA-110-001 211D9803
1 6301318325 PLATE 1 806GB-110-001 211DA030
2 6301292304 PLATE 1 806GA-110-002 211D9804
2 6301318332 PLATE 1 806GB-110-002 211DA031
3 6301292441 STAY 1 1 806GA-110-003 211J1227
4 6301292458 STAY 1 1 806GA-110-004 211J1228
5 6301311050 STAY 1 1 806GA-110-005 211J1245
7 6301292335 PLATE 2 2 806GA-110-007 211D9807
8 6301292397 BLOCK 1 1 806GA-110-008 211G3655
9 6301283678 BLOCK 1 1 806GA-110-009 211G3590
10 6301294872 BLOCK 1 1 806GA-110-110 211G3671
11 6301283692 BLOCK 2 2 806GA-110-011 211G3592
12 6301292410 BLOCK 1 1 806GA-110-012 211G3657
13 6301283609 LEVER 2 2 806GA-110-013 216S2682
14 6301283616 LEVER 1 1 806GA-110-014 216S2683
15 6301283623 LEVER 1 1 806GA-110-015 216S2684
16 6301292540 LEVER 1 1 806GA-110-016 216S2699
17 6301292496 ROD 2 2 806GA-110-017 216C0750
18 6301292502 ROD 1 1 806GA-110-018 216C0751
19 6301292427 BLOCK 1 1 806GA-110-019 211G3658
20 6301283722 BRACKET 1 1 806GA-110-020 211F8530
21 6301283739 BRACKET 1 1 806GA-110-021 211F8531
22 6301283746 BRACKET 1 1 806GA-110-022 211F8532
23 6301284477 BRACKET 1 1 806GA-110-023 211F8553
24 6301285665 BLOCK 2 2 806GA-110-024 211G3599
25 6301292564 BOLT 4 4 806GA-110-025 221E0308
31 6301283760 GRIP 2 2 806GA-110-031 226D0109
32 6301285313 GRIP 1 1 806GA-110-032 226D0111
33 6301285306 BOLT 1 1 806GA-110-033 221E0306
34 6300018516 SPRING,TENSION 2 2 806GA-110-034 222N0127
35 6300028850 SPRING,TENSION 1 1 806GA-110-035 222N0618
36 6301293172 NAME PLATE,INDEX 3 806GA-110-036 6P460139
36 6301318318 NAME PLATE,INDEX 3 806GB-110-036 6P460140
51 6300007664 BOLT,HEX-SCT 2 2 M4X20 221A0021
52 6300007749 BOLT,HEX-SCT 8 8 M5X10 221A0029
53 6300007633 BOLT,HEX-SCT 34 34 M4X12 221A0018
54 6300007657 BOLT,HEX-SCT 2 2 M4X16 221A0020
55 6300007602 BOLT,HEX-SCT 2 2 M4X6 221A0015
56 4111131400 SCR PAN 4X6 3 3 M4X6 PAN 221E0509
57 4111416705 WASHER SPR 5 8 8 SW5 221H0287
58 4111414107 WASHER V 5X10X1 8 8 FW5 221H0318
59 4111412905 WASHER SPR 4 21 21 SW4 221H0284
60 4111414008 WASHER V 4X9X0.8 21 21 FW4 221H0315
61 4111410505 NUT HEX 5 8 8 M5 221F0085
62 4110435004 SCR PAN 4X8 1 1 M4X8 PAN 221E0510
MG-G115
MG-G110
