MODEL FP-G200L 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 203 630131 1890 COVER 1 806EL-510-503 21 1A9177 204 630131 1906 COVER 1 806EL-510-504 21 1A9178 205 6301289144 COVER 3 806EL-510-505 21 1A…
MODEL FP-G200L
0801-002
エレベータ部
ELEV
ATOR SECTION

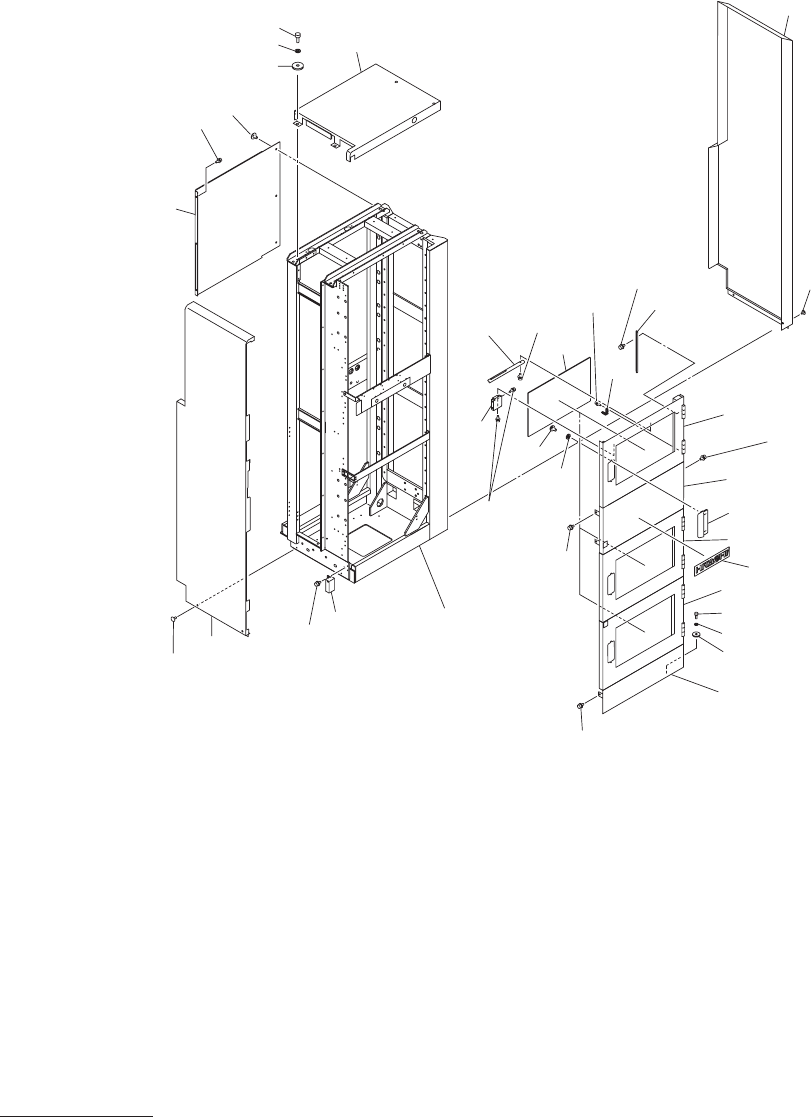

Fig. EL-3
カバー部
Cover Section
See Fig. EL-1
Key No.1
264
263
.
252
.
264
263
.
253
.
264
263
.
253
.
262
261
.
251
.
262
261
.
251
.
264
263
.
253
.
262
261
.
251
.
264
263
.
253
.
263
254
207
206
205
206
219
255
204
208
245
209
247
215
253
263
265
210
211
213
256
212
255
265
263
252
203
214
264
263
.
252
.
EL-3 illust-1
MODEL FP-G200L
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
203 6301311890 COVER 1 806EL-510-503 211A9177
204 6301311906 COVER 1 806EL-510-504 211A9178
205 6301289144 COVER 3 806EL-510-505 211A8853
206 6301289304 SUPPORT 6 806EL-510-506 211K2963
207 6301294513 SUPPORT 3 806EL-510-507 211K2967
208 6301294629 COVER 1 806EL-510-508 211A8903
209 6301345437 COVER 1 806EL-510-509 211A9501
210 6301294636 COVER 1 806EL-510-510 211A8904
211 6301294681 COVER 1 806EL-510-511 211A8907
212 6301306360 COVER 1 806EL-510-512 211A9087
213 6301311920 COVER 1 806EL-510-513 211A9180
214 6301311937 COVER 1 806EL-510-514 211A9181
215 6301311944 COVER 1 806EL-510-515 211A9182
219 6301213828 SWITCH,LIMIT(KE 3 806EL-510-219 4S1F0046
245 6301289038 HANDLE 3 806EL-510-245 226C0204
247 6301259239 NAME PLATE,PART 1 806EL-510-247 6P441624
251 6300007503 BOLT,HEX-SCT 27 M3X6 221A0005
252 6300007619 BOLT,HEX-SCT 7 M4X8 221A0016
253 6300007626 BOLT,HEX-SCT 14 M4X10 221A0017
254 4111131400 SCR PAN 4X6 6 M4X6 PAN 221E0509
255 4110511708 SCR TRS 4X6 5 M4X6 TRS 221E0532
256 4110512804 SCR TRS 4X8 2 M4X8 TRS 221E0533
261 4111412806 WASHER SPR 3 27 SW3 221H0281
262 4111413902 WASHER V 3X7X0.5 27 FW3 221H0312
263 4111412905 WASHER SPR 4 14 SW4 221H0284
264 4111414008 WASHER V 4X9X0.8 9 FW4 221H0315
265 6300010213 WASHER 5 BW4 221H0004
EL-3
EL-3 list-1
MODEL FP-G200L
0801-002
エレベータ部
ELEV
ATOR SECTION

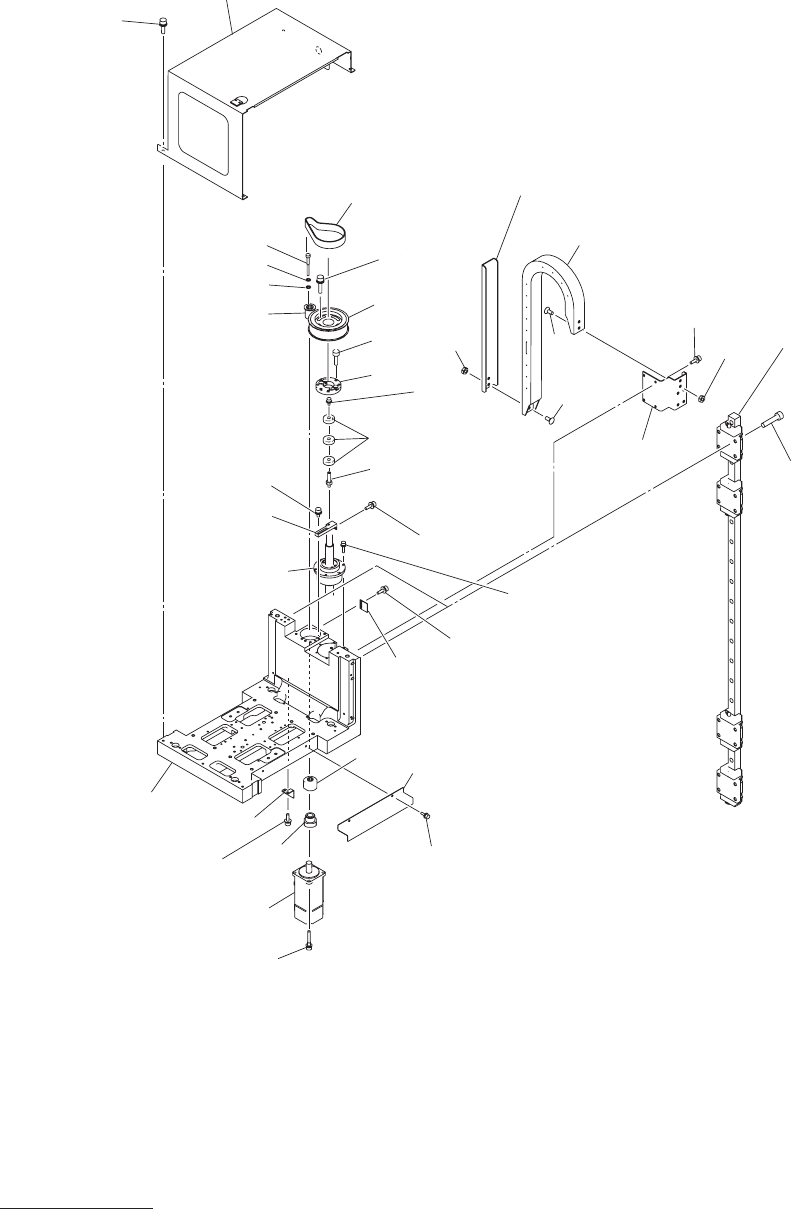

Fig. EL-4
エレベータ駆動部１
Elevator Driving Section 1
See Fig. EL-1
Key No.33
See Fig. EL-1
Key No.34
See Fig. EL-1
Key No.16
372
371
.
360
.
370
369
.
354
.
370
369
.
354
.
368
366
.
351
.
370
369
.
356
.
370
369
.
355
.
370
369
.
357
.
372
371
.
359
.
372
371
.
358
.
361
372
371
.
358
.
324
337
352
366
367
336
335
358
307
363
362
362
346
312
345
311
308
310
363
325
313
315
302
331
338
370
369
.
353
.
EL-4 illust-1
