Station S oftware 706. 1 / Install ation Man ual Ausgabe 11/2012 E dit ion 25 5.2.3 Calibrating the T ouchscreen ► Select Sta rt Settings Control P anel Elo to g o to EloTouchscreen Propertie s : Figure 5-3 : Elo T…
Station Software 706.1 / Installation Manual Ausgabe 11/2012 Edition
24
5.2.2 Changing the Display Settings
► Select Start
Settings
Control Panel
Display.
► Click the Settings tab.
► Set the Screen resolution slider to 1024 by 768 pixels.

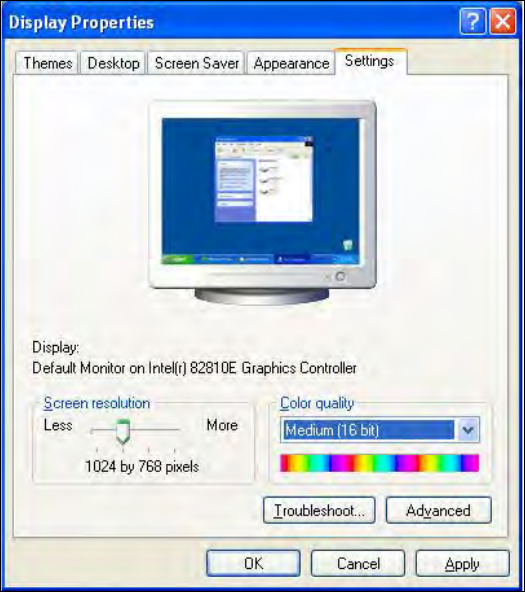

Figure 5-2: Screen settings
► Confirm the settings by clicking OK.
Station Software 706.1 / Installation Manual Ausgabe 11/2012 Edition
25
5.2.3 Calibrating the Touchscreen
► Select Start
Settings
Control Panel
Elo to go to EloTouchscreen Properties:

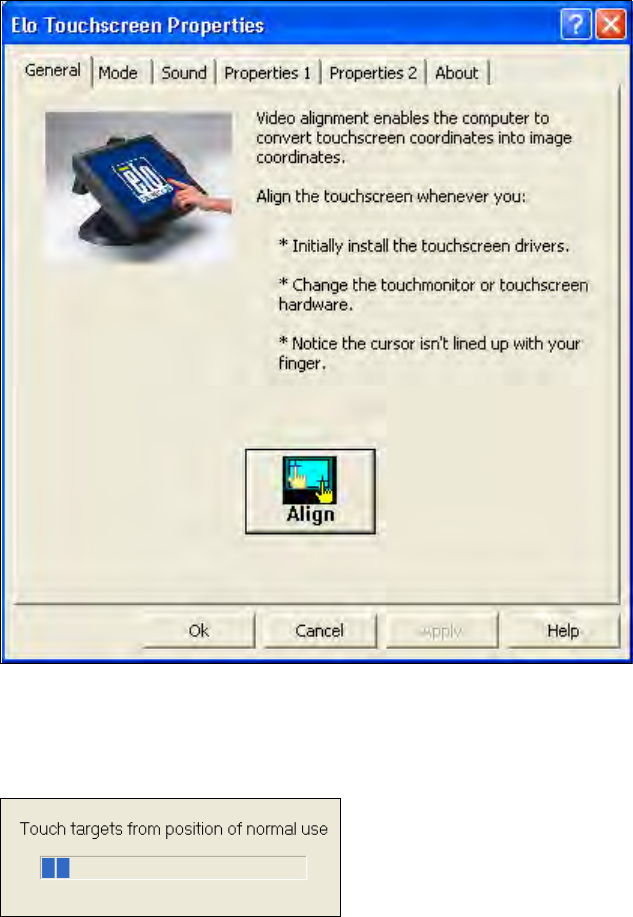

Figure 5-3: Elo Touchscreen properties
► Click the Align button.
The following message then appears:
Figure 5-4: Instruction for the screen to be calibrated
► Follow the instructions on the screen.
Station Software 706.1 / Installation Manual Ausgabe 11/2012 Edition
26
5.3 Performing BIOS Update/Settings on the Machine Computer and
Vision Computer
The image files for the BIOS update/BIOS settings and the corresponding installation instruction
(readme file) are available on the V1.0 BIOS CD that can be ordered via the service technician or
downloaded from the SIPLACE Download Center.
