Station S oftware 706. 1 / Install ation Man ual Ausgabe 11/2012 E dit ion 43 The user settin gs are dis played. Figure 7-3 : Changing activity level ► Click the M ach ine servic e butto n and e nter the passw ord to ch …
Station Software 706.1 / Installation Manual Ausgabe 11/2012 Edition
42

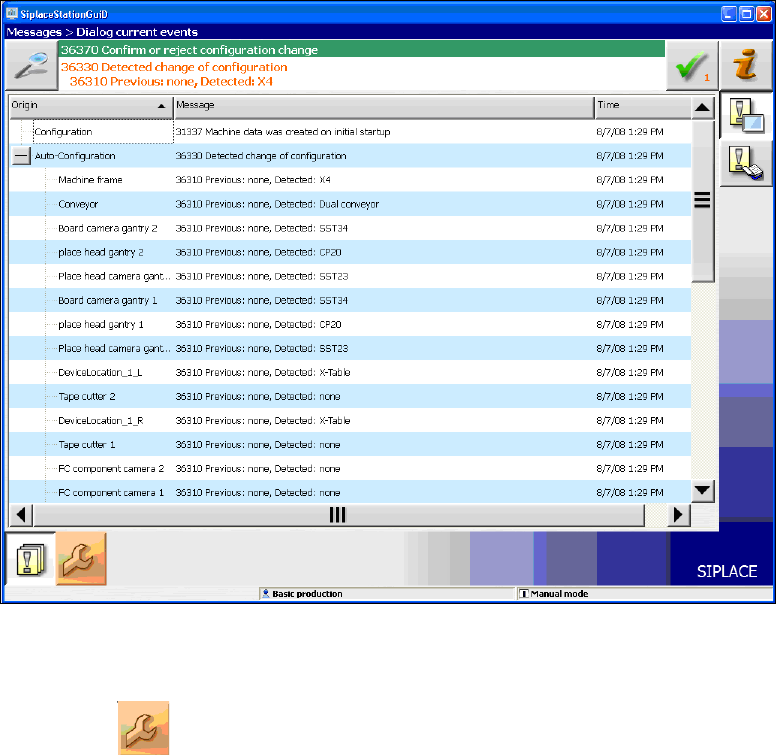

Figure 7-2: Used hardware components
The Machine service activity level is required to execute the Auto-configuration.
► Click the
icon to call the user settings.
Station Software 706.1 / Installation Manual Ausgabe 11/2012 Edition
43
The user settings are displayed.
Figure 7-3: Changing activity level
► Click the Machine service button and enter the password to change into this activity level.
Station Software 706.1 / Installation Manual Ausgabe 11/2012 Edition
44
As of station software version 705.03 you will have to set, whether the lamp indicators on the
placement machine towers shall be displayed two-colored (green / white) or three-colored (green /
white / red) for all placement machines of the SX-series and DX-series. More information about the
two lamp indicator systems can be found in the version description of the 705.03 station software,
item number 00196770-01.
Figure 7-4: Setting lamp indicators
► Select the desired lamp indicators and click the Accept button.
