Vacuum pump Page 6 / 8 23.11.2021 Pos. Item no. Description Part marking 1 00119787-02 VACUUM PUMP FOR X-SERIES Retrofit Kit 03075568-02 PUMPS ASSEMBLY X-SERIES 03069679-01 VACUUM PUMP BECKER VT4 25 00363127-01 TUBE CLAM…
Vacuum pump
Page 5 / 8 23.11.2021
Vacuum pump
Page 6 / 8 23.11.2021
Pos. Item no. Description Part marking
1 00119787-02 VACUUM PUMP FOR X-SERIES Retrofit Kit
03075568-02 PUMPS ASSEMBLY X-SERIES
03069679-01 VACUUM PUMP BECKER VT4 25
00363127-01 TUBE CLAMP DIN 3017 NW 32 - 50
00368279-01 SUCTION AND PRESS. HOSE ID 32
HELISPRING
SPARE PART
03015219-01 TUBE GROMMET, SCREW-IN, R1
TUBE-DIAM. 32
03052209-01 CABLE 7G0,75 BKNR D9,9
OELFLEX-150 UL
00349120-01 SCREWED CABLE GLAND PG11 KS
IP68 4-10MM
03071727-01 CONNECTOR HOUSING ILME
CK03VS
03071853-01 CONTACT INSERT CQM 05 16A
230/400V
03079701-01 PIN CONTACT 0,75QMM CCMA 0.7
00805324-01 WIRE END FERRULE 0,75QMM
WHITE
03070370-01 VACUUM FILTER F10 SPARE PART
03038435-01 DOUBLE NIPPLE DETACHABLE G3/4
MS
03076026-01 DOUBLE SOCKET TAPER R1 - R3/4
03038432-01 BOW 3/4
00119797-02 CONNECTION KIT VACUUM PUMP
FOR X4I
03075278-01 VACUUM DISTRIBUTOR 4 PORTALS /
2 PUMPS COMPLETE
2 03075262-01 VACUUM DISTRIBUTOR 4 PORTALS /
2 PUMPS
03004184-01 QUICK RELEASE FASTENER
QS-1/2-16
03015219-01 TUBE GROMMET, SCREW-IN, R1
TUBE-DIAM. 32
03051739-01 PLUG QSC-16H
03075301-01 ANGLE VAC. DISTRIBUTOR
03038058 COMPLETE
03004163S01 PNEUMATIKSCHLAUCH TS1612 B BK
NYLON12 2M
WEAR PART
3 03075306-02 UPGRADE CIT VACUUM X4I *
Vacuum pump
Page 7 / 8 23.11.2021
Pos. Item no. Description Part marking
TRAILING TURN
4 03074600-02 TUBE 1 TURNED
5 03074604-01 TUBE 2 TURNED
6 03072082-01 HOLDER CPL.
7 03075571-01 CLAMP
8 03075547-01 HOLDER
9 03075472-02 DUO-TUBE WEAR
03039017-01 TUBE 1, VACUUM 2P G
03021925S01 PUR HOSE CAMOZZI 2 M WEAR PART
03039018-01 TUBE 2, VACUUM 2P G
03021925S01 PUR HOSE CAMOZZI 2 M WEAR PART
10 03075305-02 UPGRADE CIT VACUUM X-SERIES
R10
*
11 03075307-01 TUBE 1
12 03075308-01 TUBE 2
13 03072049-01 CLAMP 1
14 03072082-01 HOLDER CPL.
15 03075472-02 DUO-TUBE WEAR
03039017-01 TUBE 1, VACUUM 2P G
03021925S01 PUR HOSE CAMOZZI 2 M WEAR PART
03039018-01 TUBE 2, VACUUM 2P G
03021925S01 PUR HOSE CAMOZZI 2 M WEAR PART
03075734-02 UPGRADE KIT ELECTRIC X-SERIES
R10
03079448-03 VACUUM PUMP CONNECTOR UNIT
BOX CPL.
SPARE PART

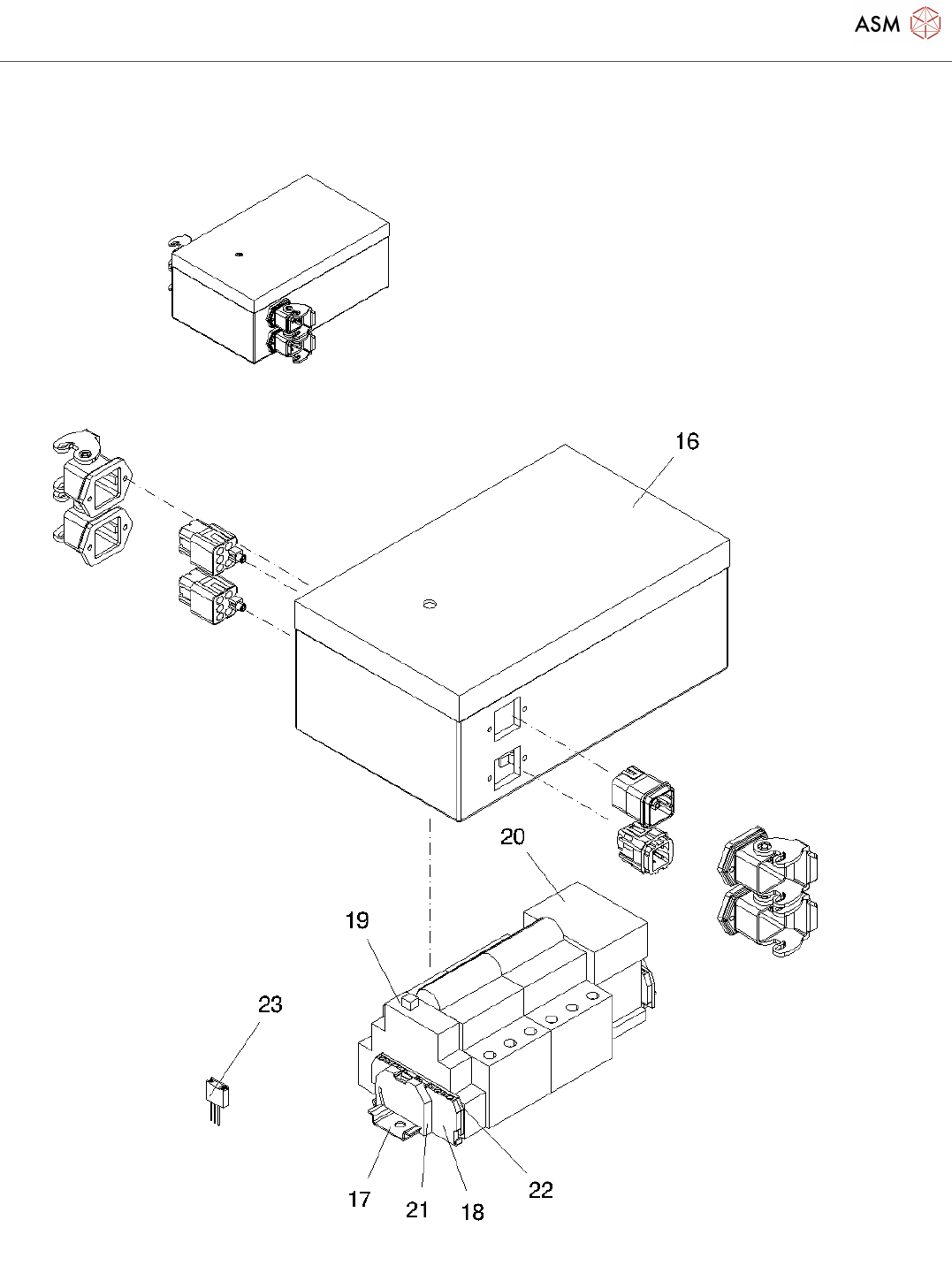

16 03072170-02 VACUUM PUMP CONNECTOR UNIT
BOX
17 03071875-01 HUTSCHIENE
18 03054859-01 GROUND TERMINAL BLOCK
4-COND. 279-837
SPARE PART
19 03072025-01 BUTTON 5TE4 8 SPARE PART
03079445-01 CIRCIUT BREAKER 5SY6 3-POLE 6A
C
SPARE PART
20 03071880-01 CONTACTOR 3RT1015-2KB41
03006763-01 DIODE TERMINAL BL 2.5SQMM GY
4C W/1N4007
SPARE PART
