MODEL FP-G200 R 0410-001 22 エレベータ部 ELEV A TOR SECTION Fig. ER-5 マガジン搭載部１ Magagine Mounter 1 See Fig.ER-4 Key No.302 472 471 . 451 . 477 476 . 459 . 474 473 . 454 . 474 473 . 453 . 472 471 . 451 . 474 473 . 455 . 474 473 …
MODEL FP-G200R
1012-004
21
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
302 6301310244 BASE 1 806ER-510-002 210A2248
307 6301291550 ROTOR 1 806ER-510-007 213G0200
308
6301281902 BRACKET 1 806ER-510-008 211F8492
310
6301474861 BRACKET 1 806ER-510-010 211FB069
31
1 6301291628 BLOCK 1 806ER-510-011 211G3646
312 6301291635 SHAFT 1 806ER-510-012 213A1090
313
6301281964 SHAFT 1 806ER-510-013 213A1068
315
6301291659 BRACKET 1 806ER-510-015 211F8649
324
6301620558 COVER 1 806ER-510-324 211AC662
325
6301292267 COVER 1 806ER-510-325 211A8875
331
6301280622 MOTOR,AC-SERVO 1 806ER-510-201 4M150212
335
6301280660 PULLEY,TIMING 1 806ER-510-205 223Q0575
336
6301280677 PULLEY,TIMING 1 806ER-510-206 223Q0576
337
6301280684 BELT,TIMING 1 806ER-510-207 223L0274
338
6300960808 COUPLING 1 806ER-510-208 223C0165
345
6301129679 BEARING,RADIAL 3 806ER-510-215 222D0380
346
6301501413 MECH PARTS(CABLEVEYOR) 1 806ER-510-216 226J2305
351
6300007527 BOLT,HEX-SCT 2 M3X10 221A0007
352
6300007589 BOLT,HEX-SCT 4 M3X30 221A0013
353
6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
354
6300007633 BOLT,HEX-SCT 4 M4X12 221A0018
355
6300007640 BOLT,HEX-SCT 1 M4X14 221A0019
356
6300007657 BOLT,HEX-SCT 6 M4X16 221A0020
357
6300007664 BOLT,HEX-SCT 2 M4X20 221A0021
358
6300007763 BOLT,HEX-SCT 13 M5X16 221A0031
359
6300007770 BOLT,HEX-SCT 4 M5X20 221A0032
360
6300007794 BOLT,HEX-SCT 4 M5X30 221A0034
361
6300007909 BOLT,HEX-SCT 16 M6X25 221A0045
362
4110024307 SCR FLT 5X10 4 M5X10 FLT 221D0226
363 4111410604 NUT HEX 5 4 M5 221F0107
366
4111412806 WASHER SPR 3 6 SW3 221H0281
367
4111415807 WASHER F 3X6X0.5 4 FWS3 221H0338
368
4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
369
4111412905 WASHER SPR 4 14 SW4 221H0284
370
4111414008 WASHER V 4X9X0.8 14 FW4 221H0315
371
4111416705 WASHER SPR 5 17 SW5 221H0287
372
4111414107 WASHER V 5X10X1 17 FW5 221H0318
ER-4
MODEL FP-G200R
0410-001
22
エレベータ部
ELEVATOR SECTION

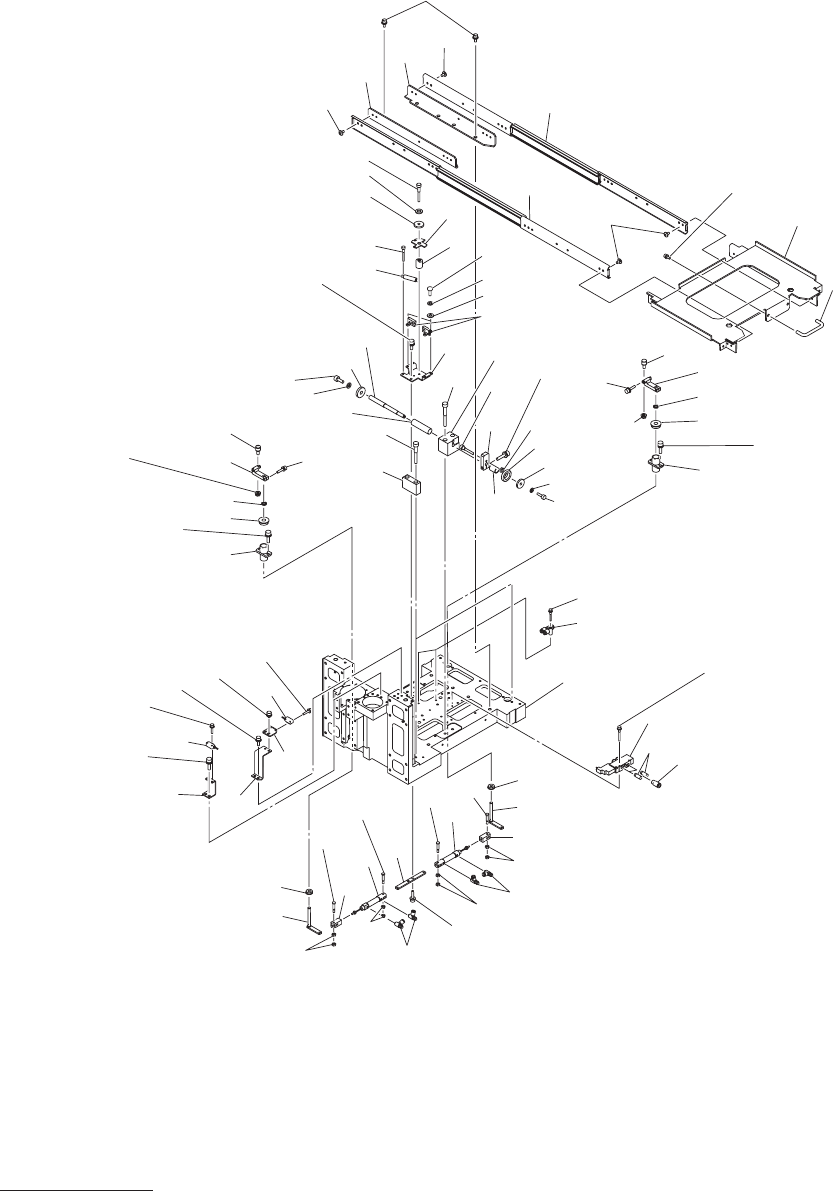

Fig. ER-5
マガジン搭載部１
Magagine Mounter 1
See Fig.ER-4
Key No.302
472
471
.
451
.
477
476
.
459
.
474
473
.
454
.
474
473
.
453
.
472
471
.
451
.
474
473
.
455
.
474
473
.
457
.
472
471
.
452
.
477
476
.
460
.
480
479
.
463
.
477
476
.
458
.
423
414
401
401
422
414
457
473
475
433
434
452
413
477
476
.
458
.
464
471
472
412
432
440
462
437
456
475
436
461
431
439
403
466
438
473
454
409
435
478
476
458
421
415
411
441
442
411
443
402
428
465
425
425
404
465
405
424
465
405
425
404
425
465
410
428
402
410
414
474
473
.
455
.
406
407
408
429
402
430
466
426
477
476
.
459
.
474
473
.
.
466
474
473
.
.
402
429
430
427
403
474
473
.
455
.
477
476
.
459
.
MODEL FP-G200R
1012-003
23
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
401 6301292571 GUIDE,LINEAR 2 806ER-510-401 222L0717
402 6300011401 BEARING,RADIAL 4 806ER-510-402 222D0019
403
6300963717 CAM FOLLOWER 2 806ER-510-403 222H0118
404
6301282497 CYLINDER 2 -B0428,-B0429,-B0430,
-B0431 806ER-510-404 224C0549
405
6301282510 AIR LINE EQPT 4 806ER-510-405 225B0514
406
6301292151 SOLENOID VALVE 1 -Y0534 806ER-510-406 4L810336
407
6300969221 AIR LINE EQPT 2 806ER-510-407 225B0374
408
6301282527 PIPE FITTINGS 1 806ER-510-408 225F0603
409
6300955026 AIR LINE EQPT 2 806ER-510-409 225B0367
410
6300363012 LINK 2 806ER-510-410 214B0010
411
6301165882 SENSOR,PELEC 2 -B0427,-B0515
806ER-510-411 23G00227
412
6300325287 SENSOR,PHOTO 2 -B0432,-B0516
806ER-510-412 23G10029
413
6300018332 SPRING,TENSION 1 806ER-510-413 222N0109
414
6300725803 MACHINE SCREW 24 806ER-510-414 221D0107
415
6300725797 HANDLE 1 806ER-510-415 226C0111
421 6301292274 PLATE 1 806ER-510-301 211D9801
422
6301292311 PLATE 1 806ER-510-302 211D9805
423
6301292328 PLATE 1 806ER-510-303 211D9806
424
6301283302 HINGE 1 806ER-510-304 226F0151
425
6301283296 PIN,HINGE 4 806ER-510-305 216D0465
426
6301283326 LEVER 1 806ER-510-306 216S2678
427
6301283333 LEVER 1 806ER-510-307 216S2679
428
6301283357 LEVER 2 806ER-510-308 216S2680
429
6301283319 HOLDER 2 806ER-510-309 216B1432
430
6301283340 COLLAR 2 806ER-510-310 216A1159
431
6301283500 BLOCK 2 806ER-510-311 211G3588
432 6301283777 BRACKET 1 806ER-510-312 211F8534
433
6301299662 DISK 1 806ER-510-313 213D1172
434
6301302263 SHAFT 1 806ER-510-314 213A1116
435 6301292434 BLOCK 1 806ER-510-315 211G3659
436
6301292687 SHAFT 1 806ER-510-316 213A1094
437
6301292281 PLATE 1 806ER-510-317 211D9802
438
6301283876 GRIP 1 806ER-510-318 226D0110
439
6301283883 COLLAR 1 806ER-510-319 216A1161
440
6301294810 SPRING,COMP 1 806ER-510-320 222M1342
441
6301294728 BRACKET 1 806ER-510-321 211F8699
442
6301294735 BRACKET 1 806ER-510-322 211F8700
443
6301294742 BRACKET 1 806ER-510-323 211F8701
451
6300007541 BOLT,HEX-SCT 4 M3X14 221A0009
452
6300007572 BOLT,HEX-SCT 3 M3X25 221A0012
453
6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
454
6300007633 BOLT,HEX-SCT 3 M4X12 221A0018
455
6300007657 BOLT,HEX-SCT 4 M4X16 221A0020
456
6300007671 BOLT,HEX-SCT 1 M4X25 221A0022
457
6300007688 BOLT,HEX-SCT 3 M4X30 221A0023
458
6300007756 BOLT,HEX-SCT 5 M5X12 221A0030
459
6300007763 BOLT,HEX-SCT 6 M5X16 221A0031
ER-5
