MODEL FP-G200L 1012-003 67 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 401 6301292571 GUIDE,LINEAR 2 806EL-510-401 222L0717 402 630001 1401 BEARING,RADIAL 4 806EL-510-402 222D0019 403 6300963717 CAM FOLLOWE…
MODEL FP-G200L
0410-001
66
エレベータ部

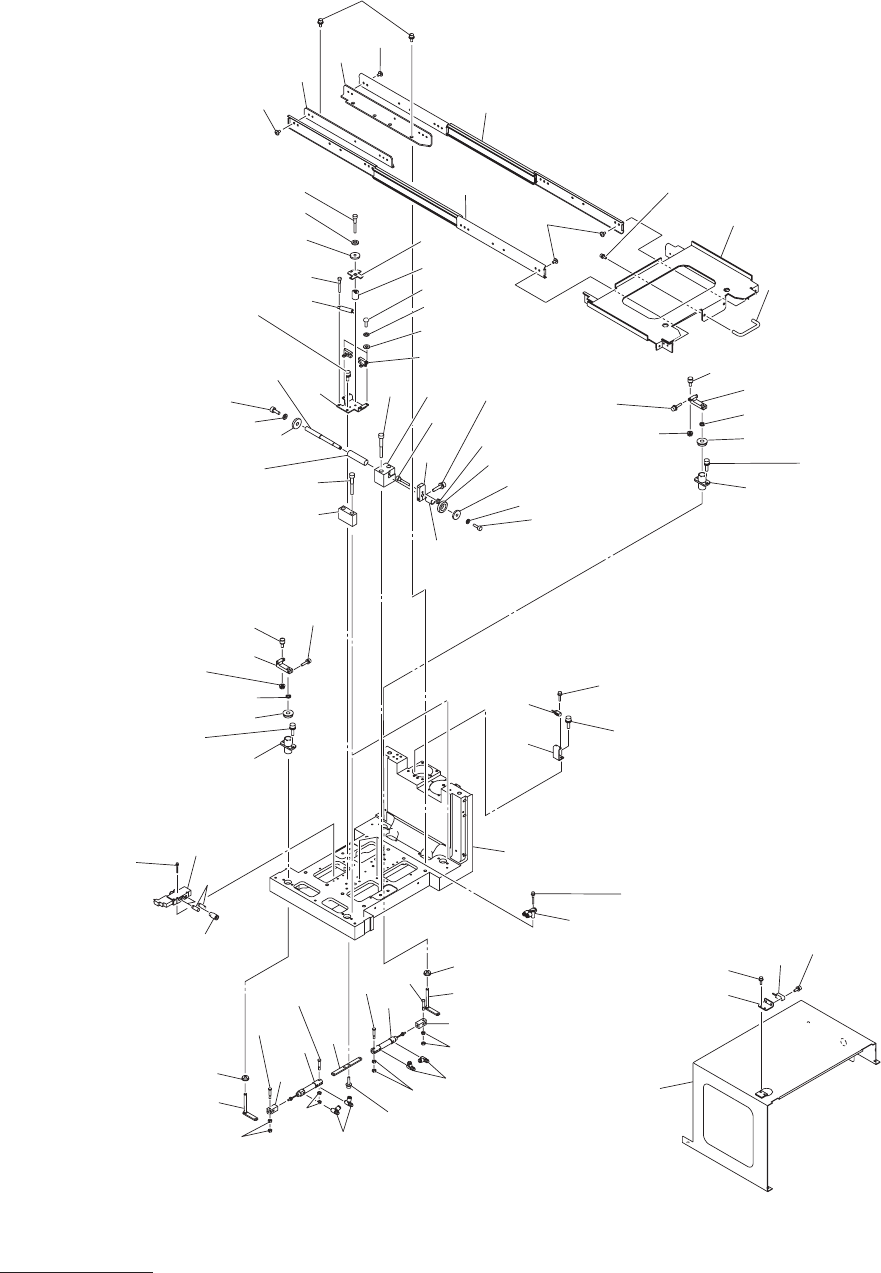

ELEVATOR SECTION
Fig. EL-5
マガジン搭載部１
Magagine Mounter 1
See Fig.EL-4
Key No.302
474
473
.
455
.
477
476
.
460
.
480
479
.
463
.
477
476
.
458
.
423
414
401
401
422
414
457
473
475
433
434
452
413
477
476
.
458
.
464
471
472
412
432
440
462
437
456
475
436
461
431
439
403
466
438
473
454
435
478
476
458
421
415
402
428
465
425
425
404
465
405
424
465
405
425
404
425
465
410
428
402
410
414
474
473
.
455
.
429
402
430
426
477
476
.
459
.
402
429
430
427
403
474
473
.
455
.
477
476
.
459
.
411
443
477
476
.
459
.
472
471
.
451
.
474
473
.
457
.
409
406
407
408
472
471
.
452
.
474
473
.
466
.
474
473
.
466
.
472
471
.
451
.
474
473
.
453
.
411
441
See Fig.EL-4
Key No.324
MODEL FP-G200L
1012-003
67
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
401 6301292571 GUIDE,LINEAR 2 806EL-510-401 222L0717
402 6300011401 BEARING,RADIAL 4 806EL-510-402 222D0019
403
6300963717 CAM FOLLOWER 2 806EL-510-403 222H0118
404
6301282497 CYLINDER 2 -B0428,-B0429,-B0430,
-B0431 806EL-510-404 224C0549
405
6301282510 AIR LINE EQPT 4 806EL-510-405 225B0514
406
6301292151 SOLENOID VALVE 1 -Y0534 806EL-510-406 4L810336
407
6300969221 AIR LINE EQPT 2 806EL-510-407 225B0374
408
6301282527 PIPE FITTINGS 1 806EL-510-408 225F0603
409
6300955026 AIR LINE EQPT 2 806EL-510-409 225B0367
410
6300363012 LINK 2 806EL-510-410 214B0010
411
6301165882 SENSOR,PELEC 2 -B0427,-B0515
806EL-510-411 23G00227
412
6300325287 SENSOR,PHOTO 2 -B0432,-B0516
806EL-510-412 23G10029
413
6300018332 SPRING,TENSION 1 806EL-510-413 222N0109
414
6300725803 MACHINE SCREW 24 806EL-510-414 221D0107
415
6300725797 HANDLE 1 806EL-510-415 226C0111
421 6301292274 PLATE 1 806EL-510-301 211D9801
422
6301292311 PLATE 1 806EL-510-302 211D9805
423
6301292328 PLATE 1 806EL-510-303 211D9806
424
6301283302 HINGE 1 806EL-510-304 226F0151
425
6301283296 PIN,HINGE 4 806EL-510-305 216D0465
426
6301283326 LEVER 1 806EL-510-306 216S2678
427
6301283333 LEVER 1 806EL-510-307 216S2679
428
6301283357 LEVER 2 806EL-510-308 216S2680
429
6301283319 HOLDER 2 806EL-510-309 216B1432
430
6301283340 COLLAR 2 806EL-510-310 216A1159
431
6301283500 BLOCK 2 806EL-510-311 211G3588
432 6301283777 BRACKET 1 806EL-510-312 211F8534
433
6301299662 DISK 1 806EL-510-313 213D1172
434
6301302263 SHAFT 1 806EL-510-314 213A1116
435 6301292434 BLOCK 1 806EL-510-315 211G3659
436
6301292687 SHAFT 1 806EL-510-316 213A1094
437
6301292281 PLATE 1 806EL-510-317 211D9802
438
6301283876 GRIP 1 806EL-510-318 226D0110
439
6301283883 COLLAR 1 806EL-510-319 216A1161
440
6301294810 SPRING,COMP 1 806EL-510-320 222M1342
441
6301294759 BRACKET 1 806EL-510-321 211F8702
443
6301294742 BRACKET 1 806EL-510-323 211F8701
451
6300007541 BOLT,HEX-SCT 4 M3X14 221A0009
452
6300007572 BOLT,HEX-SCT 3 M3X25 221A0012
453
6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
454
6300007633 BOLT,HEX-SCT 1 M4X12 221A0018
455
6300007657 BOLT,HEX-SCT 4 M4X16 221A0020
456
6300007671 BOLT,HEX-SCT 1 M4X25 221A0022
457
6300007688 BOLT,HEX-SCT 3 M4X30 221A0023
458
6300007756 BOLT,HEX-SCT 5 M5X12 221A0030
459
6300007763 BOLT,HEX-SCT 6 M5X16 221A0031
460
6300007770 BOLT,HEX-SCT 1 M5X20 221A0032
EL-5
MODEL FP-G200L
1012-003
68
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
461 6300007800 BOLT,HEX-SCT 4 M5X35 221A0035
462 6300007817 BOLT,HEX-SCT 2 M5X40 221A0036
463
6300858310 BOLT,HEX-SCT 8 M6X14 221A0240
464
4110420703 SCR PAN 3X8 4 M3X8 PAN 221E0499
465
4111409905 NUT HEX 3 8 M3 221F0079
466
4111410406 NUT HEX 4 3 M4 221F0104
471
4111412806 WASHER SPR 3 10 SW3 221H0281
472
4111413902 WASHER V 3X7X0.5 10 FW3 221H0312
473
4111412905 WASHER SPR 4 10 SW4 221H0284
474
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
475
6300010213 WASHER 2 BW4 221H0004
476
4111416705 WASHER SPR 5 12 SW5 221H0287
477
4111414107 WASHER V 5X10X1 11 FW5 221H0318
478
6300010220 WASHER 1 BW5 221H0005
479
4111413001 WASHER SPR 6 8 SW6 221H0289
480
4111414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
EL-5
