MODEL FP-G200L 0702-002 70 エレベータ部 ELEV A TOR SECTION Fig. EL-6 エレベータ駆動部２ Elevator Driving Section 2 See Fig.EL-1 Key No.33 See Fig.EL-1 Key No.17 572 571 . 561 . 570 569 . 555 . 568 566 . 552 . 570 569 . 557 . 570 569 . …
MEMO
MODEL FP-G200L
0702-002
70
エレベータ部
ELEVATOR SECTION

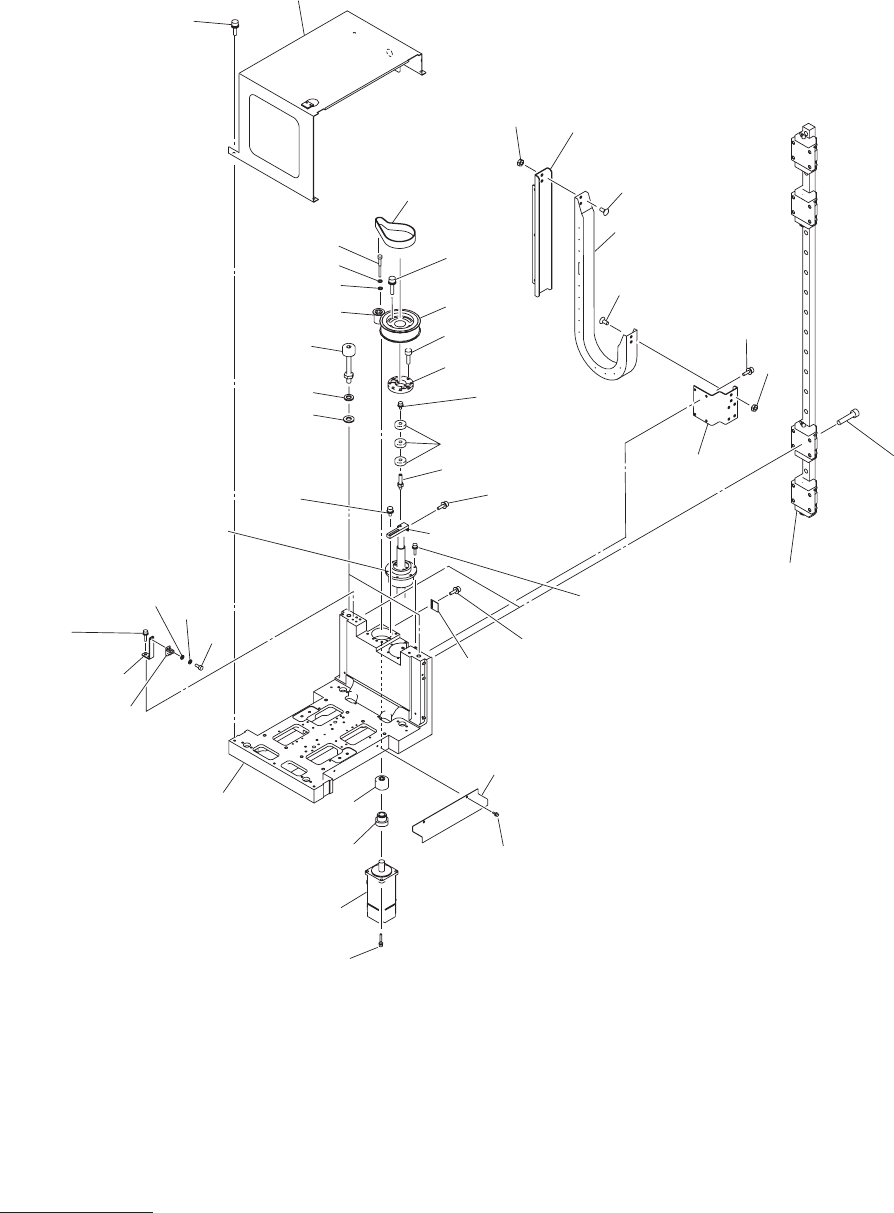

Fig. EL-6
エレベータ駆動部２
Elevator Driving Section 2
See Fig.EL-1
Key No.33
See Fig.EL-1
Key No.17
572
571
.
561
.
570
569
.
555
.
568
566
.
552
.
570
569
.
557
.
570
569
.
557
.
570
569
.
558
.
572
571
.
560
.
572
571
.
559
.
562
572
571
.
559
.
524
537
553
566
567
536
535
559
507
564
563
563
546
512
545
511
508
518
564
525
513
502
531
538
544
573
574
See Fig.EL-1
Key No.34
567
566
543
514
572
571
.
559
.
551
570
569
.
554
.
MODEL FP-G200L
1012-004
71
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
502 6301310244 BASE 1 806EL-510-002 210A2248
507 6301291550 ROTOR 1 806EL-510-007 213G0200
508
6301281902 BRACKET 1 806EL-510-008 211F8492
51
1 6301291628 BLOCK 1 806EL-510-011 211G3646
512 6301291635 SHAFT 1 806EL-510-012 213A1090
513
6301281964 SHAFT 1 806EL-510-013 213A1068
514
6301291642 BRACKET 1 806EL-510-014 211F8648
518
6301474878 BRACKET 1 806EL-510-018 211FB070
524
6301620565 COVER 1 806EL-510-324 211AC663
525
6301292267 COVER 1 806EL-510-325 211A8875
531
6301280622 MOTOR,AC-SERVO 1 -M02 806EL-510-201 4M150212
535
6301280660 PULLEY,TIMING 1 806EL-510-205 223Q0575
536
6301280677 PULLEY,TIMING 1 806EL-510-206 223Q0576
537
6301280684 BELT,TIMING 1 806EL-510-207 223L0274
538
6300960808 COUPLING 1 806EL-510-208 223C0165
543
6300690545 SENSOR,PHOTO 1 -B0202 806EL-510-213 23G10056
544
6301282213 BOLT 2 806EL-510-214 221E0305
545
6301129679 BEARING,RADIAL 3 806EL-510-215 222D0380
546
6301501413 MECH PARTS(CABLEVEYOR) 1 806EL-510-216 226J2305
551
6300007503 BOLT,HEX-SCT 2 M3X6 221A0005
552
6300007527 BOLT,HEX-SCT 2 M3X10 221A0007
553
6300007589 BOLT,HEX-SCT 4 M3X30 221A0013
554
6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
555
6300007633 BOLT,HEX-SCT 2 M4X12 221A0018
556
6300007640 BOLT,HEX-SCT 1 M4X14 221A0019
557
6300007657 BOLT,HEX-SCT 6 M4X16 221A0020
558
6300007664 BOLT,HEX-SCT 2 M4X20 221A0021
559
6300007763 BOLT,HEX-SCT 15 M5X16 221A0031
560
6300007770 BOLT,HEX-SCT 4 M5X20 221A0032
561
6300007794 BOLT,HEX-SCT 4 M5X30 221A0034
562
6300007909 BOLT,HEX-SCT 16 M6X25 221A0045
563
4110024307 SCR FLT 5X10 4 M5X10 FLT 221D0226
564 4111410604 NUT HEX 5 4 M5 221F0107
566
4111412806 WASHER SPR 3 8 SW3 221H0281
567
4111415807 WASHER F 3X6X0.5 6 FWS3 221H0338
568
4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
569
4111412905 WASHER SPR 4 12 SW4 221H0284
570
4111414008 WASHER V 4X9X0.8 12 FW4 221H0315
571
4111416705 WASHER SPR 5 19 SW5 221H0287
572
4111414107 WASHER V 5X10X1 19 FW5 221H0318
573
4111413209 WASHER SPR 10 2 SW10 221H0293
574
4111414701 WASHER V 10X21X2 2 FW10 221H0325
EL-6
