MYPro series speciﬁcation – MY300SX

PLACEMENT SPEED AND ACCURACY SYSTEM FEATURES

PLACEMENT SPEED AND ACCURACY – MY300SX-11/15

Rated speed

(1)

24 000 CPH

IPC 9850 chip net throughput

(2, 3)

20 000 CPH

IPC 9850 chip tact time

(3)

0.163 s

IPC 9850 chip repeatability 3 (X, Y, Theta)

(3)

30 μm, 1.8°

(6)

45 μm, 1.8°

IPC 9850 chip accuracy @ Cpk = 1.33 (X, Y, Theta)

(5)

50 μm, 2.6°

(6)

75 μm, 2.6°

IPC 9850 ﬁne pitch repeatability 3

(X, Y, Theta)

(4)

21 μm, 0.05°

IPC 9850 ﬁne pitch accuracy @ Cpk = 1.33 (X, Y, Theta)

(4, 5)

35 μm, 0.09°

SYSTEM FEATURES MY300SX

On-the-ﬂy mount order optimization

Vision autoteach with snap-to-grid

Automatic illumination settings

Intelligent feeder concept – Agilis

Automatic feeder and component recognition

On-the-ﬂy feeder loading

Dynamic feeder positions

Automatic board stretch compensation

Automatic conveyor width adjustment

Intelligent surface impact control

Tool collision avoidance

Multi-user, multi-tasking system software

Open software interfaces for factory integration

SQL database engine

Programmable light settings ﬁducial camera

The above speciﬁcation achieved with a machine conﬁguration including high precision mounthead (Midas),

high speed mounthead (HYDRA Z8), line scan vision system (LVS), inline conveyor T460 and 15 mm component

max height.

The IPC 9850 net throughput and accuracy numbers are obtained simultaneously, with the same machine settings.

The rated speed value is obtained under conditions optimized for speed.

(1) Depending on component and application.

(2) According to IPC 9850. Net throughput = (no of parts x 3600) / (board build time + board transfer time).

(3) According to IPC 9850 0402C veriﬁcation panel.

(4) According to IPC 9850 QFP64/QFP100 veriﬁcation panel.

(5) According to IPC 9850 Cpk 1.33 = 4σ + oset.

(6) Small chip settings, recommended for 0201 (0.6 x 0.3 mm) and below.

BOARD HANDLING

(1) Board train speciﬁcation: 90 x 50 mm (3.5” x 2”) board size, 1.6 mm (0.06”) min thickness. Max warpage 1 mm (0.04”).

(2) Edge clearance 5.5 mm (0.22”) if component taller than 6 mm (0.24”). 14.3 mm (0.56”) if taller than 19 mm (0.75”).

(3) Customized tall component capability 22 mm (0.86”) available.

(4) 15 mm (0.59”) with support pins.

FEEDER CAPACITY

FEEDER CAPACITY 8 MM TAPE

T460 T640

MY300SX-11 128 112

MY300SX-15 192 176

HIGH SPEED MOUNTHEAD – HYDRA Z8

Component range Chip (from 01005), SO28, SOT223, SOJ20, PLCC32, MELF,

SOD, TSOP

Component speciﬁcation Min: 0.4 x 0.2 mm (0.016” x 0.008”) (01005)

Max: 18.6 x 18.6 x 5.60 mm (0.73” x 0.73” x 0.22”) (PLCC44)

COMPONENT RANGE

HIGH PRECISION MOUNTHEAD – MIDAS

Component range Chip (from 03015), SOIC, PLCC, TSOP, QFP, BGA, ﬂip chip, odd-

shape, surface-mount connectors, through-hole components,

CSP, CCGA, DPAK, Alcap, Tantalum

Component speciﬁcation Min: 0.3 x 0.15 (0.012” x 0.006”) (03015)

Max: 140 x 73 x 15 mm (5.51” x 2.87” x 0.59”)

(1) (3)

Max: component weight: 140 g

(2)

(1) With 4K vision. Max component size with 2K vision: 140 x 56 x 15 mm (5.51” x 2.20” x 0.59”). Customized tall component capability 22 mm (0.86”) available.

(2) Depending on mounthead, mount tool, package, and production altitude.

(3) Components with diagonal larger than 58 mm must be presented in the same angle as placed.

ELECTRICAL VERIFIER (OPTIONAL)

Component range Resistor, capacitor, unipolar capacitor, diode (forward voltage,

reverse current), Zener diode (voltage drop), transistor (current

gain). Smallest chip size 1.0 x 0.5 mm (0.04” x 0.02”).

LINESCAN VISION SYSTEM - 2K RESOLUTION

COMPONENT TYPE FIELD

OF VIEW MIN

PITCH MIN LEAD WIDTH

Leaded components 63 mm (2.5”) 0.20 mm (8 mil) 0.10 mm (4 mil)

Bumped components 63 mm (2.5”) 0.25 mm (10 mil) 0.13 mm (5 mil)

LINESCAN VISION SYSTEM - 4K RESOLUTION

COMPONENT TYPE FIELD

OF VIEW MIN

PITCH MIN LEAD WIDTH

Leaded components 80 mm (3.1”) 0.10 mm (4 mil) 0.05 mm (2 mil)

Bumped components 80 mm (3.1”) 0.15 mm (6 mil) 0.08 mm (3 mil)

VISION CAPABILITY

INLINE CONVEYOR

T460 T640

Maximum board size 460 x 510 mm

(18” x 20”)

640 x 510 mm

(25” x 20”)

Minimum board size

(1)

70 x 50 mm

(2.7” x 2”)

70 x 50 mm

(2.7” x 2”)

Board thickness range 0.4¬–¬6.0 mm

(0.016”–¬0.24”)

0.4¬–¬6.0 mm

(0.016”–¬0.24”)

Board edge clearance top 3.2 mm (0.13”) 3.2 mm (0.13”)

Board edge clearance bottom

(2)

3.2 mm (0.13”) 3.2 mm (0.13”)

Top side clearance (max)

(3)

15 mm (0.59”) 15 mm (0.59”)

Bottom side clearance (max)

(4)

32 mm (1.25”) 32 mm (1.25”)

Maximum board weight 4 kg (8.8 lbs) 4 kg (8.8 lbs)

Board transfer height Conforms to SMEMA standard for

board transfer height.

Height adjustable from 880 to 975 mm

(3 4 .6” to 3 8 .4”).

Operation mode Inline, manual, inline odd-board,

left-to-right¬/¬right-to-left.

SOFTWARE MODULES (OPTIONAL)

Shared databases

Line mode

PCB ID (2D barcode)

Pre-pick inspection

Barcode software

PRM software

INSTALLATION REQUIREMENTS

Power requirements

Three phase AC 6.6 kVA (3 x 2.2 kVA)

Power consumption 1.5 kW (average)

Voltages 3 x 200, 210, 220, 230, 240,

250+/-¬10%, Y or Delta

Air supply No air required

Noise 70 dBA

Air temperature +18 to +35¬°C (65 to 95¬°F)

Air humidity <¬95% RH non condensing

SOFTWARE MISCELLANEOUS

MACHINE WEIGHT

(1)

MY300SX-11 1 600 kg (3 500 lbs)

MY300SX-15 2 200 kg (4 850 lbs)

OFFLINE SOFTWARE TOOLS (OPTIONAL)

Data preparation – MYCenter

Optimization and scheduling – MYPlan

Inventory management and kitting – MYCenter

Traceability – MYTrace

Performance monitoring - MYCenter Analysis

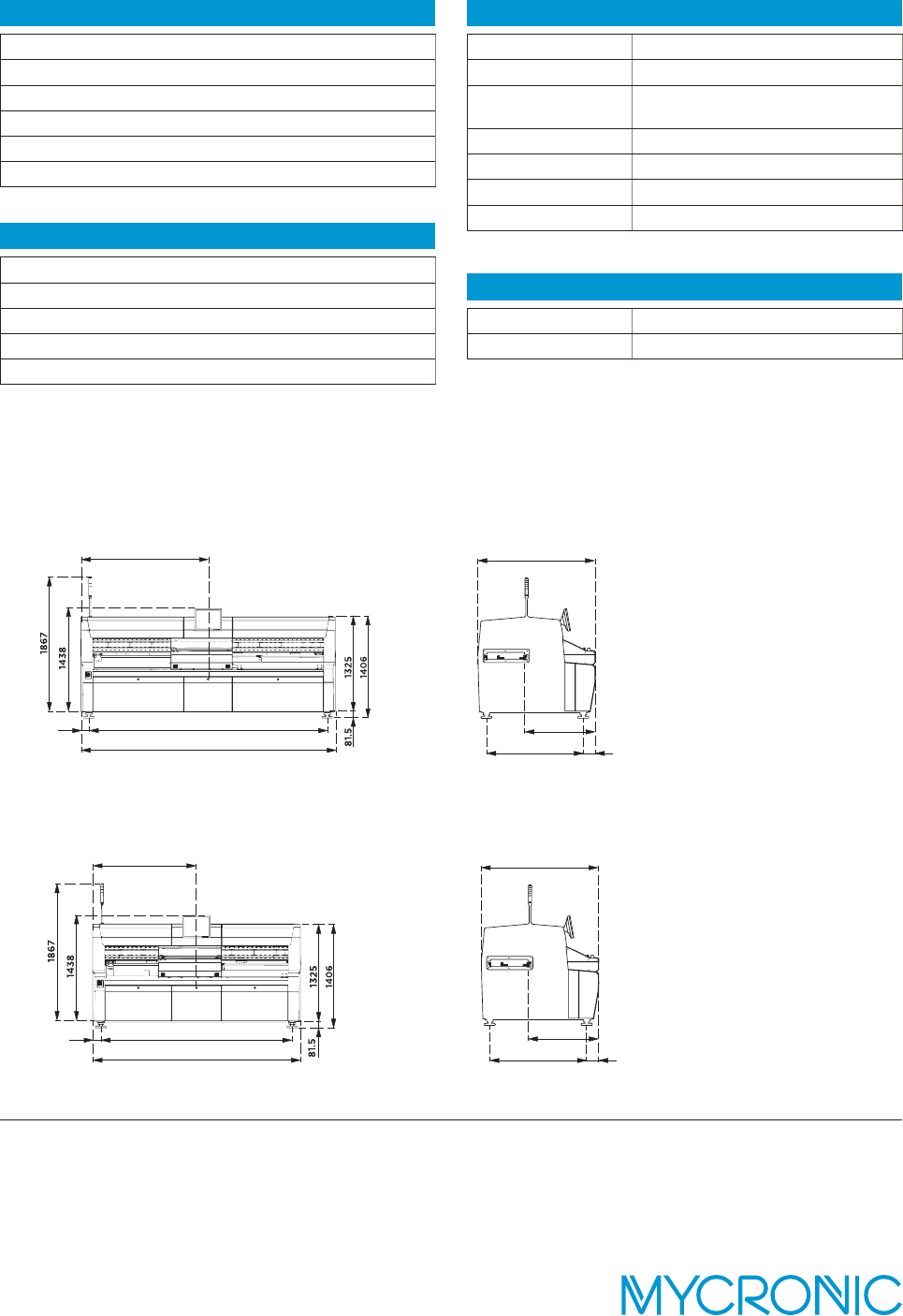

DIMENSIONS

MY300SX-15

in mm.

3530

113

3304

1765

1632

980

±5

1346

167

1632

980

±5

1346

167

2809

113

2584

1404,5

(1) Total machine weight excluding magazines.

MY300SX-11

AB59829 Rev 0002 / February 2020

Speciﬁcations are subject to change without notice.
