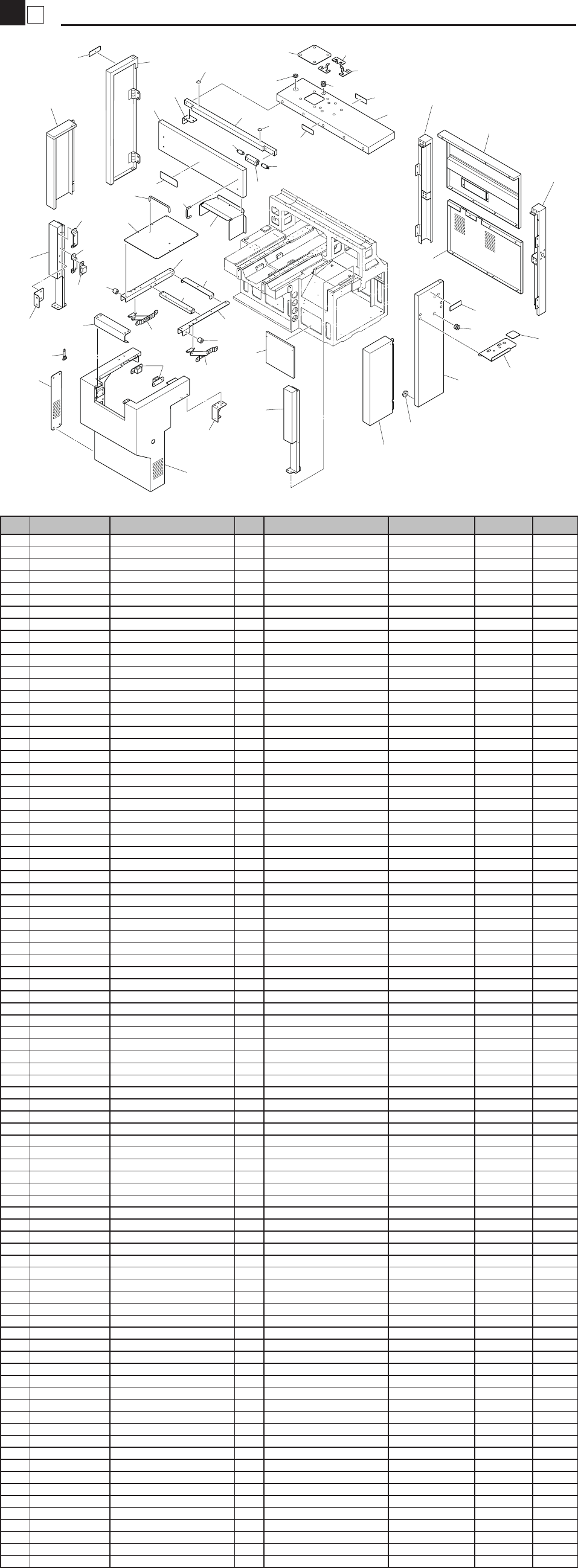

1 2 Cover Cover LC2-000-0705 34 30 32 31 41 37 37 40, (50) 45, (52) 46 48 48 27 47 42 43 44, (51) 37 35 2 3 1 37 29 15 13 17 18 10 53 39, (49) 5 12 11 6 14 22 27 7 9 19 28 20 23 26 24 25 36 21 8 16 4 33 38 28 54 From the…
1
1
Base
Base
LC2-000-0705
1
8
18
19
20
22
23
24
25
29
30
26
28
27
15
16
17
21
10
31
37
OLD
40
39
42
38
41
47
43
32
9
45
44
36
48
33
35
34
46
2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LC2-M1101-00X BASE 1
1-1 LC2-M1101-01X BASE 1 (2003/10/16) N300030 OK
2 LC2-M1110-00X LEVELING BOLT ASSY. 4
3
4
5
6
7
8 LC2-M1121-00X PARALLEL PIN 1
Delete (2003/11/12) N3X0012
9 KGA-M4126-00X GUIDE RAIL L ASSY 1
9-1 KGA-M4126-01X GUIDE RAIL L ASSY 1 (2002/10/7) M200012 NG
10 KGA-M4127-00X GUIDE RAIL R ASSY 1
10-1 KGA-M4127-01X GUIDE RAIL R ASSY 1 (2002/10/7) M200012 NG
15 LC2-M1106-00X PLATE, FAN 1
16 LC2-M110A-01X PLATE-R 1
17
LC2-M110B-00X PLATE-L 1
18
LC2-M110D-00X PLATE, TRANS 1
19 LC2-M110E-00X COVER,PS. 1
19-1 LC2-M110E-01X COVER,PS. 1 (2002/8/20) M280046 OK
20 LC2-M1114-01X STAY, AIR 1
21 LC2-M11A1-00X PLATE, CONTOROL
1
22
LC2-M11AD-00X CABLE, CLAMP
1
23 LC2-M110G-00X COVER,C2 1
23-1 LC2-M110G-01X COVER,C2 1 (2002/10/2) N290048 NG
24
LC2-M132P-00X COVER, FH 1
25
LC2-M1118-00X AIR SET 1
26
KG7-M8596-00X PRESSURE GAUGE
1
27
KG7-M8512-00X JOINT
1
28
KG7-M8513-00X JOINT
1
29
$SLY10-03 JOINT
1
30
KGA-M11B0-00X AIR TAG
1
31 LC2-M130B-00X COVER, 6
1
32 LC2-M130R-00X STAY,C1 1
32-1 LC2-M130R-01X STAY,C1 1 From the 26th of them (2002/9/27) N290041 NG
33
LC2-M130T-00X STAY, CU
1
34 LC2-M130U-00X STAY,C4 1
34-1 LC2-M130U-01X STAY,C4 1 From the 26th of them (2002/9/27) N290041 NG
35
LC2-M130V-00X STAY, CL 1
36
LC2-M130W-00X STAY, CFF 1
37 LC2-M131F-01X GUIDE,TAPE 1
37-1 LC2-M131F-02X GUIDE,TAPE 1 From the 26th of them (2002/10/7) N290053 NG
38 LC2-M131G-00X STAY, COVER F
1
39 LC2-M131H-00X STAY COVER R 1
39-1 LC2-M131H-01X STAY,COVER R 1 (2002/8/8) M270121 OK
40 LC2-M132B-00X STAY,C2 1
40-1 LC2-M132B-01X STAY,C2 1 From the 26th of them (2002/8/8) M270121 NG
41 LC2-M132C-00X STAY,CB1 1
41-1 LC2-M132C-01X STAY,CB1 1 From the 26th of them (2002/8/8) M270121 NG
42 LC2-M132D-00X STAY,CB1L 1
42-1 LC2-M132D-01X STAY,CB1L 1 From the 26th of them (2002/8/8) M270121 NG
43 LC2-M132E-00X STAY,C2L 1
43-1 LC2-M132E-01X STAY,C2L 1 From the 26th of them (2002/8/8) M270121 NG
44
LC2-M132F-00X STAY, CB2 1
45 LC2-M132G-00X STAY,CB3 1
45-1 LC2-M132G-00X STAY,CB3 1 (2002/8/8) M270121 OK
46 LC2-M132H-00X STAY,CB3L 1
46-1 LC2-M132H-00X STAY,CB3L 1 (2002/8/8) M270121 OK
47
LC2-M132M-00X STAY, CB7
1
48 LC2-M132N-00X STAY,CFR 1
48-1 LC2-M132N-01X STAY,CFR 1 From the 26th of them (2002/8/8) M270121 NG
1
2
Cover
Cover
LC2-000-0705
34
30
32
31
41
37
37
40, (50)
45, (52)
46
48
48
27
47
42
43
44, (51)
37
35
2
3
1
37
29
15
13
17
18
10
53
39, (49)
5
12
11
6
14
22
27
7
9
19
28
20
23
26
24
25
36
21
8
16
4
33
38
28
54
From the 26th of them
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LC2-M1302-00X FRAME,FRONT 1
1-2 LC2-M1302-01X FRAME,FRONT 1 (2002/8/8) M270121 NG
2 LC2-M1303-00X FRAME,REAR 1
2-1 LC2-M1303-01X FRAME,REAR 1 (2002/8/8) M270121 NG
3 LC2-M1304-00X COVER,SIDE U 1
3-1 LC2-M1304-01X COVER,SIDE U 1 (2003/9/9) N390011 NG
4 LC2-M1305-00X COVER, SIDE L 1
5 LC2-M1307-00X COVER,2 1
5-1 LC2-M1307-01X COVER,2 1 (2002/9/27) N290041 NG
6 LC2-M130A-00X COVER,5 1
6-1 LC2-M130A-01X COVER,5 1 (2002/9/27) N290041 NG
7 LC2-M130D-00X COVER, 8 1
8 LC2-M130E-00X STAND,F 1
8-1 LC2-M130E-02X STAND,F 1 (2002/9/27) N290041 NG
9 LC2-M130F-00X STAND,R 1
9-1 LC2-M130F-01X STAND,R 1 (2002/9/27) N290041 NG
10 LC2-M130G-00X PANEL,INSIDE F 1
10-1 LC2-M130G-01X PANEL,INSIDE F 1 (2002/8/20) M280046 NG
11 LC2-M130H-00X PANEL, INSIDE R 1
12 LC2-M130J-00X COVER,9 1
12-1 LC2-M130J-01X COVER,9 1 (2003/9/9) N390011 NG
13 LC2-M130N-00X WASHER 4
14 LC2-M130Y-00X STAY, SENSOR 1
15 LC2-M1321-00X PLATE, KEYBOARD 1
16 LG0-M110P-00X PAD, MOUSE 1
17 LC2-M132J-00X STAY,CRT 3
17-1 LC2-M132J-01X STAY,CRT 1 (2002/10/18) N200024 NG
18
LC2-M132L-00X STAY, CRT (2)
2
19 LC2-M1331-00X FRAME,A 1
19-1 LC2-M1331-01X FRAME,A 1 (2002/9/27) N290041 NG
20 LC2-M1332-00X COVER,A 1
20-1 LC2-M1332-02X COVER,A 1 (2002/10/2) N290048 NG
20-2 LC2-M1332-03X COVER,A 1 (2002/12/4) N200047 NG
21 LC2-M1335-00X STAY, FRAME 2
22
LC2-M1336-00X BRACKET, MG.
2
23
LC2-M133G-00X GRIP
2
24 LC2-M1338-00X HINGE,1 2
24-1 LC2-M1338-10X HINGE,1 2 (2003/3/19) N310024 OK
25
LC2-M1339-00X DAMPER, 1
2
26
LC2-M133A-00X DAMPER, 2
2
27
LC2-M133B-00X MG. CATCH
4
28
K93-M1392-00X SPACER (TM-180-303)
2
29 LC2-M131P-00X GROMMET 1
29-1 LC2-M132K-00X GROMMET 1 (2002/9/27) N290041 OK
30
KV7-M1350-00X CAP, PATLIGHT
1
31 KH1-M13A9-00X BUSH 1
32 LC2-M1301-00X FRAME,TOP 1
32-1 LC2-M1301-01X FRAME,TOP 1 (2002/9/27) N290041 NG
32-2 LC2-M1301-02X FRAME,TOP 1 (2002/12/4) N200047 NG
33 LC2-M1306-00X COVER,1 1
33-1 LC2-M1306-02X COVER,1 1 (2002/9/27) N290041 NG
34 LC2-M1308-00X COVER,3 1
34-1 LC2-M1308-02X COVER,3 1 (2002/10/18) N200024 NG
35
LC2-M1309-00X COVER, 4
1
36
LC2-M133C-01X COVER, FEEDER (IM)
1
37 LC2-M13D1-00X SEAL 1
4
38 LC2-M13D2-00X SEAL 2 1
39 LC2-M130C-10X COVER,7 1
39-1 LC2-M130C-13X COVER,7 1 (2002/10/7) N200001 NG
39-2 LC2-M130C-14X COVER,7 1 (2003/9/9) N390011 NG
40 LC2-M1313-10X COVER,TOP 1 1
40-1 LC2-M1313-12X COVER,TOP 2 1 (2002/10/7) N200001 NG
41 LC2-M1315-00X GRIP 1
41-1 LC2-M1315-10X GRIP 1 (2002/12/4) N200047 OK
41
LC2-M1315-10X GRIP
1
42
LC2-M1317-00X SLIDE RAIL L
1
43
LC2-M1318-00X SLIDE RAIL R
1
44 LC2-M1319-10X STAY,1 1
44-1 LC2-M1319-11X STAY,1 1 (2002/10/7) N200001 NG
45 LC2-M131A-10X STAY,2 1
45-1 LC2-M131A-11X STAY,2 1 (2002/10/7) N200001 NG
46 LC2-M131B-00X STAY, 3 1
47
LC2-M131C-00X STAY, 4
1
48
LC2-M131N-00X SPACER
2
49 LC2-M130C-00X COVER,7 1
49-1 LC2-M130C-03X COVER,7 1 (2002/10/7) N200001 NG
49-2 LC2-M130C-04X COVER,7 1 (2003/9/9) N390011 NG
50 LC2-M1313-00X COVER,TOP 1 1
50-1 LC2-M1313-02X COVER,TOP 1 1 (2002/10/7) N200001 NG
51 LC2-M1319-00X STAY,1 1
51-1 LC2-M1319-01X STAY,1 1 (2002/10/7) N200001 NG
52 LC2-M131A-00X STAY,2 1
52-1 LC2-M131A-01X STAY,2 1 (2002/10/7) N200001 NG
53 LC2-M130B-00X COVER,6 1
54 KV7-M8880-00X BRUSH,FEEDER 1 (2003/3/5) N330003
54-1 KV7-M8880-20X BRUSH,FEEDER 1 (2005/6/30) MB60151 OK
1
3
X-Axis
Moving-axis
LC2-000-0705
10
25
13
12
24
18
8
22
19
15
16
16
1
17
23
26
4
2
27
OLD
28
3
6
5
14
7
27
9
11
28
20
18
2
27
28
29
29
OLD
23
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LC2-M2201-00X HOLDER,MOTOR 1
1-1 LC2-M2201-01X HOLDER,MOTOR 1 (2002/8/5) M270114 OK
2 LC2-M2202-00X SLIDER 1
2-1 LC2-M2202-01X SLIDER 1 (2002/9/27) N290027 NG
2-2
LC2-M2202-02X SLIDER
1
(2002/12/4)
N2X0014 NG
3 LC2-M2203-00X HOLDER, NUT 1
4 LC2-M2204-00X COUPLING 1
5 LC2-M2206-00X STOPPER 2
6 LC2-M2207-00X COLLAR 4
7 LC2-M2209-00X
PLATE, STOPPER
1
8 LC2-M220A-00X HOLDER, BRG X AXIS 1
9 LC2-M220C-00X DOG, 2ND LIMIT 1
10 LC2-M220F-00X HOUSING, BRG 1
11 LC2-M220G-00X DOG, ORG. 1
12 LC2-M220H-00X TAPER PIN 2
12-1 LC2-M220H-01X TAPER PIN 2 (2002/8/5) M270114 OK
13 LC2-M220J-00X WASHER, M6 4
14 LC2-M220K-00X WASHER, M5 16
15 LC2-M2271-00X SCREW, BALL X AXIS 1
16 LC2-M2276-00X LM.GUIDE X 1
16-1 LC2-M2276-01X LM.GUIDE X 1 (2002/9/27) N290027 OK
17
LC2-M2605-00X DOG, 2ND LIMIT
1
18 LC2-M2606-00X BRCKET,SENSOR 1
18-1 LC2-M2205-00X BRACKET,SENSOR 1 (2002/12/4) N2X0014 NG
19 LC2-M260K-00X TAPER PIN 2
19-1 LC2-M260K-01X TAPER PIN 2 (2002/8/5) M270114 OK
20 LC2-M260L-00X TAPER PIN 2
20-1 LC2-M260L-01X TAPER PIN 2 (2002/8/5) M270114 OK
22
99009-10400 CIRCLIP :
1
23
KV7-M2604-00X SUPPORT UNIT
1
24
LC2-M653L-00X SENSOR 8, ASSY
1
25
LC2-M653M-00X SENSOR 9, ASSY
1
26
90K61-111503 AC SERVO MOTOR
1
27 LC2-M2211-00X PLATE,RAIL 2
27-1 LC2-M2211-01X PLATE,RAIL 2 (2002/12/4) N2X0012 NG
28 LC2-M2212-00X PLATE,RAIL GUIDE 4
28-1 LC2-M2212-01X PLATE,RAIL GUIDE 4 (2002/12/4) N2X0012 NG
29 LC2-M220L-00X CLAMP STAY 1
29-1 LC2-M220L-01X CLAMP STAY 1 (2002/8/8) M280041 OK
29-2 LC2-M220L-02X CLAMP STAY 1 (2003/1/13) N310008 NG
